VINGLI Twin Daybed with Trundle Bed, LED Light, and Charging Station User Manual

1. Introduction

Thank you for choosing the VINGLI Twin Daybed with Trundle Bed. This versatile furniture piece is designed to provide comfortable seating and sleeping solutions, featuring an integrated LED light system and a convenient charging station. This manual contains important information regarding the assembly, operation, and maintenance of your daybed. Please read it thoroughly before assembly and retain it for future reference.

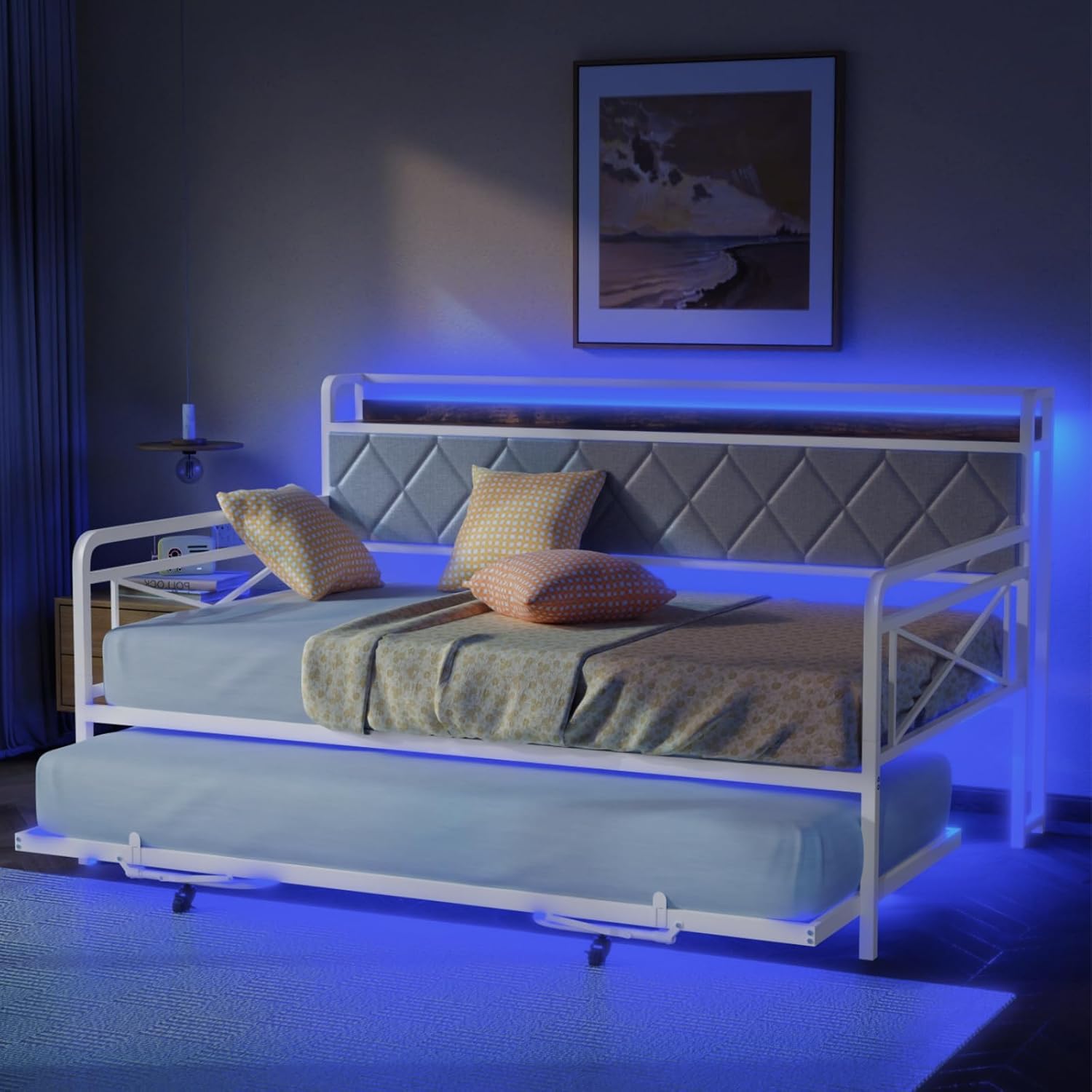

Figure 1: VINGLI Twin Daybed with Trundle Bed

2. Safety Information

Please observe the following safety precautions to prevent injury and damage to the product:

• Read all instructions: Ensure you understand all assembly steps before beginning.
• Two-person assembly recommended: For safety and ease, assembly should be performed by two adults.
• Keep children and pets away: Small parts can be a choking hazard.
• Use on a level surface: Assemble and use the daybed on a flat, stable surface.
• Do not overtighten screws: Tighten all fasteners securely, but avoid overtightening to prevent stripping or damage.
• Regularly check connections: Periodically inspect all bolts and screws to ensure they remain tight.
• Weight capacity: Do not exceed the maximum weight capacity for the daybed (450 lbs) and trundle bed (350 lbs).
• Electrical safety: Ensure the charging station is connected to a properly grounded outlet. Do not overload the outlets.

3. Package Contents

Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact VINGLI customer service.

• Daybed Frame Components (Side rails, back panel, armrests)
• Trundle Bed Frame Components
• Headboard (Upholstered with storage shelf)
• Metal Slats for Daybed and Trundle
• Integrated Charging Station (2 USB ports, 2 AC outlets)
• LED Light Strip and Controller (Remote/App compatible)
• Hardware Pack (Screws, bolts, washers, Allen wrench)
• Assembly Instructions Manual

4. Setup and Assembly

Follow these steps carefully for proper assembly. It is recommended to lay out all components on a soft, clean surface to prevent scratches.

1. Unpack and Identify Parts: Remove all components from the packaging and identify them using the provided parts list.
2. Assemble Main Daybed Frame: Connect the side rails to the headboard and footboard using the provided hardware. Ensure all connections are finger-tight initially.
3. Install Metal Slats: Secure the metal slats onto the daybed frame. Ensure they are evenly spaced and firmly attached.
4. Assemble Trundle Bed Frame: Construct the trundle bed frame, attaching the lockable wheels.
5. Install Trundle Slats: Attach the slats to the trundle bed frame.
6. Integrate Charging Station: Insert the charging station into the designated slot on the headboard.
7. Attach LED Light Strip: Adhere the LED light strip to the designated area on the headboard. Connect it to the power source.
8. Final Tightening: Once all components are in place, fully tighten all screws and bolts. Do not overtighten.

Figure 2: Key features for assembly and stability

Figure 3: Daybed transformation from sofa to bed with trundle

5. Operating Instructions

5.1. Daybed and Trundle Bed Operation

• Using as a Sofa: Keep the trundle bed stored underneath the main daybed. The upholstered back and armrests provide a comfortable seating area.
• Extending the Trundle Bed: Gently pull the trundle bed out from under the main daybed. The lockable wheels allow for smooth movement.
• Locking the Trundle: Once the trundle is in the desired position, engage the locks on the wheels to prevent movement.
• Converting to a Larger Sleeping Area: The trundle bed can be lifted and locked into place to create a larger sleeping surface adjacent to the main daybed, effectively transforming it into a king-sized bed.

Figure 4: Daybed with trundle extended and LED lighting

5.2. LED Light System

The integrated RGB LED light strip offers customizable ambiance for your room.

• Power On/Off: Use the provided remote control or the dedicated mobile application to turn the LED lights on or off.
• Color Selection: Choose from 6000 colors and various dynamic modes via the remote or app.
• Brightness Adjustment: Adjust the light intensity to your preference.
• Timing Function: Set timers for the lights to turn on or off automatically.

Figure 5: LED light system controls

5.3. Charging Station

The headboard features a built-in charging station for your electronic devices.

• AC Outlets: Two 125V/12A AC outlets are available for standard electrical devices.
• USB Ports: Two 5V/2A USB ports are provided for charging smartphones, tablets, and other USB-powered devices.
• Power Connection: Ensure the charging station's power cord is securely plugged into a wall outlet.

Figure 6: Integrated charging station

6. Maintenance

Proper care will extend the life and appearance of your daybed.

• Cleaning Upholstery: For general cleaning, vacuum the fabric regularly. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner according to its instructions, testing on an inconspicuous area first.
• Cleaning Metal Frame: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Hardware Check: Periodically check all bolts, screws, and connections to ensure they are tight. Retighten as necessary.
• LED Lights: The LED lights are designed for long-term use and generally require no maintenance. If issues arise, refer to the troubleshooting section.

7. Troubleshooting

If you encounter any issues with your VINGLI Twin Daybed, refer to the following common problems and solutions:

• Issue: LED lights are not turning on or responding to controls.
  Solution: Check if the power cord for the LED strip is securely plugged into an outlet. Ensure the remote control batteries are not depleted. Try using the mobile app if the remote is unresponsive.
• Issue: Charging station (USB ports/AC outlets) is not working.
  Solution: Verify that the charging station's power cord is fully plugged into a functional wall outlet. Test the outlet with another device. Ensure the devices you are trying to charge are compatible and their cables are working.
• Issue: Trundle bed is difficult to pull out or push in.
  Solution: Check if the wheels are locked. Unlock them before attempting to move the trundle. Ensure there are no obstructions under the daybed. Clean any debris from the wheels.
• Issue: Daybed feels unstable or wobbly.
  Solution: Recheck all assembly bolts and screws. Tighten any loose connections. Ensure the daybed is placed on a level surface.
• Issue: Noise (squeaking) from the bed frame.
  Solution: This often indicates loose connections. Systematically tighten all bolts and screws on the frame and slats.

8. Specifications

Figure 7: Product Dimensions and Weight Capacities

9. Warranty and Support

For warranty information or if you require assistance with your VINGLI Twin Daybed, please contact VINGLI customer service directly. Refer to your purchase documentation or the VINGLI official website for contact details.

Website: Visit the VINGLI Store on Amazon
