Salutrobusto Executive Office Chair User Manual

Important Safety Information

Please read all instructions carefully before assembly and use. Retain this manual for future reference.

• Weight Limit: Do not exceed the maximum weight limit of 500 lbs (227 kg).
• Assembly: Always follow the assembly instructions carefully. Ensure all parts are securely fastened before use.
• Moving Parts: Keep fingers and other body parts away from moving parts during adjustment to prevent injury.
• Surface: Always use the chair on stable, even surfaces to prevent tipping.
• Children: This product is intended for adult use. Keep children away from the chair during assembly and adjustment.

Product Overview

The Salutrobusto Executive Office Chair is designed for comfort and support during extended periods of sitting. It features an adjustable headrest, reclining backrest, retractable footrest, and durable construction.

Figure 1: Salutrobusto Executive Office Chair in a typical office environment.

Key Features:

• Adjustable Headrest: Provides customizable neck support.
• Reclining Backrest: Adjusts from 90° (upright) to 135° (reclined).
• Retractable Footrest: Offers leg support when reclining.
• Padded Armrests: Enhanced comfort for arms and shoulders.
• 360° Swivel: Allows for full range of motion.
• Smooth-Rolling Casters: Designed for quiet movement on various surfaces.
• High-Density Cushioning: Features pocket springs for lasting comfort.

Figure 2: Overview of the chair's ergonomic design and adjustable components.

Figure 3: Illustration of durability testing for various chair components.

Assembly Instructions

The chair is designed for easy assembly. It is recommended to assemble the chair on a soft, clean surface to prevent damage. All necessary tools are typically included.

Before You Begin:

• Unpack all components and verify against the parts list (not provided in this manual, refer to packaging).
• Ensure you have sufficient space for assembly.

Step-by-Step Assembly:

1. Attach Casters to Base: Insert the five casters into the holes at the end of each leg of the chair base. Push firmly until they click into place.
2. Insert Gas Lift: Place the gas lift cylinder into the center hole of the assembled chair base.
3. Assemble Seat Mechanism: Attach the seat mechanism to the underside of the seat cushion using the provided screws. Ensure the "FRONT" label on the mechanism faces the front of the seat.
4. Attach Armrests: Secure the armrests to the sides of the seat cushion using the designated screws. Do not overtighten initially.
5. Connect Backrest to Seat: Align the backrest with the seat and attach it using the remaining screws. Tighten all screws for the armrests and backrest securely.
6. Place Seat Assembly onto Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring it is centered and stable.
7. Attach Headrest: Slide the adjustable headrest into the designated slots at the top of the backrest.
8. Install Footrest: Attach the retractable footrest assembly to the underside of the seat as per the instructions provided with the footrest components.

After assembly, sit on the chair to ensure the gas lift is properly seated and all connections are secure.

Operating Instructions

Familiarize yourself with the chair's adjustment mechanisms to optimize your comfort and support.

1. Seat Height Adjustment

Figure 4: Levers for seat height and backrest recline adjustments.

• To Raise: While standing, pull the lever located on the right side of the seat upwards. The seat will rise. Release the lever at the desired height.
• To Lower: While seated, pull the lever on the right side of the seat upwards. The seat will lower. Release the lever at the desired height.

2. Backrest Recline and Lock

• To Recline: Pull the lever located on the left side of the seat upwards. Lean back to the desired angle (between 90° and 135°). Release the lever to lock the backrest in position.
• To Return Upright: While seated, pull the recline lever upwards and lean forward slightly. The backrest will return to its upright position. Release the lever to lock.

3. Adjustable Headrest

Figure 5: The headrest can be adjusted vertically by 3.9 inches to suit user height.

• To Adjust: Grip the headrest firmly and pull it upwards or push it downwards to achieve your preferred height. It will click into place at various positions.

4. Retractable Footrest

Figure 6: The footrest extended, providing leg support for a reclined position.

• To Extend: Pull the footrest handle outwards from underneath the seat. Unfold the footrest pad.
• To Retract: Fold the footrest pad back and push the entire assembly inwards until it is fully stored under the seat.

5. Swivel Function

• The chair seat can rotate 360 degrees. Simply turn the chair in the desired direction.

Maintenance

Regular maintenance helps prolong the life and appearance of your office chair.

• Cleaning Upholstery:
  • Wipe the faux leather upholstery with a soft, damp cloth.
  • For stubborn stains, use a mild soap solution and wipe clean immediately. Avoid harsh chemicals or abrasive cleaners.
  • Dry thoroughly with a clean, dry cloth.
• Caster Care: Periodically check the casters for accumulated hair or debris. Clean them to ensure smooth and silent movement.
• Hardware Check: Every 3-6 months, inspect all screws and bolts to ensure they are tight. Retighten if necessary to maintain stability.
• Moving Parts: Do not lubricate the gas lift or other internal mechanisms unless specifically instructed by the manufacturer.

Troubleshooting

If you encounter issues with your chair, refer to the following common problems and solutions.

Specifications

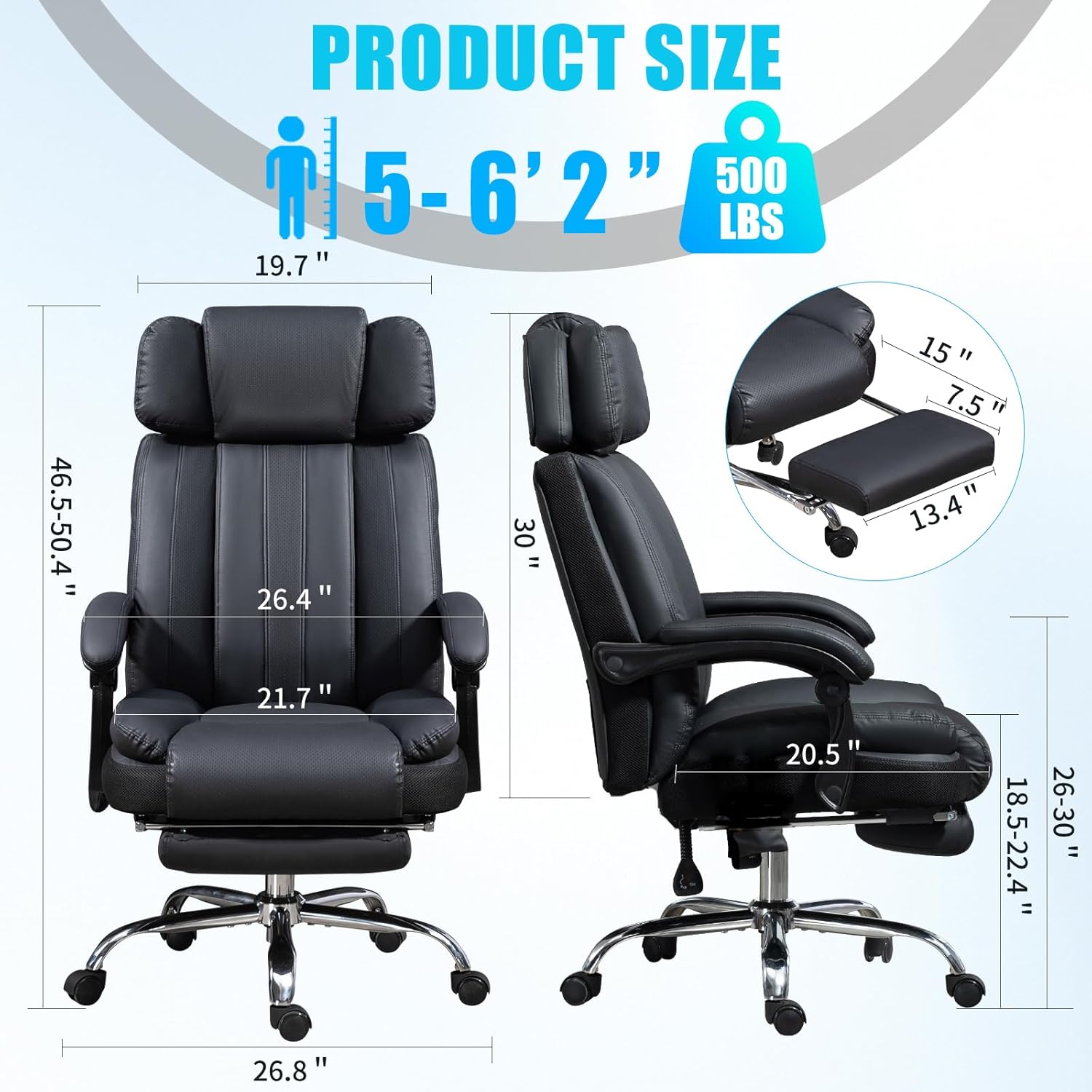

Figure 7: Detailed product dimensions and recommended user height range (5' - 6'2").

Warranty and Support

Salutrobusto is committed to providing high-quality products and excellent customer service.

• Warranty: This product comes with a 12-month parts replacement policy from the date of purchase. This warranty covers manufacturing defects and component failures under normal use.
• Customer Support: For any questions, concerns, or warranty claims, please contact Salutrobusto customer service. Our team is available to assist you.
• Contact Information: Please refer to your purchase documentation or the Salutrobusto official website for the most current contact details.
