Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Tusk Soft Upper Doors Set. Designed for Can-Am Maverick Trail 2018-2026 2-Seat UTVs, these doors offer protection from trail elements while maintaining comfort and airflow. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Safety Information
- Always ensure all components are securely fastened before operating your UTV.
- Regularly inspect doors for wear, damage, or loose connections. Replace or repair as necessary.
- Do not obstruct your view while driving. Ensure clear visibility through windows.
- Exercise caution when operating the UTV in extreme weather conditions, even with doors installed.
What's in the Box
Your Tusk Soft Upper Doors Set includes the following components:
- 2 x Soft Side Door Covers (Left and Right)
- All necessary mounting hardware
Image: The complete set of Tusk Soft Upper Doors, ready for installation.
Setup and Installation
The Tusk Soft Upper Doors are designed for a custom fit on your Can-Am Maverick Trail. Installation requires minimal tools.
- Preparation: Ensure your UTV is parked on a level surface and the engine is off. Gather necessary tools (e.g., drill, appropriate bits, wrenches).
- Roll Cage Fitment: The doors are designed to fit directly into the channel of the Can-Am roll cage. Position the upper door frame to align with the roll cage.
- Factory Door Frame Mounting: The soft upper doors mount to the factory door frame. This process requires drilling into the factory door skin to secure the attachment points. Carefully mark and drill holes as per the included hardware instructions.
- Secure Attachment: Attach the doors quickly and securely to the existing door frames and roll cage using the provided hardware. Ensure all straps and fasteners are tight to prevent flapping during rides.
Image: Demonstrates the precise fit of the soft upper door to the UTV's roll cage and factory door frame.
Video: An official Tusk video demonstrating the installation process of the soft upper doors on a Can-Am UTV. This video provides a visual guide to complement the written instructions.
Operating Instructions
The Tusk Soft Upper Doors are designed to enhance your riding experience in various conditions.
- Weather Protection: The durable textile fabric and clear vinyl windows shield riders from wind, rain, and other trail elements.
- Ventilation: Utilize the integrated zipper windows for adjustable airflow and comfort. Open or close them as needed to regulate cabin temperature.
- Window Retention: When windows are rolled down, use the hook-and-loop holders to secure them in place, preventing flapping.
- Quick Removal: The doors feature an integrated quick-release design, allowing sections to be easily removed when not needed.
Image: A UTV equipped with Tusk Soft Upper Doors, showcasing their ability to provide protection while allowing for ventilation.
Image: Close-up view of a hand operating the clear vinyl window, highlighting the ease of use for ventilation.

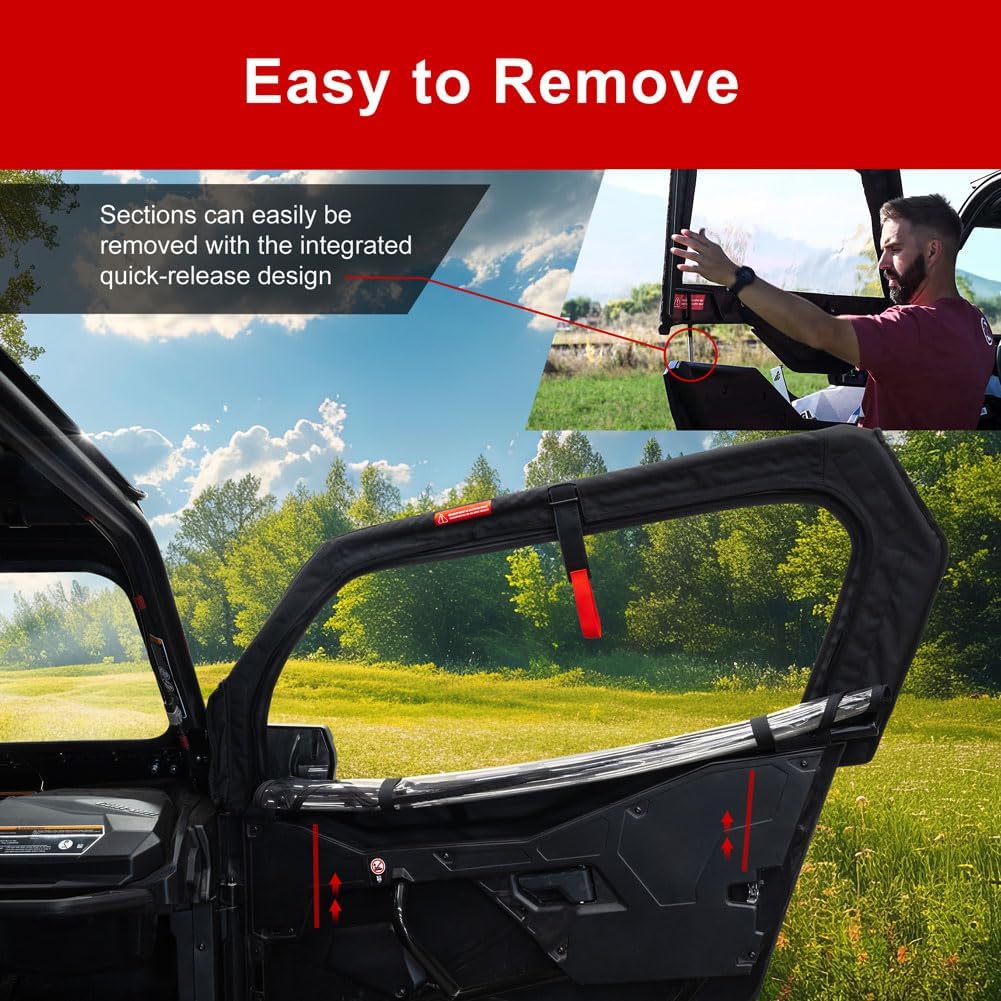

Image: Illustrates the simple process of removing door sections using the quick-release mechanism.
Maintenance
Proper maintenance will extend the life and appearance of your Tusk Soft Upper Doors.
- Cleaning: Clean the textile fabric with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material.
- Window Care: Clean clear vinyl windows with a soft cloth and a plastic-safe cleaner. Do not use ammonia-based cleaners or scrub vigorously, as this can cause scratching or hazing.
- Inspection: Periodically check all zippers, hook-and-loop fasteners, and mounting points for wear or damage. Ensure the powder-coated steel frames are free from rust or bends.
- Storage: If removing doors for extended periods, clean them thoroughly and store them in a dry, cool place away from direct sunlight to prevent material degradation.
Image: Details of the door's construction, including the retention strap and steel frames, which are designed for durability and ease of maintenance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not fit correctly or are loose. | Incorrect installation; loose fasteners. | Review the installation steps. Ensure all mounting hardware is tightened securely. |
| Windows are difficult to zip or unzip. | Dirt or debris in zipper; zipper misalignment. | Clean zippers with a small brush. Apply a silicone-based lubricant if needed. Ensure fabric is not caught. |
| Clear vinyl windows appear cloudy or scratched. | Improper cleaning; exposure to harsh chemicals. | Clean with a soft cloth and plastic-safe cleaner. Avoid abrasive materials. Minor scratches may be polished with specialized vinyl polish. |
| Doors flap excessively during operation. | Loose attachment points; retention straps not secured. | Verify all mounting points are tight. Ensure hook-and-loop retention straps are properly fastened to the roll cage. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 2022470007 |
| Compatibility | Can-Am Maverick Trail 2018-2026 (2-Seat) |
| Material (Exterior) | Durable Textile Fabric (Nylon) |
| Window Material | Clear Vinyl |
| Frame Construction | Powder-Coated Steel |
| Temperature Resistance | Tested to resist cracking at -15° F |
| Item Weight | 67.3 pounds |
| Product Dimensions | 51 x 32 x 8 inches |
Warranty and Support
Tusk products are manufactured to high standards. For specific warranty details or technical support, please refer to the official Tusk Powersports website or contact their customer service directly.
You can visit the Tusk Powersports store for more information: Tusk Powersports Store
