Eureka Aspire Nova RO UV 2X Water Purifier Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your Eureka Aspire Nova RO UV 2X 6.2 L Gravity Based Water Purifier. Please read these instructions carefully before using the appliance to ensure safe and efficient operation. Retain this manual for future reference.

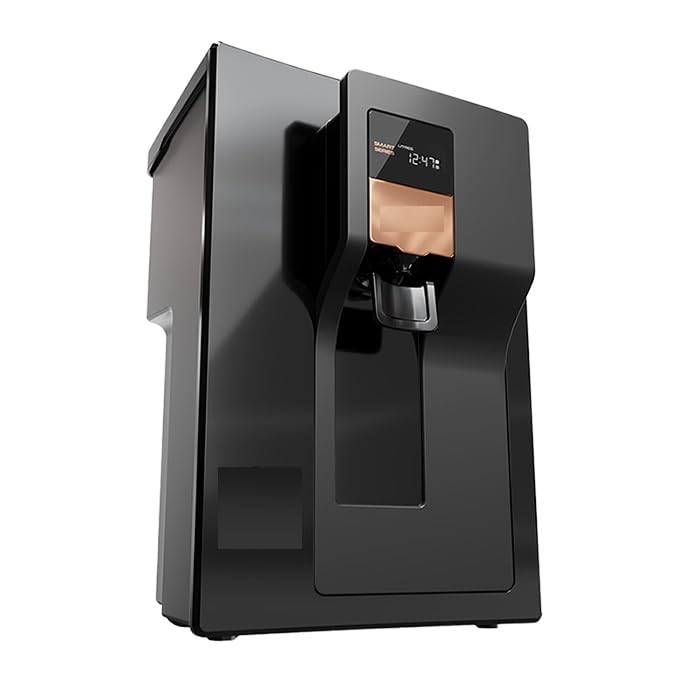

Figure 1: Eureka Aspire Nova RO UV 2X Water Purifier. This image displays the front view of the water purifier, highlighting its compact design and integrated display.

2. Key Features

• Advanced Purification: Features 10-stage purification with Nanopore 2X filters, including RO, UV, and Active Copper technology.
• Gravity Based Operation: Utilizes gravity for purification, ensuring consistent water flow.
• Large Capacity: 6.2 liters storage capacity to meet daily hydration needs.
• Long Filter Life: Filters are designed to last up to 2 years or 12,000 liters under standard conditions (TDS ≤ 1000 ppm with NaCl).
• Water Saving RO Technology: Advanced filter design ensures over 40% water recovery and faster filtration rates.
• 5th Gen UV LED: Provides instant purified water without wait time and is mercury-free.
• Active Copper Technology: Infuses copper, calcium, and magnesium as per BIS norms.
• Mega Sediment Filter: An additional filter included to remove fine dust, dirt, and mud, extending the life of internal filters.
• Versatile Water Source Compatibility: Suitable for municipal, borewell, or tanker water (TDS Max: 2000 mg/L).

Figure 2: Stainless Steel Tank. This image illustrates the stainless steel construction of the water storage tank, emphasizing its anti-corrosive, durable, and superior SS Grade 304 qualities for keeping water fresh.

Figure 3: Nanopore Filter Technology. This image visually represents the Nanopore filter, highlighting its effectiveness against microplastics, pesticides, and industrial waste like lead and mercury.

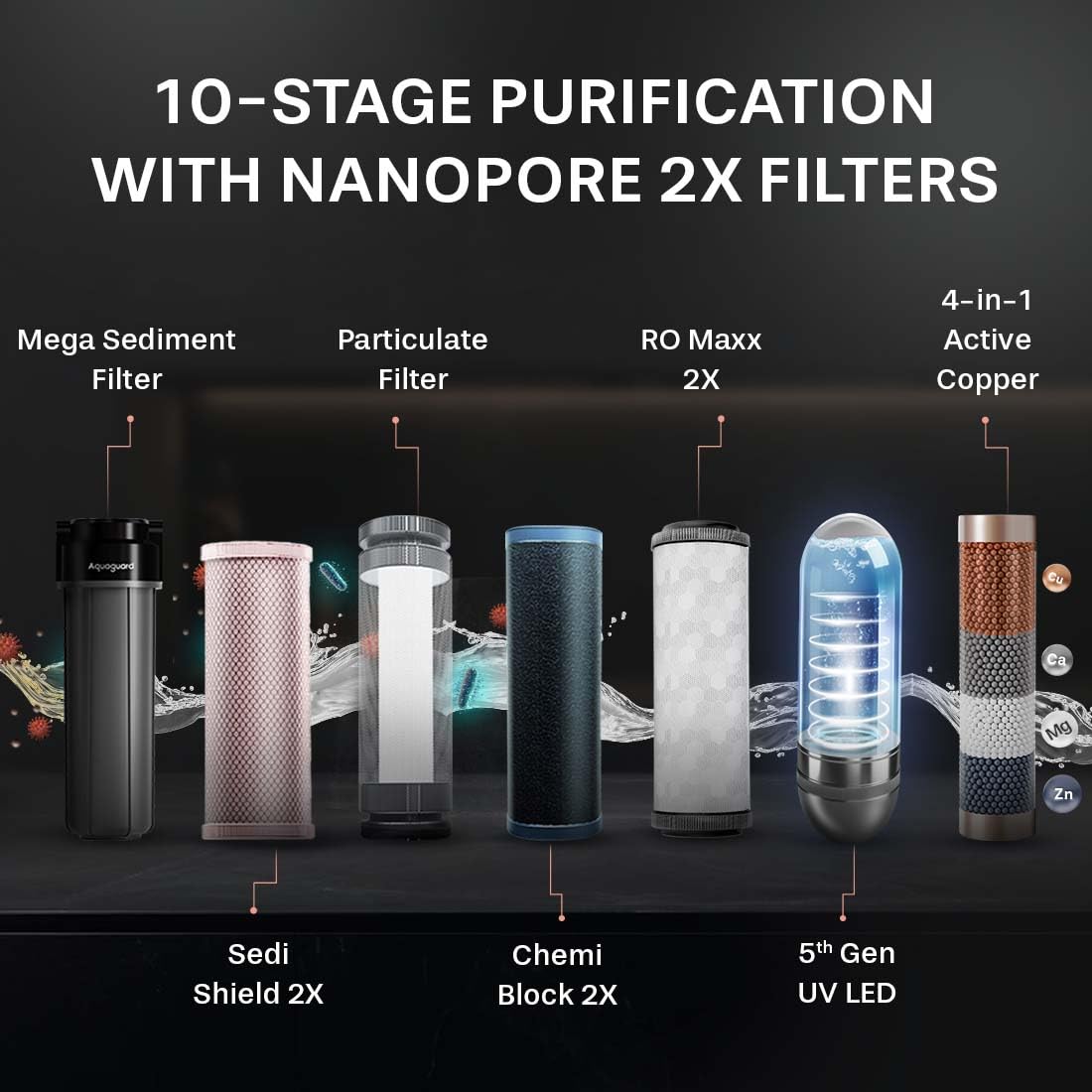

Figure 4: 10-Stage Purification with Nanopore 2X Filters. This diagram illustrates the various stages of purification, including Mega Sediment Filter, Particulate Filter, Sedi Shield 2X, Chemi Block 2X, RO Maxx 2X, 5th Gen UV LED, and 4-in-1 Active Copper, showing the progression of water through each stage.

3. Setup

The Eureka Aspire Nova RO UV 2X Water Purifier is designed for both wall-mounted and countertop installation. Professional installation is recommended to ensure proper functioning and to validate the warranty.

3.1 Pre-Installation Checklist

• Ensure a suitable location with access to a water supply and a power outlet.
• Verify that the input water TDS level is within the supported range (Max 2000 PPM).
• Confirm that the installation kit, included in the box, is complete.

3.2 Installation Process

1. Contact customer support to schedule your complimentary professional installation.
2. The technician will assess the site, perform the necessary plumbing connections, and mount the unit securely (if wall-mounted).
3. The purifier will be connected to the power supply and tested for leaks and proper operation.
4. The technician will flush the system as required to prepare it for first use.

4. Operating Instructions

Once installed, operating your water purifier is straightforward.

4.1 First Use

1. Ensure the water supply valve to the purifier is open.
2. Plug the power cord into a suitable electrical outlet. The purifier will initiate its startup sequence.
3. Allow the storage tank to fill completely. For the first fill, it is recommended to drain the first two tanks of purified water to flush out any manufacturing residues.
4. Your purifier is now ready for use. Dispense water as needed.

4.2 Daily Operation

• The purifier operates automatically to refill the storage tank as water is consumed.
• The 5th Gen UV LED provides instant purification, ensuring safe drinking water without any waiting period.
• Monitor the water level in the storage tank if visible, or rely on the automatic refill system.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your water purifier.

5.1 Filter Replacement

• The filters have a life expectancy of up to 2 years or 12,000 liters, whichever comes first.
• The purifier features a 'Change Filter Indicator' to alert you when filter replacement is due.
• It is crucial to replace filters promptly to maintain water quality and prevent damage to the unit. Contact authorized service personnel for filter replacement.

Figure 5: Mega Sediment Filter. This image shows the external Mega Sediment Filter, illustrating its function in removing fine dust, dirt, and mud particles from water, thereby preventing choking and extending the life of internal filters.

5.2 Cleaning

• Periodically wipe the exterior of the purifier with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• For internal cleaning or sanitization, contact authorized service personnel.

6. Troubleshooting

This section addresses common issues you might encounter with your water purifier.

If you encounter any issues not listed here or if the suggested solutions do not resolve the problem, please contact customer support.

7. Specifications

8. Warranty and Support

Your Eureka Aspire Nova RO UV 2X Water Purifier comes with comprehensive support and warranty.

8.1 Warranty Information

The product includes a 1-year comprehensive warranty from the date of purchase. This warranty covers manufacturing defects and ensures peace of mind. Please refer to the warranty card provided with your product for detailed terms and conditions.

8.2 Customer Support

For installation requests, service appointments, or any technical assistance, please contact the manufacturer's customer care:

• Manufacturer: Eureka Forbes Ltd
• Phone: 18602661177 / 7039883333 / 9212222051
• Email: customercare@eurekaforbes.com

The purchase includes complimentary installation and 2 free services. Eureka Forbes has a network of over 8500 certified service technicians across 800+ cities.

Figure 6: Post Purchase and Service Perks. This image highlights the benefits included with the purchase, such as Free Installation, 2 Free Services, a 1-Year Comprehensive Warranty, and access to a large network of certified service technicians.
