1. Introduction
Thank you for choosing the Chrangmay 9-Drawer Dresser. This manual provides essential information for the safe assembly, proper use, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

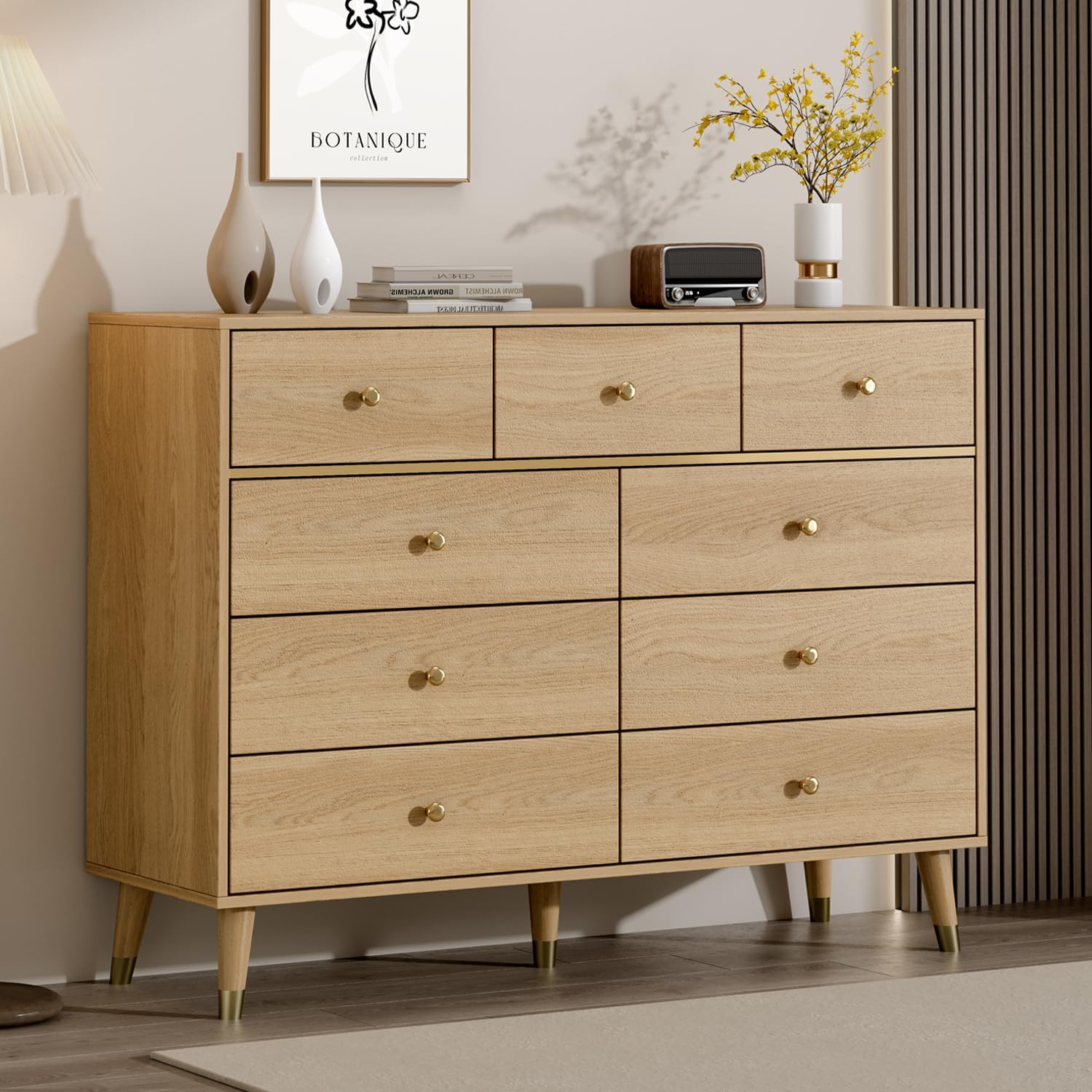

Figure 1: Overall view of the Chrangmay 9-drawer dresser in an oak finish.
2. Safety Information
WARNING: Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over, this furniture must be permanently attached to the wall using the anti-tipping device provided.
- Always install the anti-tipping device as instructed in this manual.
- Do not allow children to climb or hang on drawers, doors, or shelves.
- Place heaviest items in the lowest drawers.
- Do not open more than one drawer at a time.
- Keep small parts and packaging materials away from children during assembly.
Figure 2: Illustration demonstrating the installation and importance of the anti-tipping device to prevent accidents. Always install this device for safety.
3. Package Contents
Before assembly, ensure all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Dresser panels (top, bottom, sides, back)
- 9 Drawer components (fronts, sides, backs, bottoms)
- Drawer slides (metal ball bearings)
- Dresser legs with gold accents
- Drawer handles (gold knobs)
- Anti-tipping device kit
- Assembly hardware (screws, dowels, cam locks, etc.)
- Instruction manual
4. Assembly Instructions
This product requires self-assembly. Follow the clear and concise instructions provided in the included assembly guide. It is recommended to assemble the dresser on a soft, clean surface to prevent scratches.
- Unpack and Identify Parts: Carefully remove all components from the packaging. Refer to the parts list in your separate assembly guide to identify each piece.
- Assemble the Main Frame: Follow the step-by-step diagrams to connect the top, bottom, and side panels of the dresser.
- Install Drawer Slides: Attach the metal drawer slides to the interior of the dresser frame and to the drawer sides as indicated. Ensure they are level and securely fastened for smooth operation.
- Assemble Drawers: Construct each of the nine drawers by attaching the front, back, and side panels, then inserting the bottom panel. Attach the gold knob handles to the drawer fronts.
- Attach Legs: Securely fasten the dresser legs to the bottom panel of the dresser.
- Install Anti-Tipping Device: This is a critical safety step. Attach the anti-tipping device to the back of the dresser and to a wall stud using the provided hardware. Ensure it is installed correctly to prevent tip-over accidents.
- Insert Drawers: Carefully slide the assembled drawers into their respective slots on the dresser frame.

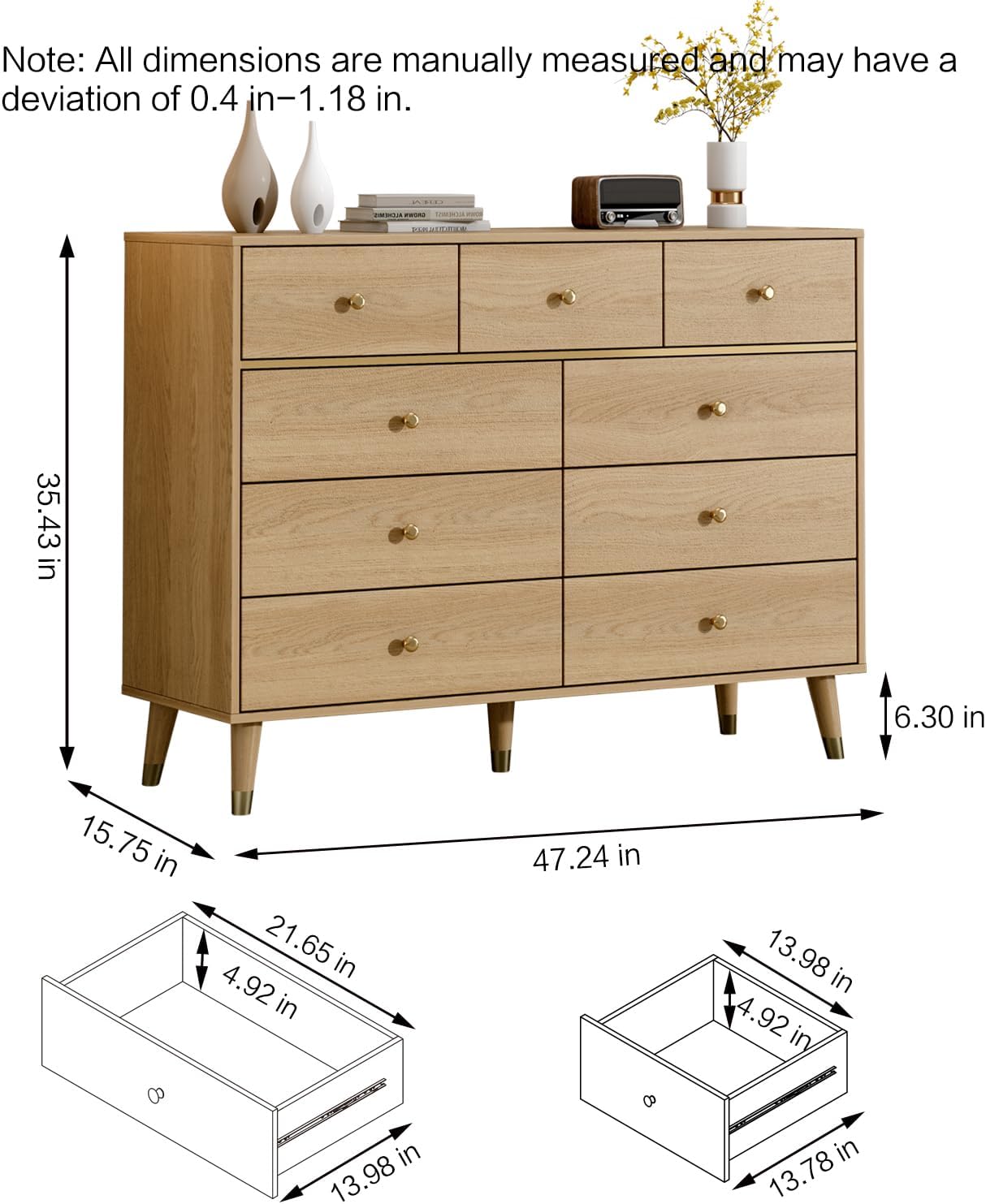

Figure 3: Diagram showing the overall dimensions of the dresser (15.75"D x 47.24"W x 35.43"H) and individual drawer dimensions for reference during assembly.
Figure 4: Close-up of the metal drawer slides, indicating smooth operation when properly installed.
5. Operating Instructions
The Chrangmay 9-Drawer Dresser is designed for convenient storage in various living spaces.
- Drawer Usage: The 9 drawers slide easily on ball bearings, allowing for effortless opening and closing. Each drawer has a capacity of approximately 40 lbs.
- Storage Capacity: The drawers are suitable for organizing clothes, books, toys, and other household items. For example, each drawer can hold 20-25 T-shirts or 15-20 pairs of jeans.
- Tabletop Use: The spacious tabletop can be used to display decorative items, hold keys, alarm clocks, photo frames, or potted plants.
Figure 5: The dresser with multiple drawers partially open, illustrating its storage capacity for various items like clothes, books, and toys.
6. Maintenance
Proper care will ensure the longevity and appearance of your dresser.
- Cleaning: Wipe the dresser surfaces with a light damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
- Dusting: Regularly dust the dresser with a soft, dry cloth.
- Spills: Clean up spills immediately to prevent staining or damage to the engineered wood.
- Hardware: Periodically check and tighten all assembly hardware to ensure stability.
Figure 6: Close-up view highlighting the natural wood grain texture of the drawer fronts and the gold decorative strip, which should be cleaned gently.
7. Troubleshooting
If you encounter any issues with your dresser, refer to the following common solutions:
- Drawers do not slide smoothly:
- Ensure the drawer slides are correctly aligned and securely fastened.
- Check for any obstructions in the drawer tracks.
- Apply a silicone-based lubricant to the drawer slides if necessary.
- Dresser feels unstable:
- Verify that all assembly hardware is tightened.
- Confirm that the anti-tipping device is properly installed and secured to a wall stud.
- Ensure the dresser is placed on a level surface.
- Missing or damaged parts:
- Refer to the package contents list and contact customer support for assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Chrangmay |
| Model Name | dougui |
| Product Dimensions (D x W x H) | 15.75" x 47.24" x 35.43" |
| Color | Oak |
| Material | Engineered Wood |
| Number of Drawers | 9 |
| Item Weight | 52 Pounds |
| Assembly Required | Yes |
| Drawer Weight Capacity | 40 lbs per drawer |
Figure 7: Detail of the dresser's legs, featuring a tapered design with gold accents at the base.
9. Warranty and Support
Chrangmay is committed to providing excellent after-sales service. If you encounter any product problems, require assistance with assembly, or have questions regarding your dresser, please contact our customer support team.
For information on available protection plans, please refer to your purchase documentation or the product listing where you acquired the dresser. These plans may offer extended coverage beyond the standard manufacturer support.
