HOROW LYHS02H-GE
HOROW Thermostatic Shower Column
Model: LYHS02H-GE
Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your HOROW Thermostatic Shower Column, model LYHS02H-GE. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Keep this manual for future reference.
Product Features
- Thermostatic Valve: Enjoy a consistent water temperature throughout your shower. The professional thermostatic valve precisely regulates and maintains the water temperature, even with pressure fluctuations in the water supply.

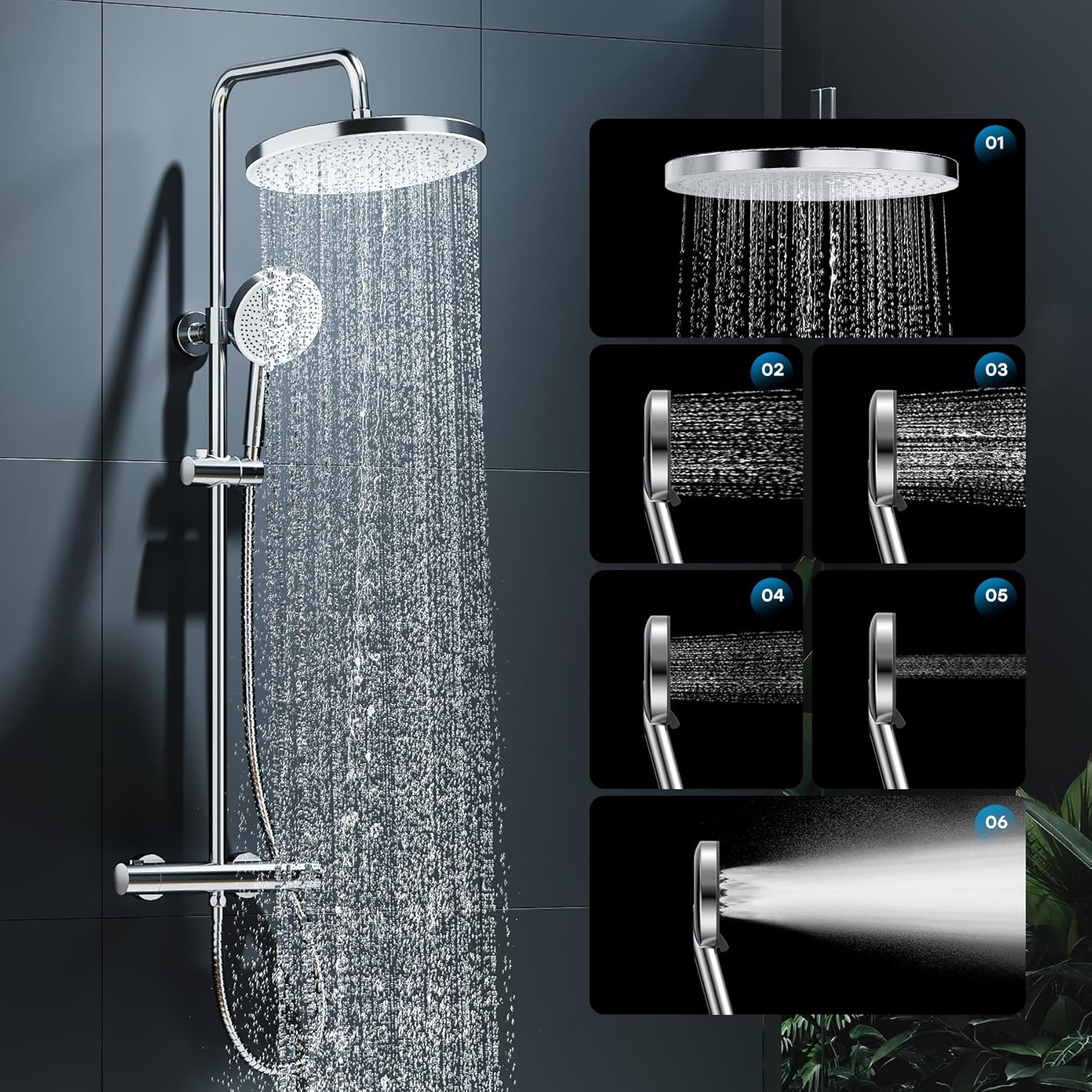

- Large Shower Area: Features a 30 cm overhead shower plate and a 13 cm hand shower, ensuring comprehensive coverage. The hand shower offers 5 distinct spray modes for a personalized and invigorating shower experience.
- Height Adjustable: Both the round overhead shower and the hand shower are height-adjustable, accommodating the needs of all family members, from adults to children.
- Durable and Easy to Clean: Silicone nozzles on both shower heads allow for easy limescale removal with a simple wipe. The multi-layer plated surface resists corrosion and is easy to maintain.
Setup and Installation
The HOROW Thermostatic Shower Column is designed for wall-mounted installation. For optimal performance and safety, professional installation is recommended.
Water Pressure Requirements:
- Recommended water pressure: 1 Bar to 5 Bar.
- If your water pressure exceeds 5 Bar, a pressure reducing valve must be installed to prevent damage to the shower system and ensure proper operation.
Installation Steps (General Guidance):
- Ensure water supply is turned off before beginning installation.
- Mount the main thermostatic mixer unit securely to the wall at the desired height, ensuring it is level.
- Connect the hot and cold water lines to the corresponding inlets on the mixer.
- Install the vertical shower rail, securing it to the wall at the top and bottom mounting points.
- Attach the overhead shower head to the top of the rail.
- Connect the hand shower hose to the mixer and attach the hand shower to its adjustable holder on the rail.
- Carefully turn on the water supply and check for leaks.
Operating Instructions
Temperature Control:

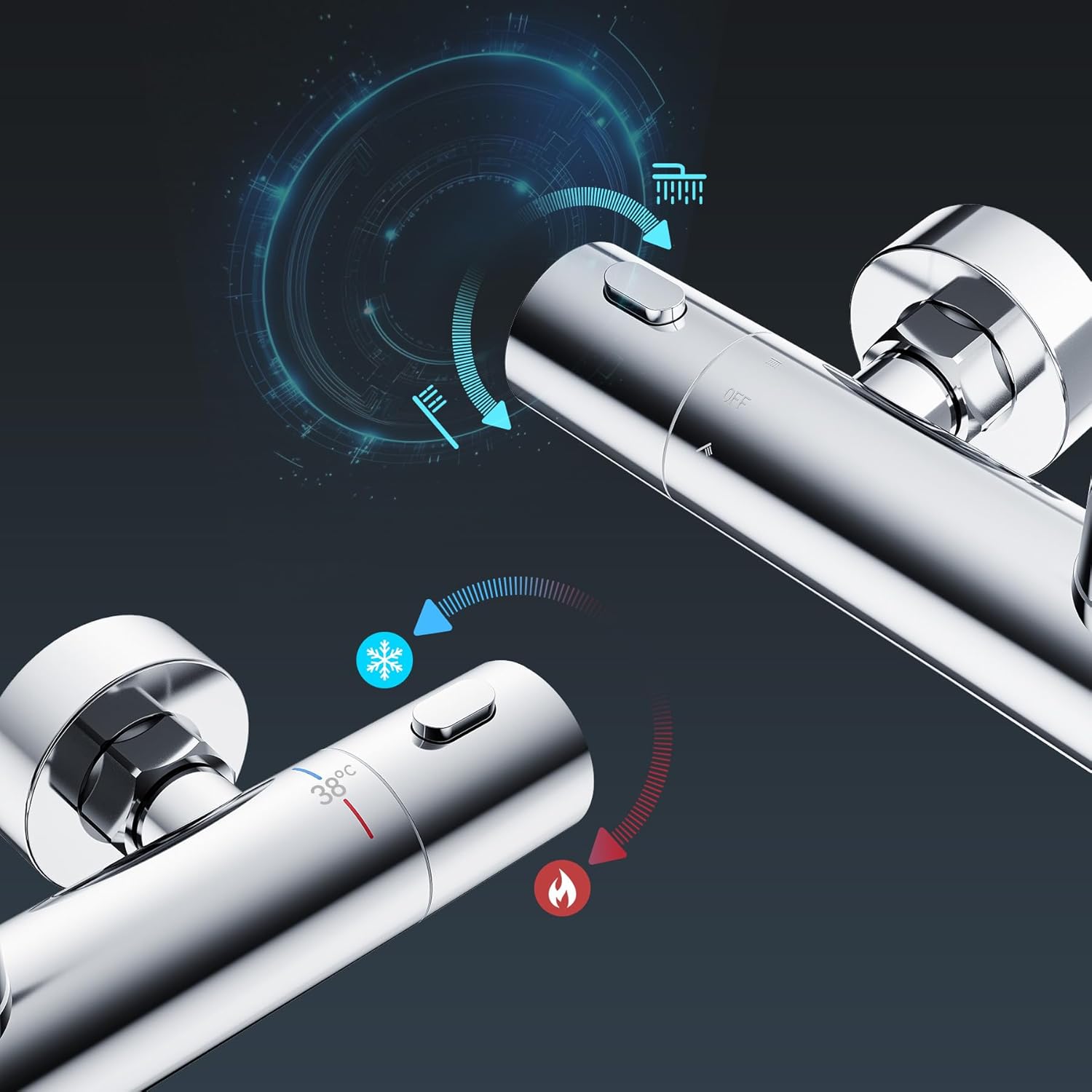

The thermostatic mixer features a temperature control knob, typically with a safety stop at 38°C (100.4°F). To adjust the temperature:
- Turn the temperature knob to select your desired water temperature.
- To exceed 38°C, press the safety button (if present) and continue turning the knob.
Water Flow and Diverter:
The flow control knob or lever allows you to turn the water on/off and select between the overhead shower and the hand shower.
- Turn the flow control knob to activate water flow.
- Rotate the knob to divert water between the overhead shower and the hand shower.
Hand Shower Spray Modes:
The hand shower offers 5 different spray modes. To change the spray pattern, rotate the spray plate on the hand shower head.
Height Adjustment:
The hand shower holder can be slid up or down the shower rail to adjust its height. The overhead shower arm can also be adjusted for height.
Maintenance and Cleaning
Regular maintenance ensures the longevity and optimal performance of your HOROW shower column.
Cleaning Shower Nozzles:
- The silicone nozzles on both the overhead and hand shower heads are designed for easy cleaning.
- Simply rub the nozzles with your finger or a soft cloth to dislodge any limescale buildup. This should be done regularly, especially in hard water areas.
Cleaning Surfaces:
- The multi-layer plated surface is resistant to corrosion and easy to clean.
- Use a soft cloth and mild soap or a non-abrasive bathroom cleaner.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the finish.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
Troubleshooting
If you encounter issues with your shower column, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Inconsistent water temperature | Fluctuating water pressure; debris in thermostatic cartridge. | Check household water pressure. If persistent, contact a qualified plumber to inspect or clean the thermostatic cartridge. |
| Low water flow from shower heads | Limescale buildup in nozzles; low water pressure. | Clean silicone nozzles by rubbing them. Check household water pressure. Ensure no blockages in the water supply lines. |
| Water leaking from connections | Loose connections; damaged seals. | Ensure all connections are tightened properly. If leaks persist, check and replace seals or O-rings as necessary. Professional assistance may be required. |
| Difficulty changing spray modes on hand shower | Limescale buildup. | Clean the spray plate and nozzles of the hand shower to remove any mineral deposits. |
Specifications
| Attribute | Detail |
|---|---|
| Brand | HOROW |
| Model Number | LYHS02H-GE |
| Product Dimensions | 10 x 40 x 70 cm |
| Item Weight | 4 kg |
| Color | Chrome |
| Finish | Polished |
| Material | Stainless Steel, Acrylonitrile Butadiene Styrene (ABS) |
| Handle/Lever Material | Stainless Steel |
| Mounting Type | Wall Mount |
| Components Included | 1 shower system |
| Recommended Water Pressure | 1 Bar - 5 Bar |
Warranty and Support
For warranty information and customer support, please contact HOROW directly or refer to the purchase documentation. Keep your proof of purchase for any warranty claims.
Manufacturer: HOROW
