Generico Styrofoam Cutting Pen User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your Generico Styrofoam Cutting Pen. Please read this manual thoroughly before operating the device and retain it for future reference. This heated tool is designed for precise cutting and shaping of various foam materials, including polystyrene.

2. Safety Instructions

WARNING: This device operates at high temperatures. Failure to follow safety instructions may result in burns, fire, or other injuries.

• Always operate the cutting pen in a well-ventilated area to avoid inhaling fumes from melting foam.
• Do not touch the heated wire or tip during operation or immediately after use. Allow the tool to cool completely before handling or storing.
• Keep the device away from flammable materials.
• Ensure the power adapter and cord are in good condition. Do not use if damaged.
• Keep out of reach of children and pets.
• Do not immerse the cutting pen or power adapter in water or other liquids.
• Unplug the device when not in use or before cleaning.
• Use appropriate personal protective equipment, such as gloves and safety glasses, if necessary.

3. Product Overview

The Generico Styrofoam Cutting Pen consists of a main cutting unit with a heated wire tip, a power adapter, and an inline power switch for convenient operation.

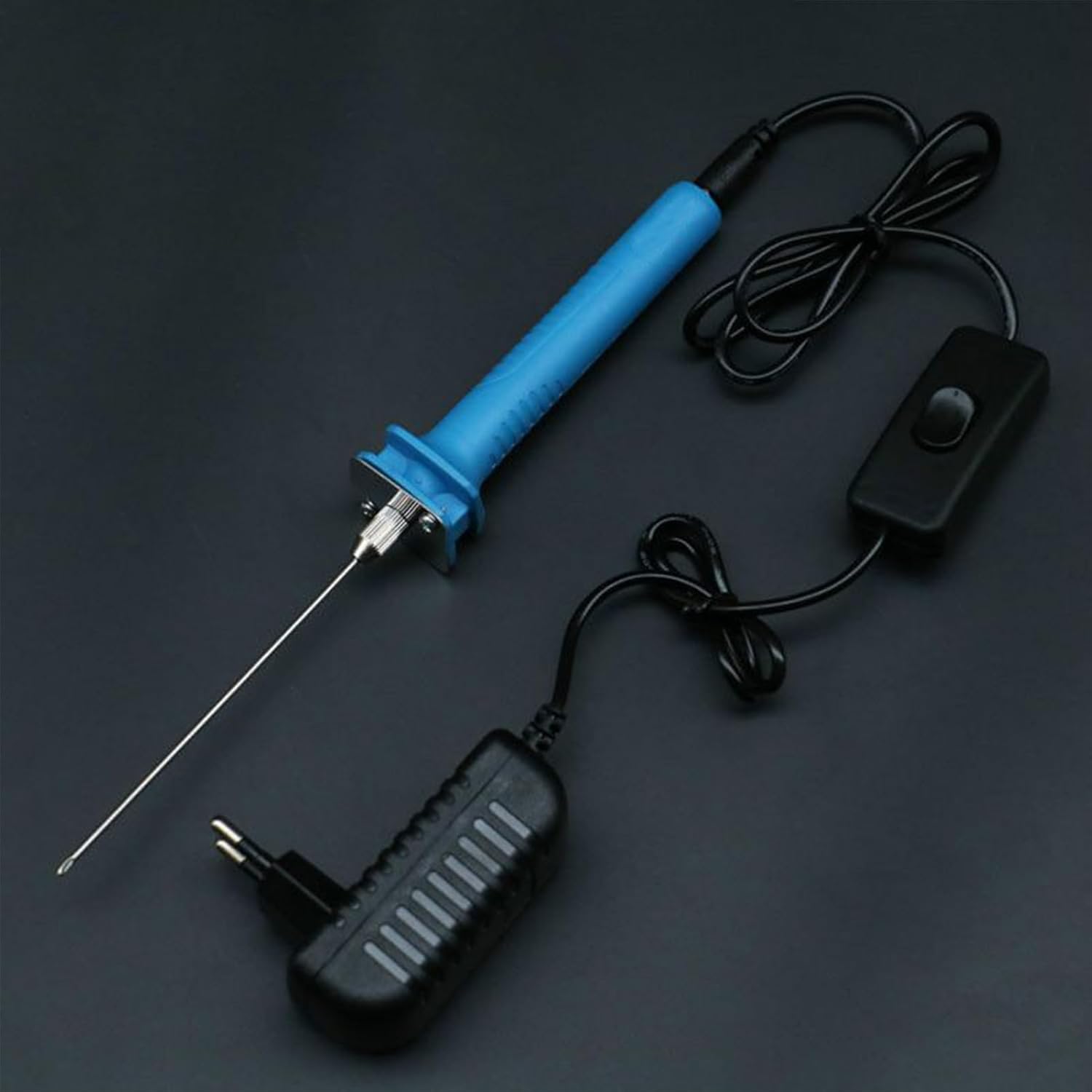

Figure 1: Overview of the Generico Styrofoam Cutting Pen, including the pen unit, power adapter, and inline switch.

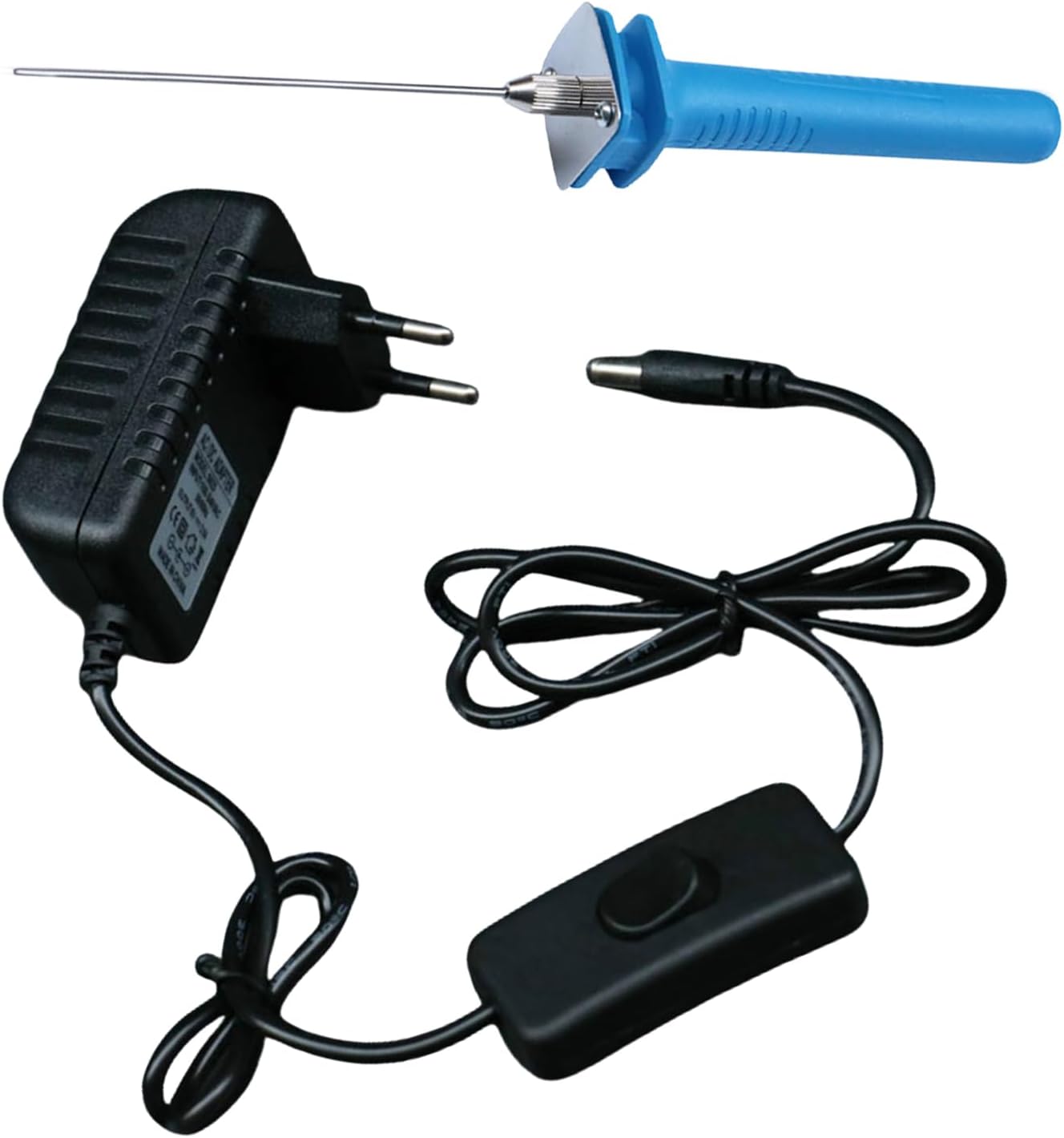

Figure 2: The main components of the cutting pen system, showing the pen, power adapter, and connecting cables.

Figure 3: Diagram illustrating the approximate dimensions of the Styrofoam Cutting Pen, showing a total length of 21.5 cm (8.46 inches) and a handle width of 1.7 cm (0.66 inches).

Figure 4: Close-up view of the cutting pen's handle, highlighting its anti-slip design for improved grip and comfort during extended use.

4. Setup

1. Unpack: Carefully remove all components from the packaging.
2. Connect: Insert the DC plug from the cutting pen into the corresponding socket on the power adapter cable.
3. Power: Plug the power adapter into a standard electrical outlet. Ensure the inline switch on the cable is in the 'OFF' position before plugging in.
4. Placement: Place the cutting pen on a heat-resistant surface, away from any flammable materials, while it heats up.

5. Operating Instructions

Follow these steps for safe and effective operation of your Styrofoam Cutting Pen:

1. Preparation: Ensure your workspace is well-ventilated and clear of obstructions. Wear appropriate safety gear if desired.
2. Power On: Flip the inline switch to the 'ON' position. The cutting wire will begin to heat up. This typically takes a few seconds.
3. Testing: Before cutting your main project, test the heated wire on a scrap piece of foam to familiarize yourself with its cutting speed and temperature.
4. Cutting: Gently press the heated wire into the foam. The heat will melt through the material, allowing for smooth and precise cuts. Apply minimal pressure; let the heat do the work.
5. Technique: For straight cuts, guide the pen steadily along a ruler or straight edge. For intricate shapes, move the pen slowly and deliberately.
6. Cool Down: Once cutting is complete, flip the inline switch to the 'OFF' position. Place the pen on a heat-resistant surface and allow it to cool completely before storing.

Figure 5: A user demonstrating the application of the Styrofoam Cutting Pen for detailed work on a material, showcasing precise control.

Figure 6: An individual using the heated cutting tool to shape a large foam board, illustrating its use in crafting or construction applications.

6. Maintenance

• Cleaning: Ensure the device is unplugged and completely cool before cleaning. Gently wipe the cutting wire and handle with a dry cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the cutting pen and its components in a dry, safe place, away from direct sunlight and extreme temperatures. Keep it out of reach of children.
• Inspection: Periodically inspect the power cord, adapter, and cutting wire for any signs of damage. If damage is found, discontinue use and replace the affected component if possible, or contact support.

7. Troubleshooting

8. Specifications

• Brand: Generico
• Model Number: KID7I3L2R0TPJOEYLOI
• Item Weight: 190 grams
• Package Dimensions: 26 x 7 x 5.5 cm
• Cutting Pen Length: Approximately 10 cm (heated element length not specified, but overall dimension is 21.5 cm as per image)
• Batteries Required: No
• Included Components: Refer to product description (typically cutting pen, power adapter with switch)

9. Warranty and Support

Specific warranty information for the Generico Styrofoam Cutting Pen (Model KID7I3L2R0TPJOEYLOI) is not provided in the product details. For any support inquiries, warranty claims, or technical assistance, please refer to your point of purchase or contact the retailer directly.
