WSTER WS-589 Rugged Pickup Truck Bluetooth Speaker Instruction Manual

Introduction

Thank you for choosing the WSTER WS-589 Rugged Pickup Truck Bluetooth Replica Speaker. This portable audio device combines a unique design with advanced features to enhance your music listening experience. Please read this manual carefully to ensure proper use and optimal performance of your speaker.

Image: The WSTER WS-589 speaker, designed as a rugged black pickup truck.

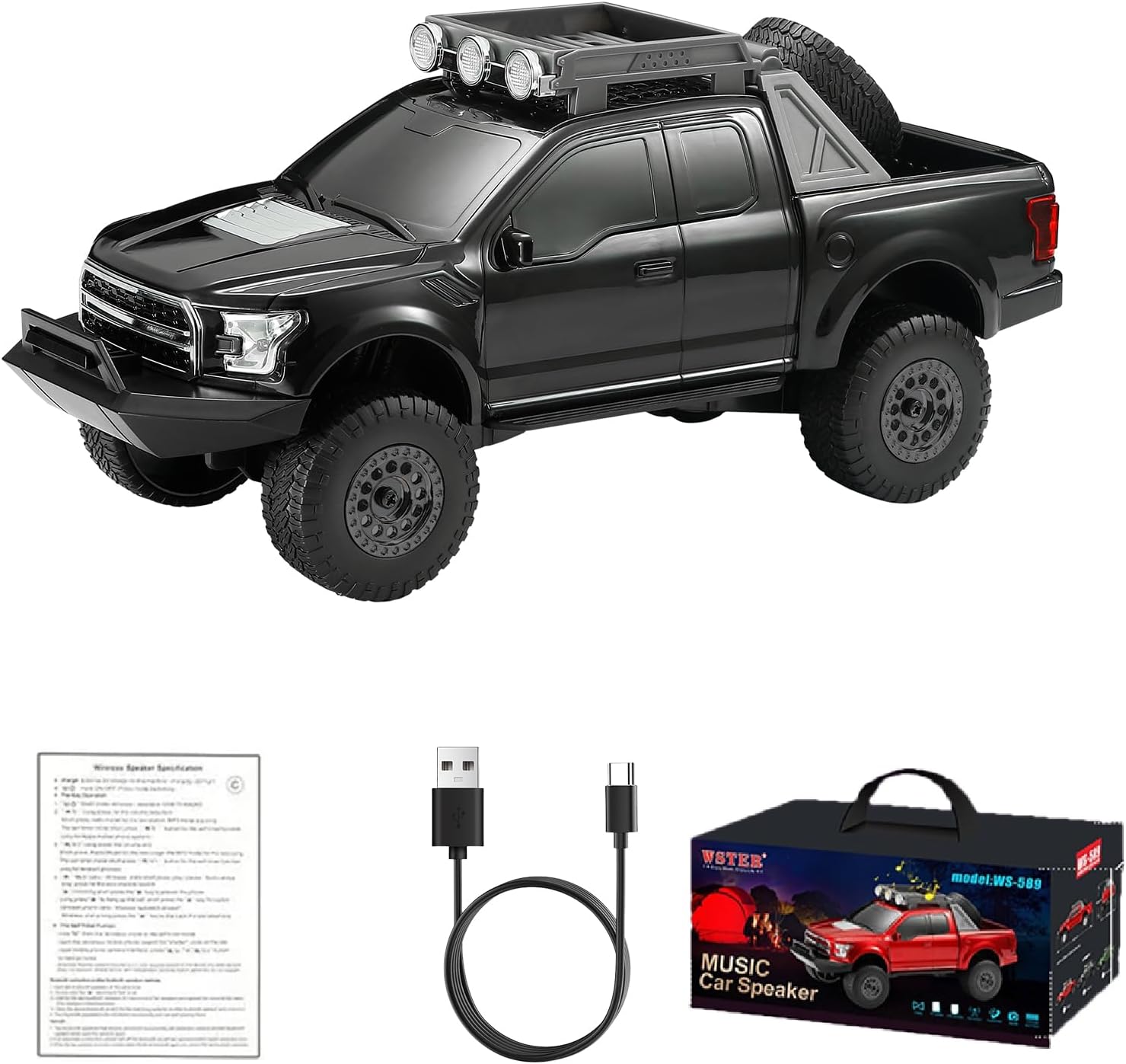

What's in the Box

• 1 x WSTER WS-589 Bluetooth Speaker
• 1 x Power Cable
• 1 x Quick Start Guide

Product Overview

The WS-589 speaker features a detailed pickup truck design with integrated controls and connectivity ports. Familiarize yourself with the various components:

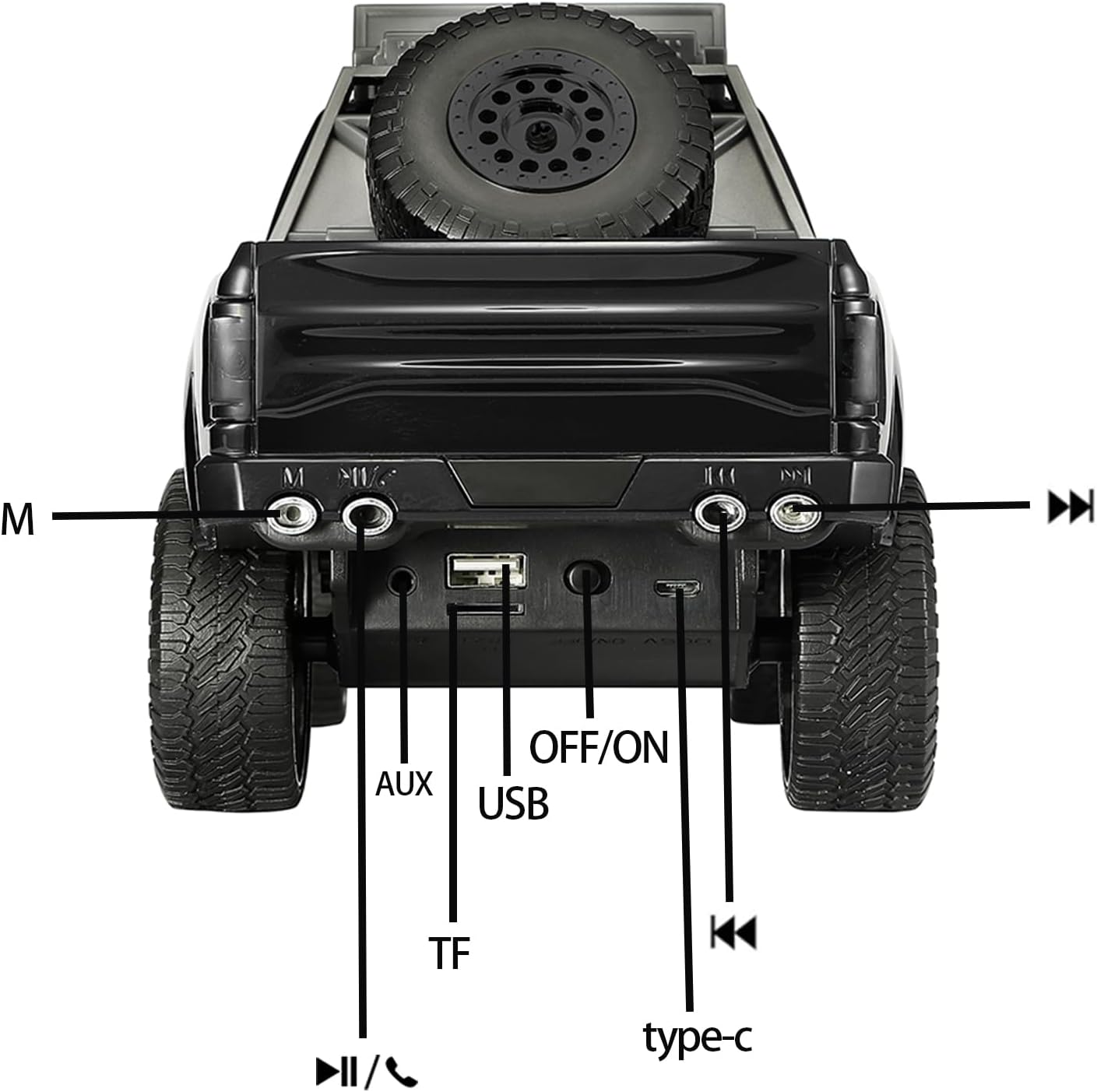

Image: Rear view of the WS-589 speaker highlighting the AUX, USB, TF card, power switch, and Type-C charging ports.

Control Panel (Rear)

• OFF/ON Switch: Powers the speaker on or off.
• Type-C Port: For charging the speaker.
• USB Port: For USB drive playback.
• TF Card Slot: For TF (MicroSD) card playback.
• AUX Port: For wired audio input.
• Control Buttons: (Typically for Mode, Play/Pause, Volume/Track Skip)

Setup

1. Charging: Before first use, fully charge the speaker using the provided Type-C power cable. Connect the cable to the Type-C port on the rear of the speaker and a compatible USB power adapter (not included). The charging indicator will show status.
2. Power On: Slide the OFF/ON switch to the "ON" position. You will hear an audible prompt indicating the speaker is powered on and ready for pairing.

Operating Instructions

Bluetooth Connection

1. Ensure the speaker is powered on and in Bluetooth mode (indicated by an audible prompt or display).
2. On your mobile device, enable Bluetooth and search for available devices.
3. Select "WS-589" from the list of devices to pair. You will hear a confirmation tone once connected.
4. Once paired, you can play audio from your device through the speaker.

Image: A smartphone displaying Bluetooth connection, positioned next to the WS-589 speaker.

Media Playback (USB/TF Card)

• Insert a USB drive or TF (MicroSD) card containing MP3 audio files into the respective port on the rear of the speaker.
• The speaker will automatically switch to USB or TF card mode and begin playback.
• Use the control buttons to play/pause, skip tracks, or adjust volume.

FM Radio

• Press the Mode button (if available, or the Play/Pause button with a long press) to switch to FM Radio mode.
• The speaker will automatically scan and save available FM stations.
• Use the track skip buttons to navigate between saved stations.

AUX Input

• Connect an external audio device (e.g., MP3 player, laptop) to the AUX port using a 3.5mm audio cable (not included).
• The speaker will automatically switch to AUX mode.
• Control playback and volume from your connected device.

Hands-Free Calling

• When connected via Bluetooth to your smartphone, the built-in microphone allows for hands-free calls.
• Incoming calls will be announced through the speaker. Press the Play/Pause button to answer or end a call.

TWS (True Wireless Stereo) Pairing

For an enhanced stereo audio experience, you can pair two WS-589 speakers together:

1. Ensure both WS-589 speakers are powered on and in Bluetooth mode, but not connected to any other device.
2. On one speaker, long-press the Mode button (or a dedicated TWS button if available) until you hear a pairing tone.
3. The two speakers will automatically connect to each other. A confirmation tone will sound once TWS pairing is successful.
4. Connect your mobile device to one of the paired speakers via Bluetooth. Audio will now play in stereo through both speakers.

Image: Two WS-589 speakers positioned to demonstrate TWS stereo pairing, enhancing the audio experience for users.

LED Party Lights

• The speaker features flashing LED party lights that activate automatically during playback.
• These lights synchronize with the music, adding a visual element to your audio experience.

Maintenance

• Keep the speaker dry and away from moisture.
• Clean the speaker with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Avoid exposing the speaker to extreme temperatures.
• Store in a cool, dry place when not in use for extended periods.

Troubleshooting

Specifications

Relevant Videos

Warranty and Support

For warranty information and customer support, please refer to the contact details provided in the packaging or visit the official WSTER website. Keep your purchase receipt for any warranty claims.
