Aoxun 8x15FT Outdoor Metal Storage Shed Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Aoxun 8x15FT Outdoor Metal Storage Shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and care will ensure the longevity and optimal performance of your storage shed.

2. Safety Information

Important Safety Warnings:

• Always wear appropriate personal protective equipment, including gloves and eye protection, during assembly.
• Assembly requires at least two adults. Do not attempt to assemble alone.
• Ensure the assembly area is clear of obstructions and children.
• Handle all metal components with care to avoid cuts or pinches. Edges may be sharp.
• Do not assemble in high winds or adverse weather conditions.
• Secure the shed to a level, solid foundation immediately after assembly to prevent tipping or movement. Anchor kits are recommended (not included).
• Do not store flammable liquids or hazardous materials inside the shed.
• Regularly inspect the shed for loose fasteners or damage and address them promptly.

3. Product Features

The Aoxun 8x15FT Outdoor Metal Storage Shed is designed for durable and organized outdoor storage. Key features include:

• Spacious Interior: Provides ample room for storing garden tools, bicycles, lawnmowers, and other outdoor equipment. Optional internal storage racks can be added to maximize vertical space.
• Engineered Protection: Features a sloped roof to prevent water accumulation and integrated ventilation to reduce moisture buildup, protecting stored items.
• Enhanced Security: Equipped with a lockable double hinged door for convenient access and secure storage of valuables.
• Durable Construction: Constructed from robust, thick-gauge galvanized steel with reinforced panels and a strong frame, offering resistance to dents, rust, and various weather conditions.
• Versatile Placement: Suitable for backyards, gardens, patios, or poolside areas to help declutter outdoor spaces.

This diagram highlights the shed's structural features, including four air vents for circulation, a rotary knob lock for security, anti-collision protection, a smooth protective top, and a stable base for secure installation.

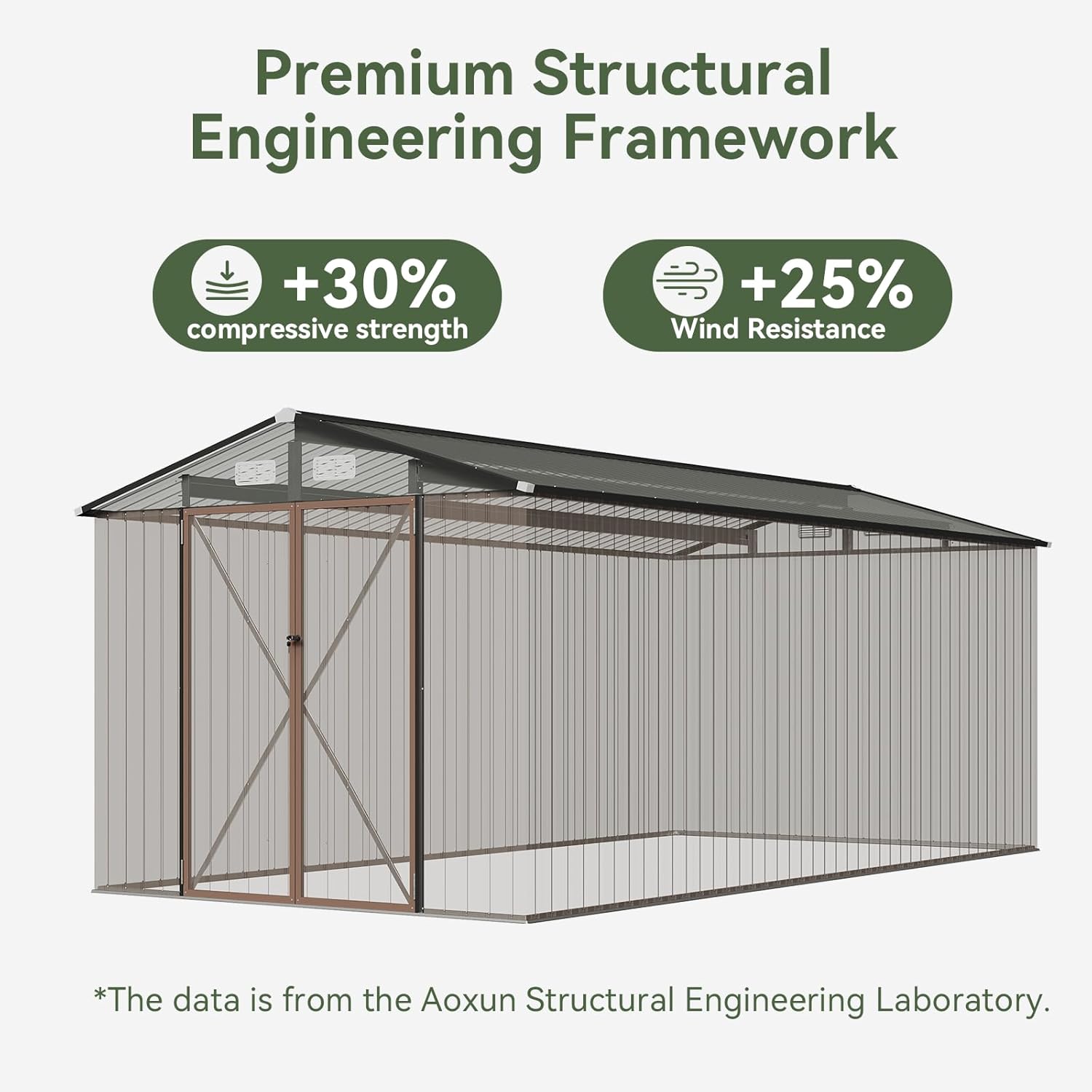

This diagram details the shed's structural integrity, noting a 30% increase in compressive strength and 25% improvement in wind resistance, based on laboratory data, indicating enhanced durability.

4. Specifications

A technical drawing providing precise measurements for the Aoxun storage shed, including overall roof dimensions (L 92.91" x W 184.25"), internal dimensions (L 87.8" x W 179.53"), and door dimensions (L 47.24" x H 63.78").

5. Setup and Assembly

Assembly of the Aoxun storage shed requires careful attention to detail and adherence to the provided step-by-step instructions included in the product packaging. It is recommended to have at least two people for assembly.

5.1 Preparation

• Site Selection: Choose a level, well-drained area for your shed. A concrete slab or treated wood foundation is recommended for stability and longevity.
• Tools Required: Gather all necessary tools before starting, which typically include a screwdriver, wrench, drill, measuring tape, level, and safety gloves.
• Unpack and Organize: Carefully unpack all components and verify against the parts list in your separate assembly guide. Organize parts by type and size to streamline the process.

5.2 Assembly Steps (General Overview)

1. Base Frame Assembly: Construct the shed's base frame according to the detailed diagrams in your assembly manual. Ensure it is square and level.
2. Wall Panel Installation: Attach the wall panels to the base frame, securing them with the provided fasteners. Pay attention to panel orientation and alignment.
3. Roof Structure Assembly: Assemble the roof support beams and attach them to the top of the wall panels.
4. Roof Panel Installation: Install the roof panels, ensuring proper overlap and sealing to prevent water entry.
5. Door Assembly and Installation: Assemble the double hinged doors and attach them to the shed frame. Adjust for smooth operation and proper latching.
6. Final Securing: Double-check all fasteners for tightness. Secure the shed to your foundation using appropriate anchoring methods (anchor kit not included).

Refer to the specific assembly manual included with your product for detailed, step-by-step instructions and diagrams.

This image displays the Aoxun 8x15FT outdoor storage shed in a garden setting. The double hinged doors are open, showcasing the spacious interior equipped with a workbench and shelving for organization. The shed features a sloped roof and a brown finish, blending with the outdoor environment.

An exterior view of the Aoxun storage shed with its double doors open. Inside, a bicycle and various garden tools are neatly stored, demonstrating the shed's capacity for different items. The shed is placed on a wooden foundation in a backyard.

This image provides an internal perspective of the Aoxun shed, illustrating its generous storage capacity. Shelves are installed along the walls, holding various items, and a bicycle is parked inside, indicating its utility for larger equipment.

An image featuring a person standing in front of the shed, with text overlays indicating that the shed's height has been upgraded to 78 inches and the door width increased to 4 feet, enhancing accessibility and internal space.

6. Operating Instructions

Using your Aoxun storage shed is straightforward, designed for convenience and security.

• Opening and Closing Doors: The shed features double hinged doors. To open, unlock the rotary knob lock and pull the doors outwards. To close, push the doors shut firmly and engage the lock.
• Locking Mechanism: Utilize the rotary knob lock with the provided key to secure your stored items. Always ensure the shed is locked when not in use to prevent unauthorized access.
• Ventilation: The integrated air vents facilitate airflow. Ensure these vents are not obstructed to maintain proper circulation and reduce condensation inside the shed.
• Storage Capacity: Distribute weight evenly inside the shed. For optimal organization, consider adding shelving or storage units (not included) to utilize vertical space effectively.

7. Maintenance

Regular maintenance will help preserve the condition and functionality of your Aoxun storage shed.

• Cleaning: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly.
• Inspection: Annually inspect all fasteners, bolts, and connections for tightness. Tighten any loose hardware. Check for any signs of rust, corrosion, or damage to panels and the roof.
• Door Maintenance: Lubricate door hinges and the lock mechanism annually with a silicone-based lubricant to ensure smooth operation.
• Ventilation Check: Ensure the air vents remain clear of debris (leaves, dirt, insect nests) to maintain proper airflow.
• Foundation: Periodically check the shed's foundation for stability and ensure it remains level. Address any shifts or erosion promptly.

This image illustrates the difference in material quality, comparing Aoxun's upgraded coating, which maintains a clean appearance, against other materials that may show signs of rust or wear over time.

8. Troubleshooting

This section addresses common issues you might encounter with your storage shed.

• Water Leaks:
  • Check roof panel overlaps and ensure all screws are tight and properly sealed.
  • Inspect the foundation for proper drainage; water pooling around the base can lead to leaks.
  • Verify that the shed is level. Uneven installation can create gaps.
• Door Misalignment/Difficulty Closing:
  • Ensure the shed is on a level surface. An uneven foundation can cause the frame to twist.
  • Check door hinges for damage or looseness. Tighten or adjust as needed.
  • Lubricate hinges and the lock mechanism.
• Condensation Inside Shed:
  • Ensure air vents are clear and unobstructed to allow for proper air circulation.
  • Avoid storing wet items inside the shed.
  • Consider adding a moisture absorber if the problem persists, especially in humid climates.
• Loose Panels:
  • Regularly check and tighten all screws and fasteners.
  • If a panel is damaged, contact customer support for replacement options.

9. Warranty and Support

For warranty information, product support, or to order replacement parts, please refer to the documentation included with your purchase or contact Aoxun customer service directly. Keep your purchase receipt and model number (G37009BR06A-HJ) handy when contacting support.

Customer Support: For assistance, please visit the Aoxun store on Amazon or refer to the contact information provided in your product packaging.
