1. Introduction
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your ANJIELO SMART Wired Video Multifamily Apartment Intercom System. This system is designed to enhance security and communication for multi-unit dwellings, offering visual and audio interaction with visitors.
Please read this manual thoroughly before installation and operation to ensure proper use and to maximize the system's functionality and lifespan.
2. Product Overview
The ANJIELO SMART Wired Video Multifamily Apartment Intercom System is a robust solution for managing access and communication in multi-tenant buildings. It features a durable outdoor doorbell unit with an integrated camera and multiple indoor monitors, allowing residents to see, hear, and speak to visitors before granting access.

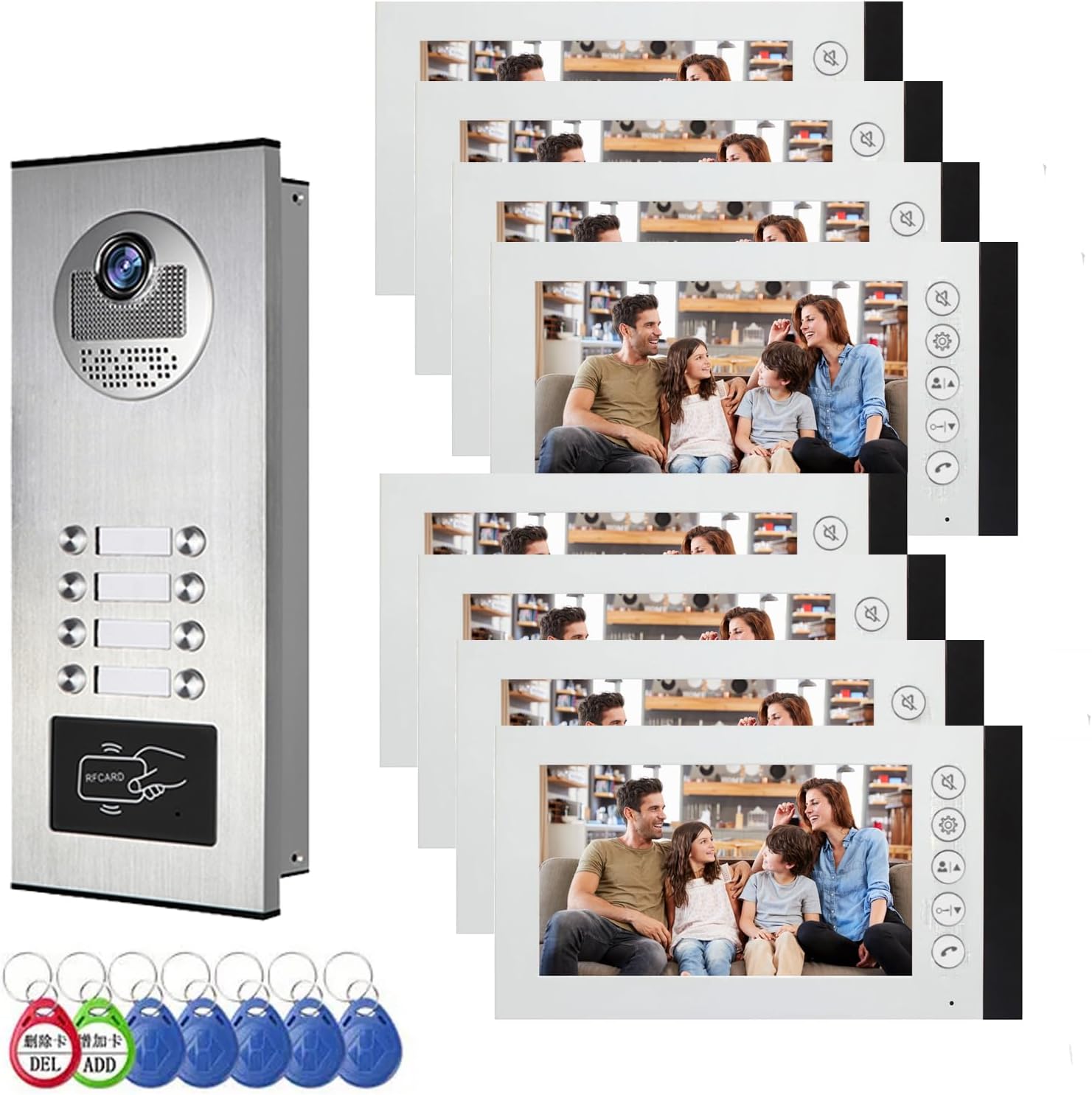

Figure 2.1: Overview of the ANJIELO SMART Intercom System, showing the outdoor doorbell unit, multiple indoor monitors, and RFID key fobs for access.
The system supports various configurations, including 2, 3, 4, 6, 8, 10, or 12 indoor monitors for a single outdoor doorbell, ensuring individual monitoring without interference between units.

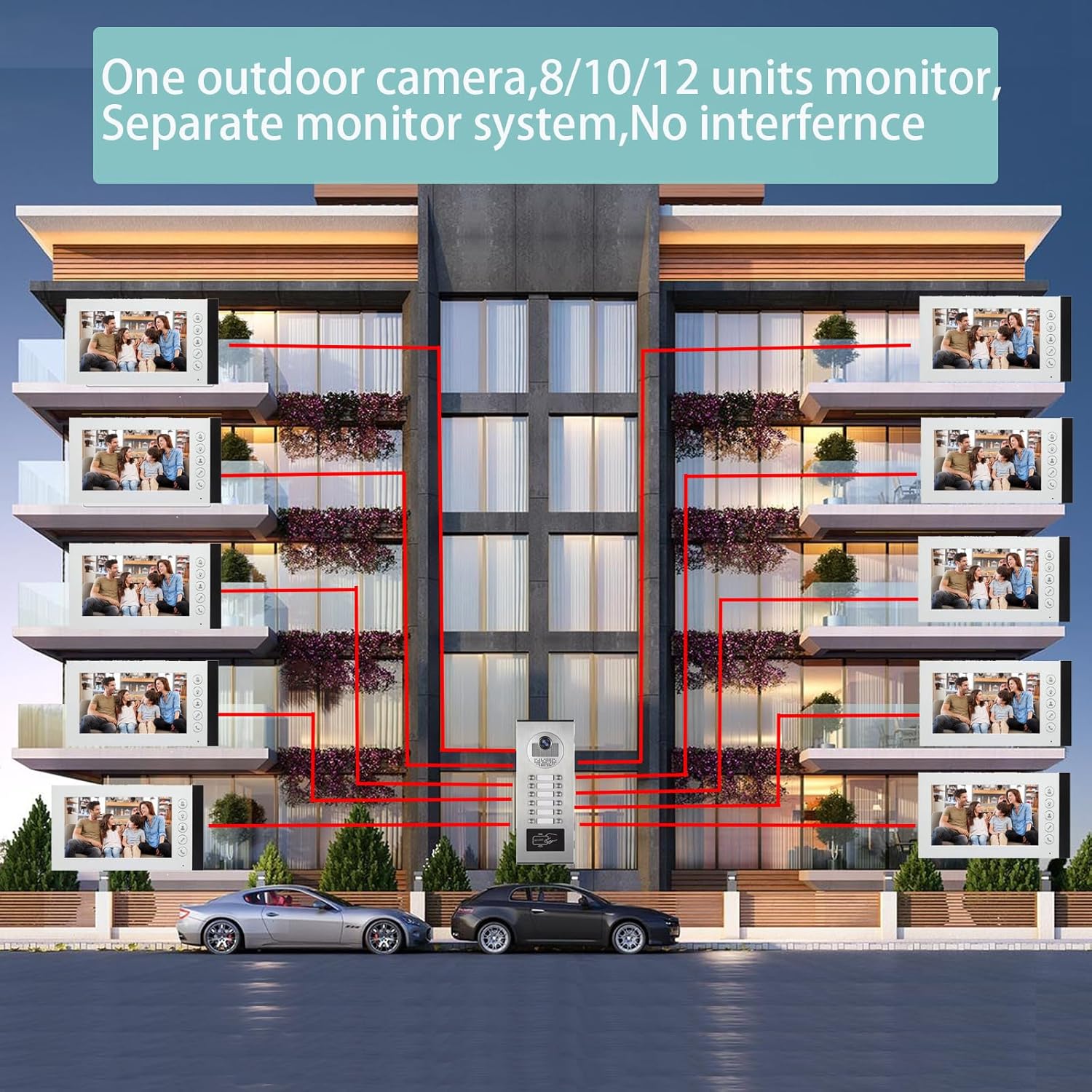

Figure 2.2: Illustrative diagram of the multi-unit intercom system, demonstrating how one outdoor camera connects to multiple indoor monitors in an apartment building.
3. Features
- Multi-Unit Design: Supports 1 outdoor camera and 2/3/4/6/8/10/12 indoor monitors for visual intercom, accommodating multiple occupants in one building with individual, interference-free monitoring.
- Night Vision Capability: Equipped with built-in LED infrared night vision light for clear video capture in low-light conditions, ensuring visibility of visitors at night.
- Two-Way Audio and Silent Mode: Allows for two-way communication with visitors. The system activates the monitor when the doorbell is pressed. A silent mode can be activated at night to prevent disturbance.
- IP65 Dustproof and Waterproof: The outdoor doorbell, constructed from aluminum alloy, is designed to resist rain, snow, and adverse weather conditions.
- RFID Card Unlock: Integrated RFID card reader for convenient and secure access control.
- 7-inch LCD Monitor: Indoor monitors feature a slim design, touch-key operation, and a hands-free 7-inch TFT display.
- Wide Compatibility: Utilizes a 4-wire connection system, allowing for easy integration with various door phone systems.
- 52 Ringtones: Offers a selection of 52 distinct ringtones for the indoor monitor.

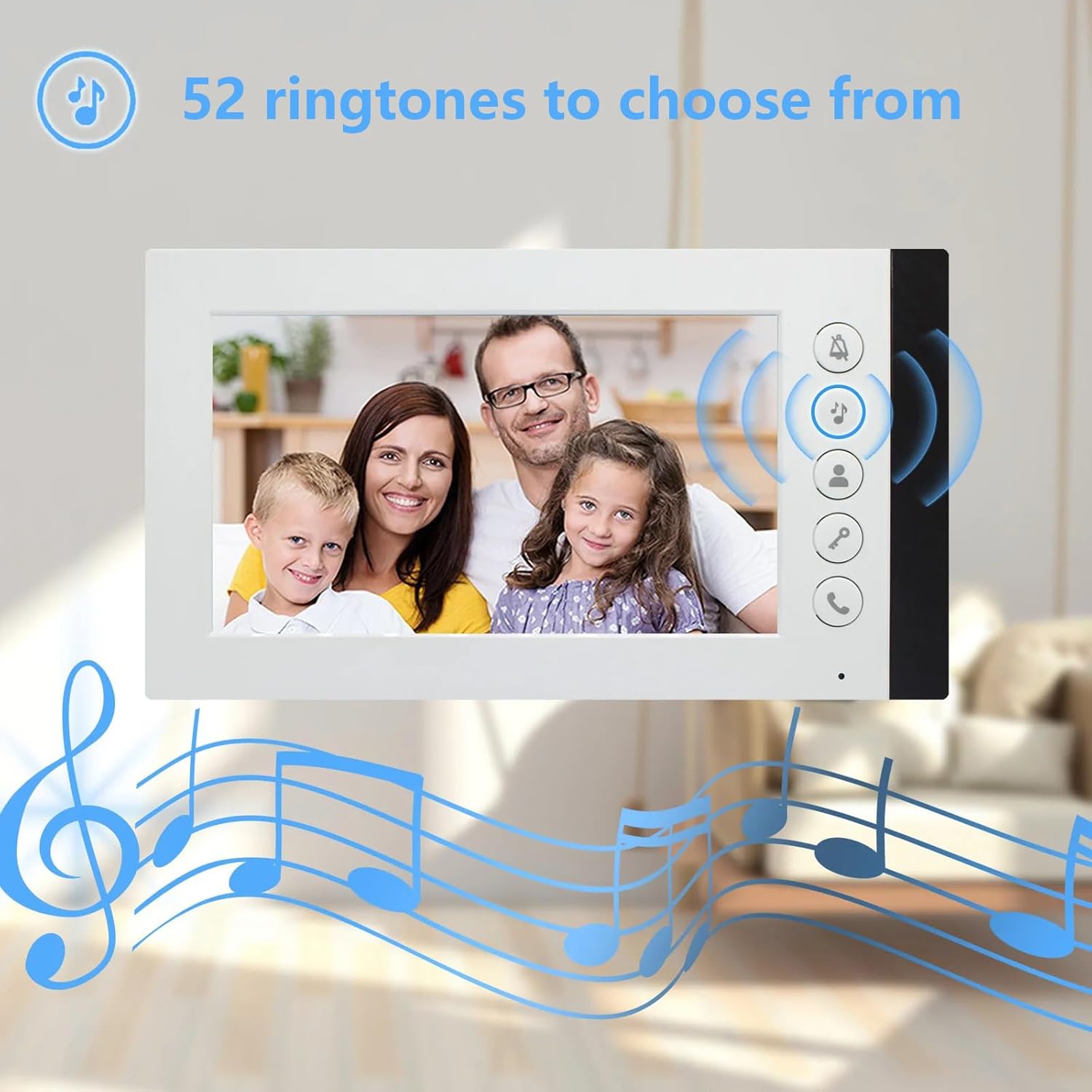

Figure 3.1: The 7-inch indoor monitor, highlighting its visualization capabilities and features like 52 ringtones.

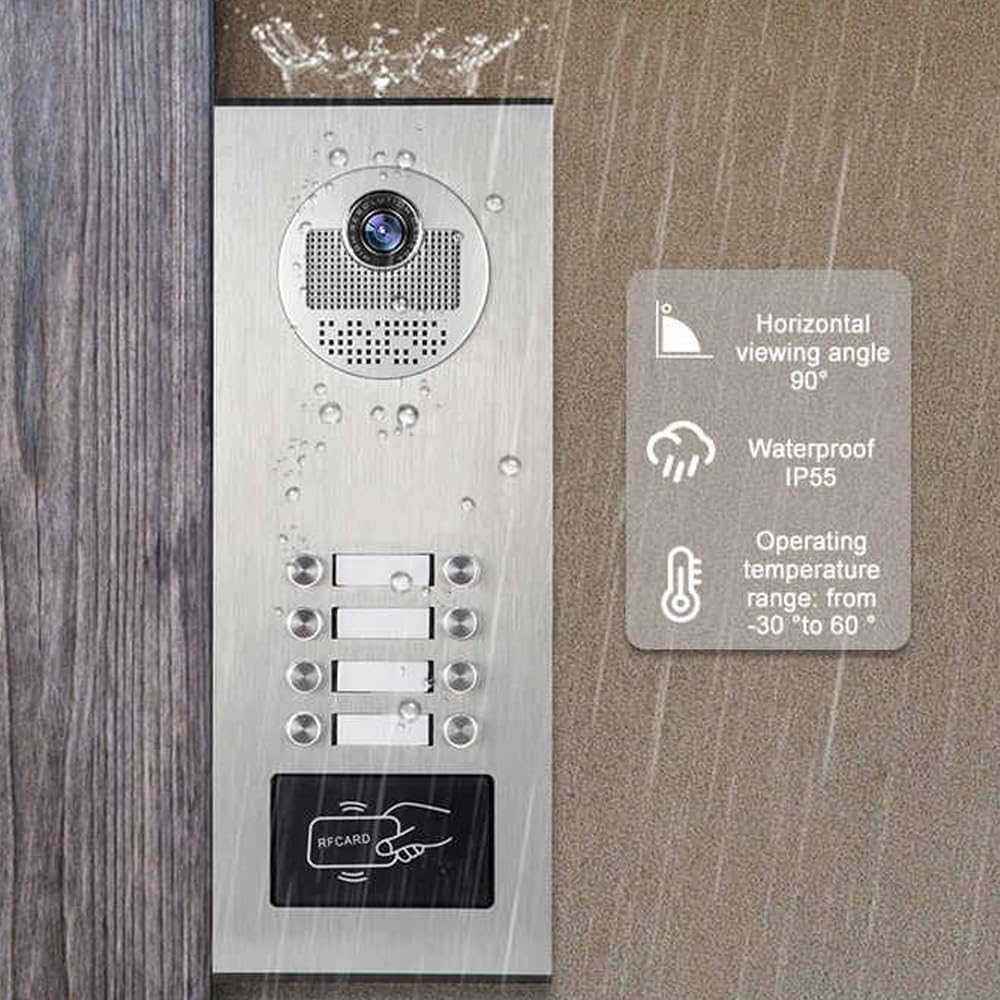

Figure 3.2: The outdoor doorbell unit, demonstrating its IP65 waterproof and dustproof rating, 90-degree horizontal viewing angle, and operating temperature range.
Figure 3.3: Comparison of day and night vision capabilities of the outdoor doorbell, illustrating how the built-in infrared LED ensures clear visibility in darkness.
Figure 3.4: The indoor monitor displaying the option to choose from 52 different ringtones.
4. Package Contents
Upon opening the package, please verify that all components are present and undamaged:
- Outdoor Doorbell Unit (1)
- Indoor Monitor(s) (Quantity varies based on purchased configuration: 2, 3, 4, 6, 8, 10, or 12)
- 5-meter 4-core connection cable (for testing purposes)
- Mounting Screws and Anchors
- User Manual (this document)
Note: Locks, additional power supplies, and exit buttons are not included in the standard package and must be acquired separately if needed.
5. Setup and Installation
5.1. Safety Precautions
- Ensure power is disconnected before beginning any installation work.
- Consult a qualified electrician if you are unsure about any wiring procedures.
- Do not expose the indoor monitor to excessive moisture or direct sunlight.
5.2. Component Identification
Figure 5.1: Labeled components of the outdoor doorbell unit, including the camera, IR detector, speaker, call buttons, card swiping area, and microphone.
5.3. Wiring Instructions
This system operates on a 4-wire connection. A 5-meter 4-core cable is provided for initial testing. For permanent installation, you will need to acquire longer cables based on the distance between the outdoor unit and the indoor monitors.
- Connect the outdoor doorbell unit to the indoor monitors using appropriate 4-core wiring.
- Ensure all connections are secure and properly insulated.
- The maximum recommended distance for wiring is 100 meters. Refer to the table below for cable diameter recommendations based on distance:
| Distance (meters) | Recommended Cable Diameter (mm²) |
|---|---|
| 0 - 30 | 0.5 |
| 30 - 50 | 0.75 |
| 50 - 100 | 1.0 |
Power supply: The system requires an input of AC100-240V for the outdoor unit and DC15V 1.2A for the indoor monitor.
5.4. Mounting
Both the outdoor doorbell unit and indoor monitors are designed for surface mounting. Use the provided screws and anchors to securely fasten the units to the desired surfaces.
- Outdoor Unit: Mount in a location that provides a clear view of visitors and is protected by the included waterproof cover.
- Indoor Monitor: Mount at a convenient height for viewing and operation within each apartment unit.
6. Operating Instructions
6.1. Receiving a Call
When a visitor presses a call button on the outdoor doorbell unit, the corresponding indoor monitor will activate, displaying the external environment and emitting a ringtone.
- Press the Answer button on the indoor monitor to establish two-way audio communication with the visitor.
- To end the conversation, press the Answer button again.
Figure 6.1: Illustration of a user interacting with the indoor monitor to see, hear, and speak to a visitor at the outdoor doorbell.
6.2. Unlocking the Door
The system supports unlocking via RFID card. Ensure an electronic lock (not included) is properly integrated with the system's wiring.
- To unlock the door using an RFID card, simply swipe the registered card over the card swiping area on the outdoor doorbell unit.
- The indoor monitor may also have an unlock button to remotely open the door.
6.3. Monitoring
You can manually activate the outdoor camera view from your indoor monitor at any time to monitor the entrance area.
- Press the Monitor button on the indoor unit to view the live feed from the outdoor camera.
- Press the button again to exit monitoring mode.
6.4. Silent Mode
To prevent disturbances, especially during nighttime hours, you can activate the silent mode on your indoor monitor.
- Refer to your indoor monitor's specific interface for the silent mode activation option. This typically involves a dedicated button or a setting within the menu.
- When silent mode is active, the monitor will still display the visitor, but the ringtone will be muted.
7. Maintenance
- Cleaning: Use a soft, damp cloth to clean the surfaces of both the outdoor and indoor units. Avoid abrasive cleaners or solvents that could damage the finish.
- Outdoor Unit: Periodically check the outdoor unit for any debris or obstructions on the camera lens or microphone/speaker grilles. Ensure the waterproof cover is securely in place.
- Wiring: Regularly inspect all wiring connections for signs of wear, corrosion, or damage. Address any issues promptly to maintain system integrity.
- Software Updates: Check the manufacturer's website or contact support for information on any available firmware or software updates for your system.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No image on indoor monitor | Power issue, loose connection, damaged cable, camera malfunction. | Check power supply to both units. Verify all 4-wire connections are secure. Inspect cable for damage. |
| No audio or poor audio quality | Microphone/speaker obstruction, loose wiring, audio settings. | Clear any obstructions from microphone/speaker. Check audio wiring. Adjust volume settings on monitor. |
| Doorbell not ringing | Silent mode active, faulty button, wiring issue. | Deactivate silent mode. Check doorbell button for physical damage. Verify wiring from doorbell to monitor. |
| RFID card not unlocking door | Card not registered, faulty lock connection, RFID reader issue. | Ensure RFID card is properly registered. Check wiring to the electronic lock. Test with another registered card. |
| Night vision unclear | Obstruction on lens, IR LEDs not functioning. | Clean camera lens. Check if IR LEDs are emitting light (may require viewing with a phone camera). |
If the problem persists after attempting these solutions, please contact ANJIELO SMART customer support for further assistance.
9. Specifications
| Feature | Detail |
|---|---|
| Functions | Intercom, Monitor, Unlock |
| Unlock Method | RFID Card |
| Night Vision | Built-in LED Infrared Light |
| Outdoor Unit Power Supply | AC100-240V |
| Indoor Monitor Power Supply | DC15V 1.2A |
| Connection Type | 4-Wire Connection |
| Outdoor Unit Case Material | ABS Plastic (with aluminum alloy for rain resistance) |
| Installation Type | Surface Mounting (Screw In) |
| Certificates | CE, FCC |
| Indoor Monitor Screen Size | 7 Inch TFT LCD |
| Camera Resolution | 1.0 MP |
| Camera View Angle | 120 Degree (Horizontal 90°) |
| Waterproof Rating | IP65 |
| Operating Temperature Range | -30°C to 60°C |
| 2-6 Unit Doorbell Size | 264 x 127 x 43 mm |
| 8-12 Unit Doorbell Size | 330 x 127 x 43 mm |
| Product Dimensions (Overall) | 7 x 3 x 1 inches (approximate) |
| Model Name | 60120S-2+67022E |
10. Warranty and Support
For warranty information and technical support, please refer to the ANJIELO SMART official website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
For common inquiries and troubleshooting, you may also visit the ANJIELO SMART Store on Amazon.
