1. Introduction
The JCLOUD A311 HVAC Scent Air Machine is designed to provide efficient and consistent scent distribution for homes and commercial spaces up to 2000 sq. ft. Utilizing advanced cold air diffusion technology, this waterless diffuser converts essential oils into a dry mist of micro-particles, ensuring a high utilization rate and effective scenting without water, heat, or mess. This manual provides detailed instructions for proper installation, operation, and maintenance to ensure optimal performance and longevity of your device.

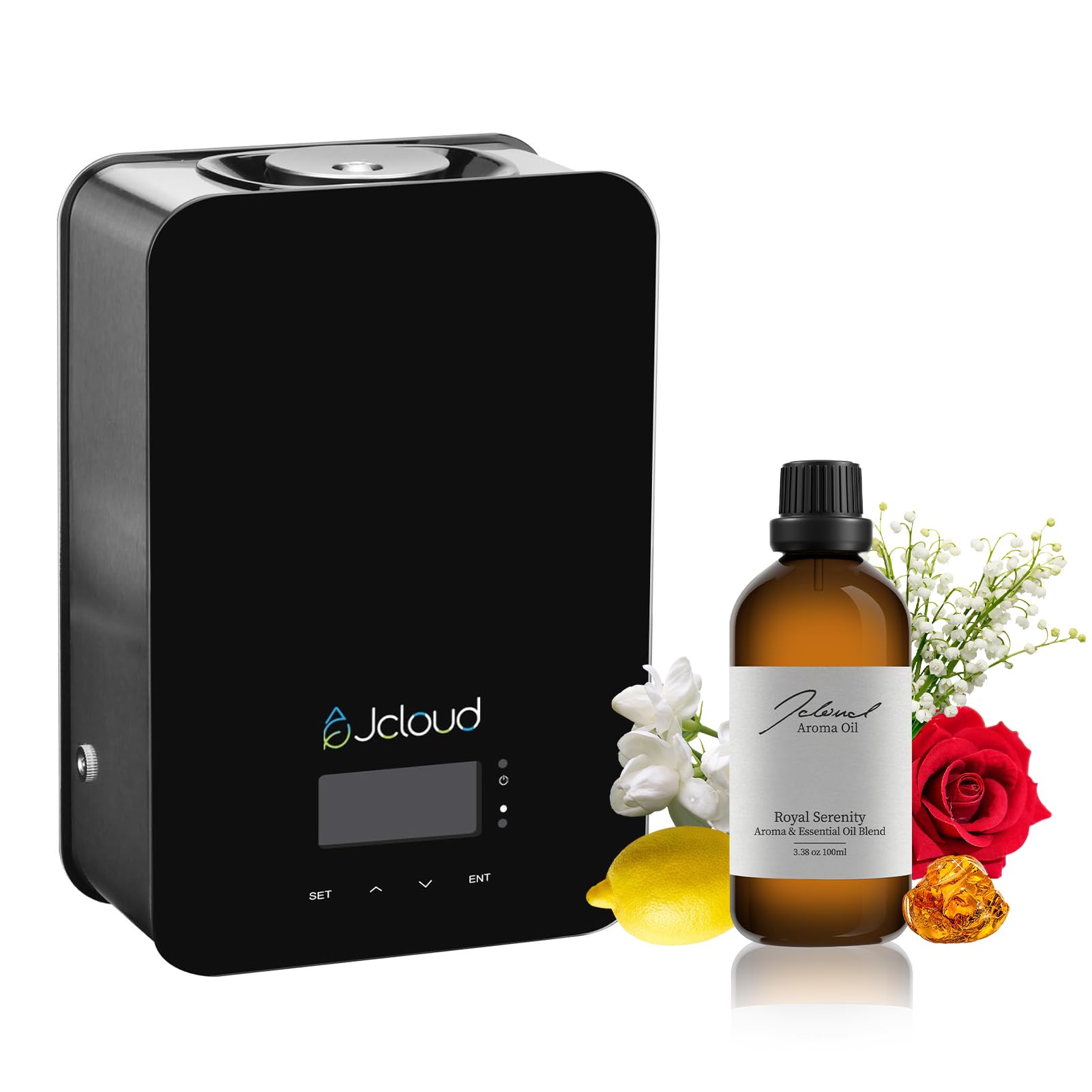

Image 1.1: JCLOUD A311 HVAC Scent Air Machine with included Royal Serenity essential oil.
2. Safety Information
- Avoid direct skin contact with undiluted essential oils.
- Keep the device and essential oils out of reach of children and pets.
- Ensure proper ventilation in the area where the device is used.
- The cold air technology ensures pure essential oils, free from water dilution, and is safe for kids and pets.
- Do not operate the unit if it is damaged or malfunctioning.
- Use only the provided power adapter.
Image 2.1: The JCLOUD A311 diffuser is designed to be safe for households with children and pets.
3. Package Contents
Your JCLOUD A311 HVAC Scent Air Machine package includes:
- JCLOUD A311 Scent Air Machine
- Royal Serenity Essential Oil (100ml)
- Power Adapter
- Mounting Bracket and Screws
- Key for unlocking the device
- PU Tube for HVAC connection
- Quick Connectors
4. Setup and Installation
The JCLOUD A311 can be used as a standalone unit or integrated with your HVAC system for wider scent distribution. Follow these steps for installation.
4.1. Wall Mounting (for HVAC Integration)
- Choose Location: Select a suitable wall location near your HVAC ductwork.
- Mark Bracket Holes: Hold the mounting bracket against the wall and mark the positions for drilling.
- Drill Holes: Drill holes at the marked positions.
- Install Wall Anchors: Insert the provided wall anchors into the drilled holes.
- Secure Bracket: Attach the mounting bracket to the wall using screws.
- Align Machine: Align the machine's bottom holes with the bracket's holes.
- Screw it On: Secure the machine to the bracket with screws.
4.2. Filling the Essential Oil Bottle
- Unlock: Use the provided key to unlock the top cover of the machine.
- Remove Bottle: Carefully remove the empty essential oil bottle from the device.
- Fill with Fragrance: Pour the JCLOUD Royal Serenity essential oil into the bottle. Do not overfill.
- Screw Tightly: Screw the bottle cap tightly onto the filled bottle.
- Place Back: Insert the filled bottle back into the machine.
- Lock: Close the top cover and lock it with the key.
4.3. HVAC Connection (Optional)
For optimal scent distribution across larger areas, connect the diffuser to your HVAC system.
- Unscrew Cover: Unscrew the small cover on top of the machine.
- Install Quick Connectors: Install the quick connectors into the designated ports.
- Screw it On: Secure the quick connectors by screwing them on.
- Connect PU Tube: Attach the PU tube to the quick connector on the machine.
- Measure Height: Measure the appropriate length of the PU tube to reach your AC duct.
- Cut Tube: Cut the PU tube to the measured length.
- Insert into AC Duct: Carefully insert the other end of the PU tube into your AC duct. Ensure a secure fit to prevent leakage.
Video 4.1: This video demonstrates the step-by-step process for installing the JCLOUD A311 HVAC Scent Air Machine, including wall mounting and connecting to an HVAC system.
5. Operating Instructions
The JCLOUD A311 can be operated directly via its control panel or through a mobile application.
5.1. Power On
Plug the power adapter into the device and then into a power outlet. The device will power on, and the display will activate.
5.2. Manual Operation (Control Panel)
Use the 'SET', arrow keys (up/down), and 'ENT' buttons on the device's front panel to adjust settings such as working periods and scent intensity grades. Refer to the on-screen prompts for navigation.
Image 5.1: The control panel allows selection of 9 default scent grades and custom settings for each day.
5.3. App Control (Bluetooth)
For advanced control and customization, download the 'Scent Marketing' app.
- Download App: Search for "Scent Marketing" in the Google Play Store (Android) or Apple App Store (iOS).
- Connect via Bluetooth: Open the app and allow Bluetooth permissions. Select your device from the list (e.g., "Aroma diffuser" or a device ID).
- Enter Password: The default password is usually 8888.
- Customize Settings: Within the app, you can set specific working periods (start/stop times), repeat schedules for different days, and choose from 9 scent grades or create custom work/stop intervals.
Video 5.2: This video details the operation of the JCLOUD A311, including filling the oil bottle, connecting to power, and setting schedules via the mobile application.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your JCLOUD A311 Scent Air Machine.
- Oil Refill: When the essential oil runs low, follow the steps in Section 4.2 to refill the bottle. The app can provide an estimated remaining usage time.
- Cleaning: Periodically wipe the exterior of the machine with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Nozzle Cleaning: If you notice reduced scent output, the nozzle might be clogged. Consult customer support for specific cleaning instructions for the internal components.
- Storage: If storing the device for an extended period, ensure the essential oil bottle is removed and sealed, and the device is clean and dry.
7. Troubleshooting
If you encounter issues with your JCLOUD A311, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No scent output | Empty oil bottle, clogged nozzle, incorrect settings. | Refill oil bottle. Check app/device settings for active working periods and grade. Clean nozzle if necessary (contact support). |
| Weak scent distribution | Low scent grade, large area coverage, poor HVAC connection. | Increase scent grade in app/device settings. Ensure HVAC connection is secure and tube is properly inserted. |
| Device not powering on | Power adapter not connected, faulty outlet. | Check power connections. Try a different power outlet. |
| App not connecting to device | Bluetooth off, incorrect password, device out of range. | Ensure Bluetooth is enabled on your phone. Verify default password (8888). Move closer to the device. Restart app and device. |
If the problem persists, please contact JCLOUD customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | JCLOUD |
| Model Name | A311 All Black & Royal Serenity 100ml |
| Color | All Black With Royal Serenity |
| Scent | Royal Serenity |
| Recommended Uses | Home, Nursery, Office |
| Material | Glass, Metal |
| Special Features | Exclusive All-Black Version, No water needed, No mess, Diffuser oils inspired by Luxury Hotel, HVAC scent air machine for home & commercial, Covers over 1500 - 2000 sq. ft. with 180ML capacity, Smart Bluetooth control, Kids & pets friendly. |
| Power Source | Corded Electric |
| Capacity | 100 Milliliters |
| Floor Area Coverage | 2000 Square Feet |
| Product Dimensions | 10.24"L x 3.5"W x 6.89"H |
| Shape | Rectangular |
| Auto Shutoff | No |
| Item Weight | 6.1 pounds |
9. Warranty and Support
JCLOUD is committed to providing exceptional customer service. If you have any questions regarding installation, operation, maintenance, or need assistance with your aromatherapy diffuser, please do not hesitate to contact our customer support team. We are here to assist you every step of the way.
For specific warranty details, please refer to the documentation included with your purchase or visit the official JCLOUD website.
