1. Introduction
This manual provides essential information for the proper assembly, safe operation, and maintenance of your Aoxun 10x20 ft Heavy Duty Carport. Please read these instructions thoroughly before beginning assembly or use to ensure safety and optimal performance of the product.
The Aoxun Heavy Duty Carport is designed to provide protection for vehicles and serve as a versatile outdoor shelter. It features a robust frame and a durable canopy engineered for wind and weather resistance.
Image 1.1: Aoxun 10x20 ft Heavy Duty Carport. This image shows the assembled carport with its green canopy and white frame, designed for outdoor use.
2. Safety Guidelines
WARNING: Failure to follow these safety instructions may result in product damage, personal injury, or property damage.
- Always secure the carport to the ground using the provided nails and ropes to prevent it from being blown away by strong winds.
- Do not use the carport in extreme weather conditions, such as heavy rain, snow, or high winds. Disassemble the carport if severe weather is anticipated.
- Keep the carport away from heat sources and open flames to prevent fire hazards.
- Always follow the assembly instructions carefully to ensure safe setup and dismantling.
- Ensure the assembly area is clear of obstructions and hazards.
- It is recommended to have at least two people for assembly.
3. Component Checklist
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer service immediately.
- Galvanized Steel Frame Pipes (various lengths and shapes for roof and legs)
- Thickened Elbow Pipes (for structural joints)
- PE Reinforced Canopy (green, double-layer coated)
- 4 Ground Nails
- 16 Small Nails
- 4 Windproof Ropes
- Elastic Balls / Connecting Balls (for canopy attachment)
- Instruction Manual
Image 3.1: Heavy Duty Frame Components. This image illustrates the high-quality galvanized steel pipes used in the Aoxun carport frame, emphasizing their durability compared to standard thin-walled pipes.
4. Assembly Instructions
Assembly typically takes less than 30 minutes with two people. Follow the steps below carefully.
- Step 1: Build the Top Frame. Connect the various galvanized steel pipes to form the roof structure. Ensure all connections are secure.
- Step 2: Cover the Frame with Canopy. Drape the PE reinforced canopy over the assembled top frame. Secure the canopy to the frame using the provided elastic balls or connecting balls.
- Step 3: Assemble the Leg Pipes and Secure. Attach the eight leg steel pipes to the top frame. Once the full structure is upright, secure the carport to the ground using the ground nails and windproof ropes.

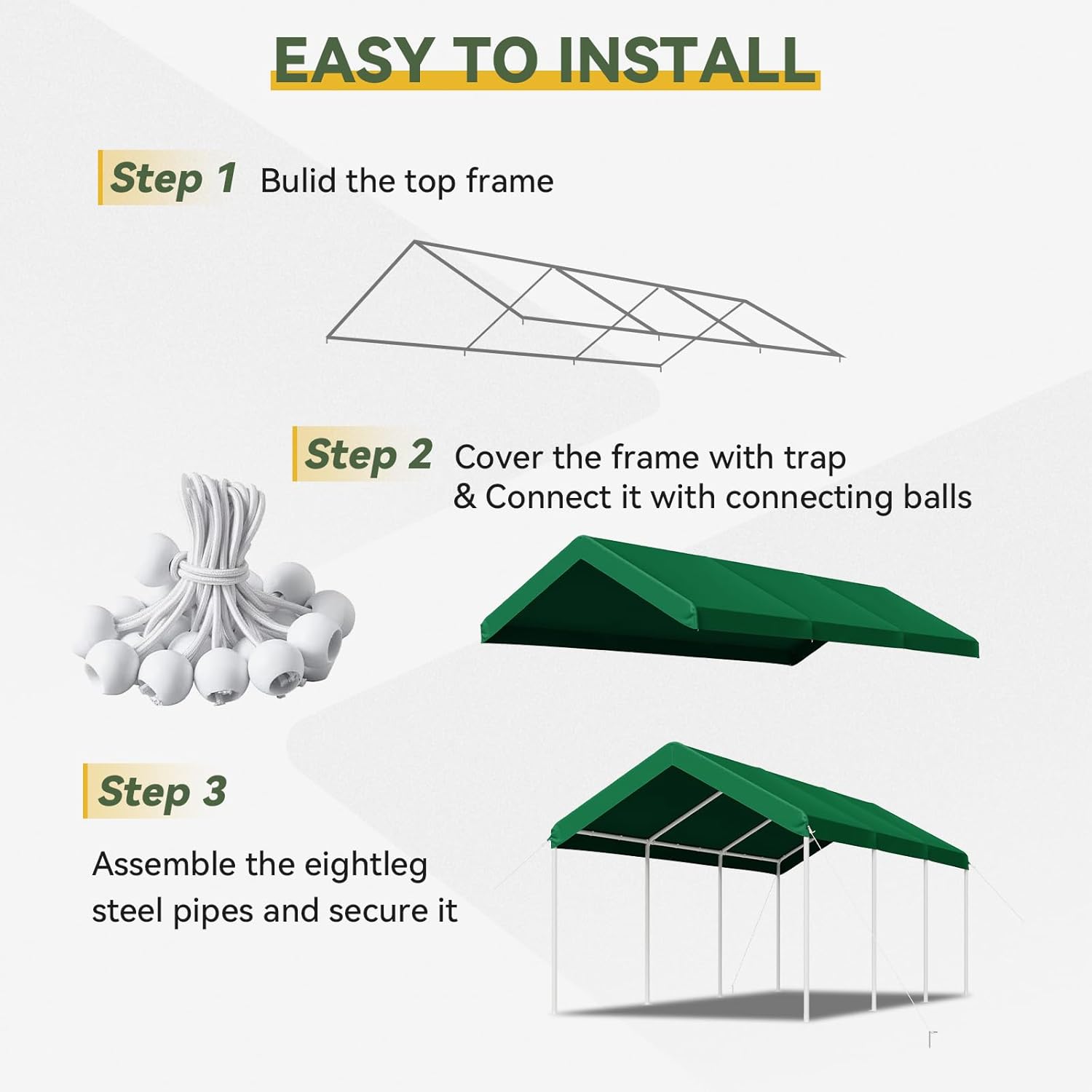

Image 4.1: Easy Installation Steps. This graphic provides a visual overview of the three main steps for assembling the carport: constructing the roof frame, attaching the canopy, and installing the support legs.
5. Anchoring and Stability
Proper anchoring is crucial for the stability and safety of your carport, especially in windy conditions. The carport is designed to withstand maximum wind speeds of up to 30 mph when correctly anchored.
- Utilize the 4 ground nails to firmly secure the base of the carport legs to the ground.
- Employ the 16 small nails and 4 windproof ropes to provide additional lateral stability. Attach ropes to designated points on the frame and secure them to the ground at an appropriate angle.
- Regularly inspect all anchoring points and ropes for tightness and wear. Re-secure or replace as necessary.
Image 5.1: Stability Components. This image highlights the solid carbon steel ground nails, windbreak nails, and high-strength bungees, which are essential for securing the carport and enhancing its wind resistance.
6. Usage and Applications
The Aoxun Heavy Duty Carport offers versatile utility for various outdoor needs:
- Vehicle Protection: Provides shelter for cars, trucks, and other vehicles from sun, rain, and other elements.
- Outdoor Events: Can be used as a temporary shelter for parties, gatherings, or barbecues.
- Storage: Offers covered space for outdoor equipment, tools, or other items.

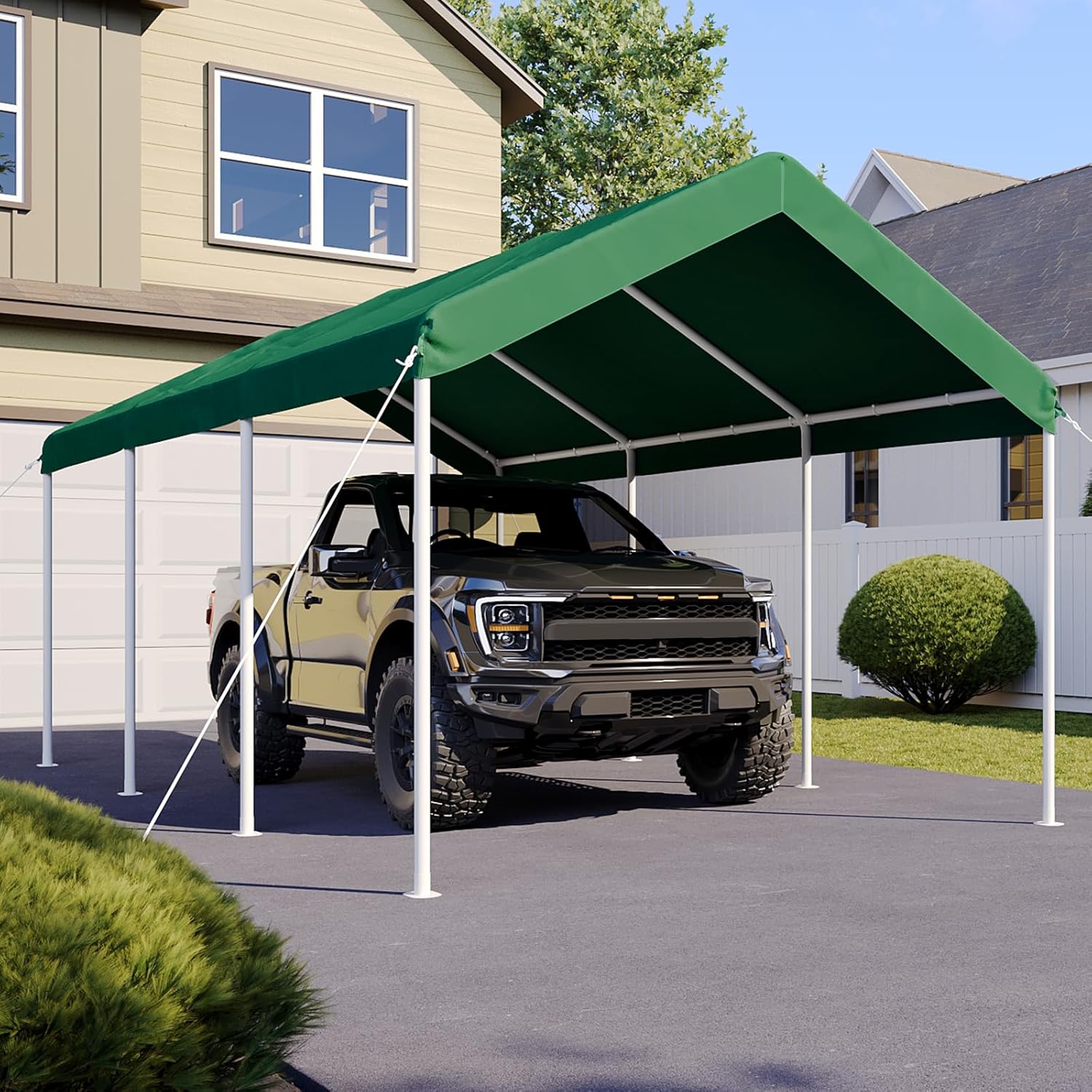

Image 6.1: Carport in Use. This image demonstrates the carport providing shelter for a pickup truck in a residential driveway, showcasing its primary function.
7. Care and Maintenance
Regular care and maintenance will extend the lifespan of your carport.
- Canopy Cleaning: Clean the PE canopy periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material. Rinse thoroughly and allow to air dry completely before storage.
- Frame Inspection: Regularly check all frame connections, bolts, and joints for tightness. Tighten any loose components. Inspect the galvanized steel for any signs of rust or damage.
- Anchoring Check: Periodically inspect ground nails, small nails, and windproof ropes for wear, damage, or loosening. Ensure they remain firmly secured to the ground.
- Weather Adaptability: The PE canopy is designed to adapt to temperatures ranging from -22℉ to 176℉ without cracking. However, for extreme weather conditions (heavy snow, ice, or very high winds), it is recommended to disassemble the carport to prevent damage.
Image 7.1: Canopy Protection Features. This image highlights the UV protection and waterproof capabilities of the carport's PE canopy, demonstrating its resilience against various weather conditions.
8. Troubleshooting
This section addresses common issues you might encounter during assembly or use.
- Missing or Damaged Parts: If you discover any missing or damaged components upon unboxing, do not proceed with assembly. Contact Aoxun customer service immediately for assistance.
- Loose Connections: During assembly, ensure all pipe connections are fully engaged. Some connections may require a firm push. If a connection feels excessively loose, verify that the correct pipes are being joined according to the diagram. In some cases, a self-tapping metal screw can be used to reinforce very loose attachments, but this should be a last resort and only if the structural integrity is not compromised.
- Carport Instability: If the carport feels unstable after assembly, re-check all anchoring points. Ensure ground nails are fully inserted and windproof ropes are taut and properly angled. Verify that the frame is level on the ground.
- Canopy Sagging: Ensure the canopy is evenly distributed over the frame and all elastic balls/connecting balls are securely fastened. Sagging can occur if the canopy is not properly tensioned.
9. Product Specifications
| Feature | Specification |
|---|---|
| Brand | Aoxun |
| Model Number | G77002GN04A-QF |
| Product Dimensions (L x W x H) | 236"L x 116.98"W x 111"H (10 ft x 20 ft x 9.25 ft) |
| Roof Height | 9.25 ft |
| Entry Height | 6.56 ft |
| Item Weight | 90 Pounds |
| Frame Material | Alloy Steel (Galvanized) |
| Canopy Material | PE (Polyethylene) Reinforced, Double-Layer Coated |
| Water Resistance Level | Waterproof (Hydrostatic pressure ≥5000mm) |
| Ultraviolet Light Protection | Yes |
| Temperature Resistance | -22℉ to 176℉ |
| Maximum Wind Speed Resistance | Up to 30 mph (when properly anchored) |
| Assembly Required | Yes |
Image 9.1: Product Dimensions. This diagram provides key measurements of the carport, including its 10 ft width, 20 ft length, 9.25 ft roof height, and 6.56 ft entry height.
10. Warranty and Customer Support
Aoxun provides a two-year warranty for this product, covering manufacturing defects and material failures under normal use. Please retain your proof of purchase for warranty claims.
For any questions, concerns, or assistance with assembly, parts, or warranty claims, please do not hesitate to reach out to our customer service team. We offer 24-hour customer service to ensure your satisfaction.
Contact Information: Refer to the contact details provided with your purchase documentation or visit the official Aoxun website for support.
