1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Rinnai RKW-405A-SV built-in dishwasher. Please read this manual thoroughly before using the appliance and keep it for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is intended for household use only.
- Ensure the appliance is properly installed and grounded by a qualified technician.
- Do not operate the dishwasher if it is damaged or malfunctioning.
- Keep children away from the dishwasher, especially when it is operating or when the door is open.
- Use only detergents and rinse aids specifically designed for automatic dishwashers.
- Do not touch the heating element during or immediately after use.
- Sharp items should be loaded with handles up to prevent injury.
3. Product Features
The Rinnai RKW-405A-SV dishwasher is designed for convenience and superior cleaning performance, incorporating several innovative features:
3.1. Smooth Rack (Lower Basket)
The lower basket features clear position signs and shorter pins, making it easier to load various types of dishes without confusion. This design not only simplifies placement but also optimizes water flow to ensure thorough cleaning of every dish.
3.2. Circle Rack (Upper Basket)
The upper basket is designed in an arc shape, aligning with the rotating nozzle's movement. This significantly increases the volume of water directed inside glasses, ensuring that even glasses at the ends of the rack are thoroughly cleaned. Note: The number of cups that can be set and the rack shape may vary depending on the specific model.
3.3. Vital Sterilization Wash Function
This function adjusts the water temperature to optimize the activity of enzymes in dishwasher detergent. This effectively dissolves and lifts oil stains, making them easier to remove. By precisely controlling the temperature, the function maintains the sterilization performance of the detergent while also reducing power consumption, offering an economical and effective cleaning solution. This feature is available in Standard, Intensive, Night Eco, Reservation, and Silent courses. Test results indicate over 99% sterilization effect.
3.4. All-Top Control & Quick Start Functions
The 'All-Top Control' centralizes all operation buttons on the top panel, allowing for comfortable operation without bending down. The 'Quick Start' function enables immediate operation: simply open the door, press the start button, and close the door to begin a wash cycle using the last selected course.
4. Setup and Installation
The Rinnai RKW-405A-SV is a built-in dishwasher designed for seamless integration into your kitchen cabinetry. Professional installation is recommended.
4.1. Dimensions and Requirements
- Body Size (Height x Width x Depth): 450mm x 448mm x 620.5mm
- Minimum Required Installation Width: 450mm
- Minimum Required Installation Depth: 650mm
- Body Weight: Approximately 18 kg
Ensure adequate space and proper utility connections (water supply, drainage, electrical) are available at the installation site. This model does not include a water tank and requires a direct water connection.

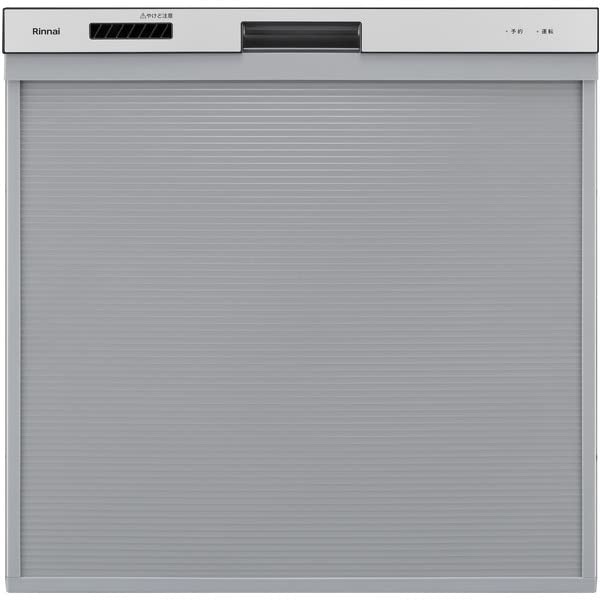

Front view of the Rinnai RKW-405A-SV built-in dishwasher, silver finish, with the slide-open door mechanism.
5. Operating Instructions
Operating your Rinnai RKW-405A-SV dishwasher is straightforward thanks to its intuitive controls.
5.1. Control Panel
The 'All-Top Control' panel is located on the top edge of the dishwasher door, making it easily accessible when the door is slightly ajar. It features buttons for program selection, start/pause, and other functions.
5.2. Loading Dishes
Utilize the 'Smooth Rack' in the lower basket and the 'Circle Rack' in the upper basket for optimal loading. Place larger items like plates and pots in the lower basket, ensuring they do not obstruct the spray arms. Glasses, cups, and smaller bowls should be placed in the upper basket. Ensure all dishes are positioned to allow water to reach all surfaces.
5.3. Adding Detergent and Rinse Aid
Add the appropriate amount of dishwasher detergent to the dispenser. If using rinse aid, ensure the rinse aid dispenser is filled. Refer to the detergent and rinse aid manufacturer's instructions for dosage.
5.4. Selecting a Wash Cycle
The dishwasher offers 4 washing courses:
- Standard: For daily washing of normally soiled dishes.
- Intensive: For heavily soiled dishes and pots.
- Reservation: Allows you to set a delayed start time for the wash cycle.
- Drying: A dedicated drying cycle.
The standard wash cycle includes 2 rinses followed by 1 hot water rinse at approximately 70°C.
5.5. Starting the Dishwasher
Close the dishwasher door firmly. Press the 'Start' button. The dishwasher will begin its cycle. You can also use the 'Quick Start' function for immediate operation with the last used course.
6. Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your dishwasher.
- Cleaning the Filters: Regularly check and clean the filters at the bottom of the dishwasher to remove food particles and debris.
- Cleaning the Interior: Wipe down the interior with a damp cloth periodically. For stubborn stains, use a dishwasher cleaner.
- Cleaning the Exterior: Clean the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners.
- Door Seal: Wipe the door seal regularly to remove any food residue or detergent buildup.
- Winterization (if applicable): If the dishwasher will be unused for an extended period in a cold environment, consult a professional for proper winterization procedures to prevent freezing damage.
7. Troubleshooting
If you encounter issues with your dishwasher, refer to the following common troubleshooting tips before contacting service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Door not closed properly; Power supply issue; Cycle not selected. | Ensure door is latched; Check power connection/breaker; Select a wash cycle. |
| Dishes not clean | Improper loading; Clogged spray arms/filters; Insufficient detergent. | Reload dishes correctly; Clean spray arms/filters; Use correct amount of detergent. |
| Excessive noise during operation | Dishes obstructing spray arms; Foreign object in pump; Normal operating noise. | Rearrange dishes; Check for foreign objects; Operating noise is 42/44 dB (50/60Hz). |
| Water not draining | Clogged drain hose/filter; Drain pump malfunction. | Clean drain filter; Check drain hose for kinks; Contact service if pump issue. |
8. Specifications
Detailed technical specifications for the Rinnai RKW-405A-SV built-in dishwasher:
- Model: RKW-405A-SV
- Brand: Rinnai
- Body Size (H x W x D): 450mm x 448mm x 620.5mm
- Capacity: For 5 people
- Dish Storage Capacity: Approximately 40 items (31-40 dishes)
- Minimum Required Installation Width: 450mm
- Minimum Required Installation Depth: 650mm
- Body Weight: Approximately 18 kg
- Door Type: Middle (shallow) type
- Door Opening Method: Slide-open
- Washing Courses: 4 (Standard, Intensive, Reservation, Drying)
- Standard Water Temperature: 2 rinses + 1 hot water rinse (approx. 70°C)
- Operating Noise: 42/44 dB (50/60Hz)
- Water Tank: None (direct water connection required)
- Water Usage: Approximately 9L per cycle
9. Warranty and Support
For warranty information, service requests, or technical support, please refer to the warranty card included with your product or contact Rinnai customer service directly. Keep your purchase receipt as proof of purchase.
Rinnai Customer Support: Please visit the official Rinnai website or refer to your local dealer's contact information for assistance.
