1. Product Overview
The Moimhear Loft Bed is a versatile furniture piece designed to maximize space in your room. It features a sturdy iron frame, an integrated L-shaped desk, and practical storage drawers. This model is designed for a 140 x 200 cm mattress (not included) and is ideal for study, work, and comfortable sleep.
Figure 1.1: Front view of the Moimhear Loft Bed, showcasing the integrated L-shaped desk and storage drawers beneath the bed frame.
Key Features:
- High-Quality Materials: The desk and storage compartments are constructed from MDF as the base material, ensuring robustness, durability, and resistance to deformation.
- Elegant L-shaped Desk Design: The desk is arranged in an L-shape to optimize space utilization, suitable for various purposes such as studying, working, or dressing.
- Practical Drawers: Two practical drawers allow for convenient storage of books, stationery, and other items, keeping the desk tidy. The laminated design increases storage space to meet diverse storage needs.
- Sturdy Iron Frame: The bed frame is made of high-strength iron, providing a solid and durable structure.
- Easy Assembly: Detailed instructions and complete parts are provided to facilitate quick assembly.
2. Safety Information
Please read and understand all safety information before assembling and using this product. Failure to follow these instructions can result in serious injury.
- Weight Capacity: The bed has a maximum weight capacity of 150 kg. Do not exceed this limit.
- Mattress Thickness: The recommended mattress thickness is 10 cm. Using a thicker mattress may compromise safety rails.
- Assembly: Ensure all bolts, screws, and connectors are securely tightened before use. Periodically check and re-tighten as needed.
- Ladder Safety: Always use the provided ladder for access to the bed. Ensure the ladder is stable before climbing.
- Children: This bed is not recommended for children under 6 years of age due to the risk of falls.
- Ventilation: Ensure adequate ventilation around the bed.
- No Jumping: Do not jump on the bed.
- Placement: Position the bed away from windows, cords, or other items that could pose a strangulation hazard.
3. Components List
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer service.
| Component | Description |
|---|---|
| Bed Slats | Support for the mattress. |
| Assembly Instructions | Detailed guide for construction. |
| Ladder | Access to the upper bed. |
| Tools | Necessary wrenches and hex keys for assembly. |
| Iron Frame Components | Main structural elements of the bed. |
| MDF Desk & Drawer Components | Parts for the L-shaped desk and storage drawers. |
| Hardware Pack | Screws, bolts, nuts, and other fasteners. |
Note: This product is delivered in 3 packages. Due to logistics, these packages may arrive at different times. Please be patient and ensure all packages have arrived before starting assembly.
4. Setup and Assembly Instructions
Assembly of the Moimhear Loft Bed requires two adults and approximately 2-3 hours. Follow the step-by-step instructions provided in the included assembly manual. Ensure you have ample space and all tools ready.
- Unpack Components: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each part using the component list.
- Assemble Bed Frame: Begin by assembling the main iron frame of the bed according to the diagrams in the assembly manual. Ensure all connections are finger-tightened initially.
- Install Bed Slats: Once the main frame is stable, install the bed slats onto the designated supports.
- Assemble Desk and Drawers: Construct the L-shaped desk and drawer units. Pay attention to the orientation of the drawer slides.
- Attach Desk and Drawers to Frame: Securely attach the assembled desk and drawer unit to the bed frame using the provided hardware.
- Install Ladder: Attach the ladder to the designated mounting points on the bed frame. Ensure it is firmly secured.
- Final Tightening: Once all components are in place, systematically tighten all bolts and screws using the provided tools. Do not overtighten.
- Final Check: Before use, perform a thorough check to ensure all parts are correctly assembled and all fasteners are tight.
Figure 4.1: An intermediate view of the Moimhear Loft Bed, illustrating the robust iron frame and the partially assembled L-shaped desk unit.

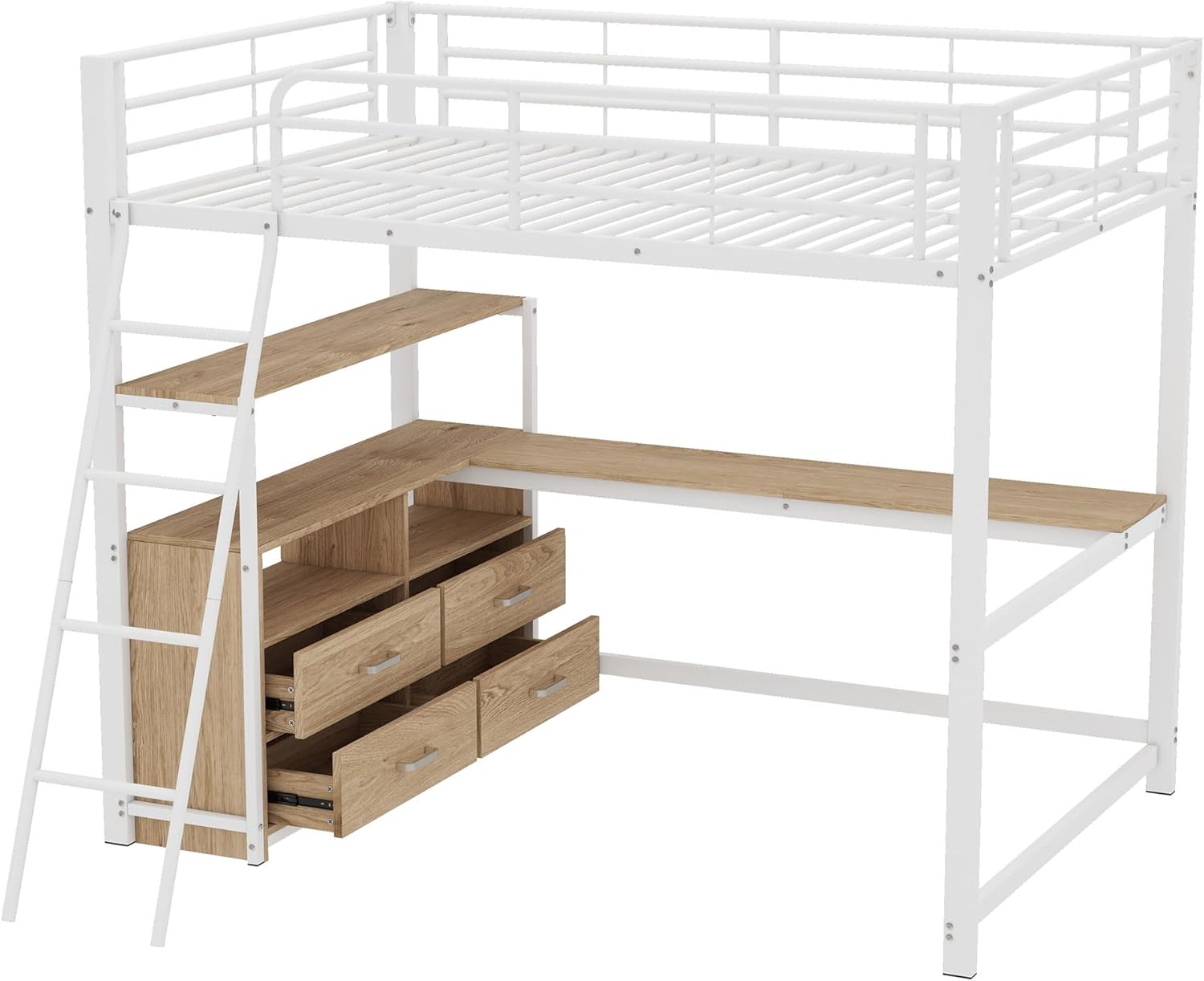

Figure 4.2: Angled view of the Moimhear Loft Bed, highlighting the practical drawers in the open position, demonstrating storage capacity.
5. Operating Instructions
The Moimhear Loft Bed is designed for daily use as both a sleeping area and a functional workspace.
- Using the Bed: Access the bed using the provided ladder. Ensure the mattress is properly seated on the bed slats.
- Using the Desk: The L-shaped desk provides ample surface area for a computer, books, and other study or work materials.
- Using the Drawers: The integrated drawers are suitable for organizing stationery, documents, and personal items. Pull them out gently to open and push them in fully to close.
- Storage Shelves: Utilize the laminated shelves for additional storage or display of decorative items.
Figure 5.1: Side view of the Moimhear Loft Bed, showing the full length of the L-shaped desk and the integrated storage drawers.
6. Maintenance
Regular maintenance will extend the life and ensure the safety of your Moimhear Loft Bed.
- Cleaning:
- For the iron frame, wipe with a damp cloth and mild detergent. Dry immediately.
- For the MDF and PVC coated surfaces (desk, drawers), use a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals.
- Fastener Check: Periodically (every 3-6 months) check all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary.
- Structural Integrity: Inspect the bed frame and desk for any signs of damage, cracks, or bending. If damage is found, discontinue use and contact customer service.
- Ladder: Ensure the ladder rungs are clean and free of debris to prevent slips.
7. Troubleshooting
This section addresses common issues you might encounter with your loft bed.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable. | Loose fasteners. | Check and tighten all bolts and screws. Ensure the bed is on a level surface. |
| Drawers do not slide smoothly. | Misaligned drawer slides or debris. | Check that drawer slides are correctly aligned and free of obstructions. Lubricate with a silicone spray if needed. |
| Squeaking noises from the bed. | Loose connections or friction between metal parts. | Re-tighten all fasteners. Apply a small amount of lubricant (e.g., WD-40) to metal-on-metal contact points if necessary. |
| Missing parts upon delivery. | Packages arrived separately or parts were omitted. | Wait for all 3 packages to arrive. If still missing, contact customer service with your order details. |
8. Specifications
Detailed specifications for the Moimhear Loft Bed.
| Attribute | Detail |
|---|---|
| Brand | Moimhear |
| Model Number | WX000584-ZXYY |
| Color | White |
| Bed Material | Metal (Iron) + MDF |
| Overall Dimensions (L x W x H) | 204 cm x 199 cm x 180 cm (2.04L x 1.99W x 1.8H meters) |
| Internal Bed Dimensions | 140 cm x 200 cm |
| Recommended Mattress Thickness | 10 cm (Mattress not included) |
| Weight Capacity | 150 kg |
| Product Weight | 82 kg |
| Number of Packages | 3 |
| Assembly Required | Yes |
| Origin | China |

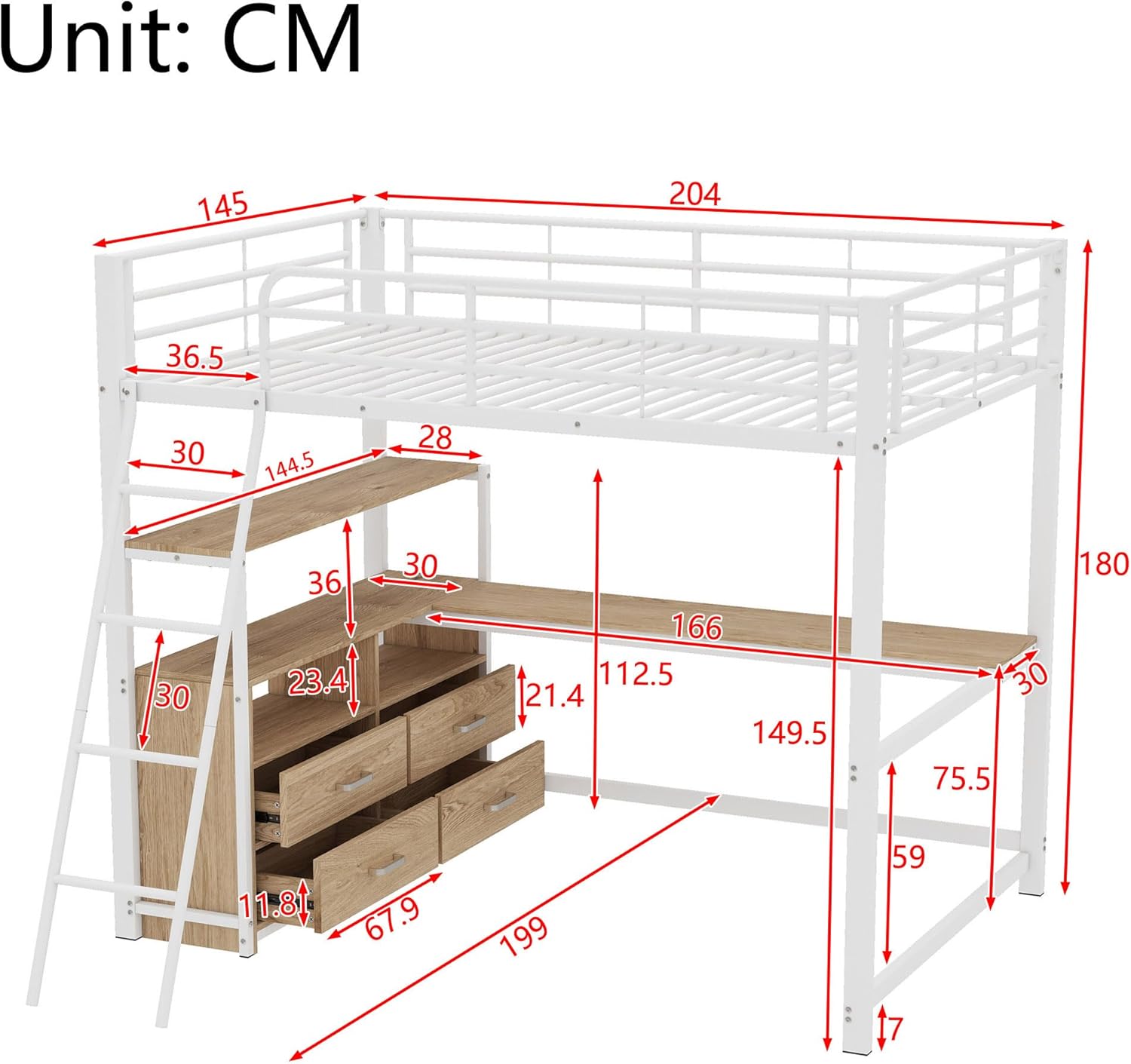

Figure 8.1: Detailed dimensional drawing of the Moimhear Loft Bed, showing all key measurements in centimeters.
9. Warranty and Support
For any questions, missing parts, or issues not covered in this manual, please contact Moimhear customer service. Keep your purchase receipt and model number handy for faster assistance.
Contact Information: Please refer to your purchase platform or the packaging for specific customer service contact details.
