Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Midea MRF29D6AST 29.3 Cu. Ft. Stainless 3-Door French Door Smart Refrigerator. Please read all instructions carefully before using the appliance and retain this manual for future reference.
Front view of the Midea MRF29D6AST 29.3 Cu. Ft. Stainless 3-Door French Door Smart Refrigerator.
Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. Ensure the refrigerator is properly grounded. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Keep ventilation openings clear of obstruction.
Setup and Installation
Unpacking
Remove all packaging materials, including tape and protective films. Dispose of packaging responsibly. Ensure no parts are missing or damaged. If any damage is found, contact customer service immediately.
Placement
Place the refrigerator on a flat, stable surface. Allow adequate space around the unit for proper ventilation. Maintain at least 2 inches (5 cm) of space at the back and sides for air circulation. The dimensions of the refrigerator are approximately 39 inches (D) x 37 inches (W) x 74 inches (H).
Diagram illustrating the dimensions of the Midea French Door Refrigerator.
Leveling
Adjust the leveling feet to ensure the refrigerator is stable and level. This is crucial for proper door sealing and efficient operation. Use a level to verify the appliance is perfectly balanced.
Water Connection
Connect the refrigerator to a cold water supply for the dual ice maker and water dispenser. Ensure all connections are secure to prevent leaks. It is recommended to flush the water system before initial use.
Electrical Connection
Plug the refrigerator into a dedicated 115 Volt, 60 Hz, 15 Amp or 20 Amp grounded electrical outlet. Do not use extension cords or adapter plugs.
Operating Instructions
Temperature Controls
The refrigerator features adjustable temperature controls. Refer to the control panel inside the fresh food compartment to set desired temperatures for both the refrigerator and freezer sections. Allow several hours for the appliance to reach optimal temperatures after initial setup.
Dual Ice Maker and Water Dispenser
Your refrigerator is equipped with a dual ice maker system, providing ice in both the freezer and the fresh food compartment, along with a water dispenser. To dispense water or ice, press a glass against the paddle on the dispenser. The dispenser features a simple touch control panel that illuminates for easy visibility.
The dual ice maker and water dispenser provide convenient access to ice and chilled water.
The simple touch dispenser panel illuminates when activated for clear operation.
Smart Control (Wi-Fi Enabled)
This refrigerator can be connected to your home Wi-Fi network for smart control. Download the SmartHome app to monitor and adjust settings remotely. The appliance is compatible with voice commands via Alexa or Google Home for added convenience.

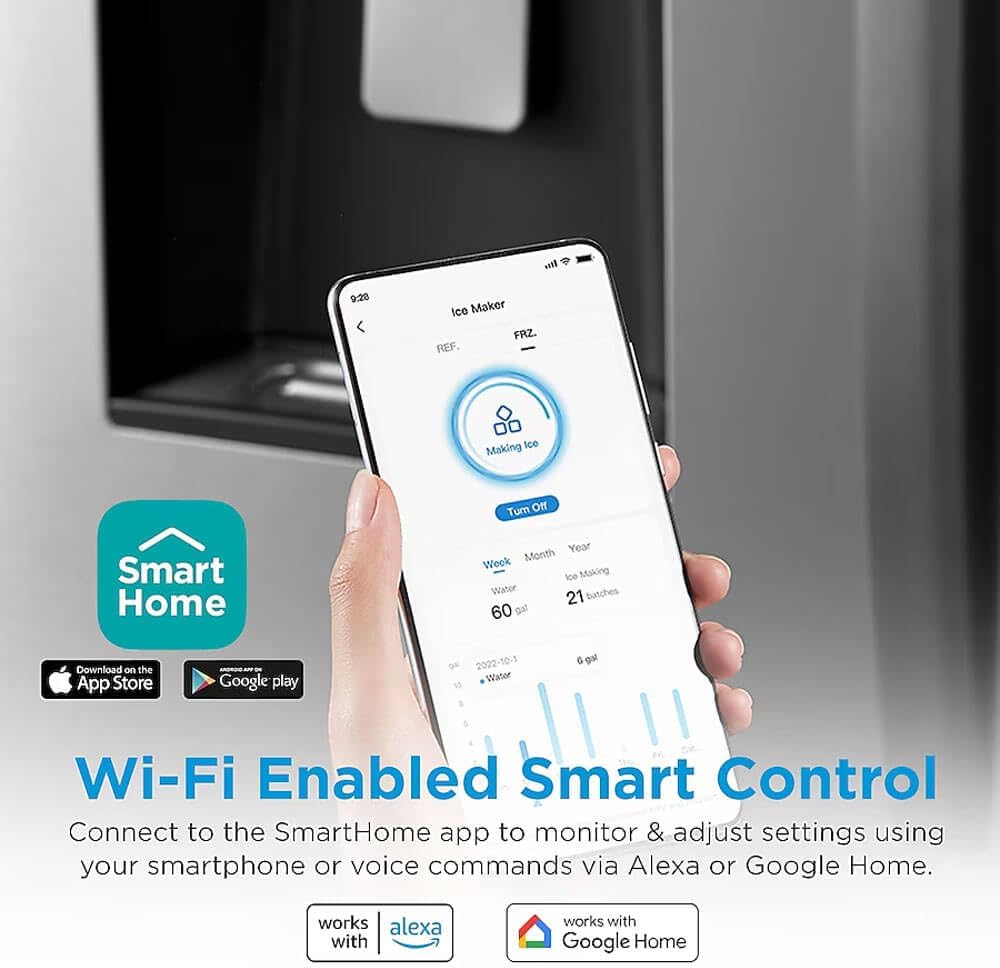

Control and monitor your refrigerator settings using the SmartHome app on your smartphone.
Door Alarm
The refrigerator is equipped with a door alarm that sounds if a door is left open for an extended period, helping to conserve energy and maintain food freshness.
LED Interior Lighting
Bright LED lighting illuminates the interior of both the refrigerator and freezer compartments, providing clear visibility of contents.
The spacious interior and LED lighting provide ample storage and visibility.
Maintenance and Care
Cleaning the Interior
Clean the interior regularly with a solution of mild soap and warm water. Rinse thoroughly and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
Cleaning the Exterior
The stainless steel finish is fingerprint resistant. Wipe the exterior surfaces with a clean, damp cloth and dry thoroughly. For stubborn marks, use a stainless steel cleaner according to its instructions.
Automatic Defrost System
This refrigerator features an automatic defrost system, eliminating the need for manual defrosting. Ensure the drain pan is clear to allow proper water evaporation.
Water Filter Replacement
For models equipped with a water filter, replace it every six months or as indicated by the filter indicator light to ensure optimal water quality and ice production. Refer to the specific instructions for your water filter model.
Door Seals
Regularly inspect and clean the door gaskets to ensure a tight seal. A damaged or dirty gasket can lead to inefficient cooling and increased energy consumption.
Troubleshooting
Before contacting service, review the following common issues and solutions:
- Refrigerator not cooling: Check if the power cord is securely plugged in, the circuit breaker is not tripped, and the temperature settings are correct. Ensure doors are fully closed.
- Ice maker not producing ice: Verify the water supply is connected and turned on. Check if the ice maker is switched on and the water filter is not clogged.
- Water dispenser not working: Ensure the water supply is connected and the water filter is not clogged. Check for any kinks in the water line.
- Unusual noises: Some operational noises are normal (e.g., compressor hum, water flowing). If noises are excessive or unusual, ensure the refrigerator is level and not touching walls or cabinets.
- Door alarm sounding frequently: Ensure doors are closing completely and not obstructed. Check door gaskets for damage.
If problems persist after attempting these solutions, contact qualified service personnel.
Specifications
| Brand | Midea |
| Model Name | MRF29D6AST |
| Product Dimensions (D x W x H) | 39"D x 37"W x 74"H |
| Refrigerator Net Capacity | 29.3 Cubic Feet |
| Fresh Food Capacity | 18.95 Cubic Feet |
| Freezer Capacity | 10.35 Cubic Feet |
| Configuration | French Door |
| Color | Stainless |
| Voltage | 115 Volts |
| Defrost System | Automatic |
| Annual Energy Consumption | 782 Kilowatt Hours Per Year |
| Item Weight | 335 Pounds |
| Special Features | Dual Ice Maker with Water and Ice Dispenser, Smart Control (Wi-Fi Enabled), Fingerprint Resistant, LED Interior Lighting |
Warranty Information
This Midea refrigerator comes with a 1 Year Manufacturer Warranty. Please refer to the warranty card included with your product for full terms and conditions, or visit the Midea official website for detailed warranty information.
The product is backed by a manufacturer's warranty for reliable performance.
Energy Efficiency
The Midea MRF29D6AST refrigerator is ENERGY STAR® Certified, meaning it meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency. This helps save money on utility bills and conserve energy.
This refrigerator is ENERGY STAR® Certified for energy efficiency.
Customer Support
For further assistance, technical support, or to schedule service, please contact Midea customer service. Refer to the contact information provided in your product packaging or visit the official Midea website.
