Giraffe Tools Grandfalls Retractable Wall Mount Pressure Washer Plus

1. Important Safety Information

Read all instructions carefully before operating the pressure washer. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

• Always wear appropriate personal protective equipment, including safety glasses, gloves, and hearing protection.
• Ensure the power cord is connected to a Ground Fault Circuit Interrupter (GFCI) protected outlet.
• Never point the spray gun at people, pets, or electrical devices.
• Do not operate the pressure washer in an enclosed space or near flammable liquids or gases.
• Keep children and pets away from the operating area.
• Always disconnect the power supply and water supply when the unit is not in use or before performing any maintenance.

2. Package Contents

Verify that all items are present in the package:

• Giraffe Tools Grandfalls Retractable Wall Mount Pressure Washer Plus unit
• 100 ft Pressure Hose (pre-installed)
• Spray Gun with Wand
• 4 Quick-Connect Nozzles (0°, 15°, 25°, 40°)
• Foam Cannon/Soap Tank
• Short Inlet Hose for water supply connection
• Wall Mounting Bracket and Hardware
• User Manual

3. Setup Instructions

3.1 Mounting the Unit

The pressure washer is designed for wall mounting to save space and keep your work area organized. Ensure the mounting surface is sturdy enough to support the unit's weight (approximately 63.7 lbs) when filled with water and under operation. It is recommended to mount the unit to wall studs or a solid masonry surface using the provided hardware.

1. Select a suitable location near a GFCI-protected electrical outlet and a water source.
2. Attach the wall mounting bracket securely to the chosen surface using the provided bolts and anchors.
3. Carefully slide the pressure washer unit onto the mounted bracket until it locks into place.

Image: The Giraffe Tools pressure washer unit securely mounted on a garage wall, demonstrating its space-saving design.

3.2 Connecting Water Supply

Connect the short inlet hose from the pressure washer to a standard garden hose connected to your water spigot. Ensure all connections are tight to prevent leaks.

Image: A close-up view showing the water inlet hose connected to the pressure washer and the power cord plugged into an outlet.

3.3 Connecting Power

Plug the pressure washer's power cord into a 120V GFCI-protected electrical outlet. The unit is equipped with a 6 ft power cord with GFCI for safety.

3.4 Initial Hose Setup

The 100 ft pressure hose is pre-installed on the retractable reel. Ensure the spray gun is securely attached to the end of the pressure hose.

4. Operating Instructions

4.1 Powering On and Off

Turn on the water supply to the pressure washer. Press the ON/OFF switch on the unit to power it on. The Total Stop System (TSS) will automatically shut off the pump when the trigger is not engaged, saving energy and prolonging pump life.

4.2 Using the Retractable Hose

To extend the hose, pull it gently to the desired length. The ratchet locking system will hold the hose in place. To retract, give the hose a gentle tug, and it will automatically rewind into the reel.

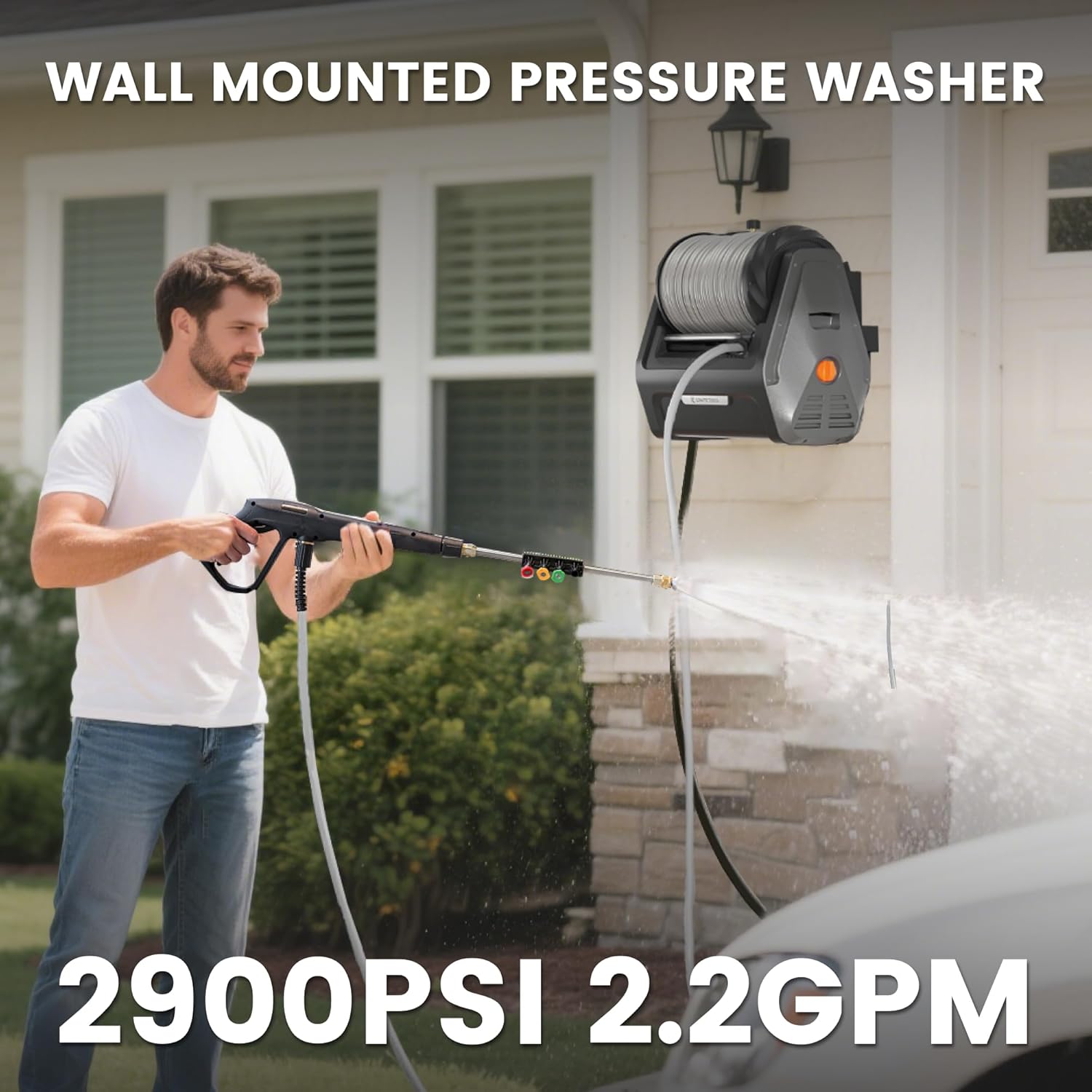

Image: A man demonstrating the use of the retractable hose and spray gun to clean a vehicle.

4.3 Nozzle Selection

The pressure washer comes with 4 quick-connect nozzles for various cleaning tasks:

• 0° (Red): For concentrated, high-impact cleaning of stubborn stains. Use with caution.
• 15° (Yellow): For intense cleaning of hard surfaces like concrete and brick.
• 25° (Green): For general cleaning of most surfaces, including wood and siding.
• 40° (White): For gentle cleaning of delicate surfaces, vehicles, and wide area rinsing.

Image: A display of the four quick-connect nozzles, each color-coded for a specific spray pattern and cleaning intensity.

4.4 Foam Cannon Usage

Attach the foam cannon to the spray gun for applying soap or detergent. Fill the tank with appropriate pressure washer detergent. Adjust the detergent flow as needed for rich lather.

Image: The foam cannon accessory connected to the spray gun, ready for applying cleaning solutions.

5. Maintenance

5.1 Hose Care

The 100 ft replaceable pressure hose is constructed with three-layer composite anti-explosion material. To ensure longevity, avoid sharp bends or kinks during use and storage. The automatic rewind system helps protect the hose from damage.

Image: A detailed cross-section illustration of the 100 ft pressure hose, highlighting its three-layer composite anti-explosion material construction.

5.2 Nozzle Cleaning

Periodically check nozzles for blockages. Use the included nozzle cleaning tool to clear any debris. A clogged nozzle can reduce pressure and damage the pump.

5.3 Winterization

If storing the pressure washer in an area where temperatures may drop below freezing, it is crucial to winterize the unit. Run a pump protector or non-toxic antifreeze through the system to prevent damage from freezing water.

6. Troubleshooting

The Total Stop System (TSS) automatically shuts the pump off when the trigger is not engaged. This is a normal safety and energy-saving feature.

The GFCI plug is a safety device. If it trips, press the reset button to restore power. If it repeatedly trips, discontinue use and contact support.

7. Specifications

8. Warranty and Support

This Giraffe Tools pressure washer comes with a 2-Year Hassle-Free Warranty. If you encounter any issues or require assistance, please contact Giraffe Tools customer support for timely solutions and friendly service.

For support, refer to the contact information provided on the product packaging or the official Giraffe Tools website.
