JUMMICO Outdoor Trampoline User Manual

1. Important Safety Information

Read all instructions before assembling and using this trampoline. Failure to follow these instructions may result in serious injury. This trampoline is designed for recreational use by one child at a time, with a maximum weight capacity of 50 kg.

• Enhanced Child Protection: The trampoline features a recognized safety certification. The premium polyethylene safety net, 150 cm high, fully encloses the jumping surface. It is equipped with double zippers and safety clips. All edges are covered with thick EPE foam, and poles are padded for optimal protection.
• Single User Limit: The jumping mat supports up to 50 kg and is designed for one child at a time. Multiple users increase the risk of collision and injury.
• Supervision: Adult supervision is required at all times when the trampoline is in use.
• Clearance: Ensure adequate overhead and surrounding clearance from structures, trees, and other obstacles.
• No Somersaults: Avoid somersaults or other high-risk maneuvers, as these can lead to severe head and neck injuries.
• Weather Conditions: Do not use the trampoline in wet, windy, or icy conditions.
• Footwear: Always remove shoes before using the trampoline.
• Jewelry/Sharp Objects: Remove all jewelry and sharp objects before use.

Image: The safety net and padded poles provide a secure enclosure for users.

2. Product Overview

The JUMMICO Outdoor Trampoline (Model GSD6FTK) is designed for recreational use in gardens, offering a safe and enjoyable jumping experience for children. This model features a robust construction and comprehensive safety measures.

2.1 Components Included

• Jumping Mat
• Safety Net
• Padded Net Poles
• Edge Covers (Spring Pad)
• Ladder
• Side Storage Pocket
• Frame
• Springs
• Assembly Gloves
• Spring Pull Tool

Image: A complete view of the JUMMICO Outdoor Trampoline, including the safety net and ladder.

Image: The JUMMICO Trampoline positioned in a backyard, highlighting its outdoor use.

3. Setup and Assembly

Assembly typically requires two adults and can be completed in under 2 hours. Clear instructions are provided in multiple languages. It is recommended to wear the included assembly gloves during the process.

3.1 Site Selection

• Choose a flat, level surface in your garden.
• Ensure there is at least 2 meters of clear space around the trampoline and adequate overhead clearance.
• Avoid placing near fences, trees, power lines, or other obstacles.

3.2 Assembly Steps (General Guidance)

1. Unpack Components: Carefully unpack all boxes and verify that all parts listed in the manual are present.
2. Assemble Frame: Connect the frame tubes to form the circular base. Secure with appropriate fasteners. The 3-legged frame is made of 38mm thick steel tubes with a U-shaped base for maximum stability, reinforced by T-connectors.
3. Attach Jumping Mat: Lay the jumping mat inside the frame. Use the spring pull tool to attach the springs to the mat and the frame. The trampoline features 36 galvanized steel springs for a firm hold.
4. Install Edge Covers: Place the thick EPE foam edge covers over the springs to prevent contact with the springs during use.
5. Erect Safety Net Poles: Attach the padded net poles to the frame.
6. Install Safety Net: Secure the safety net to the top of the poles and the jumping mat. Ensure the double zippers and safety clips are functional.
7. Attach Ladder and Storage Pocket: Install the ladder for easy access and the side storage pocket for shoes or small items.

Refer to the detailed graphical instructions provided in your product packaging for specific step-by-step guidance.

Image: Detail of the safety net's double zipper and additional fabric layer for tear resistance.

Image: Illustration of the trampoline's robust frame, stable steel tubes, and EPE foam padded bars.

4. Operating Instructions

To ensure a safe and enjoyable experience, adhere to the following operating guidelines:

• Entry and Exit: Always use the provided ladder to enter and exit the trampoline. Ensure the safety net zipper is fully closed once inside.
• One Jumper at a Time: Strictly enforce the one-jumper-at-a-time rule to prevent collisions.
• Controlled Jumping: Encourage controlled bouncing in the center of the mat. Avoid bouncing off the safety net or frame.
• No Rough Play: Prohibit roughhousing, pushing, or shoving on the trampoline.
• Supervision: Continuous adult supervision is mandatory.

Image: A child enjoying the trampoline, demonstrating safe use within the enclosure.

Image: Two children jumping on the trampoline. While shown, it is important to remember the 50kg weight limit and single-user recommendation for safety.

5. Maintenance

Regular maintenance ensures the longevity and safety of your JUMMICO trampoline.

• Daily Inspection: Before each use, check the trampoline for any loose or damaged parts, including the frame, springs, jumping mat, safety net, and padding.
• Cleanliness: Keep the jumping mat and safety net clean. Use mild soap and water for cleaning, avoiding harsh chemicals.
• Weather Protection: In adverse weather conditions (heavy rain, snow, strong winds), consider disassembling or securing the trampoline to prevent damage. The jumping mat is UV-resistant.
• Springs: Ensure all springs are securely attached and free from rust or damage. Replace any damaged springs immediately.
• Net and Padding: Check the safety net for tears or holes and the padding for wear. Replace damaged components to maintain safety.
• Frame: Inspect the frame for any signs of bending, cracks, or rust.

6. Troubleshooting

This section addresses common issues you might encounter with your trampoline.

• Squeaking Noises: If the trampoline makes squeaking noises during use, check all frame connections and ensure they are tightened. A small amount of lubricant on the joints may help.
• Reduced Bounce: A reduction in bounce can indicate worn-out springs or a stretched jumping mat. Inspect springs for damage and consider replacing them if necessary.
• Net Sagging: If the safety net sags, check the tensioning straps and pole connections. Ensure all attachments are secure.
• Stability Issues: If the trampoline feels unstable, verify that it is placed on a completely flat surface and that all leg connections are firm.

For issues not covered here, please contact JUMMICO customer support.

7. Specifications

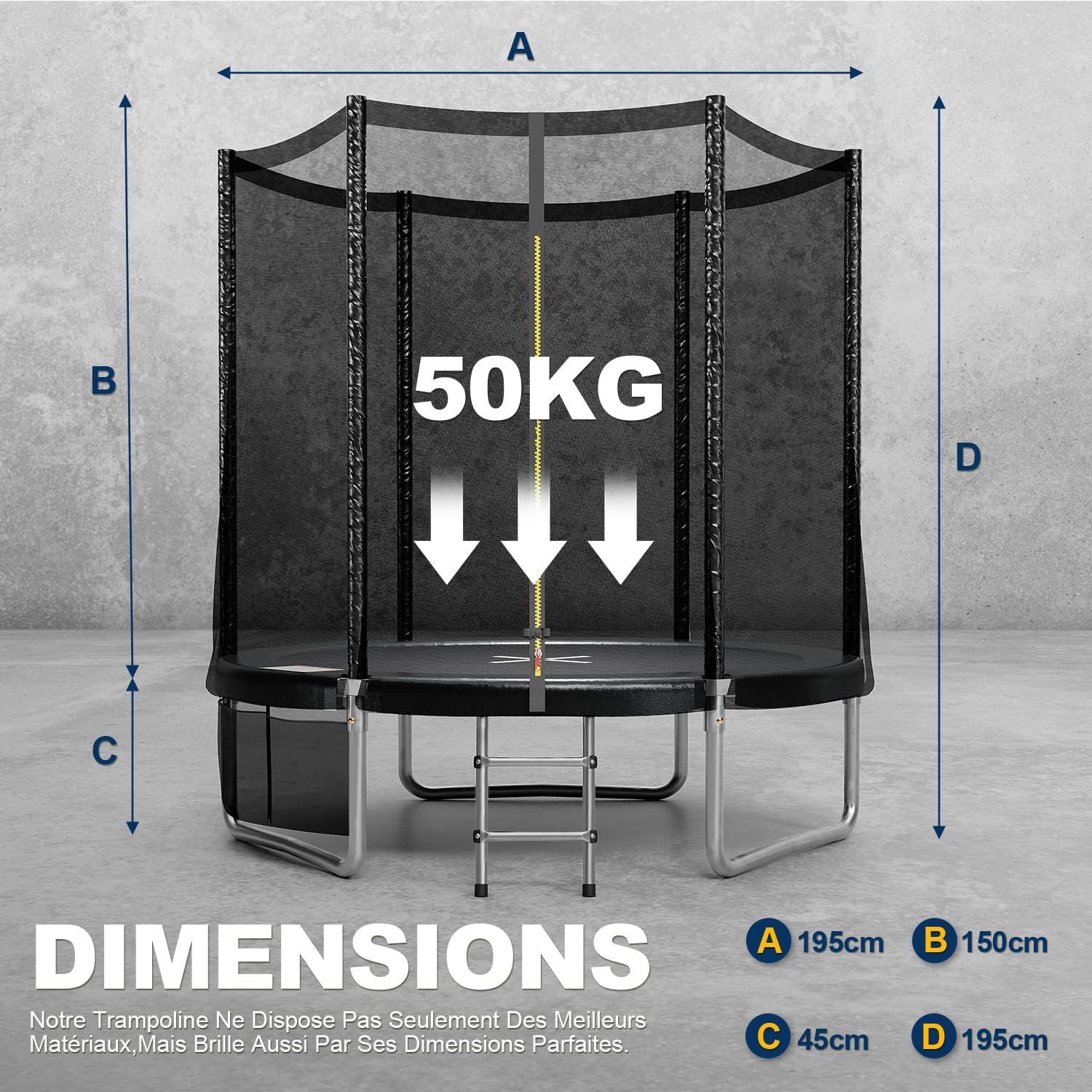

Image: Diagram illustrating the key dimensions of the JUMMICO Trampoline, including height and diameter.

8. Warranty and Support

JUMMICO stands behind the quality of its products. This trampoline comes with a 5-year warranty and a 30-day return policy.

• Customer Service: For any questions or assistance, JUMMICO customer support is available 24/7.
• Spare Parts: All original spare parts, from springs to the frame, are available directly from JUMMICO.

Please retain your proof of purchase for warranty claims.
