1. Introduction
This manual provides detailed instructions for the safe and effective use of your VGR Professional Barber Combo 4-in-1 Grooming Kit. This comprehensive kit includes a cordless hair clipper (VGR 001), hair trimmer (VGR 977), foil shaver (VGR 378), and hair dryer (VGR 401), designed for both professional and home use. Please read all instructions carefully before initial use and retain this manual for future reference.
Image: The VGR Professional Barber Combo 4-in-1 Grooming Kit displayed on its charging station, featuring the hair clipper, trimmer, foil shaver, and hair dryer.
2. Safety Information
WARNING: To reduce the risk of electric shock, injury, or fire, always follow these basic safety precautions:
- Do not use near water (e.g., in a bathtub, shower, or near a sink).
- Keep away from heated surfaces.
- Do not use while sleeping or if unconscious.
- Keep out of reach of children.
- Clean and maintain all components according to the manufacturer's instructions provided in this manual.
- Only use attachments supplied or recommended by the manufacturer.
- Do not operate any appliance with a damaged cord or plug, or if it malfunctions or has been dropped or damaged.
3. Package Contents
Your VGR Professional Barber Combo 4-in-1 Grooming Kit includes the following items:
- 1x Cordless Hair Clipper (VGR 001)
- 1x Hair Trimmer (VGR 977)
- 1x Foil Shaver (VGR 378)
- 1x Hair Dryer (VGR 401)
- 10x Cutting Guides for Clipper (1.5mm to 24mm)
- 4x Guide Combs for Trimmer (1.5mm to 6mm)
- 1x Cleaning Brush
- 1x Lubricating Oil
- 1x Charging Dock
- 1x Hair Dryer Stand
- 1x Power Adapter
- 1x VGR Lamp
- 1x Cape
- 4x Hairpins
- 1x Diffuser attachment
- 1x Concentrator attachment
- 1x Styling Concentrator attachment
- 1x Travel Case
Image: A visual representation of all included accessories for the VGR Professional Barber Combo 4-in-1 Grooming Kit.
4. Setup and Charging
Before first use, ensure all devices are fully charged. The charging dock allows for multi-device simultaneous charging.
4.1 Initial Charging
- Connect the power adapter to the charging dock and a suitable power outlet.
- Place the hair clipper, trimmer, and foil shaver into their respective slots on the charging dock.
- The hair dryer can be placed on its stand and connected directly to the power adapter if simultaneous charging is needed, or charged separately.
- Allow the devices to charge until their LED displays indicate a full charge. The VGR 001 Clipper requires approximately 3 hours for a full charge, the VGR 977 Trimmer requires 1.5 hours, and the VGR 378 Shaver requires 2 hours.
Image: The VGR Professional Barber Combo 4-in-1 devices placed on the charging station, indicating charging status.
5. Operating Instructions
5.1 VGR 001 Hair Clipper
- Power On/Off: Press the power button to turn the clipper on or off.
- Speed Adjustment: The clipper features a 7,000–9,000 RPM motor with 21 adjustable speed settings. Adjust the speed by turning the center knob.
- Cutting Length: Attach one of the 10 guide combs (1.5mm to 24mm) for desired hair length. The 5-position adjustable taper lever allows for fine-tuning cutting lengths from 1mm to 27mm.
- Usage: Use for professional-quality haircuts, sideburns, and beard trimming.
- Battery Life: Provides up to 300 minutes of runtime on a full charge.
5.2 VGR 977 Hair Trimmer
- Power On/Off: Press the power button to turn the trimmer on or off.
- Speed Adjustment: Speeds range from 6000 to 8000 RPM. Adjust as needed for precise trimming.
- Cutting Length: Use the 4 guide combs (1.5mm to 6mm) for detailed trims and sharp lines. The zero-gap design ensures clean edges.
- Battery Life: Offers at least 260 minutes of runtime on a full charge.
- LED Display: Monitor real-time battery and speed control on the ultra-large LED display.
Image: Close-up of the VGR hair clipper and trimmer displays, showing RPM ranges for powerful motor performance.
5.3 VGR 378 Foil Shaver
- Power On/Off: Press the power button to turn the shaver on or off.
- Speed Adjustment: Adjustable speeds from 7000 to 9000 RPM for a comfortable, close shave.
- Features: Three-blade system with hypoallergenic titanium foils for a smooth, irritation-free shave. Ideal for beards, mustaches, and necklines.
- Battery Life: Provides no less than 120 minutes of cordless runtime on a full charge (1400mAh battery).
- LED Display: Digital LED display for precise battery monitoring.

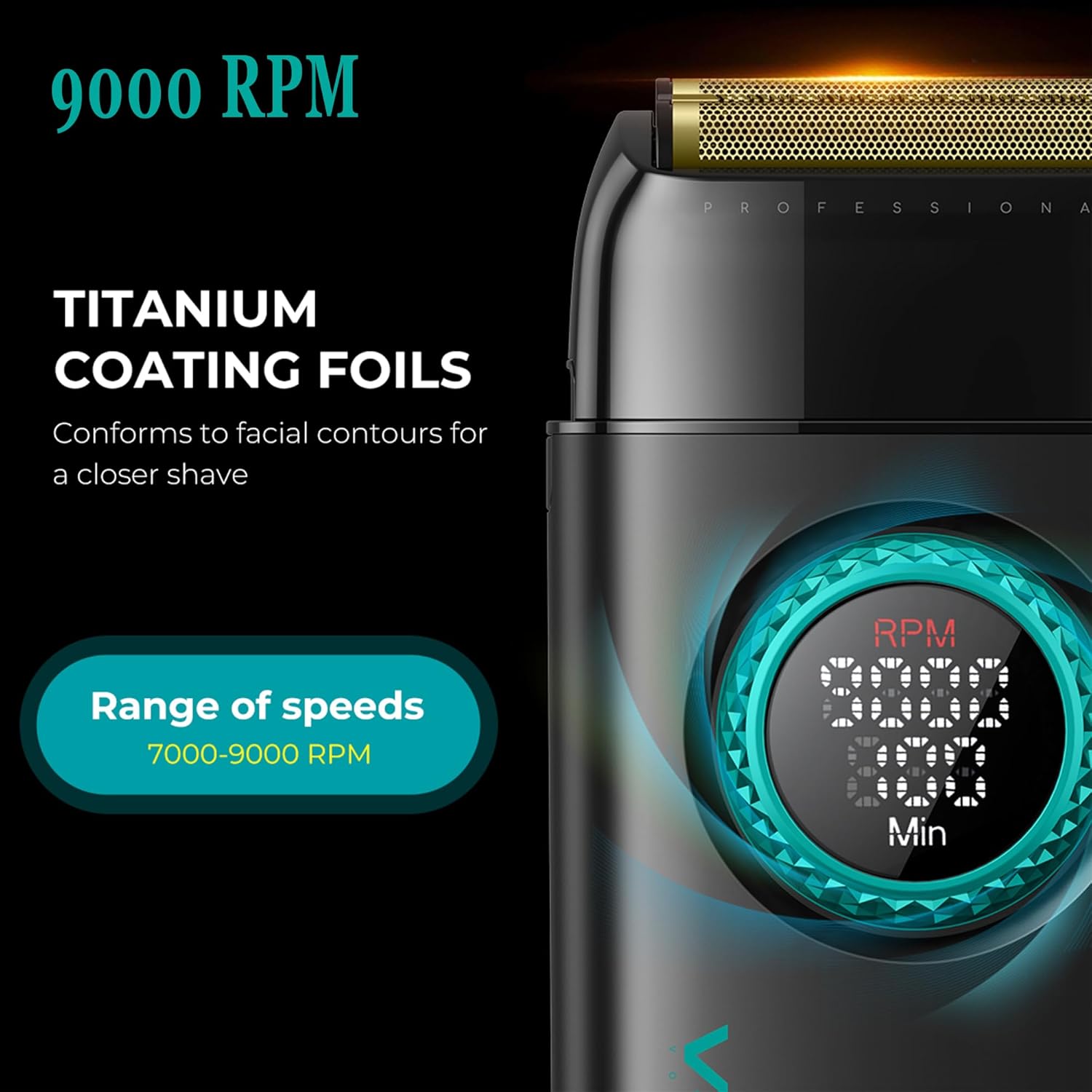

Image: The VGR foil shaver highlighting its 9000 RPM motor and titanium coating foils for a close shave.
5.4 VGR 401 Hair Dryer
- Power On/Off: Press the power button to turn the hair dryer on or off.
- Motor: High-power 1600-1900W brushless motor for ultra-fast drying.
- Technology: Negative ionic technology helps eliminate frizz and enhance shine.
- Settings: Offers 40 temperature and 40 speed settings for full control across all hair types.
- Attachments: Includes magnetic attachments: a diffuser and concentrator for various styling needs.
- Operation: Operates quietly for a comfortable styling experience.
Image: Internal view of the VGR hair dryer, illustrating its high-speed BLDC motor for efficient drying.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your grooming kit.
- Cleaning Blades: After each use, brush hair clippings from the clipper and trimmer blades using the provided cleaning brush.
- Oiling Blades: Apply a few drops of the lubricating oil to the blades of the clipper and trimmer after every few uses or as needed to maintain smooth operation and prevent rust.
- Foil Shaver Cleaning: Carefully remove the foil head and brush away any trapped hair. Do not use water on the foil head unless specified as waterproof.
- Hair Dryer Filter: Regularly check and clean the air intake filter of the hair dryer to prevent blockages and maintain airflow.
- Storage: Store all components in the provided travel case to protect them from dust and damage.
7. Troubleshooting
If you encounter issues with your VGR grooming kit, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device not turning on | Low battery; Power button not pressed correctly | Charge the device fully; Ensure the power button is pressed firmly. |
| Poor cutting/trimming performance | Blades are dull, dirty, or not oiled; Incorrect guide comb used | Clean and oil the blades; Replace blades if dull; Select appropriate guide comb. |
| Foil shaver causing irritation | Foil head is damaged or dirty; Skin not prepared properly | Clean or replace foil head; Ensure skin is clean and dry before shaving. |
| Hair dryer overheating or weak airflow | Air intake filter blocked | Clean the air intake filter. |
| Device not charging | Charging cable/adapter faulty; Device not seated correctly in dock | Check cable and adapter for damage; Ensure device is properly seated in the charging dock. |
If the problem persists after attempting these solutions, please contact VGR customer support.
8. Specifications
- Brand: VGR
- Model Name: YS-V4 in 1
- Item Model Number: YS-V4 in 1-Black-US
- Package Dimensions: 19.88 x 13.98 x 5.71 inches
- Item Weight: 11.02 Pounds
- Batteries: 3 C batteries required (included)
- Battery Description: Integrated/Built-in Rechargeable Battery
- Clipper Charging Time: 3 Hours (for 300 minutes runtime)
- Trimmer Charging Time: 1.5 Hours (for 260 minutes runtime)
- Shaver Charging Time: 2 Hours (for 120 minutes runtime)
- Hair Dryer Power: 1600-1900W
- Hair Dryer Motor Speed: 70000-110000 RPM (BLDC Motor)
9. Warranty and Support
The VGR Professional Barber Combo 4-in-1 Grooming Kit comes with a 1-Year Warranty from the date of purchase. For any product inquiries, technical assistance, or warranty claims, please contact VGR customer support. Our support team is available to assist you.
For further information or to register your product, please visit the official VGR Store: VGR Store on Amazon.
