Waterdrop G5P500A Alkaline Mineral pH+ Reverse Osmosis Water Filter System User Manual

1. Introduction

The Waterdrop G5P500A is an advanced tankless reverse osmosis water filtration system designed to provide clean, safe, and mineral-enriched alkaline water. This system features an 8-stage filtration process, a high flow rate of 500 GPD (Gallons Per Day), and an efficient 2:1 pure to drain ratio, making it both effective and environmentally conscious. This manual provides essential information for the proper installation, operation, and maintenance of your Waterdrop G5P500A system.

2. Product Overview

The Waterdrop G5P500A system combines precise filtration with alkaline mineralization to deliver high-quality drinking water. Its compact, tankless design saves space and prevents secondary contamination.

Key Features:

• Precise 8-Stage Filtration: Reduces harmful contaminants such as PFOA, PFOS, chlorine, lead, fluoride, heavy metals, and other impurities.
• 0.0001μm RO Membrane with Added Minerals: Utilizes a 0.0001μm precision RO membrane and alkaline mineralization technology to enrich water with essential minerals like Ca²⁺, Mg²⁺, Na⁺, and K⁺.
• Compact Tankless Design: Frees up to 70% of under-sink space and eliminates the risk of secondary contamination associated with traditional tanks.
• 500 GPD High-Speed Flow: Provides a steady and rapid water flow, capable of filling an 180ml cup in approximately 8 seconds.
• Efficient 2:1 Pure/Drain Ratio: Generates 400% more clean water compared to conventional systems, reducing water waste.
• NSF/ANSI 372 Certified: Ensures lead-free material for safe use.

Components Included:

• RO System Unit
• RO/CF Filter Cartridges
• Dedicated Faucet
• PE Tubes
• T-Fitting

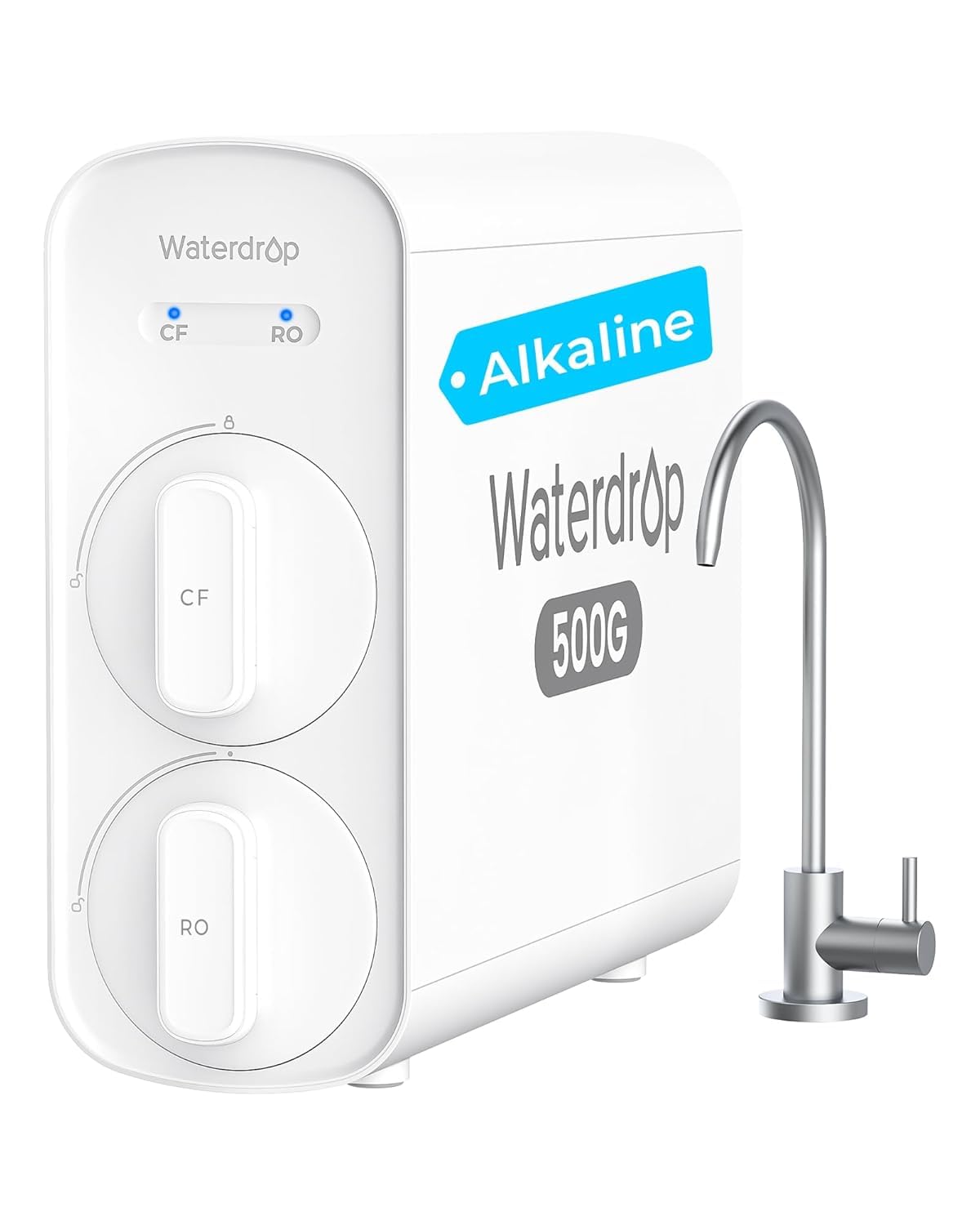

Product Visuals:

3. Setup and Installation

The Waterdrop G5P500A is designed for under-sink installation. Please ensure you have adequate space and necessary connections before beginning.

Installation Requirements:

• Under-sink electricity is required.
• Two drilled holes are needed: one for the RO faucet (2.5cm diameter) and one for waste water drainage (2.5cm diameter).
• The provided faucet must be used. Do not directly connect to the main water pipe.
• For well water sources, a pre-filter is required prior to the RO system.
• Measure your cabinet size before purchase to ensure an ideal fit.

The system is designed for a quick installation, typically within 30 minutes, and does not require complex plumbing modifications.

4. Operating Instructions

Once installed, the Waterdrop G5P500A provides instant access to purified, alkaline water without the need for a storage tank.

Water Dispensing:

• Simply open the dedicated faucet to dispense purified water. The system's 500 GPD capacity ensures a continuous and fast flow.
• The system enriches water with essential minerals, providing a pH+ alkaline output for improved taste and hydration.

Smart Alerts and Safety Features:

The G5P500A is equipped with comprehensive smart alerts to ensure water safety and system integrity:

• Leakage Warning: Alerts you to potential water leaks.
• Fault Warning: Indicates system malfunctions.
• Automatic Water Shut-off: Automatically stops water flow in case of detected issues to prevent damage.
• Micro-leakage Protection: Provides enhanced safety against small leaks.

5. Maintenance

Regular maintenance, primarily filter replacement, is crucial for the optimal performance and longevity of your Waterdrop G5P500A system.

Filter Replacement:

• The system features a convenient 3-second filter replacement design.
• The RO filter typically lasts up to 24 months.
• The CFA filter typically lasts up to 6 months.
• The system includes a filter life reminder to notify you when replacement is needed.
• Always use genuine Waterdrop replacement filters to ensure proper filtration and system compatibility.

6. Troubleshooting

If you encounter any issues with your Waterdrop G5P500A system, please refer to the following common troubleshooting tips. For more complex problems, contact customer support.

Common Issues:

• Low Water Flow:
  • Check if filters need replacement (refer to filter life reminder).
  • Ensure adequate water pressure from the main supply.
  • Verify all connections are secure and free of kinks.
• Unusual Taste or Odor:
  • Replace filters if they are past their recommended lifespan.
  • Flush the system for a few minutes after filter replacement.
• Leakage:
  • Check all connections and fittings for tightness.
  • The system has a leakage warning and automatic shut-off; if activated, inspect for the source of the leak immediately.
• System Not Powering On:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check the circuit breaker.

7. Specifications

Detailed technical specifications for the Waterdrop G5P500A Reverse Osmosis Water Filter System.

8. Warranty Information

Specific warranty details for the Waterdrop G5P500A system are typically provided with the product packaging or available on the official Waterdrop website. Please refer to these resources for the most accurate and up-to-date warranty terms and conditions.

9. Customer Support

For any questions, assistance with installation, troubleshooting, or replacement parts, please contact Waterdrop customer support.

• Waterdrop offers 24/7 customer service.
• You can find contact information on the official Waterdrop website or through your purchase platform (e.g., Amazon seller page for "Waterdrop direct").
• For additional resources, visit the Waterdrop Store on Amazon.
