Kalorace Electric Scooter User Manual

Introduction

Thank you for choosing the Kalorace Electric Scooter. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

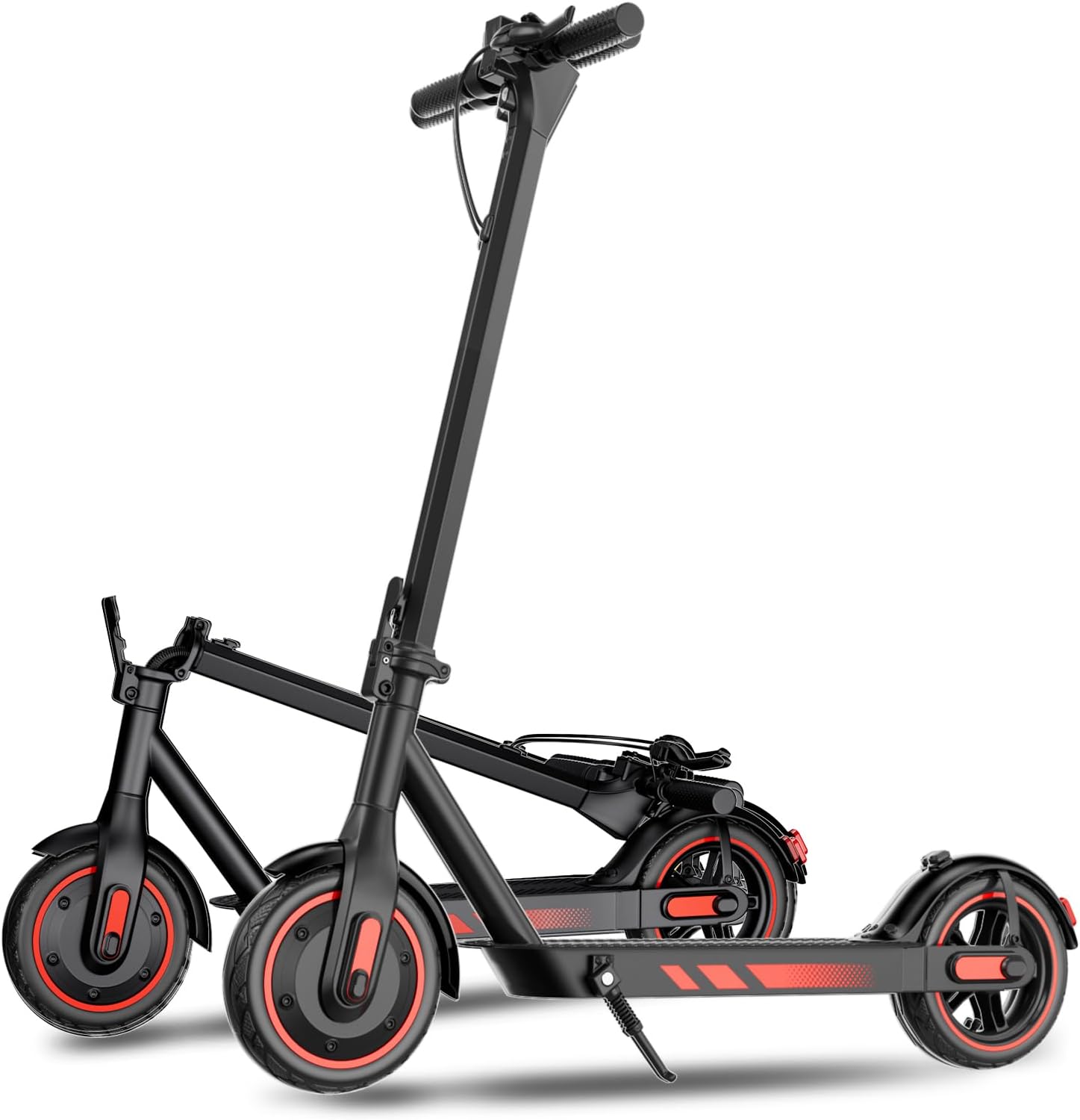

Image: Two Kalorace electric scooters, one in riding position and one folded, demonstrating its portability and design.

Safety Information

Always prioritize safety when operating the electric scooter. Failure to follow safety guidelines can result in serious injury or damage to the scooter.

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads) when riding.
• Do not ride in wet conditions, heavy rain, or through puddles.
• Adhere to local traffic laws and regulations.
• Ensure the battery is fully charged before each ride, especially for long distances.
• Do not exceed the maximum weight limit of 264 pounds.
• Avoid sudden acceleration or braking.
• Regularly check the condition of tires, brakes, and all connections.
• Users should regularly check the condition of the battery and charging device, to ensure that the matching battery is used and the correct charging method is used, and avoid charging in an unventilated or flammable environment.

Package Contents

Verify that all items are present in the package:

• Kalorace Electric Scooter (Main Unit)
• Power Adapter/Charger
• User Manual
• Assembly Tools (if required)

Setup and Assembly

Follow these steps to assemble your Kalorace Electric Scooter:

1. Unpack the Scooter: Carefully remove all components from the packaging.
2. Unfold the Scooter:

   Locate the folding buckle near the base of the handlebar stem. Release the buckle and lift the handlebar stem until it locks into the upright position. Ensure it clicks securely into place.

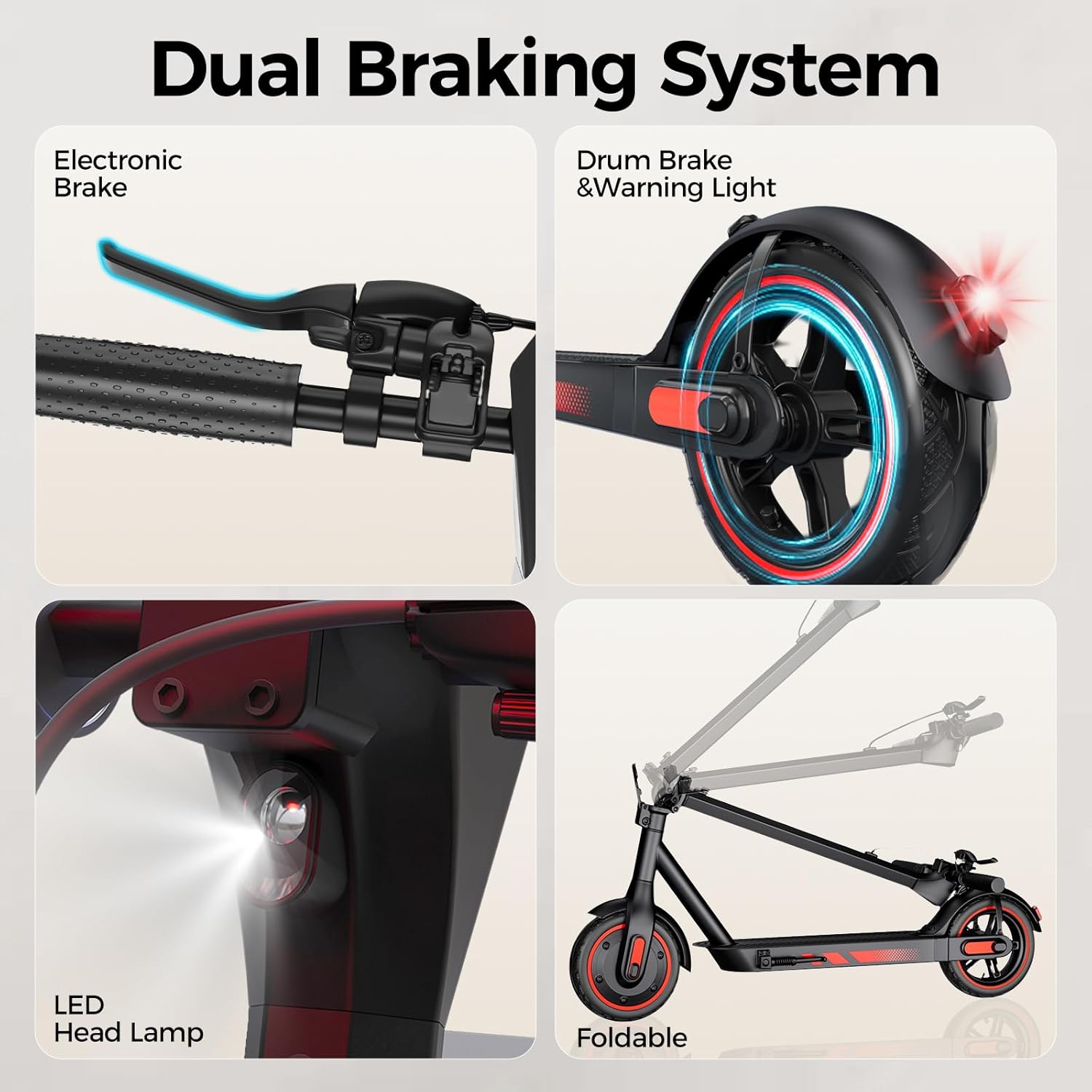

   Image: Visual representation of the scooter's folding mechanism, highlighting the ease of storage and transport.
3. Attach Handlebars (if detached):

   If the handlebars are separate, carefully connect them to the stem, ensuring all cables are properly routed and not pinched. Tighten any screws firmly using the provided tools.

4. Initial Charge:

   Before first use, fully charge the scooter's battery. Connect the power adapter to the charging port and then to a power outlet. The charging indicator will change when fully charged (approx. 4-6 hours).



   Image: Internal view of the scooter's battery compartment, illustrating the 36V 10.5AH Lithium Battery and its charging and range capabilities.
5. Tire Pressure Check:

   Ensure the 10-inch air tires are properly inflated to the recommended pressure for optimal performance and safety.

Operating Instructions

Controls and Display

The scooter features an intuitive LED display and controls on the handlebar.

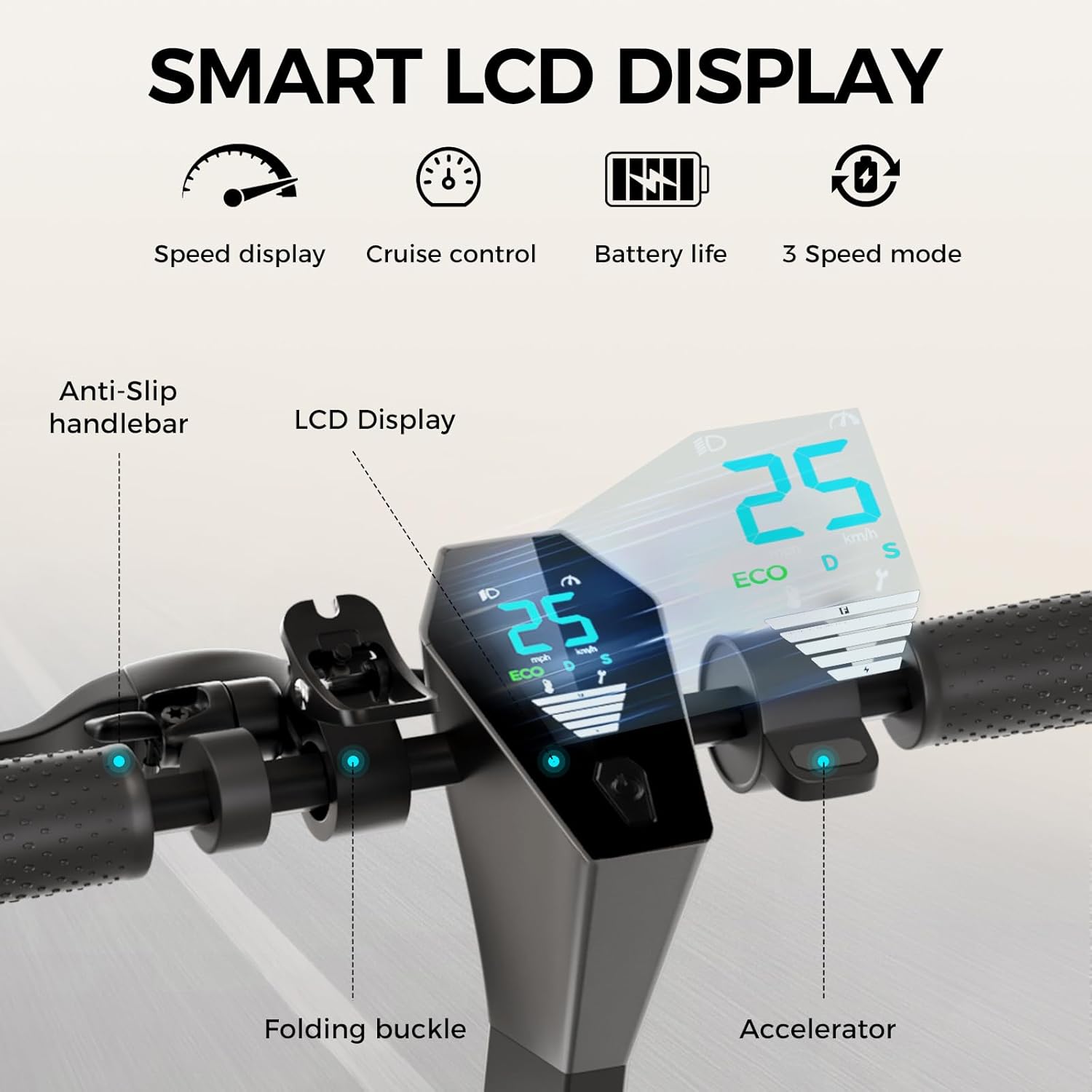

Image: Detailed view of the smart LCD display and handlebar controls, including the accelerator, folding buckle, and anti-slip grips.

• Power Button: Press and hold to turn on/off. Short press to toggle headlights.
• Accelerator: Thumb throttle on the right handlebar to control speed.
• Brake Lever: On the left handlebar, activates the electronic braking system and rear drum brake.
• LED Display: Shows current speed, battery level, riding mode, and fault detection.

Riding Modes

The scooter offers multiple riding modes to suit different preferences and conditions:

• Eco Mode: Energy-saving mode for extended range and lower speed.
• Standard Mode: Balanced performance for daily commuting.
• Sport Mode: Maximum speed and acceleration for dynamic riding.

App Control

Connect your scooter to the dedicated mobile application for enhanced control and monitoring:

• Download App: Search for the "Kalorace Scooter" app on your smartphone's app store.
• Pairing: Follow in-app instructions to pair your scooter via Bluetooth.
• Features: The app allows you to manage power, lock the scooter, activate cruise control, control lights, select driving modes (5 options), perform fault detection, adjust speed limits (3-25 mph), monitor temperature, and set auto shut-off.

Image: The Kalorace scooter mobile application interface, demonstrating various control and monitoring features available to the user.

Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Cleaning: Wipe the scooter with a damp cloth. Do not use high-pressure water or immerse it in water.
• Tires: Check tire pressure regularly. The 10-inch air tires require proper inflation for comfort and stability.
• Brakes: Inspect the front electronic braking system and rear drum brake for wear and proper function. Adjust if necessary.
• Battery Care:
  • Charge the battery fully before long-term storage.
  • Store in a cool, dry place.
  • Avoid completely draining the battery.
• General Inspection: Periodically check all screws, bolts, and connections to ensure they are tight and secure.

Troubleshooting

This section addresses common issues you might encounter with your Kalorace Electric Scooter.

If the issue persists, please contact Kalorace customer support.

Specifications

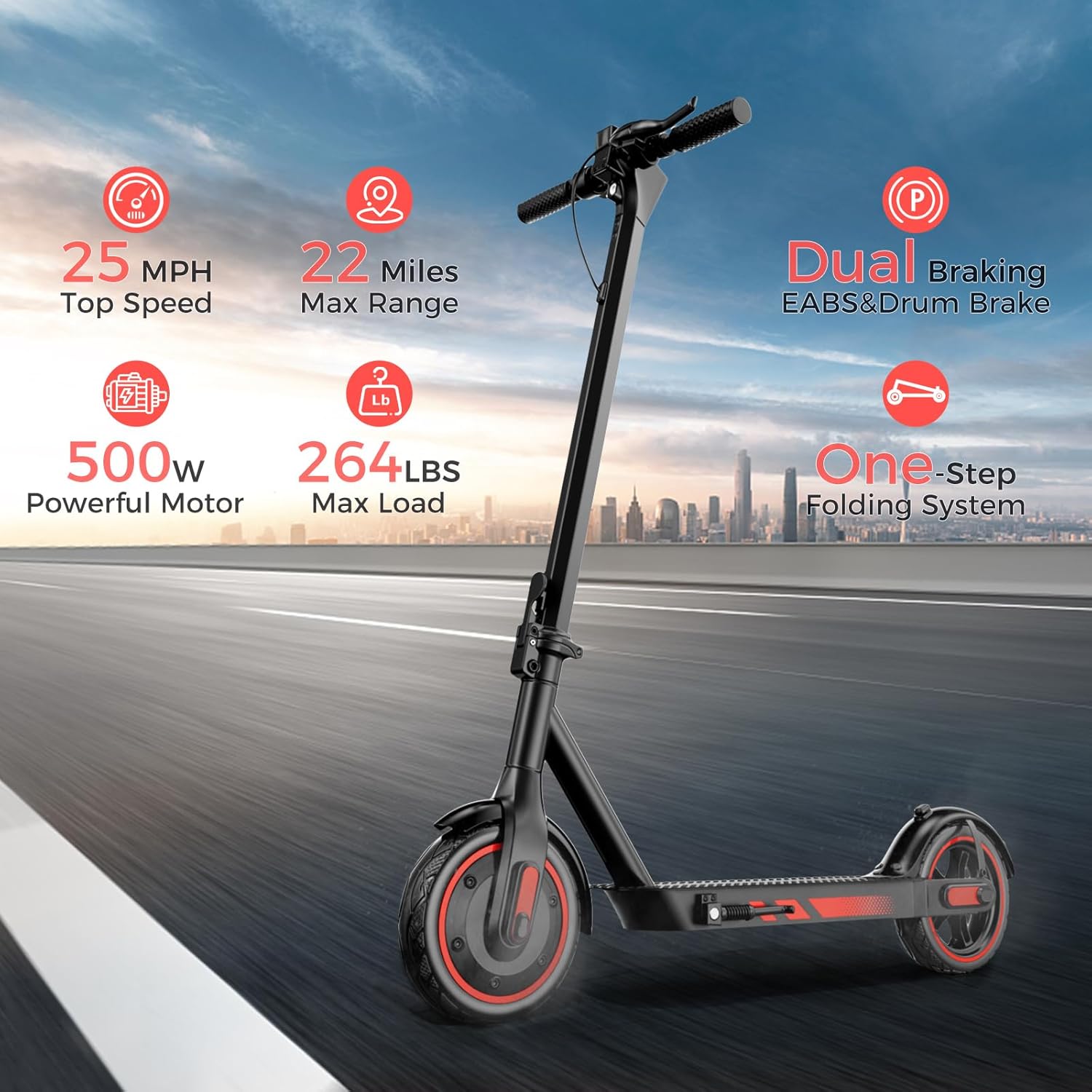

Image: Key features and specifications of the Kalorace electric scooter, including speed, range, motor power, and load capacity.

Image: Illustration of the powerful 500W motor and 10-inch air tire, highlighting the scooter's performance capabilities.

Warranty and Support

Kalorace offers a comprehensive warranty for your electric scooter:

• Warranty Period: One-year warranty for the main unit, or 180-days for specific components.
• Contact Support: For any questions, issues, or warranty claims, please contact Kalorace customer service. We aim to respond within 24 hours.
• Online Resources: Visit the official Kalorace store on Amazon for additional product information and support: Kalorace Amazon Store
