1. Product Overview
The IAGREEA Baby Bottle Washer, Sterilizer, and Dryer (Model TBXQR02) is an all-in-one solution designed to simplify the cleaning process for baby bottles, pump parts, and other baby essentials. This appliance combines washing, sterilizing, and drying functions, offering convenience and hygiene. It features a double spray arm system, a built-in water tank, and a 72-hour sterile storage function. All parts in contact with items are BPA-free.
Image: The IAGREEA Baby Bottle Washer, Sterilizer, and Dryer, showcasing its compact design and capacity for baby bottles.
2. Setup
- Unboxing: Carefully remove the unit and all accessories from the packaging.
- Placement: Place the unit on a stable, flat surface. Ensure adequate space around the unit for ventilation.
- Drain Pipe Installation: Connect the drain pipe to the designated outlet at the back of the unit. Route the drain pipe to a sink or suitable drainage area.
- Power Connection: Plug the power cord into a compatible 120V, 60Hz power outlet.
- Internal Components: The bottle holder, basket, and basket holder are pre-assembled inside. These can be easily removed or adjusted based on the items you are washing.
Image: Manually adding water to the top reservoir of the unit.
Video: Demonstrates the setup and placement of items within the IAGREEA Baby Bottle Washer.
3. Operating Instructions
3.1 Loading Items
- Open the front door of the unit.
- Place baby bottles, nipples, pump parts, or other baby essentials onto the racks. The unit can hold up to four baby bottles and nipples at a time.
- Utilize the adjustable basket and bottle holder for optimal arrangement.
Image: The interior of the washer showing various baby items that can be cleaned simultaneously.
Image: Illustrates two flexible placement methods for different types of baby items.
3.2 Adding Water and Detergent
- Open the water tank lid on top of the unit.
- Pour 3.2 liters of water into the built-in water tank. The unit is designed for use without an external water pipe connection.
- Place one special detergent tablet for baby bottles into the designated dispenser. Do not use hand-washed detergents, soaps, washing powders, hand sanitizers, or disinfectants.
3.3 Selecting a Program
The unit features an LED display screen and touch panel for easy operation. Select your desired program:
- Normal Mode: 29 minutes cleaning time.
- Strong Mode: 45 minutes cleaning time.
- Rapid Mode: 19 minutes cleaning time.
- Drying Mode: 69 minutes drying time.
After selecting the program, press the start button to begin the cycle. The screen will display the remaining time and current temperature.
Image: The LED display and touch panel, highlighting the four available cleaning programs.
Video: A demonstration of the IAGREEA Baby Bottle Washer in operation, showing the washing cycle.
3.4 UV Sterilization and Storage
The machine can reach a high temperature of 167°F (75°C) for thorough cleaning and sterilization. After the cleaning cycle, the unit automatically enters a 72-hour storage and drying function, ensuring bottles remain clean and sterile. This feature includes automatic UV sterilization for 99.9% bacteria-free results.
Image: The unit performing automatic UV sterilization and indicating its 72-hour secure storage capability.
4. Maintenance
4.1 Cleaning the Unit
- It is recommended to periodically wipe the machine door and seal with a clean damp cloth and dry it with a lint-free cloth.
- Do not use acidic or alkaline cleaners.
4.2 Cleaning Filters and Spray Arms
Regular cleaning of the filter and spray arms is essential for optimal performance.
- Remove the filter and spray arms as shown in the diagram.
- Rinse them under running water to remove any food particles or residue.
- Ensure the filter and spray arms are properly installed and can rotate freely before operating the machine again.
Image: Instructions for removing and cleaning the internal components for maintenance.
Image: Cleaning tablets provided with the unit to ensure proper maintenance and prevent buildup.
5. Troubleshooting
If you encounter any issues with your IAGREEA Baby Bottle Washer, please refer to the following common troubleshooting tips:
- Unit not powering on: Ensure the power cord is securely plugged into a working outlet. Check if the power button has been pressed correctly.
- Water shortage indicator: If the red "low water" indicator appears, add water to the reservoir until it disappears.
- Items not cleaning thoroughly: Ensure items are loaded correctly, not obstructing the spray arms. Verify that the correct amount of specialized detergent is used. Clean the filters and spray arms for any blockages.
- Excessive noise during operation: Check that the unit is placed on a stable, level surface and that no items inside are loose or rattling.
For more detailed troubleshooting or persistent issues, please contact customer support.
6. Specifications
| Feature | Specification |
|---|---|
| Model Name | TBXQR02 |
| Brand | IAGREEA |
| Product Dimensions | 13"D x 13"W x 17.13"H (33 x 33 x 43.5 cm) |
| Item Weight | 22 pounds (10 kg) |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Plastic |
| Capacity | 3.2 Liters (Water Tank) |
| Voltage | 120 Volts |
| Cycle Options | Normal, Strong, Rapid, Drying |
| Special Features | Adjustable Basket, Built-In Water Tank, Low water consumption, Ultraviolet Sterilization |
| Controls Type | Touch |

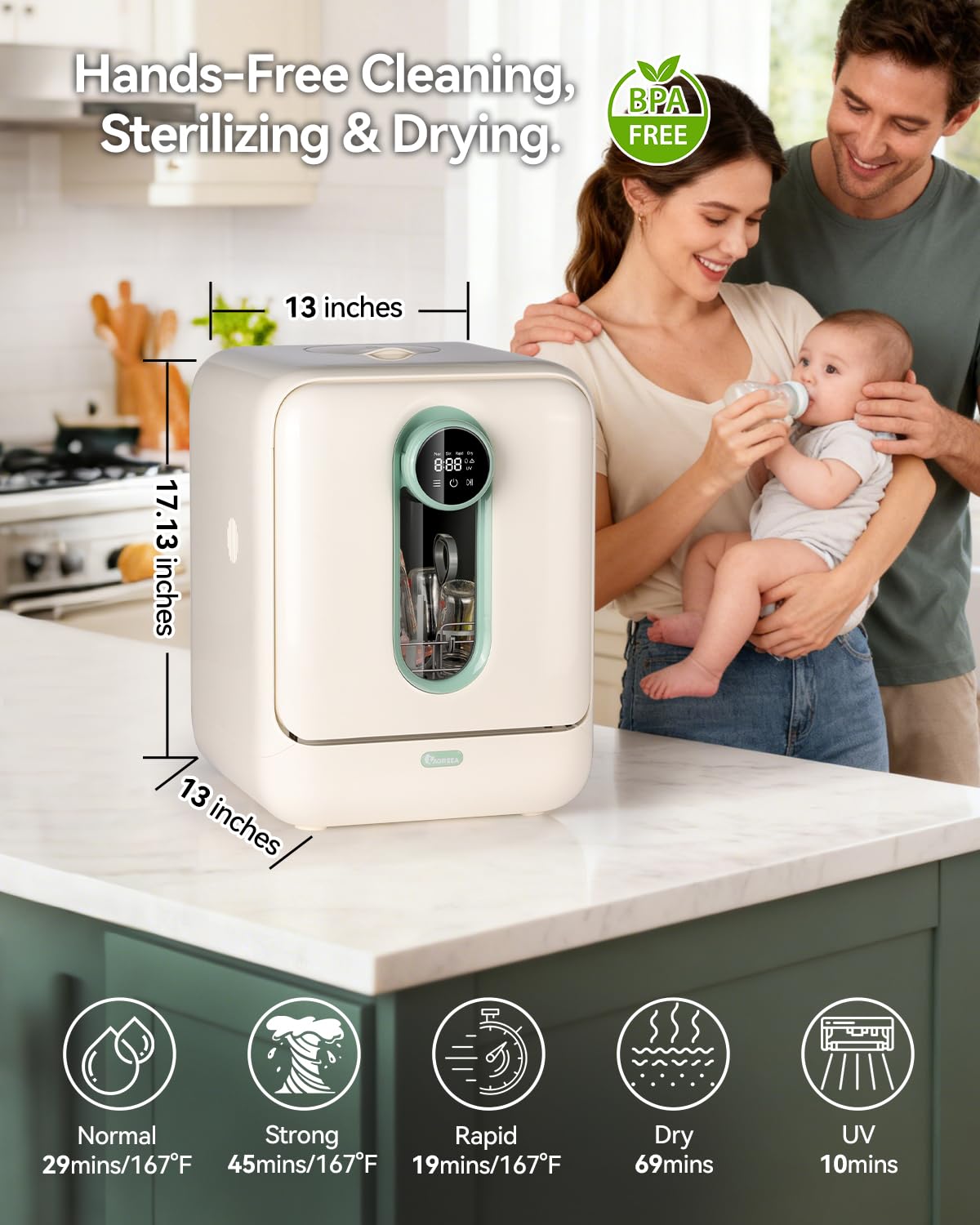

Image: Product dimensions for easy reference and placement planning.
7. Warranty & Support
IAGREEA is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or warranty claims regarding your Baby Bottle Washer, Sterilizer, and Dryer, please contact our customer support team.
We offer 24 hours a day, 7 days a week service to assist you.
Image: IAGREEA customer support is available 24/7 for assistance.
