1. Introduction
This manual provides essential information for the safe and effective operation, setup, and maintenance of your Bosch GGS 5 LS Professional Straight Grinder. Please read these instructions carefully before using the tool and keep them for future reference. This tool is designed for heavy-duty grinding tasks, offering power, durability, and user safety for professional applications.
2. General Safety Instructions
Always observe general power tool safety warnings and instructions provided with the product. Failure to follow all instructions may result in electric shock, fire, and/or serious injury. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and a dust mask.
- Work Area Safety: Keep bystanders away. Do not use in damp or wet conditions.
- Electrical Safety: Ensure the power supply matches the tool's requirements. Avoid body contact with earthed or grounded surfaces.
- Personal Safety: Stay alert, watch what you are doing, and use common sense. Do not use the tool while tired or under the influence of drugs, alcohol, or medication.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
3. Product Overview
The Bosch GGS 5 LS is a robust straight grinder designed for demanding professional applications. It features a powerful motor and an ergonomic design for superior control.
3.1 Key Features
- Heavy-duty straight grinder with powerful 500 W motor.
- No-load speed up to 33,000 rpm for precise and efficient grinding.
- Supports collets up to 8 mm for accessory versatility.
- Ergonomic grip design for superior control and comfort.
- Optimized air vents ensure effective cooling and longer tool life.
- Insulated spindle housing for comfortable grip and heat protection.
- Two-motion side switch for one-hand operation and enhanced safety.
3.2 Components

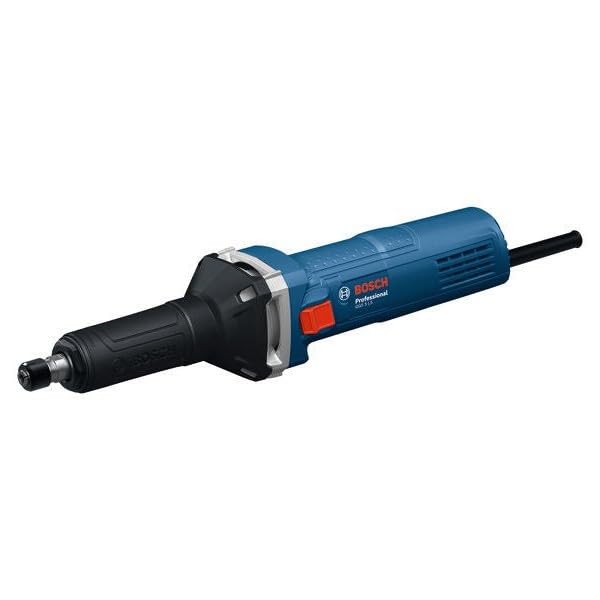

Figure 1: Bosch GGS 5 LS Professional Straight Grinder with two wrenches and two collets. The grinder is blue and black with a long, slender body and a power cord extending from the rear. The wrenches are silver-colored with the Bosch logo.
- Straight Grinder Unit
- Collet Nut
- Collet
- Spanner (Wrench) x 2
- On/Off Switch
- Air Vents
4. Setup
Before starting any work on the power tool itself, pull the mains plug out of the socket. Always ensure the tool is disconnected from the power supply before changing accessories.
4.1 Attaching the Collet and Grinding Accessory
- Select the appropriate collet (up to 8 mm) for your grinding accessory.
- Insert the collet into the collet nut.
- Screw the collet nut onto the spindle of the grinder.
- Insert the shank of the grinding accessory fully into the collet.
- Using the two supplied spanners, tighten the collet nut securely. Ensure the accessory is firmly seated to prevent slippage during operation.
Figure 2: Detail view of the grinder's front end, showing the collet, collet nut, and the two wrenches used for tightening. This illustrates the process of securing a grinding accessory.
5. Operating Instructions
Always ensure you are wearing appropriate safety gear, including eye protection, hearing protection, and a dust mask, before operating the grinder.
5.1 Powering On and Off
- To Switch On: Connect the tool to the power supply. Press the two-motion side switch to the ON position.
- To Switch Off: Release the two-motion side switch.
5.2 Grinding Techniques
Hold the grinder firmly with both hands. Apply light, even pressure to the workpiece. Allow the tool's speed to do the work. Avoid excessive pressure, which can lead to overheating, reduced performance, and premature wear of the accessory.
Figure 3: A person wearing gloves operates the Bosch GGS 5 LS straight grinder inside a large metal pipe, demonstrating grinding on an internal surface. Sparks are visible, indicating active material removal.

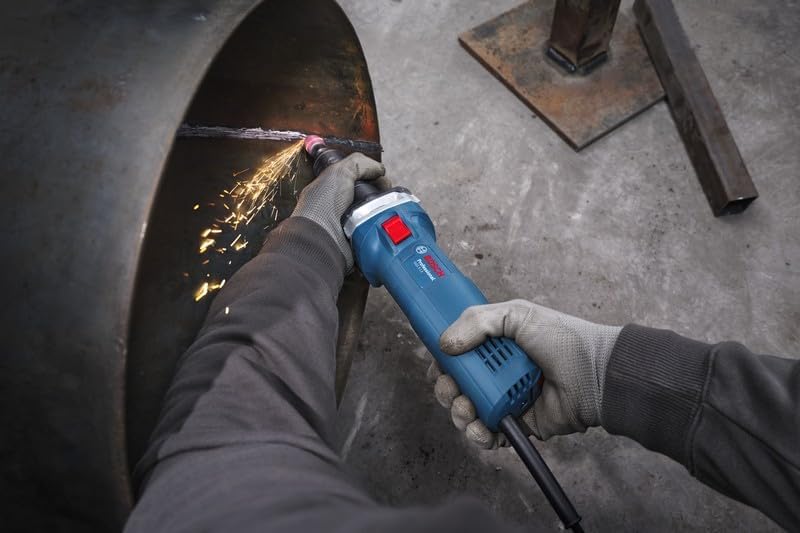

Figure 4: Overhead view of a person using the Bosch GGS 5 LS straight grinder on a metal surface, with sparks flying. The user is wearing protective gloves and holding the tool with both hands for control.

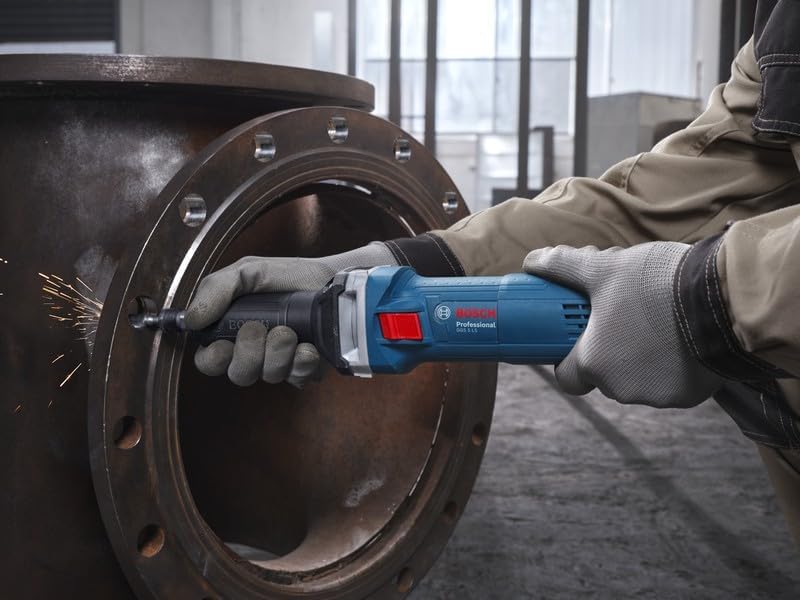

Figure 5: Close-up of a worker using the Bosch GGS 5 LS straight grinder to work on the edge of a large metal flange. The tool is held precisely to clean or shape the metal.
Figure 6: A worker, wearing gloves, operates the Bosch GGS 5 LS straight grinder on a large, heavy metal component, demonstrating its use in industrial settings.
Figure 7: A worker uses the Bosch GGS 5 LS straight grinder on a metal pipe securely held in a vise, illustrating precision grinding on a fixed workpiece.
Figure 8: A worker, fully equipped with safety glasses, ear protection, and a dust mask, uses the Bosch GGS 5 LS straight grinder inside a metal cylinder, highlighting safe operation practices.

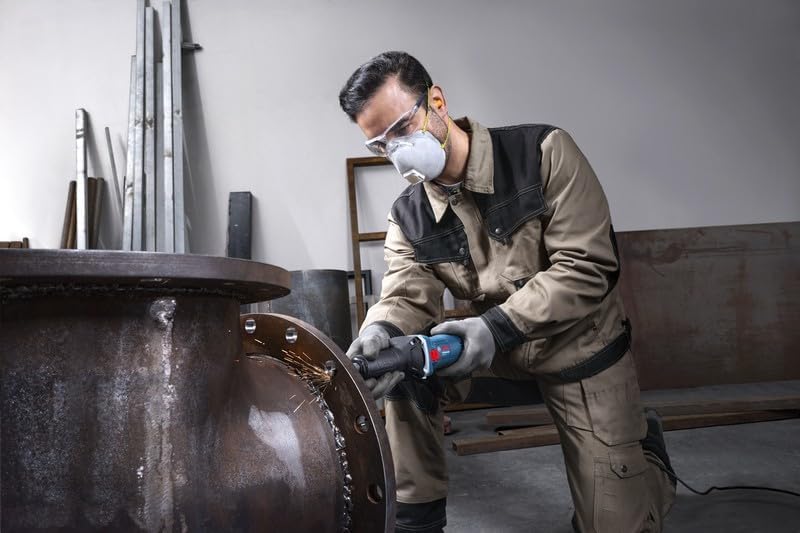

Figure 9: A worker kneels to operate the Bosch GGS 5 LS straight grinder on a large metal flange, demonstrating ergonomic use for different working positions.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Bosch GGS 5 LS Professional Straight Grinder. Always disconnect the tool from the power supply before performing any maintenance.
6.1 Cleaning
- Keep the ventilation slots clean to prevent overheating.
- Regularly clean the tool housing with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Remove any dust or debris from the collet area to ensure proper accessory seating.
6.2 Inspection
- Inspect the power cord for any damage (cuts, fraying). If damaged, have it replaced by a qualified electrician.
- Check the collet and collet nut for wear or damage. Replace if necessary to ensure secure accessory retention.
- Ensure all external screws are tight.
7. Troubleshooting
If you encounter issues with your grinder, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | No power supply; Faulty switch; Damaged power cord | Check power connection; Contact service center for switch/cord replacement. |
| Reduced performance/Overheating | Blocked air vents; Excessive pressure during grinding; Worn accessory | Clean air vents; Reduce pressure; Replace grinding accessory. |
| Accessory wobbles or slips | Collet not tightened properly; Worn collet/collet nut; Incorrect accessory shank size | Tighten collet nut securely; Replace worn parts; Use correct accessory size. |
For problems not listed here or if solutions do not resolve the issue, please contact an authorized Bosch service center.
8. Technical Specifications
| Feature | Specification |
|---|---|
| Model | GGS 5 LS |
| Part Number | 06012242K0 |
| Rated Power Input | 500 W |
| No-load Speed | 0–33,000 rpm |
| Max. Collet Diameter | 8 mm |
| Power Source | AC/DC |
| Package Dimensions | 49.5 x 13.1 x 12.6 cm |
| Weight | 5 kg |
| Manufacturer | Robert Bosch Power Tools GmbH |
9. Warranty and Support
This Bosch power tool comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including warranty period and coverage details. For technical support, spare parts, or service, please contact your local authorized Bosch service center or visit the official Bosch Power Tools website.
You can find more information and contact details on the official Bosch website: www.bosch-pt.com
