DORTALA 11500 BTU Mini Split Air Conditioner User Manual

1. Introduction

Thank you for choosing the DORTALA 11500 BTU Mini Split Air Conditioner. This unit is designed to provide efficient and precise temperature control for your home, offering both cooling and heating capabilities. With smart features including Wi-Fi connectivity for app and voice control, it ensures ultimate convenience and comfort. This manual provides essential information for the safe and effective operation and maintenance of your new air conditioning system.

2. Package Contents

Please verify that all components are present in the package before proceeding with installation.

• 1 x Indoor Unit
• 1 x Outdoor Unit
• 1 x 5 m/16.4 ft Copper Connection Pipe - Air Pipe
• 1 x 5 m/16.4 ft Copper Connection Pipe - Liquid Pipe
• 1 x 5.8 m/19 ft Communication Wire
• 1 x 2 m/6.5 ft Drain Hose
• 1 x Remote Control
• 1 x Wall Bracket for Remote Control
• 1 x Wall Sleeve
• 1 x Wall Cap
• 1 x Drain Elbow
• 1 x Tape
• 1 x Putty
• 1 x User Guide

3. Safety Information

Please read all safety warnings and instructions carefully before installation and operation to prevent injury or damage.

• Professional Installation Required: This mini split AC unit requires professional installation. Do not attempt to install the unit yourself unless you are a certified HVAC technician. Improper installation can lead to electric shock, fire, water leakage, or other serious hazards.
• Electrical Safety: Ensure the power supply matches the unit's specifications (208-230V~/60Hz). Always disconnect power before performing any maintenance or service.
• Refrigerant Handling: The unit contains R32 refrigerant. Handling of refrigerant should only be done by qualified personnel.
• Clearances: Maintain adequate clearances around both indoor and outdoor units for proper airflow and performance.
• Child Safety: Keep the remote control and unit out of reach of children. The unit features a child lock function for added safety.

4. Setup & Installation

The DORTALA mini split AC system comes with a comprehensive installation kit. Due to the complexity and safety requirements, installation should only be done by professionals.

4.1 Pre-Installation Checks

• Ensure the installation location meets the required space and structural integrity.
• Verify the power supply is compatible with the unit's voltage requirements.
• Confirm all components listed in Section 2 are present and undamaged.

4.2 Unit Dimensions

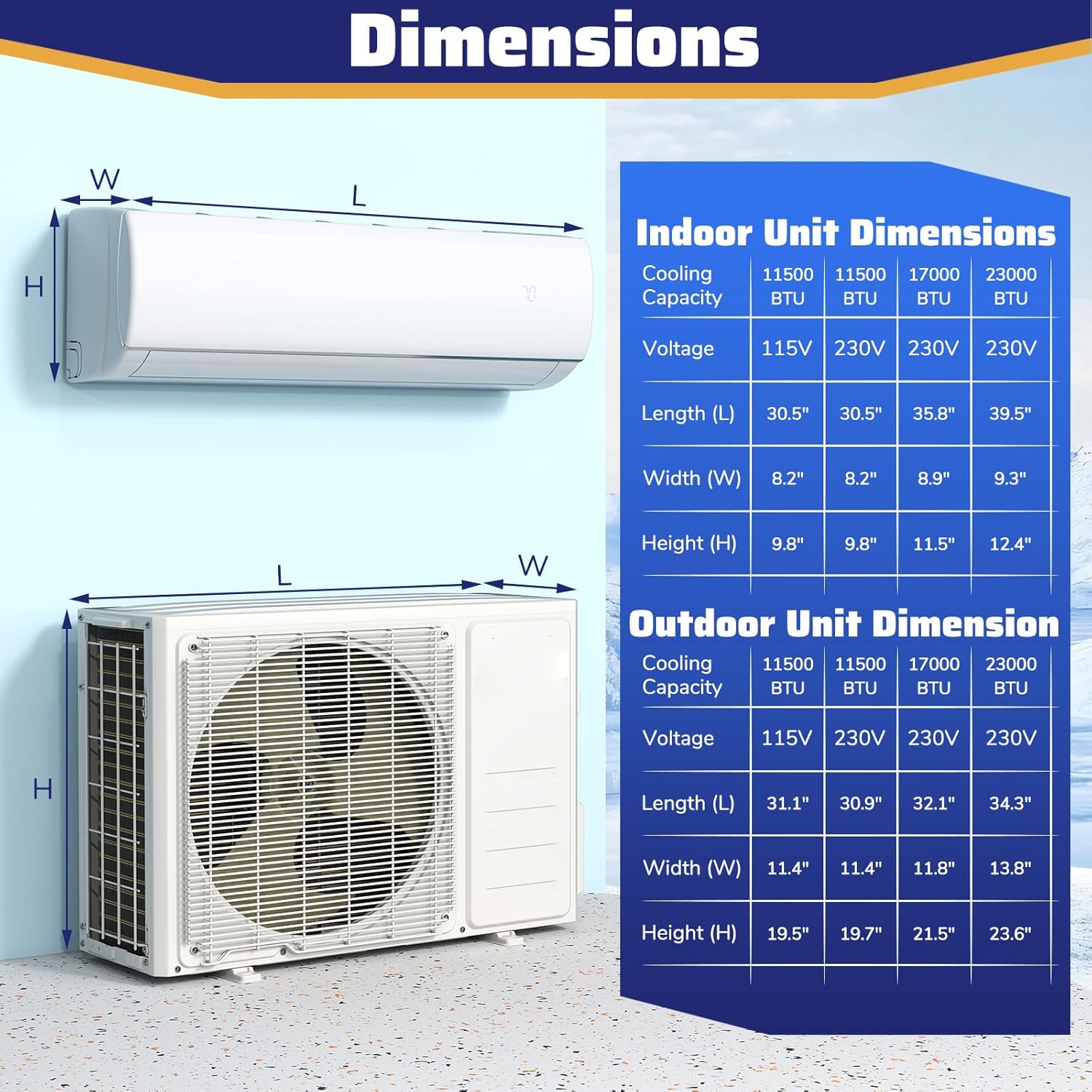

Understanding the dimensions of both indoor and outdoor units is crucial for proper placement and installation planning.

5. Operating Instructions

Your DORTALA mini split AC unit offers a variety of modes and features for optimal comfort and energy efficiency.

5.1 Control Options

The unit can be controlled via the included remote control, a dedicated mobile application, or voice commands through Alexa or Google Assistant.

5.2 Operating Modes and Fan Speeds

The unit features 7 distinct operating modes and 7 fan speeds to cater to all-season needs and personal preferences.

• Modes: Auto, Cool, Heat, Dry, Fan, Sleep, ECO
• Fan Speeds: Auto, Low, Low-Mid, Mid, Mid-High, High, Turbo

5.3 Additional Features

• 24H Timer: Schedule the unit to turn on or off automatically.
• Child Lock: Prevents accidental changes to settings.
• Auto Swing Function: Automatically adjusts the airflow direction.
• Screen-Off: Turns off the display lights for undisturbed sleep.
• I Feel: Adjusts temperature based on the remote control's sensor for localized comfort.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your DORTALA mini split AC unit.

6.1 Self-Cleaning Function

The unit features a high-temperature self-cleaning function at 135°F (57°C) which includes condensation, frost, melting, and sterilization cycles to maintain internal cleanliness and efficiency.

6.2 Filter Maintenance

The air filters are removable and washable for convenient maintenance. It is recommended to clean the filters regularly (e.g., every 2-4 weeks, depending on usage) to ensure good air quality and efficient operation. Refer to the detailed instructions in the full user guide for filter removal and cleaning procedures.

7. Troubleshooting

This section provides general guidance for common issues. For complex problems, please contact a qualified technician or DORTALA customer support.

• Unit Not Turning On: Check power supply, circuit breaker, and ensure the remote control batteries are functional.
• Insufficient Cooling/Heating: Verify correct mode selection, clean air filters, ensure no obstructions to airflow, and check if windows/doors are closed.
• Unusual Noises: Minor operational noises are normal. If loud or unusual noises occur, turn off the unit and contact a professional.
• Remote Control Not Working: Check battery orientation and charge. Ensure no obstructions between remote and indoor unit.
• Wi-Fi Connectivity Issues: Ensure your Wi-Fi network is active and the unit is within range. Refer to the app's instructions for pairing.

8. Specifications

Detailed technical specifications for the DORTALA 11500 BTU Mini Split Air Conditioner.

8.1 Energy Efficiency

The DORTALA mini split AC utilizes inverter technology, which automatically adjusts motor speeds for more energy-efficient and precise temperature control compared to traditional systems. This contributes to its high SEER2 and HSPF2 ratings.

9. Warranty and Support

For detailed warranty information, please refer to the warranty card included with your product or contact DORTALA customer support directly. Keep your purchase receipt for warranty claims.

9.1 Customer Support

If you encounter any issues or have questions regarding your DORTALA mini split AC unit, please visit the official DORTALA store or contact their customer service for assistance.
