NIVIAN NV-ACCESS-RFID IP68 RFID Access Control System Instruction Manual

Key Features:

• RFID Card and Key Fob Access: Securely opens doors using EM 125kHz proximity cards and key fobs for quick, contactless entry.
• High User Capacity: Supports up to 2,000 users, making it suitable for communities, businesses, or facilities with high personnel turnover.
• Remote Control Configuration: Manage users, cards, and functions easily with the included remote control, eliminating the need for internet connection or additional software.
• IP68 Outdoor Rating: Features a robust, water-resistant, and dustproof design, ideal for outdoor installations. Constructed from durable ABS material.
• Wiegand System Compatibility: Easily integrates into existing security systems through its 26-bit Wiegand input/output and configurable NO/NC relay output.

Package Contents:

• NIVIAN Access Control Unit (NV-ACCESS-RFID)
• Remote Control for configuration
• Installation accessories (screws, wall plugs)
• User Manual

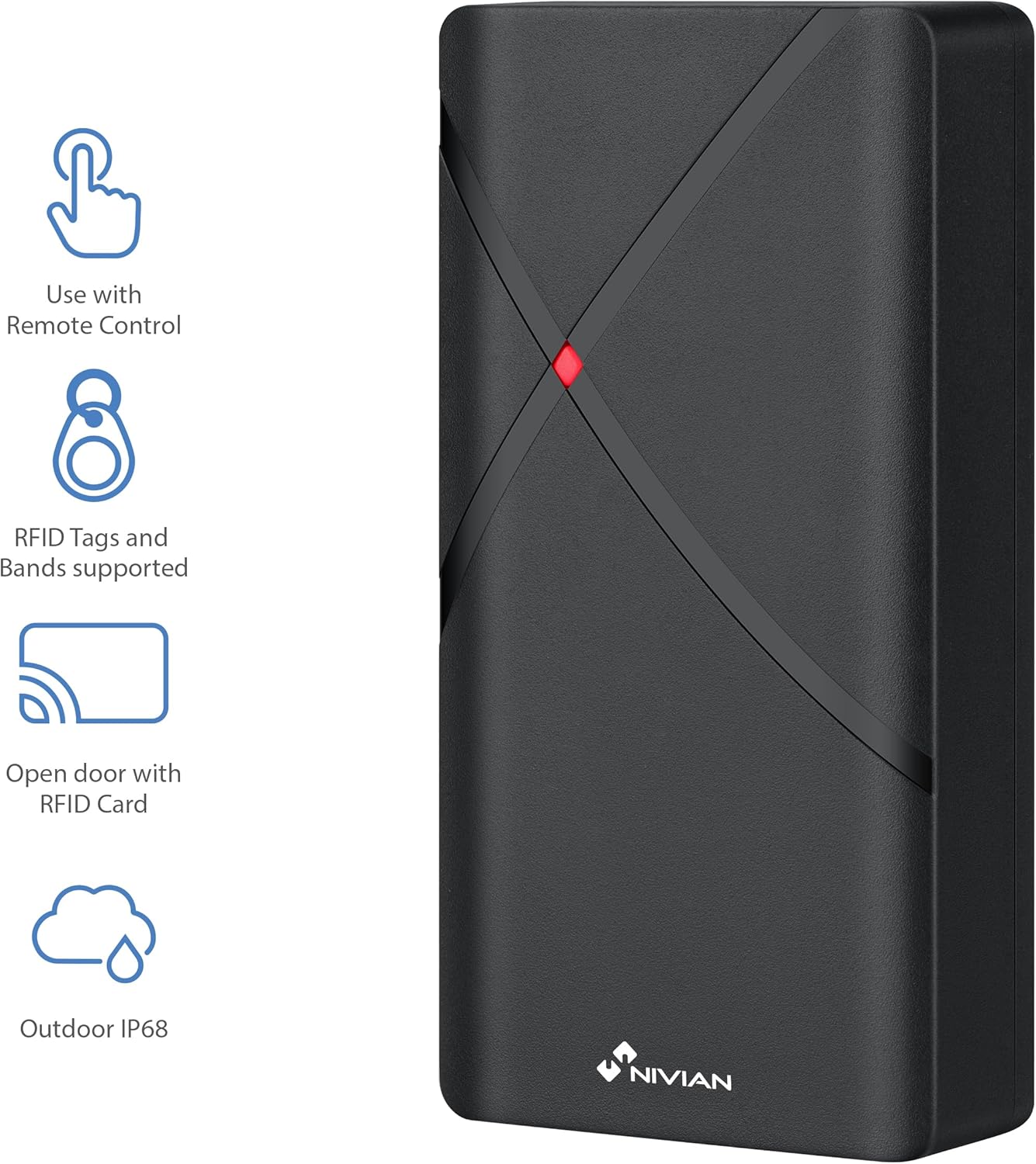

Product View:

2.1 Mounting the Unit

• Choose a suitable mounting location, ensuring it is within reach of necessary wiring and provides clear access for users. The IP68 rating allows for outdoor placement.
• Use the provided mounting template (if included) to mark drilling points on the wall or door frame.
• Drill holes and insert wall plugs. Secure the unit to the surface using the provided screws.
• Ensure the unit is firmly attached and stable.

2.2 Wiring Diagram

Connect the access control unit to your power supply, electric lock, and optional exit button or doorbell according to the following diagram. Always ensure power is disconnected before performing any wiring.

3.1 Granting Access with RFID Cards/Key Fobs

• To grant access, simply present a pre-programmed RFID card or key fob to the reader area on the unit.
• The unit will emit an audible signal and/or visual indicator (e.g., green light) to confirm successful access.

3.2 User Management (via Remote Control)

The remote control allows for easy management of users without complex software. Refer to the remote control's specific instructions for detailed programming steps.

• Adding Users: Use the remote control to enter programming mode, then follow the prompts to add new RFID cards or key fobs.
• Deleting Users: Access programming mode via the remote control and select the option to delete specific user cards or all users.
• Changing Master Code: The remote control can also be used to change the system's master programming code for enhanced security.
