1. Introduction
This manual provides essential instructions for the safe assembly, operation, and maintenance of your DNYN House Shaped Full Over Full Bunk Bed with Slide. Please read all instructions carefully before assembly and retain this manual for future reference. This bunk bed is designed to provide a space-saving sleeping solution with an integrated slide and ladder, suitable for children's bedrooms.
Image 1.1: The DNYN House Shaped Full Over Full Bunk Bed with Slide, assembled in a child's bedroom setting.
2. Safety Information
Your safety and the safety of your children are paramount. Adhere to the following guidelines:
- Weight Capacity: The upper bed has a maximum weight capacity of 350 lbs. Do not exceed this limit.
- Mattress Thickness: The recommended mattress thickness for the upper bed is 6 inches. For the lower bed, the recommended mattress thickness is 8-10 inches. Ensure mattresses fit snugly to prevent entrapment.
- Guard Rails: The upper bunk is equipped with guard rails. Ensure they are always properly installed and secured to prevent falls.
- Ladder and Slide: The built-in ladder and slide are designed for specific installation as shown in the assembly instructions and cannot be interchanged (left to right). Ensure all connections are tight before use.
- Assembly: This product requires assembly. Ensure all parts are correctly installed and all fasteners are tightened before use. Periodically check and re-tighten fasteners.
- Supervision: Children using the bunk bed and slide should always be supervised by an adult.
- No Box Spring: A box spring is not required for this bed frame.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. All parts, tools, and instructions are shipped in one efficiently packed box. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
Typical package contents include:
- Metal frame components for upper and lower bunks
- Ladder sections
- Slide components
- Hardware pack (screws, bolts, washers, Allen wrench)
- Assembly Instruction Manual
Image 3.1: The DNYN House Shaped Full Over Full Bunk Bed frame, showing the metal structure, ladder, and slide attachment point.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | DNYN |
| Model Number | DNYN Full over Full |
| Material | Metal |
| Size | Full/Full |
| Color | White |
| Overall Product Dimensions | 77.17"L x 55.91"W x 78.35"H |
| Overall Product Weight | 94.96 lbs |
| Upper Bed Weight Capacity | 350 lbs |
| Recommended Upper Mattress Thickness | 6 inches |
| Recommended Lower Mattress Thickness | 8-10 inches |
| Assembly Required | Yes |
| Box Spring Required | No |
| UPC | 764606041019 |
Image 4.1: Detailed product information diagram showing dimensions, weight capacity, and suitable mattress sizes.
5. Setup and Assembly Instructions
Assembly of the DNYN House Shaped Full Over Full Bunk Bed is designed to be straightforward. It is recommended to have at least two adults for assembly.
- Unpack Components: Carefully unpack all parts from the box. Lay them out on a clean, soft surface (like a carpet) to prevent scratches.
- Identify Parts: Refer to the included assembly instruction manual to identify each component and hardware piece.
- Follow Step-by-Step Guide: Adhere strictly to the step-by-step instructions provided in the separate assembly manual. Do not skip steps.
- Tighten Fasteners: Ensure all bolts, screws, and other fasteners are securely tightened. Do not overtighten, as this can strip threads or damage components.
- Install Ladder and Slide: Attach the ladder and slide according to the instructions. Note that these components are non-interchangeable and must be installed as depicted.
- Final Check: Once assembled, perform a thorough check to ensure all connections are secure and the bed is stable before use.

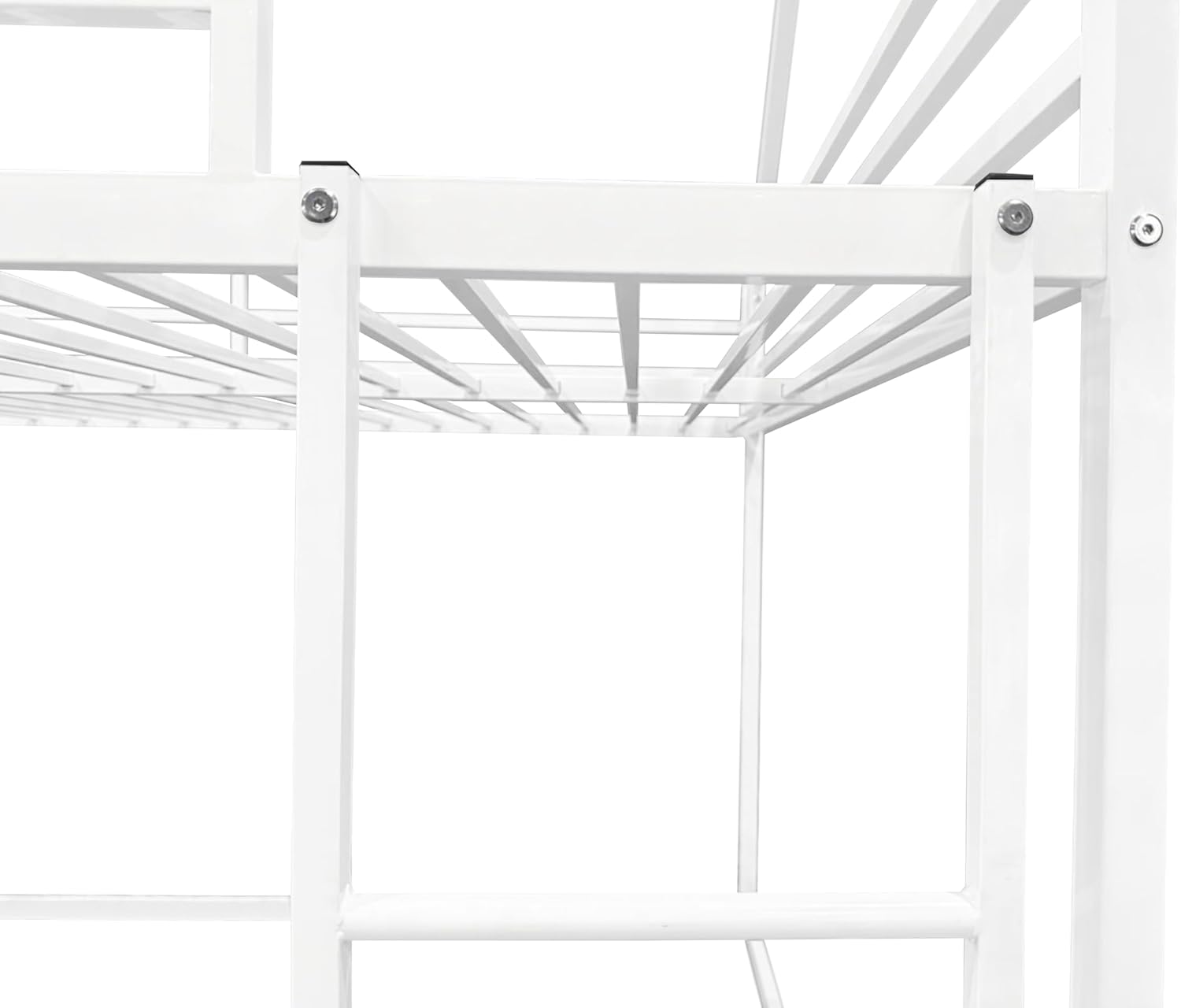

Image 5.1: Close-up view of the metal slats and support structure, illustrating the bed base design.

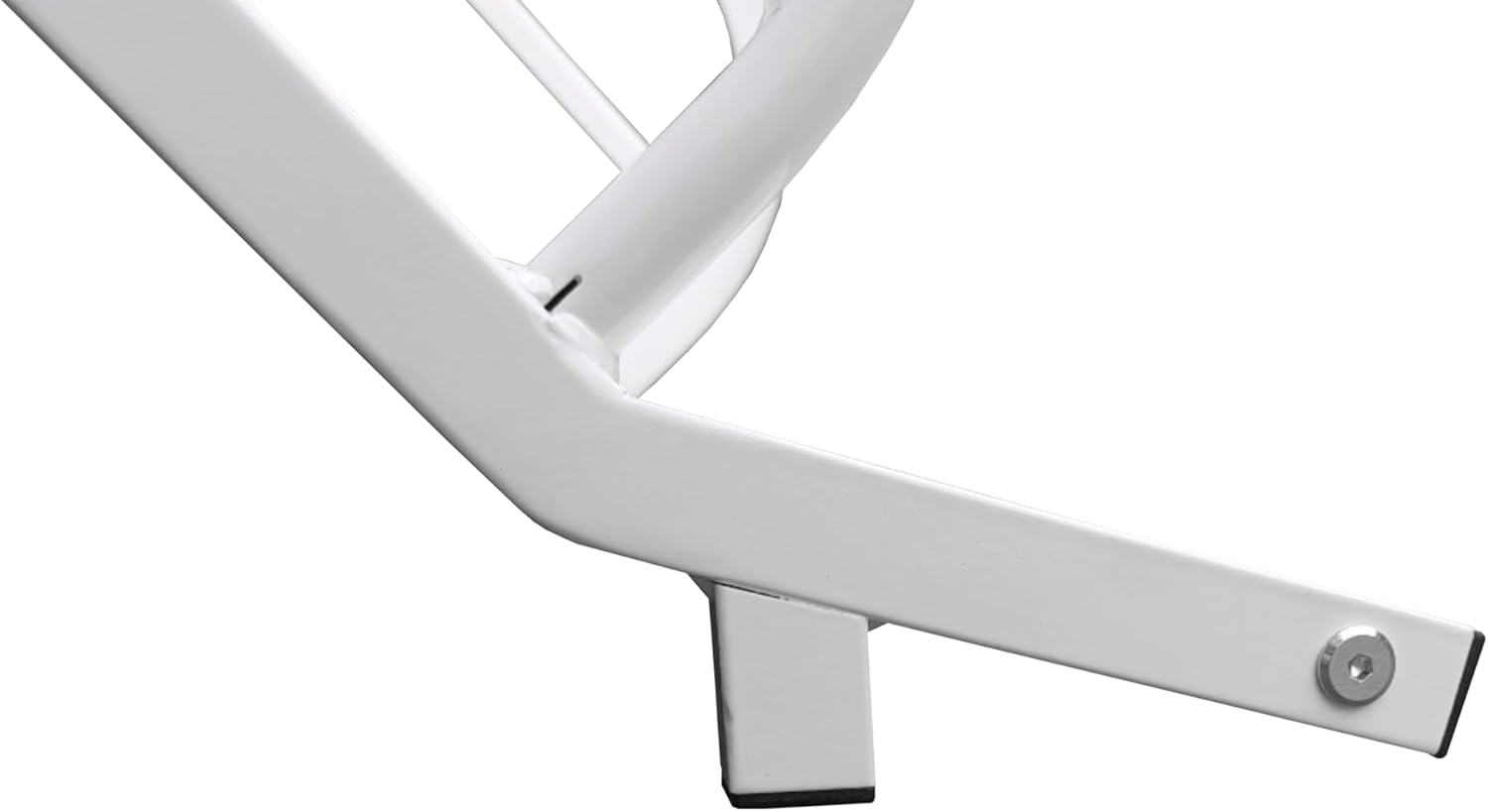

Image 5.2: Detail of the slide's base connection point, showing how it attaches to the bed frame.
6. Operating Instructions (Usage)
This bunk bed is designed for sleeping and recreational use of the slide and ladder. Observe the following:
- Sleeping: Place appropriate full-size mattresses on both the upper and lower bunks. Ensure the upper mattress does not exceed the recommended thickness to maintain guard rail effectiveness.
- Ladder Use: Always use the integrated ladder to access the upper bunk. Do not climb on the frame or other parts of the bed.
- Slide Use: The slide is intended for single-person use at a time. Ensure the landing area is clear before sliding. Do not climb up the slide.
- General Use: Avoid jumping on the bed or engaging in rough play that could compromise the bed's stability or safety.
7. Maintenance
Regular maintenance helps ensure the longevity and safety of your bunk bed.
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
- Fastener Check: Periodically (e.g., monthly or quarterly) inspect all bolts, screws, and connections. Re-tighten any loose fasteners to maintain structural integrity.
- Structural Integrity: Check for any signs of wear, damage, or bending in the metal frame. If any damage is found, discontinue use and contact customer support for replacement parts or advice.
8. Troubleshooting
If you encounter issues with your DNYN bunk bed, refer to the following common problems and solutions:
- Squeaking Noises: Squeaking often indicates loose fasteners. Locate and re-tighten all bolts and screws. Ensure the bed is on a level surface.
- Instability/Wobbling: This is typically due to loose connections. Re-check all assembly points and tighten fasteners. Ensure the bed is placed on a flat, stable floor.
- Missing Parts: If parts were missing upon initial unboxing, do not proceed with assembly. Contact DNYN customer support immediately for assistance.
- Difficulty Assembling: Review the assembly manual carefully. Ensure you are using the correct hardware for each step. If issues persist, consider seeking assistance from another person or contacting customer support.
9. Warranty and Support
For warranty information, specific return policies, or to obtain replacement parts, please refer to the documentation included with your purchase or contact DNYN customer service directly. Keep your purchase receipt as proof of purchase.
Customer Support: Please visit the official DNYN website or refer to your purchase platform for contact details.
