Eonon UX6S Car Stereo User Manual
Model: UX6S (Upgraded UA13) | Brand: Eonon
1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Eonon UX6S Android 13 Double Din Universal Car Stereo. Please read this manual thoroughly before using the product to ensure proper functionality and safety.
Image: The Eonon UX6S car stereo unit, featuring a 7-inch screen, with an external microphone and a backup camera shown below it. This image illustrates the main components included with the product.
2. Setup and Installation
Proper installation is crucial for the optimal performance of your car stereo. It is recommended that installation be performed by a qualified professional.
2.1. What's in the Box
Verify that all components are present before beginning installation:
Reverse camera (A0127) * 1
External microphone * 1
Power cord * 1
GPS antenna * 1
4G antenna * 1
USB adapter cable * 2
Audio and video adapter cable * 2
Reverse video input cable * 1
15A fuse * 1
SIM card holder * 1
Instruction manual * 1
Screw * 8
Small knob * 1
Image: A visual representation of all items included in the Eonon UX6S package, such as cables, antennas, and accessories, laid out for identification.
2.2. Wiring Diagram
Refer to the following diagram for correct wiring connections. Ensure all connections are secure to prevent malfunction.
Image: A detailed wiring diagram for the Eonon UX6S car stereo, showing connections for GPS, 4G antenna, USB ports, backup camera, audio outputs, and other essential inputs and outputs.
Key to Wiring Diagram:
GPS
4G Antenna
USB Port
USB Port
USB Port for CarPlay
Backup Camera Input
Brake Shift Control
RX/TX Input
Audio Output RL
Audio Output RR
AMP
SIM Card Slot
External Microphone
Audio Output FL
Audio Output FR
Audio Input L
Audio Input R
Video Input
Front Camera Input
Subwoofer Output
ISO Port
Illumination Wire
SWC Wire 2
Reverse Trigger Wire
SWC Wire 1
WIFI Bluetooth Antenna
Coaxial
Optical
2.3. Universal Fit and Installation Notes
The Eonon UX6S is designed for universal fit in double din openings. It is compatible with panel sizes ranging from 170×96mm to 178×100mm. The unit features a compact short-chassis design for easier setup.
Image: Diagrams illustrating the compatible panel dimensions (170-178mm length, 96-100mm height) for the Eonon UX6S, and a comparison showing that it is a double din unit and not suitable for single din openings.
If your car dashboard size does NOT fall within the range of 170-178 mm (length) and 96-100 mm (height), an additional installation kit (not included) may be required. Ensure your factory car radio's power cable has an ISO standard interface. If not, a compatible ISO wiring harness will need to be purchased separately.
Image: Visual guidance on when an installation kit is needed for the Eonon UX6S, and an illustration of an ISO harness, emphasizing the importance of checking your vehicle's wiring compatibility.
3. Operating Instructions
Familiarize yourself with the various features and functions of your Eonon UX6S car stereo.
3.1. User-Focused Panel Design
The UX6S features a practical physical volume knob for easy adjustment and power control. It also includes dedicated USB and AUX inputs for convenient connectivity.
Volume Knob: Easily and intuitively adjust the volume, and turn the radio on/off.
USB: Charge your phone or transfer music, movies, etc.
AUX Input: Connect external audio devices.

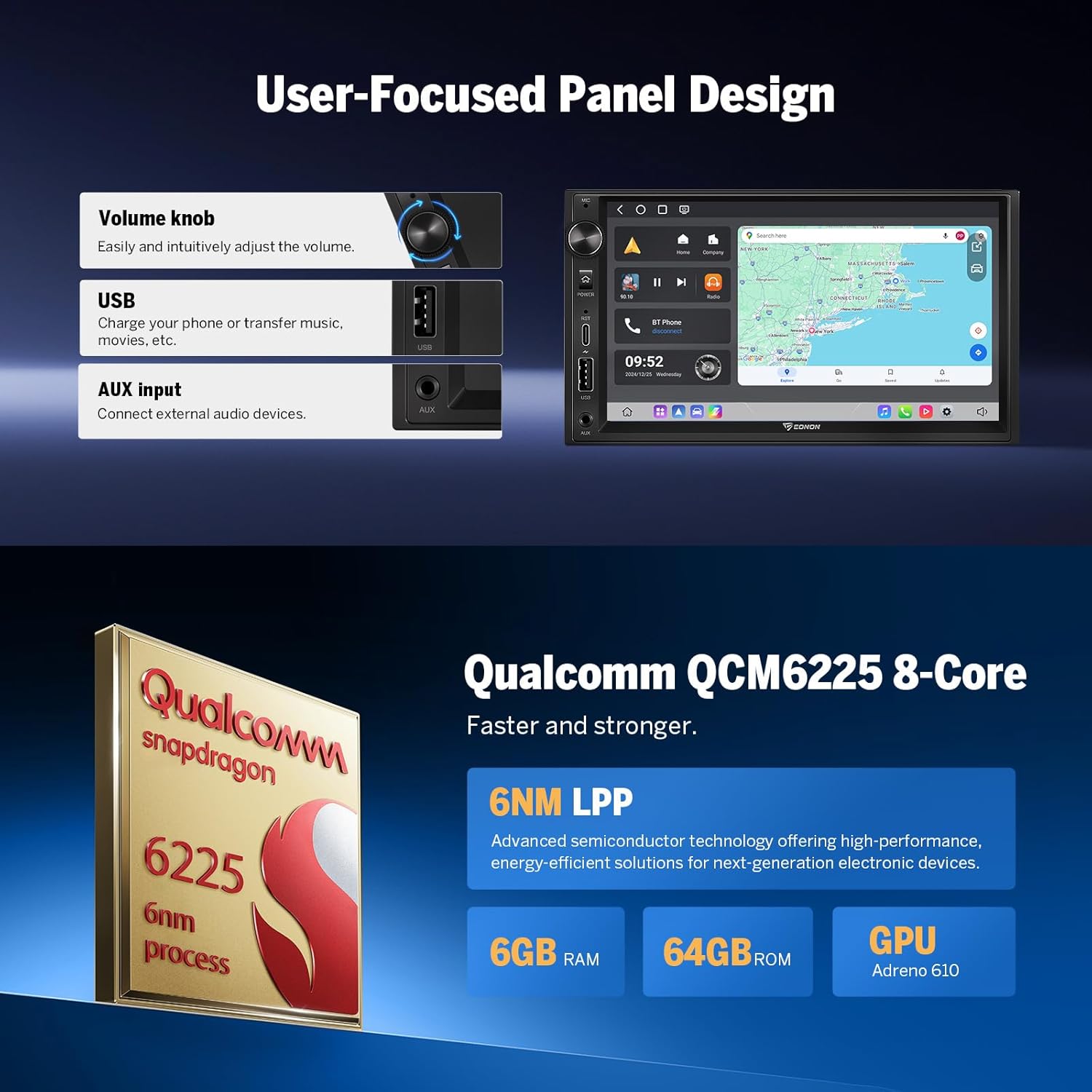

Image: A close-up view of the Eonon UX6S's front panel, highlighting the physical volume knob, USB port, and AUX input, along with a small screen showing the user interface.
3.2. Connectivity: CarPlay, Android Auto, and Screen Mirroring
The unit supports wireless and wired Apple CarPlay, Android Auto, and screen mirroring, providing seamless integration with your smartphone.
Image: The Eonon UX6S display showing the Apple CarPlay interface with navigation, music, and communication apps, indicating support for both wired and wireless connections.
Image: The Eonon UX6S display mirroring content from a smartphone, demonstrating the screen mirroring capability for viewing phone content on the car stereo screen.
Stay connected with the built-in 4G module (SIM card not included) and Wi-Fi 6 ready technology for fast internet access. Bluetooth 5.1 ensures stable connections for your devices.
Image: An illustration highlighting the independent Bluetooth module and extra Bluetooth antenna of the Eonon UX6S, emphasizing Bluetooth 5.1 for quick, stable, and noise-reduced connections.
Image: Icons representing Wi-Fi 6 readiness, dual-band Wi-Fi (2.4/5 GHz), and a built-in 4G module with SIM card support (SIM card not included), detailing the wireless connectivity options of the Eonon UX6S.
3.3. Audio Features and DSP
Experience immersive audio with the RHOM 32107 DSP audio processing chip and a 48-band equalizer for precise sound customization. The ST TDA7851 amplifier delivers 4x48W surround sound output.
Image: A diagram highlighting the ST TDA7851 4x48W amplifier, multi-channel audio outputs (RCA, Subwoofer, Optical, Coaxial), RHOM 32107 DSP with 48-band equalizer, and optimized acoustics for the Eonon UX6S.
Optical and coaxial audio outputs support professional-grade audio setups. The ST TDA7708 radio module ensures clear radio reception.
Image: A close-up view of the rear of the Eonon UX6S unit, specifically showing the optical and coaxial HD audio output ports, indicating support for high-quality audio connections.
3.4. Display and User Interface
The 7-inch QLED HD display (1280x720 resolution) offers vibrant colors, higher contrast, and supports 1080P video playback.

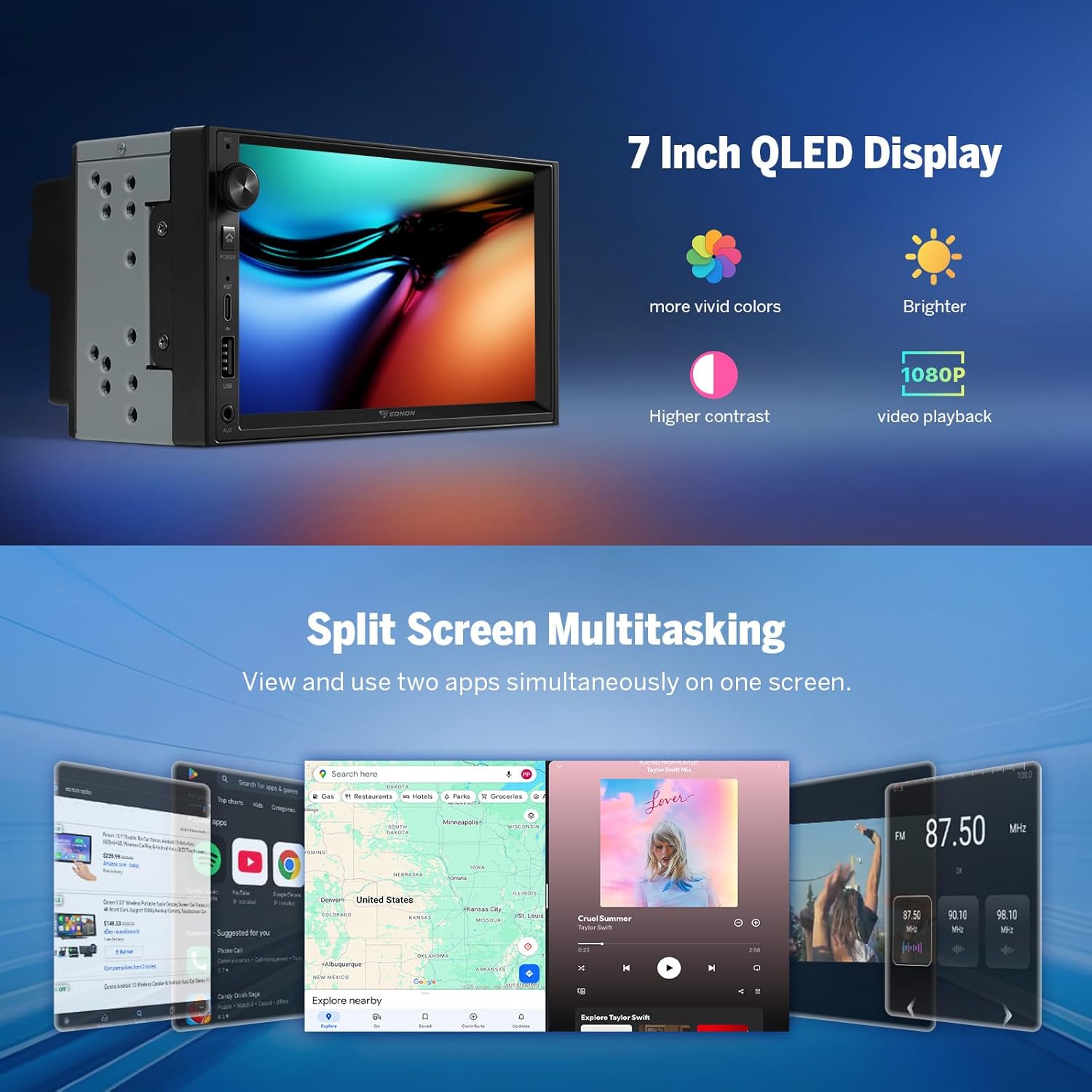

Image: The Eonon UX6S unit showcasing its 7-inch QLED display with vivid colors and high contrast, alongside an example of split-screen multitasking running multiple applications simultaneously.
The unit features a brand new UI designed for in-car systems, offering 4 sets of UI themes for customization. Split-screen mode allows you to handle navigation, entertainment, and other tasks simultaneously.
Image: Four different user interface themes displayed on the Eonon UX6S screen, demonstrating the customizable UI designed for in-car systems.
Further customization options include adjustable button lights, boot logo selection, and wallpaper changes.
Image: A visual representation of the Eonon UX6S customization features, including adjustable button colors, selectable boot logos, changeable wallpapers, and draggable app icons on the home screen.
3.5. Steering Wheel Controls
The unit supports analog SWC (Steering Wheel Control) signals, allowing you to control various functions directly from your steering wheel.
Image: A car's steering wheel with controls, and the Eonon UX6S screen displaying a
