Aoxun 12' x 14' Hardtop Gazebo Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Aoxun 12' x 14' Hardtop Gazebo. Designed for outdoor use, this gazebo features a durable aluminum frame, a galvanized steel double roof with a drainage system, and includes curtains and netting for enhanced comfort and privacy. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and operation.

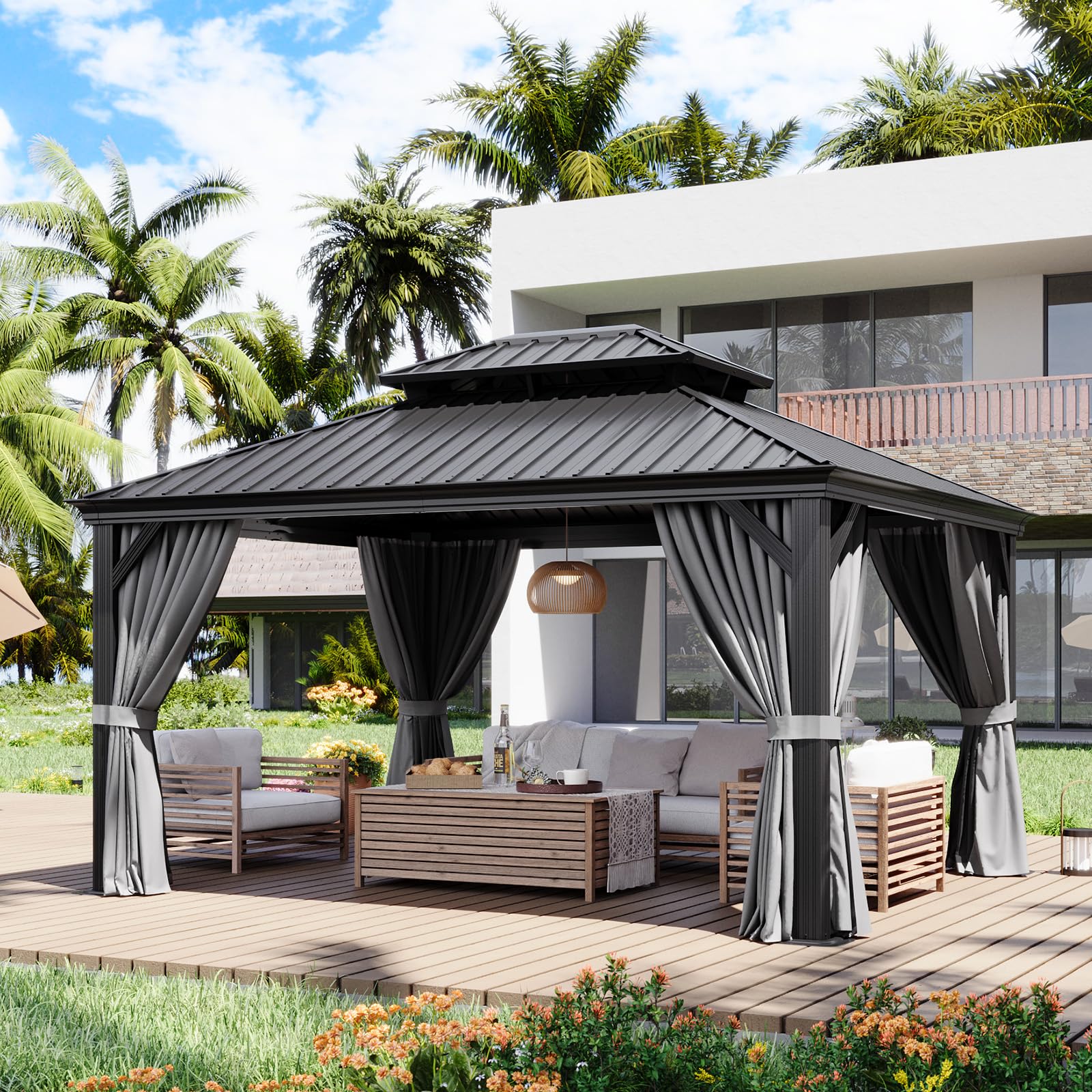

Figure 1: Aoxun 12' x 14' Hardtop Gazebo in a backyard setting.

Safety Information

WARNING: Failure to follow these safety instructions may result in injury or damage to the product.

• Always secure the gazebo to a stable foundation to prevent it from tipping over, especially in windy conditions.
• Exercise caution during assembly and disassembly to avoid potential hazards.
• Ensure all bolts and connections are tightened securely before and after each use.
• Do not hang excessively heavy items from the roof structure or hooks.
• Clear snow accumulation promptly to prevent structural damage, as the roof holds up to 7 inches of thick snow.

Product Features

• Efficient Drainage System: Ensures water flows seamlessly from the gazebo's edge into the poles and the ground, preventing rain accumulation.
• Durable Aluminum Frame: Constructed with high-quality aluminum and galvanized steel, designed to withstand harsh weather conditions and resist rust.
• Dual Roof for Comfort: Innovative double roof design promotes airflow, keeping the space cool, and allows for efficient snow runoff.
• Enhanced Ambiance with Hooks: Equipped with heavy-duty hooks, each supporting up to 44 lbs, for hanging lights, fans, or decorations.
• Private Curtains & Netting: Includes curtains for privacy and mesh netting to keep insects at bay, creating a protected outdoor space.

Figure 2: Key features of the Aoxun Hardtop Gazebo.

Setup and Assembly

The Aoxun Hardtop Gazebo is designed for straightforward assembly. It is recommended that two people undertake the assembly process. All parts are individually labeled to match the instructions provided in the packaging. Ensure you have adequate space and all necessary tools before beginning.

Figure 3: Product dimensions for planning your installation space.

For a visual guide to the assembly process and key features, please refer to the official product video below:

When assembling the roof panels, do not fully tighten screws in a section until that section is complete. This allows for minor adjustments to align holes properly. The gazebo should be secured to a stable foundation using expansion bolts for optimal wind resistance.

Figure 4: Rust-resistant aluminum frame detail.

Operating Instructions

Your Aoxun Hardtop Gazebo is designed for year-round enjoyment. The dual roof design ensures proper ventilation, keeping the interior comfortable. The integrated drainage system efficiently manages rainwater, preventing pooling on the roof.

Figure 5: Water gutter design for efficient drainage.

Curtains and Netting

The included curtains and netting provide versatility for your outdoor space. Use the netting to protect against insects while maintaining an open feel. Deploy the curtains for added privacy or protection from sun and light wind. The curtains can be tied back to the columns when not in use.

Figure 6: Gazebo with curtains and ambient lighting.

Hanging Accessories

Utilize the heavy-duty hooks on the ceiling to hang decorative lights, fans, or other lightweight accessories. Each hook can support up to 44 lbs. Ensure items are securely attached and do not obstruct movement or airflow.

Maintenance

• Cleaning: Clean the aluminum frame and galvanized steel roof with a mild soap and water solution. Rinse thoroughly with clean water. Avoid abrasive cleaners or harsh chemicals.
• Fabric Care: The curtains and netting can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags. Ensure they are completely dry before storing or tying back to prevent mildew.
• Seasonal Checks: Periodically inspect all bolts and connections for tightness, especially after strong winds or heavy precipitation. Tighten any loose fasteners.
• Snow Removal: In areas with heavy snowfall, regularly remove snow from the roof to prevent excessive load, even though the roof is designed to hold up to 7 inches of snow.

Troubleshooting

• Water Accumulation: If water is pooling on the roof, check the drainage system for any blockages (leaves, debris) and ensure the gutters are clear. Verify that the gazebo is level.
• Instability: If the gazebo feels unstable, ensure all frame connections are securely tightened and that the base is properly anchored to the ground or patio.
• Curtains/Netting Snagging: Check the curtain rails for any obstructions or damage. Ensure the fabric is properly aligned in the tracks.

Specifications

Figure 7: Gazebo durability in various weather conditions.

Warranty and Support

For warranty information, replacement parts, or technical support, please refer to the contact information provided in your product packaging or visit the official Aoxun website. Keep your purchase receipt for warranty claims.
