COMFEE' CDWMTO201D Countertop Mini Dishwasher User Manual

1. Introduction

Thank you for choosing the COMFEE' CDWMTO201D Countertop Mini Dishwasher. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and keep it for future reference.

2. Safety Information

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using this appliance.

• Read all instructions before using the dishwasher.
• Ensure the appliance is properly grounded.
• Do not operate the dishwasher if it has a damaged cord or plug.
• Keep children away from the dishwasher, especially when it is operating.
• Use only detergents and rinse aids specifically designed for dishwashers.
• Do not wash plastic items unless they are marked "dishwasher safe."
• Avoid touching the heating element during or immediately after use.
• Always disconnect the appliance from the power supply before cleaning or performing maintenance.

3. Product Overview

3.1 Key Features

• Energy Efficiency Class D: 20.7% energy savings compared to Class G.
• 98°C Steam Cleaning: Ensures dishes are perfectly clean and hygienic, especially for baby care items.
• 72-Hour Ventilated Storage: Keeps dishes dry and odor-free, preventing mold and mildew.
• 6 Wash Programs: Includes Rapid, ECO, Glass, 1 Hour, Fruit Wash, and Baby Care.
• No Plumbing Required: Features a built-in 5-liter water tank for manual filling, or can be connected directly to a tap.
• Compact Size: Ideal for small homes, apartments, dorms, and RVs (420mm W × 435mm D × 435mm H).
• Delayed Start: Schedule wash cycles 1-24 hours in advance.

Figure 3.1.1: Energy efficiency rating of the COMFEE' CDWMTO201D dishwasher.

3.2 Components Included

The following components are included with your COMFEE' CDWMTO201D dishwasher:

• User Manual
• Drain Hose
• Water Inlet Hose
• Water Bottle (for manual filling)
• Fruit Basket

Figure 3.2.1: Included accessories for the COMFEE' CDWMTO201D dishwasher.

4. Setup and Installation

4.1 Placement

Place the dishwasher on a stable, level surface. Ensure there is adequate space around the unit for ventilation and door opening. The compact size (420mm W × 435mm D × 435mm H) makes it suitable for various locations.

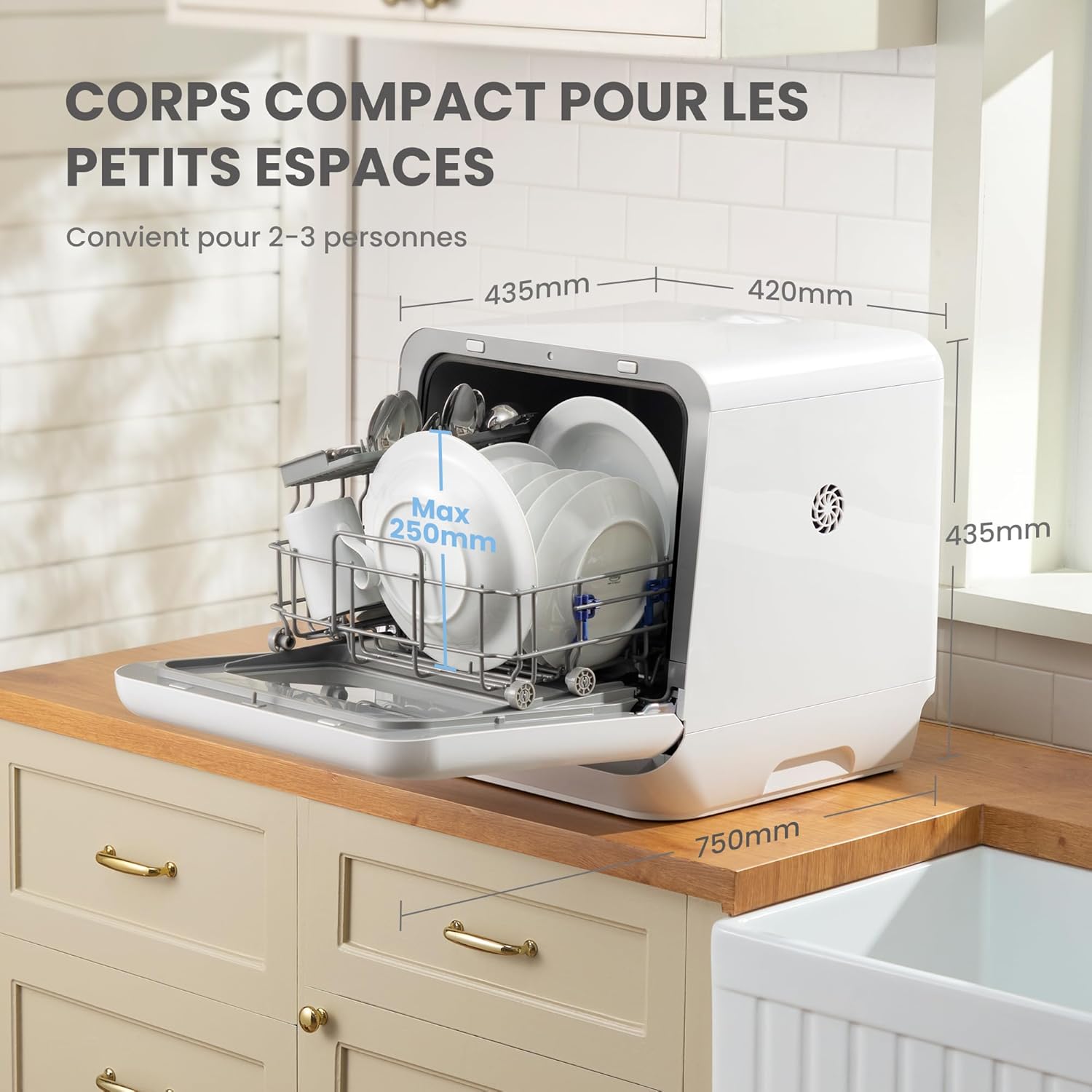

Figure 4.1.1: Dimensions of the COMFEE' CDWMTO201D dishwasher.

4.2 Water Supply Options

Your dishwasher offers two methods for water supply:

1. Manual Water Filling:

   This option requires no permanent plumbing. Simply pour water into the designated opening on top of the dishwasher using the provided water bottle until the 5-liter tank is full. An audible signal will indicate when the tank is full.



   Figure 4.2.1: Manual water filling process.

2. Direct Tap Connection:

   For a continuous water supply, connect the water inlet hose to a suitable tap. Refer to the detailed instructions in the full user manual for proper connection procedures.

Ensure the drain hose is properly positioned to discharge water into a sink or drain.

5. Operating Instructions

5.1 Loading the Dishwasher

Arrange dishes to allow water to reach all surfaces. Place larger items and heavily soiled dishes in the lower rack. Cups, glasses, and smaller items go in the upper rack or designated areas. Ensure items do not block the spray arms.

Figure 5.1.1: Example of proper dish loading.

5.2 Adding Detergent

Open the detergent dispenser located on the inside of the door. Add the recommended amount of dishwasher detergent (powder, liquid, or tablet) according to the manufacturer's instructions and the soil level of your dishes. Close the dispenser cover securely.

Figure 5.2.1: Detergent dispenser location.

5.3 Selecting a Wash Program

Press the Power button to turn on the dishwasher. Use the program selection button to cycle through the available wash programs:

• Rapid: For lightly soiled dishes and quick washes.
• ECO: Energy-efficient program for normally soiled dishes.
• Glass: Gentle wash for delicate glassware.
• 1 Hour: Standard wash for everyday dishes.
• Fruit Wash: Specialized program for cleaning fruits and vegetables.
• Baby Care: High-temperature wash for sterilizing baby bottles and accessories.

Figure 5.3.1: Dishwasher control panel with program options.

5.4 Special Functions

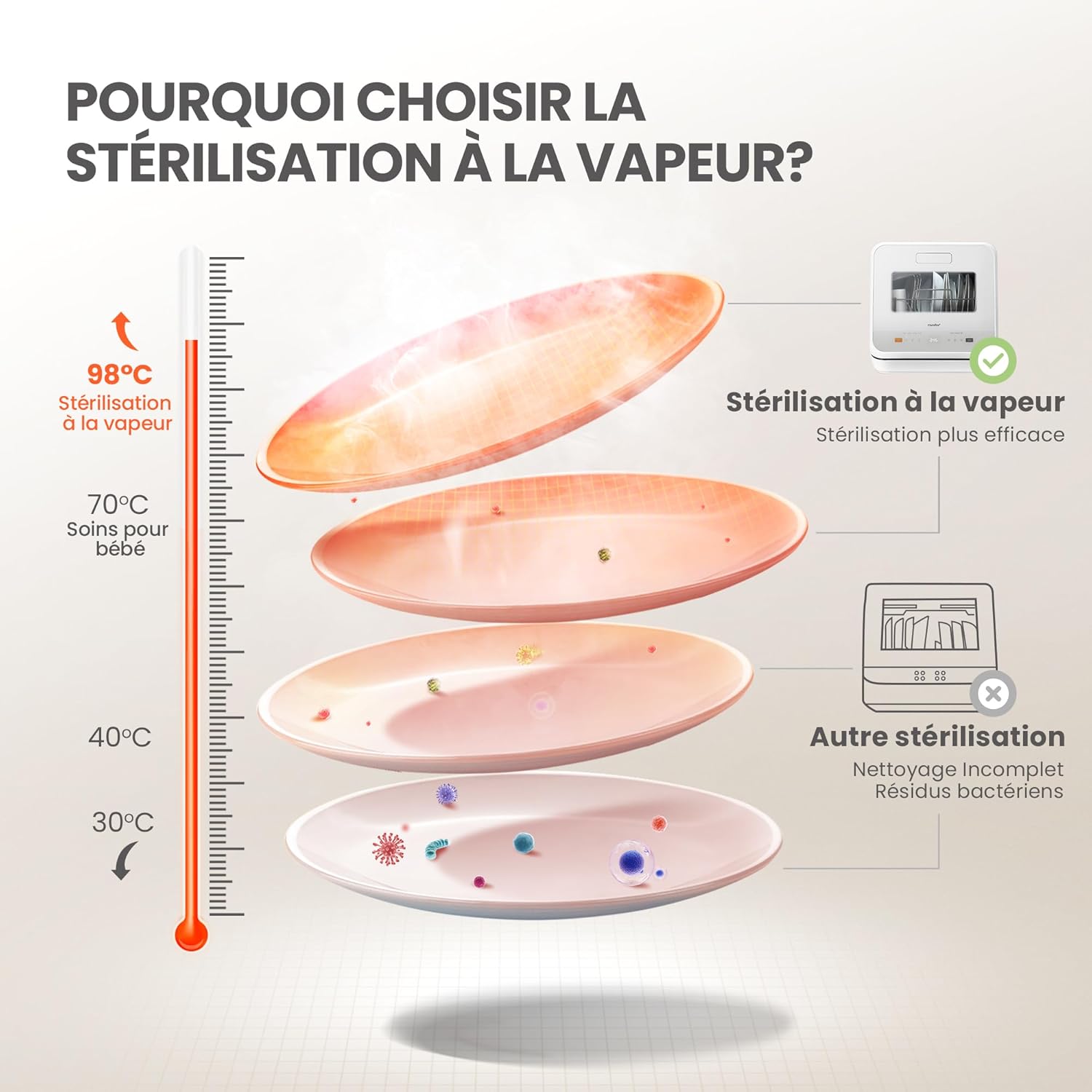

• Steam Cleaning (98°C):

  This function releases steam at up to 98°C during the wash cycle, ensuring thorough cleaning and sanitization. It is particularly effective for items requiring high hygiene standards.



  Figure 5.4.1: Steam cleaning in progress.

• 72-Hour Ventilated Storage:

  After a wash cycle, this function circulates air to keep your dishes dry and prevent odors, mold, and mildew for up to three days. This feature is not compatible with Rapid or Fruit Wash programs.



  Figure 5.4.2: Ventilated storage feature.
• Delayed Start:

  You can delay the start of a wash cycle by 1 to 24 hours. This allows you to run the dishwasher at off-peak electricity times or when it's most convenient for you.

• Fruit Wash Program:

  Utilize the dedicated fruit basket and program to gently clean fruits and vegetables. This program uses specific water temperatures suitable for different types of produce.



  Figure 5.4.3: Fruit wash program with fruit basket.

5.5 Starting a Cycle

After loading dishes, adding detergent, and selecting your desired program and functions, press the Start/Pause button to begin the wash cycle.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your dishwasher.

• Cleaning the Filters: Regularly check and clean the coarse filter and fine filter to prevent blockages and ensure efficient cleaning.
• Cleaning the Spray Arms: Ensure the spray arm nozzles are not clogged. Remove and clean them if necessary.
• Cleaning the Interior: Wipe down the interior surfaces with a damp cloth after each use. For deeper cleaning, run a dishwasher cleaning cycle with a specialized cleaner.
• Exterior Care: Clean the exterior with a soft, damp cloth. Avoid abrasive cleaners.

7. Troubleshooting

Before contacting customer service, refer to the following table for common issues and their solutions:

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Comfee website. Do not attempt to repair the appliance yourself.

Contact Information: Please refer to your purchase documentation or the official Comfee website for the most up-to-date customer support contact details.
