Jelkuz 4K Motorcycle CarPlay Dash Cam (Model MT26B) User Manual

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Jelkuz 4K Motorcycle CarPlay Dash Cam, Model MT26B. This device integrates a 6.25-inch display with wireless CarPlay and Android Auto functionalities, a 4K dual-camera DVR system, GPS navigation, and robust IP67 waterproofing, designed to enhance your riding experience and safety.

What's in the Box

Verify that all components are present before proceeding with installation.

• 6.25-inch Motorcycle CarPlay Screen
• 4K Front Camera
• 1080P Rear Camera
• 64GB SD Card
• Wired Controller
• GPS Module
• Power Cable
• Extension Rod Bracket
• User Manual

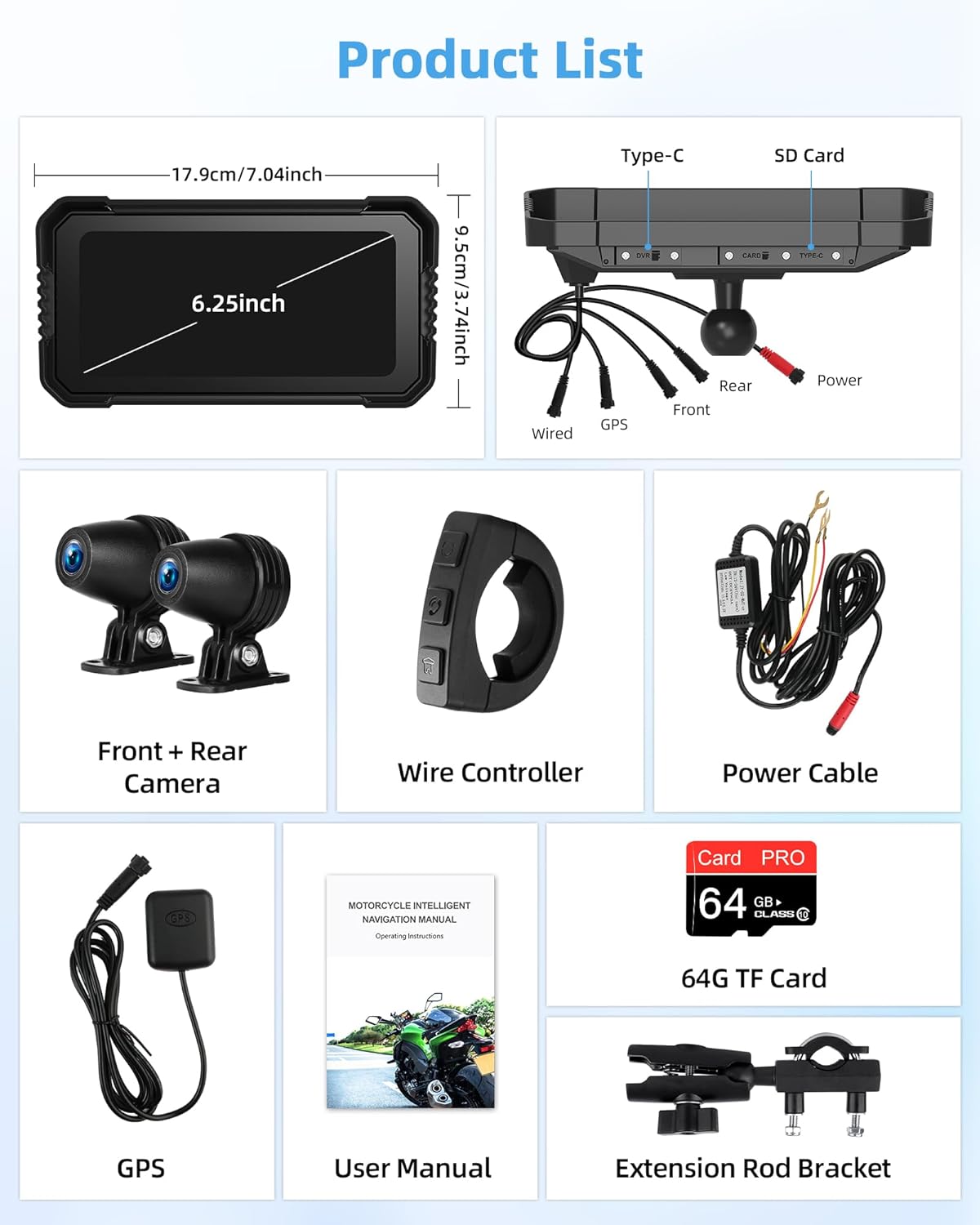

Image: All components included in the Jelkuz MT26B package.

Setup

1. Mounting the Device

Utilize the provided extension rod bracket to securely mount the 6.25-inch display on your motorcycle's handlebars. Ensure the mount is tightened to prevent movement during operation.

2. Wiring Diagram and Power Connection

Connect the power cable, front camera, rear camera, GPS module, and wired controller to the main CarPlay screen as indicated in the diagram below. The positive terminal of the device's power cable must be connected to the motorcycle's ACC control wire, and the negative terminal to the battery's negative terminal. The ACC control wire ensures the device powers on and off with the motorcycle's ignition.

Image: Detailed wiring connections for the Jelkuz MT26B.

3. SD Card Installation and Formatting

Insert the provided 64GB TF card into the designated slot on the device. For optimal performance and to ensure proper recording, it is recommended to format the SD card to FAT32 via the device's settings menu upon first use or if recording issues occur.

Operating Instructions

1. Wireless CarPlay & Android Auto

Connect your smartphone wirelessly to the device via Bluetooth. Once paired, your phone's features, including map navigation, phone calls, music playback, and text messaging, will be accessible through the smart touchscreen. Utilize Siri or Google Assistant for hands-free control.

Image: Wireless CarPlay and Android Auto interfaces on the Jelkuz MT26B.

2. 4K DVR with Dual Cameras

The integrated dashcam records in 4K resolution with front and rear cameras, supporting split-screen display. Features include:

• Loop Recording: Continuously records, overwriting the oldest footage when the SD card is full.
• Parking Monitoring: Records automatically if motion or impact is detected while parked.
• G-Sensor: Automatically locks footage during sudden impacts or collisions to prevent overwriting.

Image: Overview of the 4K DVR dual camera system features.

3. 6.25-inch HD IPS Touchscreen

The high-definition IPS touchscreen provides clear visuals and responsive touch control. It features an automatic light-sensitive function that adjusts screen brightness based on ambient light conditions for optimal visibility day or night. The built-in WiFi chip allows you to connect to your phone to view, download, and share recorded footage or trip data.

Image: Screen visibility in various lighting conditions and WiFi sharing feature.

4. Dual Bluetooth Connectivity

The device supports dual Bluetooth connectivity, allowing simultaneous pairing with your smartphone for CarPlay/Android Auto and a Bluetooth-enabled headset or helmet. This enables hands-free calls and music streaming directly to your helmet audio system.

Image: Dual Bluetooth pairing with phone and helmet.

5. GPS Navigation & Voice Controls

Access popular mapping applications like Google Maps and Waze through CarPlay or Android Auto. Use voice commands via Siri or Google Assistant for navigation, music control, and making calls. The included wired controller, mounted near the handlebar, allows quick switching between front/rear camera views, accessing the home screen, and managing phone calls.

Image: Voice control functionality for navigation and media.

Maintenance

1. IP67 Waterproofing

The device features an IP67 protection rating, making it resistant to dust and water immersion up to 1 meter for 30 minutes. This ensures reliable operation in various weather conditions, including heavy rain. However, avoid prolonged submersion or high-pressure water jets.

Image: Durability and weather resistance of the Jelkuz MT26B.

2. Screen Care

Clean the touchscreen with a soft, lint-free cloth. For stubborn smudges, lightly dampen the cloth with water or a screen-safe cleaner. Avoid abrasive materials or harsh chemicals that could damage the screen coating.

Troubleshooting

• SD Card Not Recording: If the device is not recording footage, remove the SD card and format it to FAT32 using a computer or the device's settings menu. Reinsert the card and test.
• Date/Time Incorrect: The device's date and time are updated automatically when connected to the GPS module. Ensure the GPS module is properly connected and has a clear view of the sky.
• Bluetooth Connection Issues: If experiencing difficulty pairing with your phone or helmet, ensure both devices are in pairing mode and within range. Avoid connecting your phone to a Bluetooth helmet or headset directly while attempting to pair with the CarPlay screen, as this may interfere with the process.
• Screen Freezing/Unresponsive: If the screen freezes, perform a soft reset by holding down the power button for 10-15 seconds until the device restarts.

Specifications

Warranty and Support

The Jelkuz 4K Motorcycle CarPlay Dash Cam (Model MT26B) comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. For technical assistance, troubleshooting, or warranty claims, please contact Jelkuz customer support. Our support team aims to provide a satisfactory solution within 24 hours.

Please retain your proof of purchase for warranty validation.
