Introduction
This manual provides instructions for the safe and effective use of your Okin 2-Pin Y Splitter Power Cord. This cable is designed to connect two electric motors to a single power supply, commonly used in electric recliners, lift chairs, and other motorized furniture. Please read these instructions carefully before installation and operation.
Safety Information
Always observe the following safety precautions:
- Ensure the power supply is disconnected before connecting or disconnecting the Y splitter cable.
- Do not use the cable if it appears damaged or frayed.
- Avoid placing the cable in areas where it can be pinched, cut, or exposed to excessive heat or moisture.
- This cable is designed for indoor use only.
- Verify compatibility with your existing power supply and motors before installation. The cable features a 2-pin hybrid plug (one round, one flat) for the transformer and two 2-pin sockets with clips for motor attachment.
Image: The Okin 2-Pin Y Splitter Cable is UL certified, indicating it has passed safety, performance, and compliance tests.
Product Overview
The Okin 2-Pin Y Splitter Power Cord allows a single power transformer to power two electric motors simultaneously. This eliminates the need for multiple power supplies, simplifying your furniture's power setup.
Key Features:
- Connector Type: One 2-pin hybrid plug (one flat, one round pin) for the power supply, and two 2-pin sockets with clips for motor connections.
- Length: Main cable length is approximately 3.94 feet (1.2 meters). Each branch to the motor is approximately 47.24 inches (120 cm).
- Material: Constructed with a pure copper core and a durable PVC jacket for reliable performance and longevity.
- Compatibility: Designed for electric recliners and lift chairs from brands such as Okin, Dewert, Lazyboy, Pride, Catnapper, and Limoss, provided they use compatible 2-pin connectors.
Image: Detail of the 2-pin hybrid plug (one flat, one round) and the corresponding socket with clips.

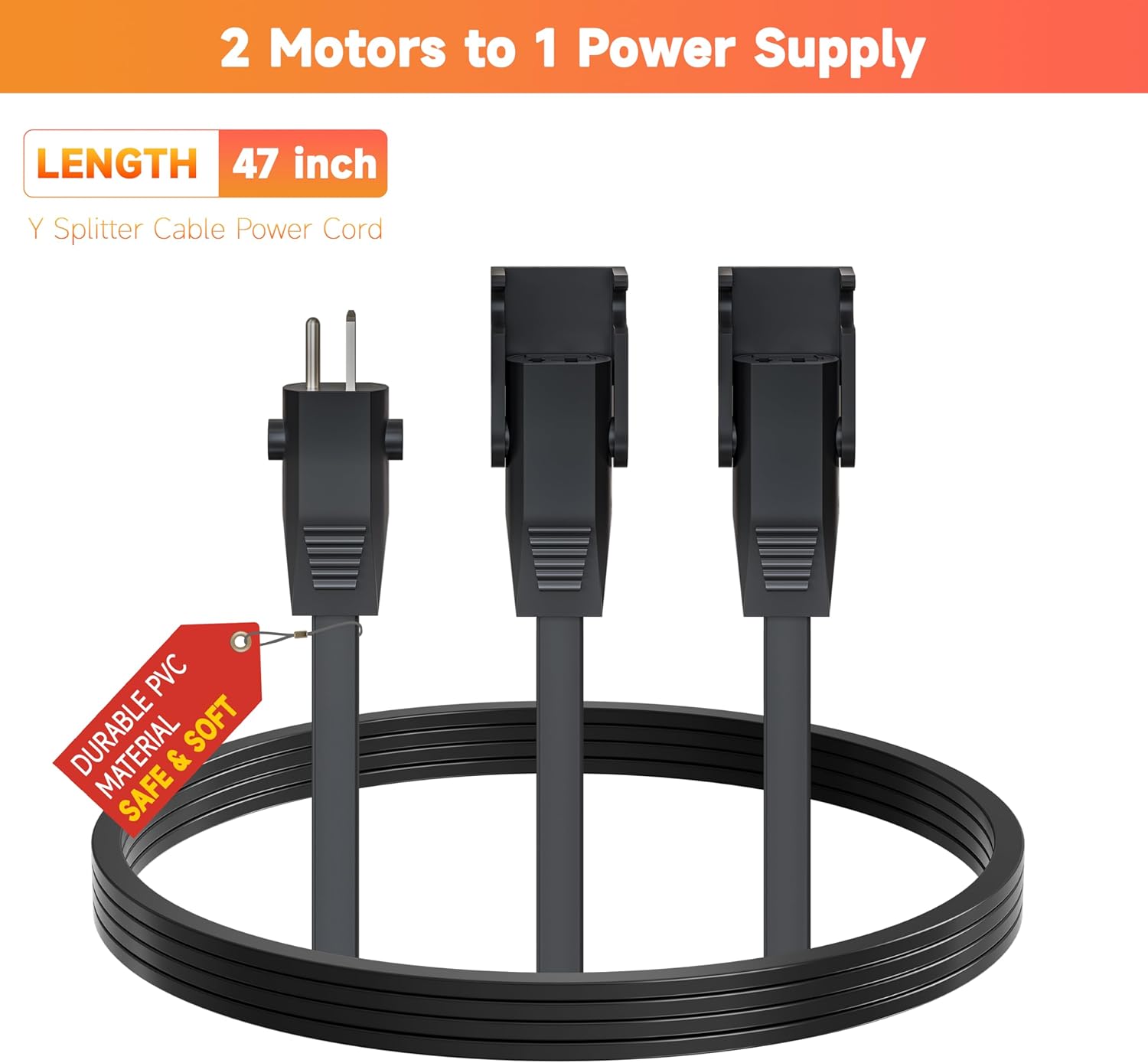

Image: The Y splitter cable coiled, illustrating its function to connect two motors to a single power supply.
Image: A cross-section of the cable highlighting its pure copper core and protective PVC jacket, ensuring reliable quality.
Setup and Installation
Follow these steps to install your Okin 2-Pin Y Splitter Power Cord:
- Disconnect Power: Ensure your electric recliner or lift chair is unplugged from the wall outlet before beginning.
- Identify Connections: Locate the 2-pin output port on your power transformer and the 2-pin input ports on your two electric motors.
- Connect to Transformer: Insert the 2-pin hybrid plug (one flat, one round) of the Y splitter cable into the corresponding port on your power transformer.
- Connect to Motors: Connect each of the two 2-pin sockets with clips from the Y splitter cable to the input ports on your electric motors. Ensure the clips engage securely to prevent accidental disconnection.
- Secure Connections: Gently tug on each connection to ensure it is firm and will not come loose during operation.
- Restore Power: Once all connections are secure, plug your power transformer back into the wall outlet.
Image: Visual guide demonstrating the secure connection process of the Y splitter cable, ensuring it remains "NOT-LOOSE".
Image: The anti-slip button feature on the connector, designed to prevent disconnection once the cable is in place.
Operation
After successful installation, your electric recliner or lift chair should operate normally, with both motors receiving power from the single transformer via the Y splitter cable. Use your furniture's standard controls to adjust positions.
The cable is designed for efficient power distribution without requiring additional components. It supports simultaneous operation of two motors.
Image: A recliner sofa with the Okin Y splitter cable connected, demonstrating its extended design and high-quality integration.
Care and Maintenance
- Cleaning: Wipe the cable with a dry, soft cloth if it becomes dusty. Do not use liquid cleaners or immerse the cable in water.
- Storage: When not in use, store the cable in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tightly coiling the cable to prevent damage.
- Inspection: Periodically inspect the cable for any signs of wear, cuts, or damage to the insulation or connectors. If damage is found, discontinue use and replace the cable.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Motors not responding. |
|
|
| Only one motor responding. |
|
|
| Cable feels hot during use. |
|
|
Image: The Okin Y splitter cable is designed with multiple protection features, including over-voltage, over-current, over-heat, and over-charging protection.
Specifications
| Feature | Detail |
|---|---|
| Model Number | R5.216.01.001C |
| Brand | Okin |
| Connector Type (Input) | 2-Pin Hybrid Plug (1 flat, 1 round) |
| Connector Type (Output) | Two 2-Pin Sockets with Clips |
| Connector Gender | Male-to-Female |
| Plug Format | Type H |
| Item Length | 3.94 Feet (1.2 meters) main cable, 47.24 inches (120 cm) branches |
| Item Weight | 0.07 Kilograms |
| Manufacturer | OKIN Refined Electric Technology Co.,Ltd |

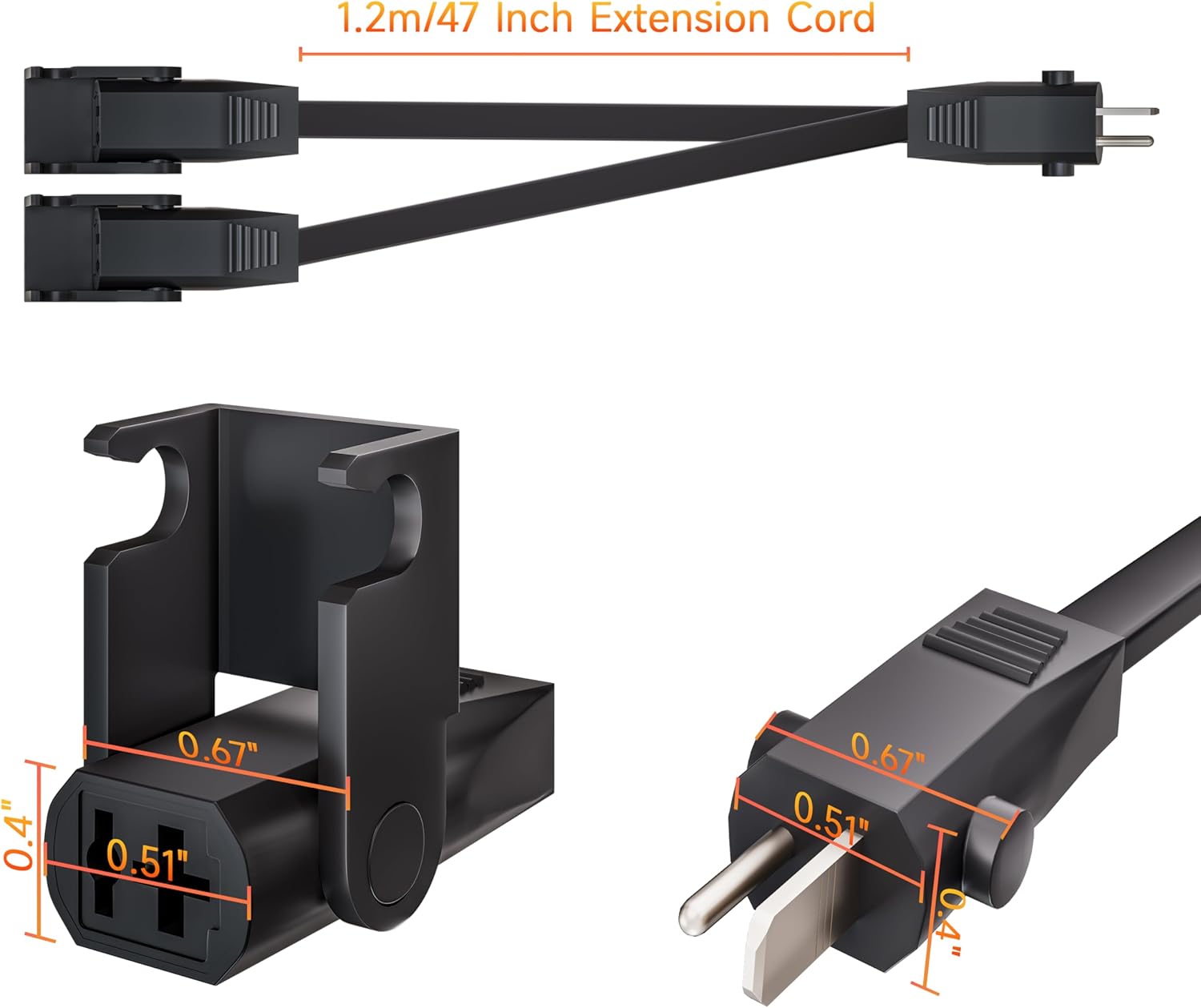

Image: Detailed measurements of the Y splitter cable's connectors and overall length (1.2m/47 inch extension cord).
Support and Warranty
Okin is committed to providing high-quality products and excellent customer service. Each package includes one premium recliner power cord. If you have any inquiries or concerns regarding your Okin 2-Pin Y Splitter Power Cord, please contact our dedicated support team for prompt assistance.
For support, refer to the contact information provided with your purchase or visit the official Okin website.
