CIARRA AWPAC59-W Portable Air Cooler User Manual

1. Introduction

Thank you for choosing the CIARRA AWPAC59-W Portable Air Cooler. This device is designed to provide a comfortable environment through its 3-in-1 functions: cooling, ventilation, and dehumidification. It utilizes an evaporative cooling system with a water tank, making it an energy-efficient solution for personal use and small spaces. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

Image: The CIARRA AWPAC59-W Portable Air Cooler, a tall, white unit with a grey control panel and a remote control shown beside it.

2. Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:

• Read all instructions before using the appliance.
• Do not operate the unit with a damaged cord or plug. If the cord or plug is damaged, it must be replaced by the manufacturer or a qualified service agent.
• Do not block air openings. Ensure proper ventilation around the unit.
• Do not insert fingers or foreign objects into the air inlet or outlet.
• Always unplug the unit before cleaning or performing any maintenance.
• Do not use the appliance near water or in excessively humid environments.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Ensure the unit is placed on a stable, level surface to prevent tipping and water spillage.
• Only use the appliance with the voltage specified on the rating label.
• This product is an air cooler, not a traditional air conditioner with a compressor. It is designed for personal cooling in small areas.

3. Package Contents

Carefully unpack your CIARRA AWPAC59-W Portable Air Cooler and check that all items are present and in good condition.

• 1 x CIARRA AWPAC59-W Portable Air Cooler Unit
• 1 x Remote Control
• 4 x Swivel Casters
• 1 x Water Tank (3 Liters capacity)
• 1 x Instruction Manual
• 1 x Pump Hose Filter (if applicable, check packaging)

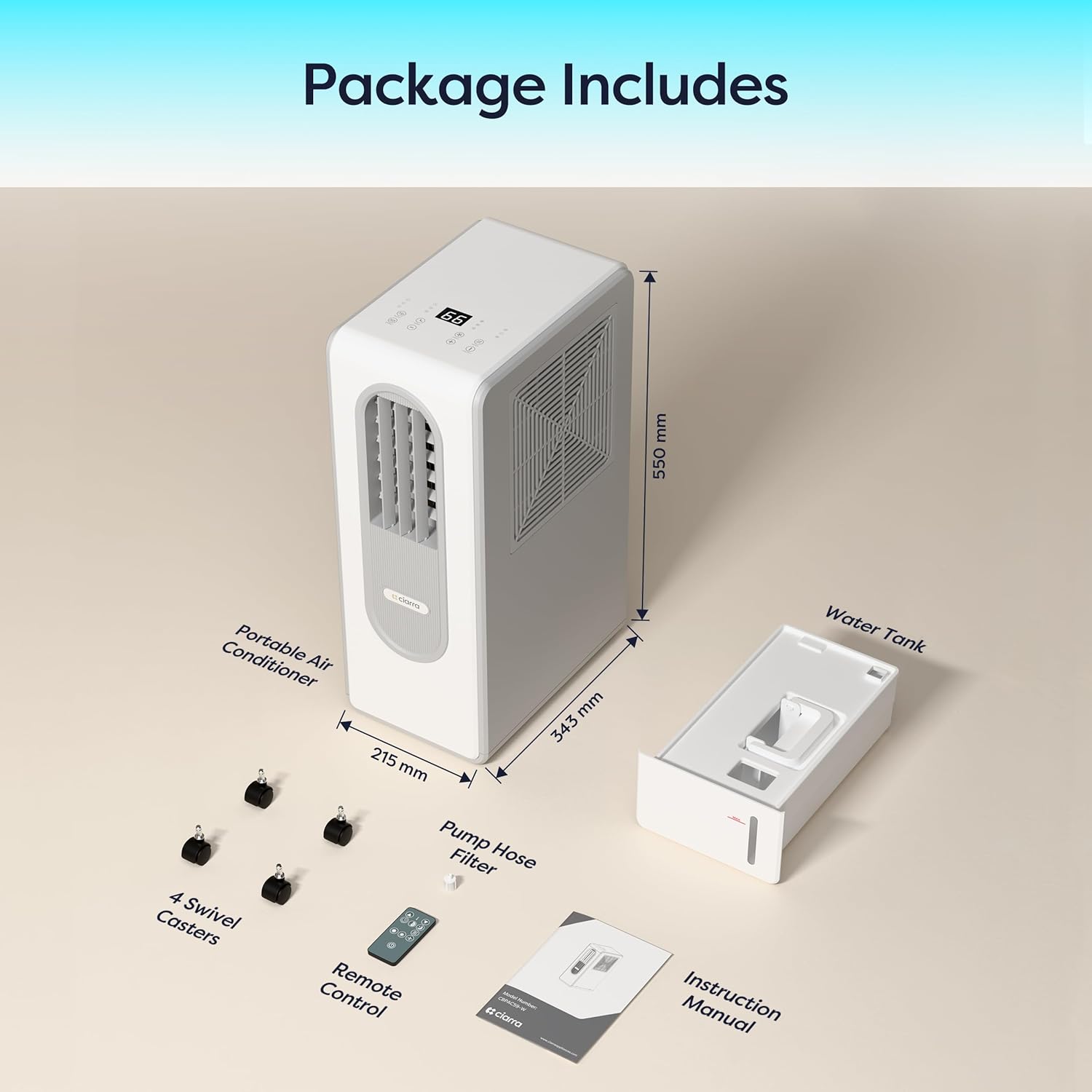

Image: An exploded view showing the portable air conditioner unit, remote control, four swivel casters, water tank, and instruction manual, labeled as "Package Includes".

4. Product Features

The CIARRA AWPAC59-W Portable Air Cooler offers a range of features designed for your comfort:

• 3-in-1 Functionality: Provides Cooling, Ventilation, and Dehumidification modes.
• Eco-Friendly Cooling: Utilizes R290 refrigerant technology for efficient and environmentally conscious cooling.
• Low Power Consumption: Operates at only 200W, making it energy-efficient.
• Large Water Tank: Features a 3-liter water tank, providing up to 16 hours of continuous freshness without frequent refills.
• Quiet Operation: Designed for quiet performance with a noise level of approximately 43 dB.
• Compact & Portable: Lightweight at 12.5 kg and equipped with 4 swivel casters for easy movement between rooms.
• Dual Control: Can be operated via the intuitive touch control panel on the unit or the included remote control.
• Dehumidification Capacity: Capable of extracting up to 15 liters of moisture per day, improving air comfort.
• Sleep Mode: For quieter operation during nighttime hours.
• Automatic Oscillation: Ensures wide air distribution.
• Optional Exhaust Hose: While designed for ductless use, an optional flexible hose (not included) can be added for enhanced heat dissipation in closed environments.

Image: The portable air cooler in a bedroom setting, with graphics indicating "Ultra-Quiet & Energy-Saving" at 38 dB(A) and 200W power consumption.

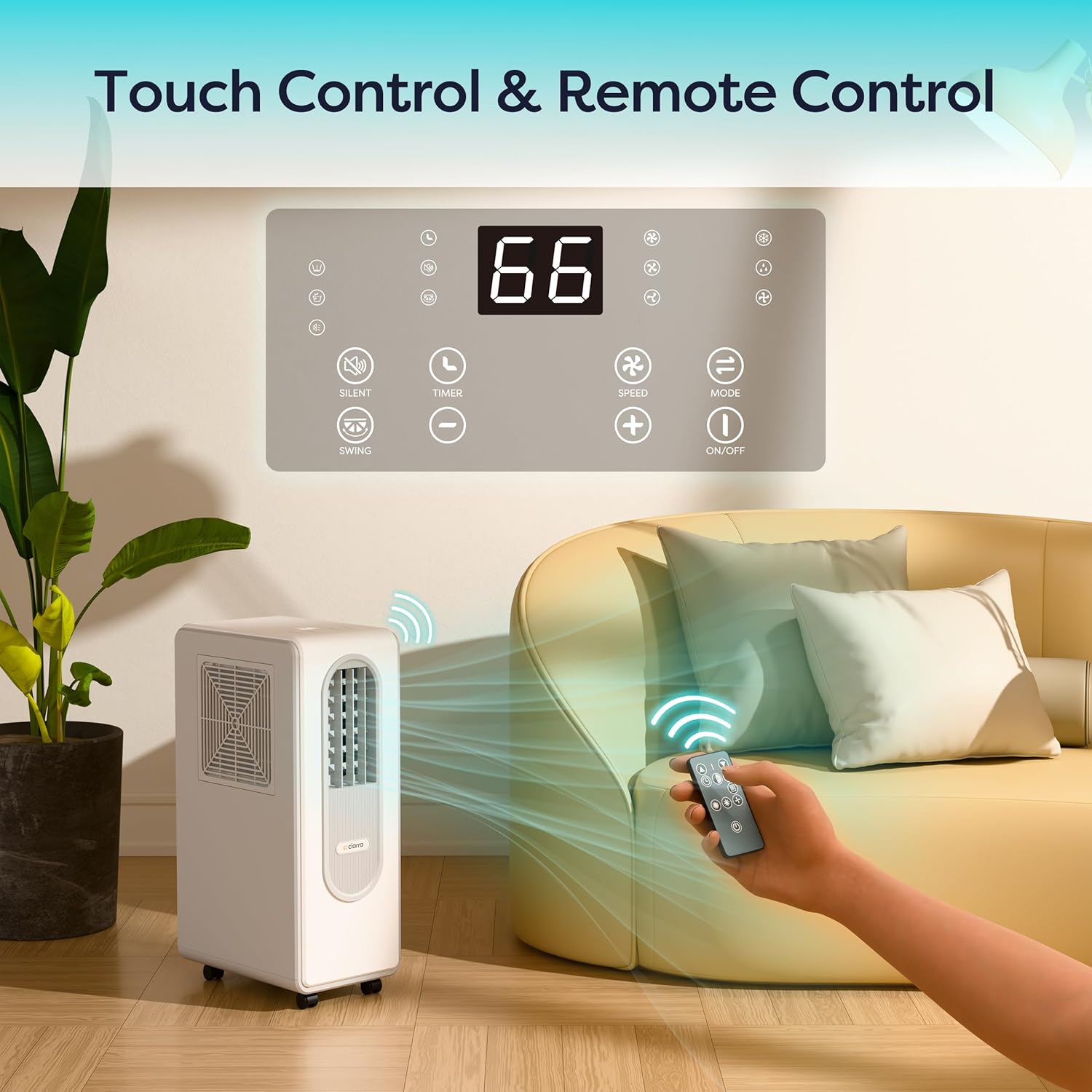

Image: The portable air cooler in a living room, showing the touch control panel on the unit and a hand holding the remote control, illustrating dual control options.

5. Setup

1. Unpacking and Resting: After carefully unpacking the unit, place it upright on a flat, stable surface. Allow the unit to rest for at least 2 to 3 hours before plugging it into a power outlet. This allows any fluids within the system to settle.
2. Attaching Casters: If the casters are not pre-installed, gently tilt the unit and insert the four swivel casters into the designated holes at the bottom of the unit until they click into place.
3. Filling the Water Tank:
   • Locate the water tank at the bottom of the unit.
   • Pull out the water tank.
   • Fill the tank with clean, cool water. Do not exceed the "MAX" fill line. For enhanced cooling, you may add ice packs or ice cubes to the water tank.
   • Carefully slide the water tank back into the unit until it is securely in place.


   Image: A view of the portable air cooler with its water tank pulled out, showing the process of filling it with water.

4. Placement: Position the air cooler in a well-ventilated room, ideally near the area where you desire cooling. For optimal results, place the device close to yourself. Ensure there is adequate space around the unit for proper airflow.
5. Power Connection: Plug the power cord into a standard electrical outlet (220 Microvolt).

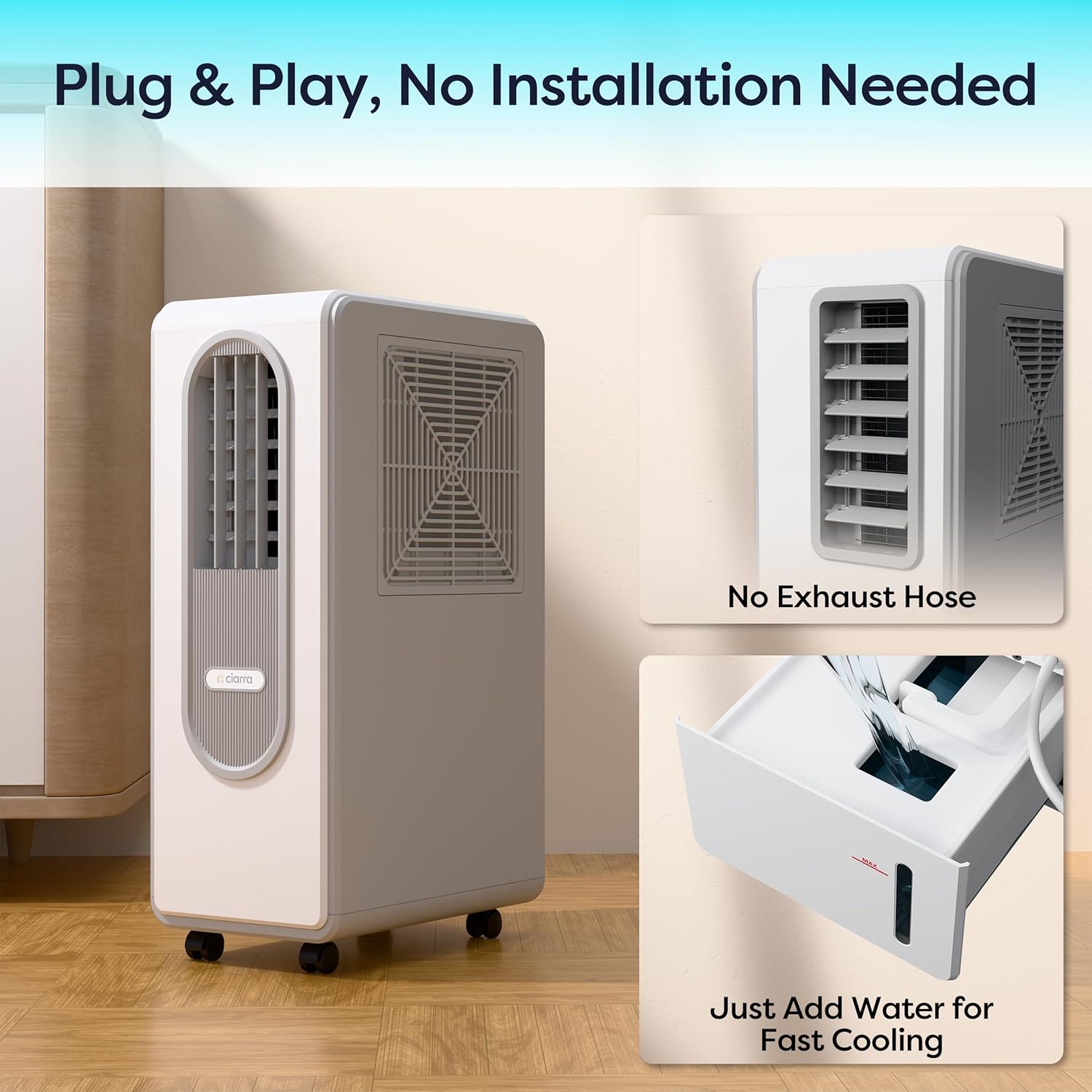

Image: A graphic illustrating the "Plug & Play, No Installation Needed" aspect, showing the unit without an exhaust hose and a close-up of water being added to the tank.

6. Operating Instructions

The CIARRA AWPAC59-W can be controlled using the touch panel on the unit or the remote control.

Control Panel & Remote Control Functions:

• Power Button (ON/OFF): Press to turn the unit on or off.
• Mode Button (MODE): Press to cycle through the operating modes:
  • Cooling Mode: Provides evaporative cooling.
  • Ventilation Mode: Operates as a fan without cooling.
  • Dehumidification Mode: Extracts moisture from the air.
• Speed Button (SPEED): Adjusts the fan speed (e.g., Low, Medium, High).
• Timer Button (TIMER): Sets the auto-off timer. Press repeatedly to select desired operating hours.
• Sleep Mode Button (SLEEP): Activates sleep mode for quieter operation and reduced light display.
• Swing Button (SWING): Activates or deactivates the automatic oscillation function for wider air distribution.
• Temperature/Time Adjustment Buttons (+ / -): Used to adjust timer settings or other numerical values.

Image: A graphic showing the portable air cooler in a living room with an overlay of the remote control and the unit's control panel, highlighting the various function buttons.

7. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your air cooler. Always unplug the unit before cleaning.

• Exterior Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Water Tank Cleaning:
  • Empty the water tank regularly, especially if the unit will not be used for an extended period.
  • Clean the water tank with mild soap and water. Rinse thoroughly to remove any soap residue.
  • Allow the tank to air dry completely before reinserting it.
  • To prevent mold and mildew, consider adding a small amount of white vinegar to the water tank during cleaning, then rinse well.
• Air Filter Cleaning: The unit may have an air filter. Refer to the diagram in the manual for its location. Gently remove the filter and clean it with a soft brush or vacuum cleaner. If washable, rinse with water and allow to dry completely before reinserting.
• Storage: When storing the unit for a long period, ensure the water tank is empty and clean. Store the unit in a cool, dry place, away from direct sunlight.

8. Troubleshooting

If you encounter issues with your CIARRA AWPAC59-W, please refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official CIARRA website. If you experience any issues not covered in the troubleshooting section, please contact CIARRA customer service for assistance.
