1. Product Overview
The FX Luminaire Cora CN-51 is an elegant in-grade or recessed wall light designed for excellent up-lighting capabilities. It features a durable, select brass construction with black oxide stainless steel hardware, ensuring strong corrosion resistance. The antique bronze finish provides increased durability and an elegant aesthetic that blends seamlessly with various environments.
- Equipped with an MR-16 LED lamp for efficient illumination.
- Solid brass construction and black oxide stainless steel hardware ensure robust corrosion resistance.
- Internally potted to prevent water intrusion, allowing for reliable operation in any orientation.
- Antique bronze finish enhances durability and provides a sophisticated appearance.

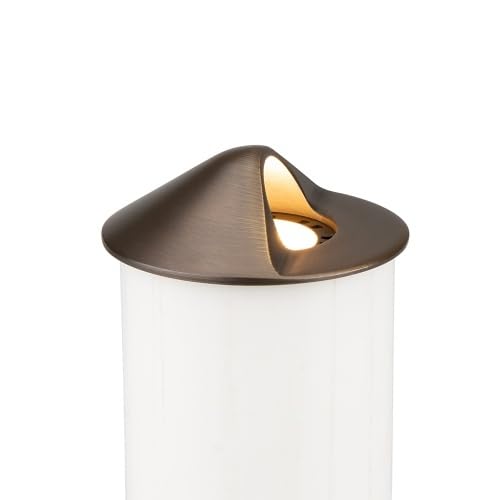

Figure 1: The CN51-ECO20WFL-RD-AB In-Grade/Recessed Wall Light, showcasing its antique bronze finish and compact design suitable for discreet installation.
2. Safety Information
Please read and understand all instructions before installing or operating this fixture. Failure to follow these instructions may result in electric shock, fire, or other hazards, which could cause property damage or personal injury.
- WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installation or servicing.
- WARNING: Risk of fire. Use only with specified MR-16 LED lamps. Do not exceed the maximum wattage rating.
- Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Ensure proper drainage is provided for in-grade installations to prevent water accumulation around the fixture.
- Do not operate the fixture with a damaged cord or if the housing is compromised.
- Keep flammable materials away from the fixture during operation.
3. Package Contents
Carefully unpack the product and ensure all items are present and undamaged. If any items are missing or damaged, contact customer support immediately.
- CN51-ECO20WFL-RD-AB In-Grade/Recessed Wall Light Fixture
- MR-16 LED Lamp (pre-installed or separate)
- Installation Tools (as specified by manufacturer)
- Instruction Manual (this document)
4. Setup and Installation
This fixture is designed for in-grade or recessed wall installation. Professional installation is highly recommended to ensure proper functionality and safety.
- Preparation:
- Turn off power at the main circuit breaker before beginning any installation.
- Select a suitable location for the fixture, ensuring adequate space for the fixture body and proper drainage for in-grade applications.
- Dig a hole or prepare a recess of appropriate dimensions, as per local codes and fixture requirements.
- Wiring:
- Route the electrical wiring to the installation location. Ensure all wiring complies with local electrical codes.
- Connect the fixture's wires to the main power supply wires using appropriate waterproof connectors (not included, unless specified). Follow standard wiring color codes: black to live, white to neutral, green/bare copper to ground.
- Ensure all connections are secure and properly insulated to prevent short circuits and water intrusion.
- Fixture Placement:
- Carefully place the fixture into the prepared hole or recess.
- For in-grade installations, ensure the top of the fixture is flush with the ground level and that proper drainage is established around the fixture to prevent standing water.
- Secure the fixture using the provided installation tools and hardware, ensuring it is stable and level.
- Lamp Installation (if not pre-installed):
- Gently insert the MR-16 LED lamp into the lamp holder. Do not force the lamp.
- Ensure the lamp is seated correctly and securely.
- Final Check:
- Verify all connections are tight and secure.
- Ensure the fixture is properly sealed to prevent water ingress.
- Restore power at the circuit breaker and test the fixture.
5. Operation
The CN51-ECO20WFL-RD-AB In-Grade/Recessed Wall Light operates by direct connection to a compatible power source. Once properly installed and wired, the light will illuminate when power is supplied to the circuit it is connected to.
- Ensure the power supply is within the specified voltage and wattage limits for the fixture.
- The fixture is designed for continuous operation when power is supplied.
- If connected to a switch or timer, operate the light according to the controls of that device.
6. Maintenance
Regular maintenance will help ensure the longevity and optimal performance of your light fixture.
- Cleaning: Periodically clean the lens and exterior of the fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or lens. Ensure power is off before cleaning.
- Lamp Replacement: If the MR-16 LED lamp needs replacement, ensure power is disconnected. Carefully remove the old lamp and insert a new MR-16 LED lamp of the same type and wattage. Refer to Section 4 for lamp installation steps.
- Inspection: Annually inspect the fixture for any signs of wear, damage, or water intrusion. Check wiring connections for corrosion or looseness. Address any issues promptly to prevent further damage.
- Drainage (for in-grade): Ensure that the drainage around the in-grade fixture remains clear of debris to prevent water accumulation.
7. Troubleshooting
If you experience issues with your CN51-ECO20WFL-RD-AB light fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Faulty lamp. Loose wiring connection. | Check circuit breaker and power supply. Replace MR-16 LED lamp. Inspect and secure all wiring connections (ensure power is off). |
| Light flickers or dims. | Unstable power supply. Loose lamp connection. Incorrect lamp type. | Verify stable power supply. Re-seat or replace lamp. Ensure correct MR-16 LED lamp is used. |
| Water inside the fixture. | Improper sealing during installation. Damaged housing/lens. Poor drainage (in-grade). | Ensure all seals and gaskets are properly seated. Inspect fixture for cracks; replace if damaged. Clear drainage path around in-grade fixture. |
If the problem persists after attempting these solutions, please contact a qualified electrician or customer support.
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | FX Luminaire (Generic listed as seller brand) |
| Manufacturer | FX Luminaire |
| Part Number | CN51-ECO20WFL-RD-AB |
| Model Number | CN51-ECO20WFL-RD-AB |
| Lamp Type | MR-16 LED |
| Color Temperature | 2700K |
| Beam Angle | 30° |
| Power Consumption | 6.0 VA |
| Construction Material | Solid Brass with Black Oxide Stainless Steel Hardware |
| Finish | Antique Bronze |
| Dimensions | Approx. 6 x 5 x 5 inches (Package Dimensions) |
| Connectivity Protocol | Wired |
| Included Components | Installation Tools |
9. Warranty Information
Specific warranty details for the CN51-ECO20WFL-RD-AB fixture are not provided in the product information. For warranty claims or detailed warranty terms, please refer to the documentation included with your purchase or contact the manufacturer directly.
10. Customer Support
If you have any questions, require technical assistance, or need to report an issue with your FX Luminaire Cora CN-51 light fixture, please contact the manufacturer or your point of purchase.
When contacting support, please have the following information ready:
- Product Model Number: CN51-ECO20WFL-RD-AB
- Date of Purchase
- Description of the issue
For more information, you may visit the official FX Luminaire website or consult your local distributor.
