ZDZA ZA01 Electric Bike User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your ZDZA ZA01 Electric Bike. Please read this manual thoroughly before your first ride and retain it for future reference.

The ZDZA ZA01 is a 26-inch fat tire electric bike designed for adults, featuring a 1500W peak motor, a top speed of 45 KM/H (28 MPH), and a maximum range of 116 KM (72 miles) in pedal-assist mode. It is equipped with a 7-speed transmission and a colorful LCD display. This e-bike is UL 2849 certified, ensuring compliance with electrical safety standards.

Image: The ZDZA ZA01 Electric Bike in Dark Black, showcasing its robust design and integrated LCD display.

2. Safety Information

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations.

2.1 General Safety Guidelines

• Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery charge.
• Ensure all quick releases and fasteners are securely tightened.
• Do not ride under the influence of alcohol or drugs.
• Be aware of your surroundings and ride defensively.
• Avoid riding in adverse weather conditions, such as heavy rain or snow, unless the bike is specifically designed and prepared for such conditions.
• The ZDZA ZA01 e-bike is UL 2849 certified, indicating compliance with electrical system safety standards for electric bicycles.

2.2 Battery Safety

• Only use the charger provided by ZDZA.
• Do not expose the battery to extreme temperatures or direct sunlight for extended periods.
• Avoid puncturing, dropping, or damaging the battery.
• Charge the battery in a well-ventilated area, away from flammable materials.

3. Package Contents

Upon unpacking, verify that all items listed below are present:

• 1x ZDZA ZA01 26"x4.0" Fat Tire Electric Bike
• 1x Battery Charger
• 1x Tool Kit (for assembly)
• 1x User Manual (this document)

4. Assembly Instructions

The ZDZA ZA01 Electric Bike comes partially assembled. The included tool kit contains all necessary wrenches and tools for completing the assembly.

4.1 Initial Steps

1. Carefully remove the bike and all components from the packaging.
2. Inspect for any shipping damage. Contact customer support immediately if damage is found.
3. Refer to the assembly video (if provided separately) for visual guidance.

4.2 Component Assembly

• Handlebars: Attach the handlebars to the stem, ensuring proper alignment and tightening all bolts securely. Ensure all wires are routed correctly and not pinched.
• Front Wheel: Install the front wheel, making sure the disc brake rotor is correctly seated in the caliper. Tighten the quick-release skewer or axle nuts.
• Pedals: Identify left (L) and right (R) pedals. Thread the pedals into the crank arms. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Tighten firmly with a wrench.
• Seat Post: Insert the seat post into the frame and adjust to a comfortable height. Secure with the quick-release lever.
• Fenders (if separate): Attach the front and rear fenders according to the instructions. Ensure they do not interfere with wheel rotation or other components.
• Headlight/Taillight: Ensure the headlight and taillight are securely mounted and connected.

After assembly, double-check all bolts, nuts, and quick releases for tightness. Ensure the brakes are functioning correctly and the tires are inflated to the recommended pressure.

5. Operating Instructions

5.1 Battery Installation and Charging

• Installation: Insert the 48V removable lithium battery into its compartment on the bike frame. Ensure it clicks securely into place. Use the key to lock the battery.
• Charging: The battery can be charged while installed on the bike or removed. Connect the charger to the battery port and then to a power outlet. A full charge typically takes 6-7 hours. The charger indicator light will change when charging is complete.

Image: Close-up of the ZDZA ZA01's removable 48V lithium battery, highlighting its capacity and charging options.

5.2 Powering On/Off and Display Functions

• Power On: Press and hold the power button on the control panel (usually near the left grip) to turn on the bike's electrical system and LCD display.
• Power Off: Press and hold the power button again to turn off the system.
• LCD Display: The upgraded colorful LCD display shows essential riding data, including current speed, battery level, pedal-assist level (PAS), trip distance, and total mileage. Familiarize yourself with the display's interface.

Image: Rider on the ZDZA ZA01, with an overlay showing the colorful LCD display interface and its various data points.

5.3 Riding Modes

The ZDZA ZA01 offers multiple riding modes to suit your preference:

• Pedal-Assist Mode (PAS): The motor provides assistance as you pedal. You can adjust the level of assistance (typically 1-5) using the control buttons. Higher PAS levels provide more motor power and less effort from the rider. This mode offers a maximum range of 116 KM (72 miles).
• Full Electric Mode (Throttle): Engage the throttle (usually a thumb throttle or twist grip) to propel the bike without pedaling. This mode provides a range of approximately 65 KM (40 miles).
• Manual Mode: Ride the bike like a traditional bicycle without any motor assistance.

5.4 Gear Shifting

The bike is equipped with a Shimano 7-speed transmission. Use the shifter on the handlebars to change gears, allowing you to adapt to different terrains and inclines. Shift gears smoothly to avoid strain on the drivetrain.

Image: Close-up of the Shimano 7-speed gear shifter and rear derailleur on the ZDZA ZA01, illustrating the gear system.

5.5 Braking System

The ZDZA ZA01 features front and rear dual disc brakes for reliable stopping power. Always apply both brakes simultaneously for optimal control and shorter stopping distances. Test brakes before each ride.

5.6 Terrain Adaptability

With its 26"x4.0" fat tires and front suspension, the ZDZA ZA01 is designed to handle various terrains, including:

• Snow roads
• Beach roads
• City roads
• Mountain trails

Image: A ZDZA ZA01 Electric Bike being ridden on a rocky trail, demonstrating its 26x4.0 inch fat tires' ability to conquer diverse terrains.

Image: Diagram illustrating the front hydraulic suspension system of the ZDZA ZA01, showing how it absorbs bumps for a smoother ride.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your ZDZA ZA01 Electric Bike.

6.1 Routine Checks (Before Each Ride)

• Tires: Check tire pressure and for any signs of wear or damage.
• Brakes: Ensure both front and rear brakes are functioning effectively. Inspect brake pads for wear.
• Battery: Verify battery charge level.
• Fasteners: Check that all bolts, nuts, and quick releases are tight.
• Lights: Confirm headlight and taillight are working.

6.2 Periodic Maintenance

• Chain: Clean and lubricate the chain regularly, especially after riding in wet or dirty conditions.
• Gears: Inspect the gear system for smooth operation. Adjust if gears are slipping or shifting poorly.
• Brake System: Periodically check brake cables/hoses and disc rotors for wear. Replace brake pads as needed. Some users have reported needing to upgrade or replace brake components after extended use; monitor your brake performance closely.
• Suspension: Clean and inspect the front suspension fork.
• Battery Care: Store the battery in a cool, dry place when not in use. If storing for an extended period, charge it to 50-70% every few months.

6.3 Cleaning

Clean your e-bike with a damp cloth and mild soap. Avoid using high-pressure washers directly on electrical components, bearings, or the motor.

7. Troubleshooting

This section addresses common issues you might encounter with your ZDZA ZA01 Electric Bike.

For issues not covered here or if troubleshooting steps do not resolve the problem, please contact ZDZA customer support.

8. Specifications

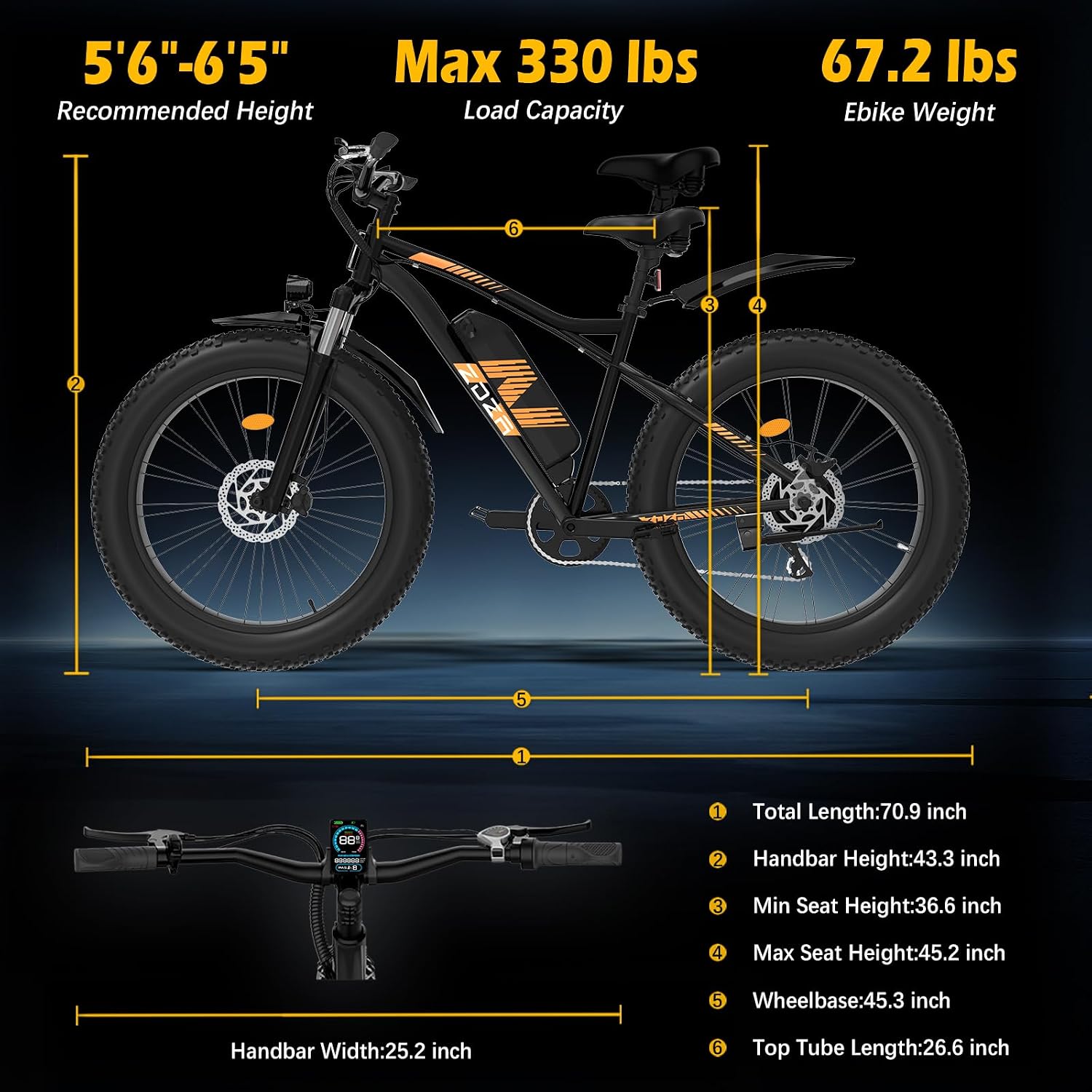

Image: Diagram detailing the dimensions, recommended rider height, and maximum load capacity of the ZDZA ZA01 Electric Bike.

9. Warranty and Support

9.1 Warranty Information

The ZDZA ZA01 Electric Bike comes with a 1-Year Warranty. This warranty covers manufacturing defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover damage due to misuse, accidents, normal wear and tear, or unauthorized modifications.

9.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact ZDZA customer support:

• Email: ca.support@zdzas.com
• Customer support typically responds within 24 hours.
