Scanovus Automatic Ironing Machine User Manual

Introduction

The Scanovus Automatic Ironing Machine 3.0 is designed to simplify your garment care routine. This innovative appliance automatically irons and dries shirts, pants, and polos directly from the washing machine, providing wrinkle-free results in minutes. Its hands-free operation and adjustable settings make it suitable for various fabric types and user needs.

Key features include:

Effortless wrinkle release and drying for wet or dry garments.
Inflatable design adaptable to various shirt and pant sizes.
Intuitive digital controls for temperature and time adjustment.
Precision heat control for safe use on all fabric types, preventing damage.
Fast operation, significantly reducing ironing time compared to traditional methods.

Safety Information

Please read all safety instructions carefully before operating the appliance to prevent injury or damage. Keep this manual for future reference.

Always ensure the machine is placed on a stable, level surface.
Do not operate the machine with a damaged cord or plug.
Keep hands and face away from the steam outlet during operation.
Unplug the machine from the power outlet when not in use or before cleaning.
Do not immerse the main unit in water or other liquids.
This appliance is for household use only. Do not use outdoors.
Ensure proper ventilation during use.
Keep out of reach of children and pets.

Package Contents

Verify that all items listed below are included in your package:

1 x Automatic Ironing Machine 3.0 Main Unit
1 x Adult Clothing Inflatable Mold (for shirts)
1 x Adult Pants Inflatable Mold
1 x Hanger
1 x Rail
1 x Water Baffle
1 x Clothes Clip

Scanovus Automatic Ironing Machine 3.0 and its components — Image: All components included with the Scanovus Automatic Ironing Machine 3.0, showing the main unit, inflatable molds for shirts and pants, hanger, rail, water baffle, and clothes clip.

Setup

Assembly

Unpack all components from the box.
Place the main unit on a flat, stable surface.
Attach the hanger and rail to the designated slots on the main unit, ensuring they are securely locked in place.
Insert the water baffle into its slot. This is where aromatherapy can be added.
Select the appropriate inflatable mold (shirt or pants) and attach it to the top of the rail. Ensure a snug fit to prevent air leakage.

Initial Use

Plug the power cord into a suitable electrical outlet (220V).
Ensure the inflatable mold is properly attached and the clothes clip is ready for use.
The machine is now ready for garment preparation.

Operating Instructions

Preparing Garments

For best results, use clothes directly from the washing machine (damp).
If using dry clothes, lightly spritz them with water to aid in wrinkle removal.

Ironing Shirts

Place the damp shirt over the adult clothing inflatable mold. Ensure the shirt is buttoned and aligned properly.
Use the provided clothes clip to secure the bottom hem of the shirt to the base of the machine, ensuring the shirt is taut.
Adjust the sleeves to lie flat on the inflatable arms.

Shirt and pants inflatable molds on the ironing machine — Image: The Scanovus machine with both shirt and pants inflatable molds, demonstrating how clothes are positioned for drying and wrinkle removal.

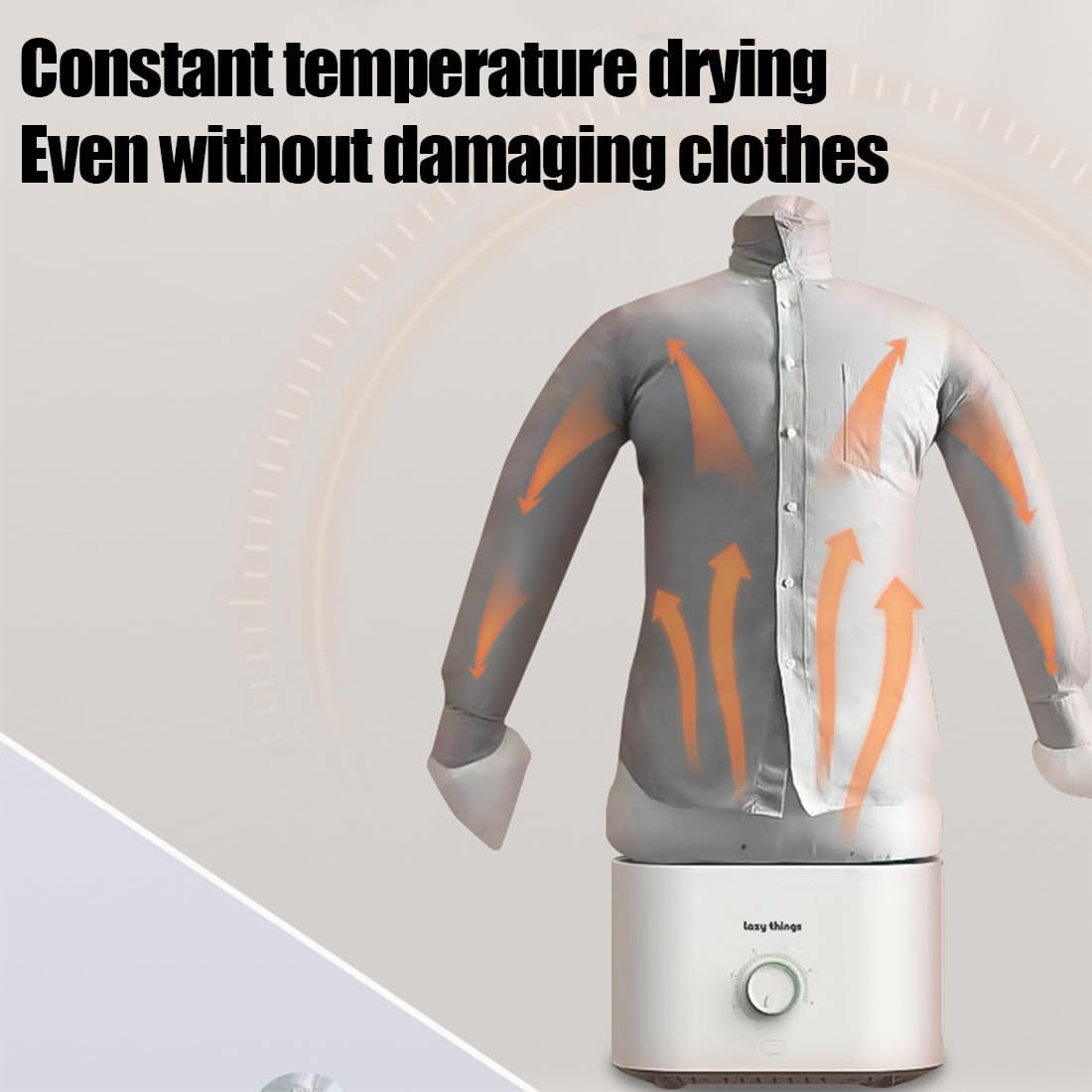

Shirt on inflatable mold with heat distribution arrows — Image: A shirt placed on the inflatable mold, illustrating the constant temperature drying process and even heat distribution to prevent fabric damage.

Ironing Pants

Remove the shirt mold and attach the adult pants inflatable mold.
Carefully slide the damp pants onto the inflatable legs of the mold.
Ensure the waist and leg openings are securely fastened to the mold to allow for proper inflation and drying.

Setting Temperature and Time

Locate the digital control panel on the front of the main unit.
Press the "TEMP SETTING" button to cycle through temperature options (e.g., Cool, 50°C, 60°C, 70°C). Select the appropriate temperature for your fabric type.
Press the "TIME SETTING" button to adjust the drying time. The recommended time is 8-12 minutes for most garments, but can be adjusted based on fabric thickness and dampness.
Press the "ON/OFF" button to start the ironing and drying cycle. The machine will inflate the mold and begin the process.
The machine features an anti-dumping design and will automatically power off if it detects instability.

Scanovus control panel with temperature and time settings — Image: Close-up of the Scanovus control panel, showing buttons for temperature and time settings, and the digital display.

Aromatherapy Feature

To add a fresh scent to your clothes, place a few drops of essential oil or a scented sachet onto the water retaining plate (water baffle) before starting the cycle.

Product Demonstration Video

Video: A demonstration of the Scanovus Automatic Ironing Machine in use, showing how to place garments and operate the controls for efficient ironing and drying.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your ironing machine.

Cleaning: After each use, unplug the machine and allow it to cool completely. Wipe down the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Water Baffle: Periodically remove and clean the water baffle to prevent mineral buildup, especially if using tap water.
Storage: When not in use, store the machine in a cool, dry place. The portable design allows for easy storage.

Portable design of Scanovus ironing machine — Image: The portable design of the Scanovus Automatic Ironing Machine, highlighting its compact size and ease of handling for storage or transport.

Troubleshooting

If you encounter any issues with your Scanovus Automatic Ironing Machine, please refer to the table below for common problems and their solutions.

Problem	Possible Cause	Solution
Machine does not turn on.	Not plugged in; power outlet issue; machine malfunction.	Ensure power cord is securely plugged in. Test the outlet with another appliance. Contact customer support if problem persists.
Clothes are still wrinkled.	Insufficient time/temperature; clothes too dry; improper garment placement.	Increase time or temperature settings. Lightly spritz dry clothes with water. Ensure garment is taut and properly aligned on the mold.
Inflatable mold does not inflate fully.	Mold not securely attached; air leakage; internal fan issue.	Check that the mold is firmly attached to the rail. Inspect mold for any tears or holes. Contact customer support if the fan is not operating.
Machine automatically shuts off.	Anti-dumping safety feature activated; overheating.	Ensure the machine is on a stable, level surface. Allow the machine to cool down before restarting.

Specifications

Detailed technical specifications for the Scanovus Automatic Ironing Machine 3.0:

Attribute	Detail
Product Name	Automatic Wrinkle Removing Clothes Dryer
Product Material	ABS+PTC
Voltage	220V
Power	1100W
Net Weight	2.4 kg (approx. 5.29 lb)
Dimensions (L×W×H)	345×185×350 mm (approx. 13.58×7.28×13.78 inches)
Color	White
Model Number	001
Special Feature	Collapsible Handle

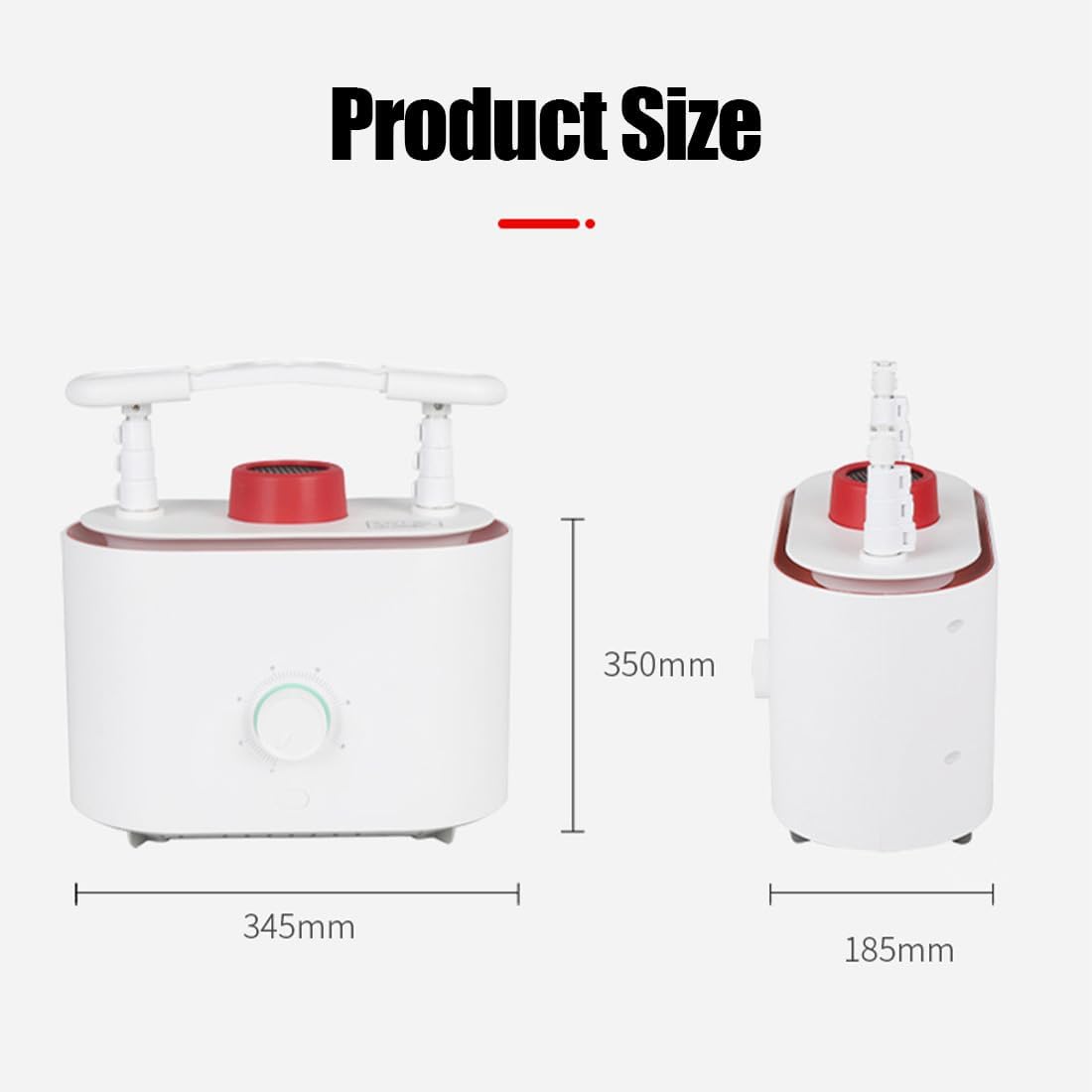

Product dimensions diagram for Scanovus ironing machine — Image: Diagram showing the precise dimensions of the Scanovus Automatic Ironing Machine in millimeters.

Warranty Information

Specific warranty details are not provided in this manual. Please refer to the product packaging or contact the seller directly for information regarding warranty coverage and terms.

Customer Support

For any questions about the product, order, or technical assistance, please contact us through Amazon. We aim to respond to all inquiries within 24 hours.

Manufacturer: bunoju

Note: Product size parameters are manually measured and may have slight errors. Display effects of different screens may vary; images are for reference only.
