Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Nexgrill Deluxe 2-Burner Gas Grill. Designed for outdoor cooking, this propane BBQ grill features a 401 square inch cooking area, 28,000 BTUs of heat output, a heavy-duty steel frame, and foldable side tables. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your grill.
Setup and Assembly
Your Nexgrill Deluxe 2-Burner Gas Grill requires assembly. All necessary components and a user manual are included. Ensure you have adequate space and follow the step-by-step instructions provided in the separate assembly guide for safe and correct setup.
Figure 1: Key Components Overview. This diagram highlights the main features including foldable side shelves, accessory hooks, electronic ignition, enclosed storage, and 4-wheel transport. It also indicates the total cooking power of 28,000 BTU and capacity for 15 burgers.

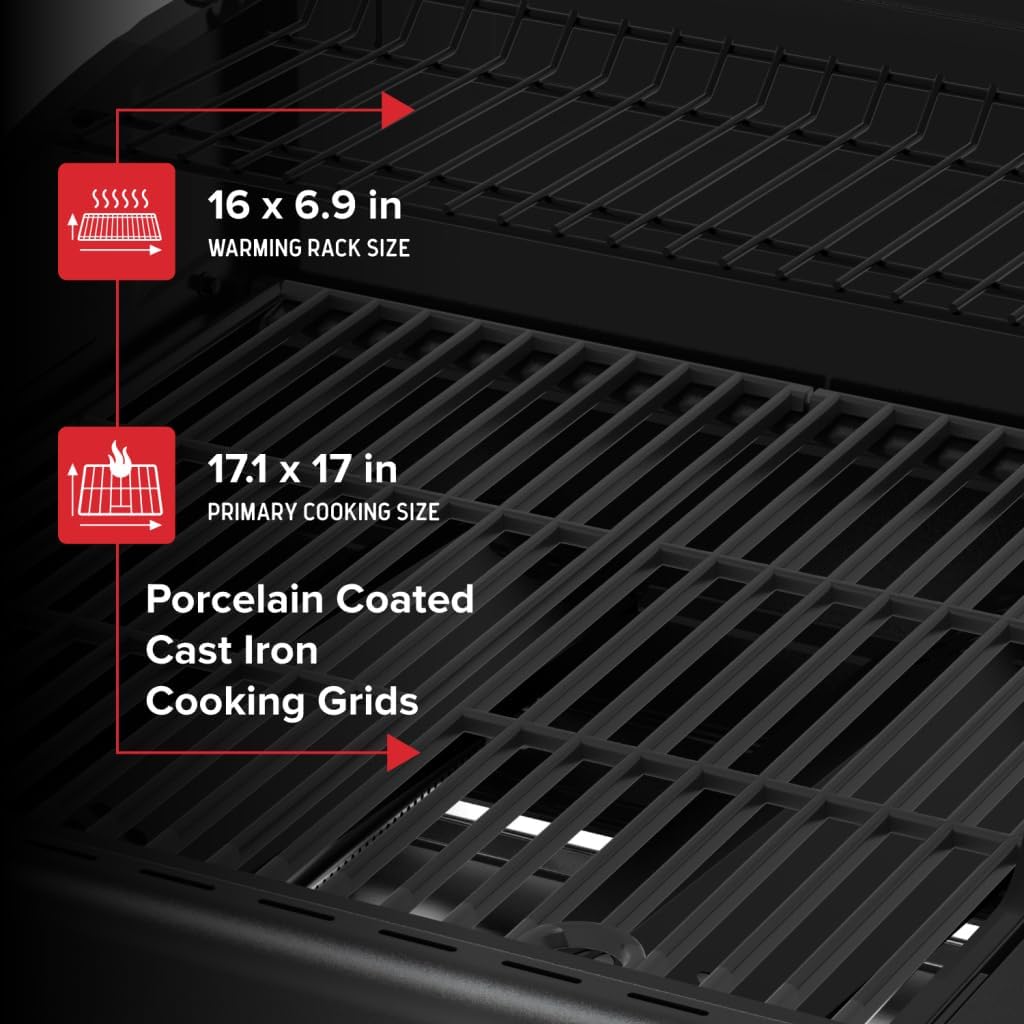

Figure 2: Cooking Grids and Warming Rack. The grill features porcelain-coated cast iron cooking grids for even heat distribution and a warming rack. The primary cooking size is 17.1 x 17 inches, and the warming rack size is 16 x 6.9 inches.
Figure 3: Stainless Steel Burners. This image shows the durable stainless steel burners, designed for efficient heating and long-lasting performance.
Operating Instructions
Ignition and Temperature Control
The grill is equipped with a one-button electric ignition system for quick and reliable startup. To ignite, ensure the propane tank is connected and open, then push and turn the control knob to the 'High' position while pressing the ignition button. Adjust the temperature using the control knobs for each burner. The lid-mounted thermometer provides real-time temperature readings inside the grill.
Cooking Area Utilization
With 401 square inches of total cooking space, the grill can accommodate various foods simultaneously. The porcelain-coated cast iron grates ensure even heat distribution and are ideal for grilling meats, vegetables, and more. Utilize the warming rack for keeping cooked food warm or for indirect cooking.

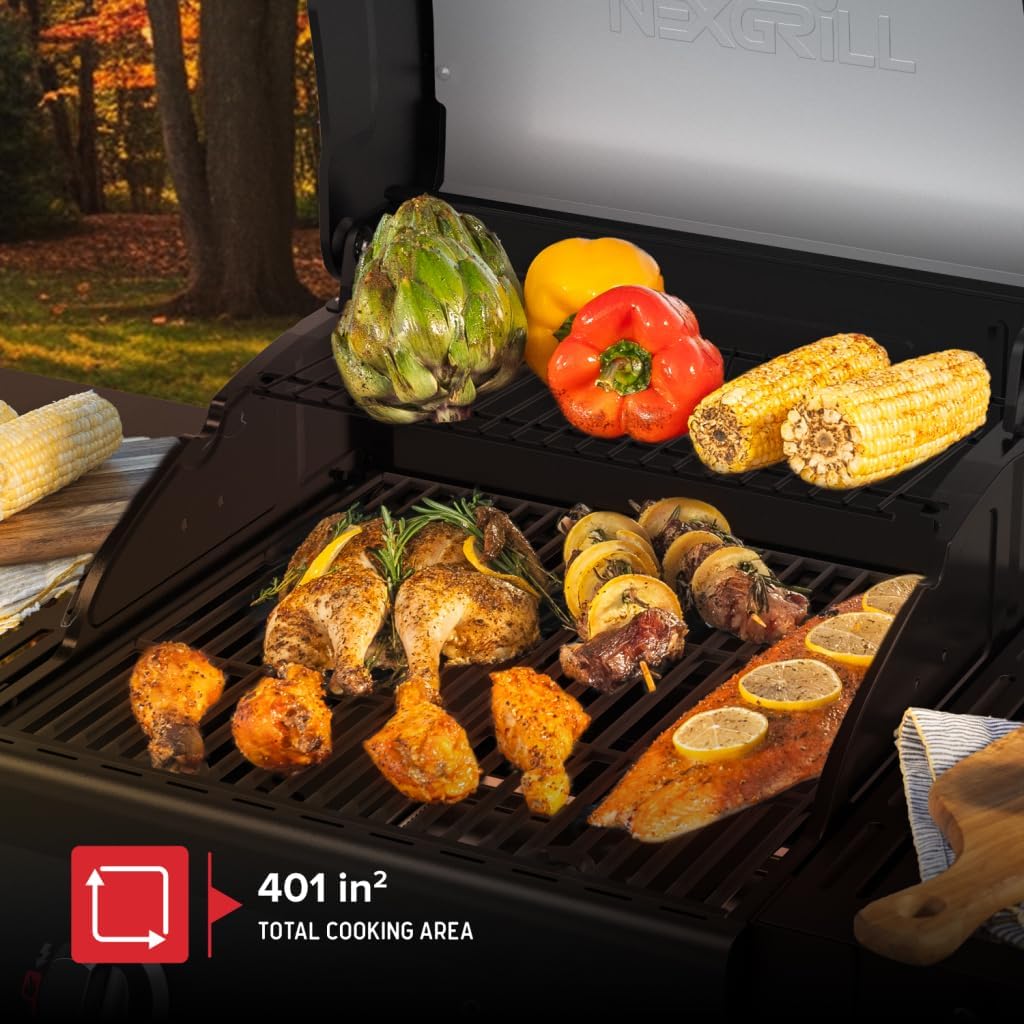

Figure 4: Ample Cooking Space. This image demonstrates the grill's 401 square inch cooking area, capable of holding a variety of foods like chicken, vegetables, and fish, perfect for family meals.

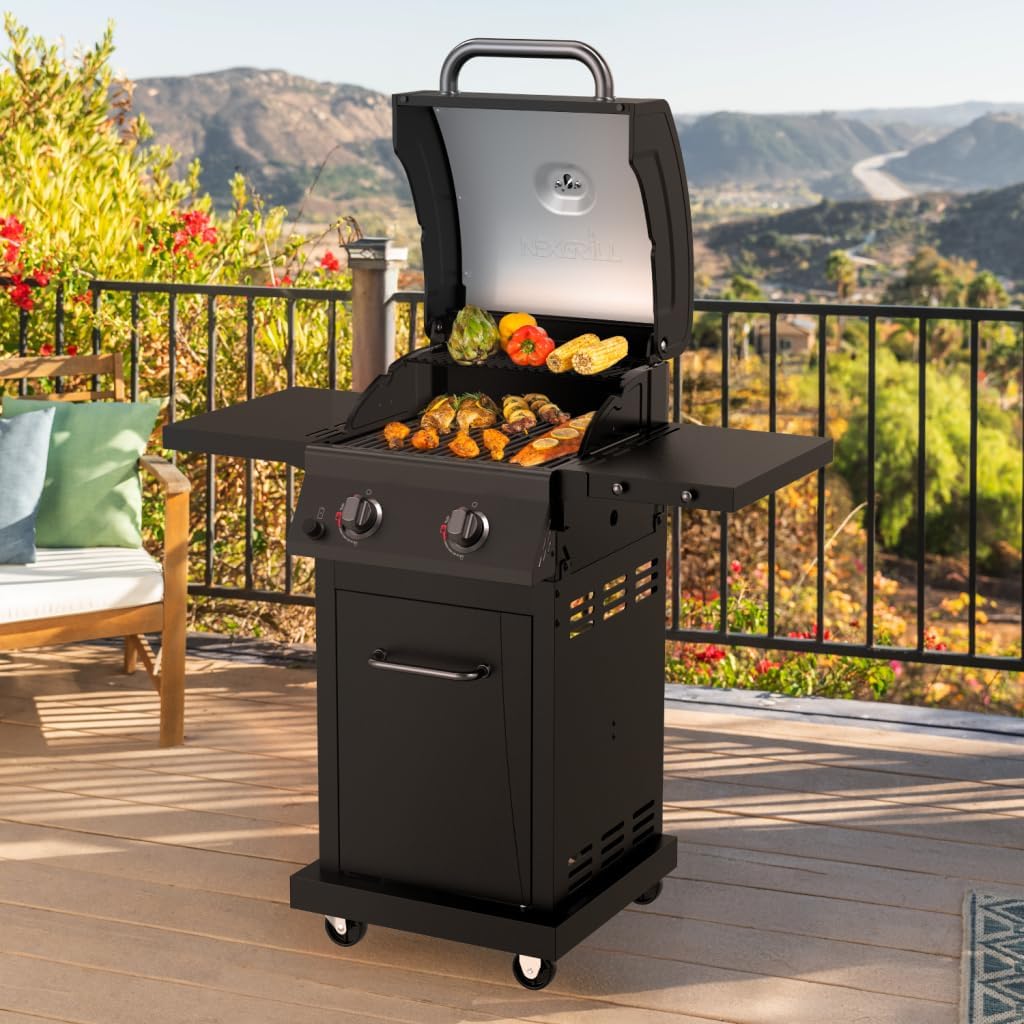

Figure 5: Grill in Outdoor Setting. The grill is shown on a patio with its foldable side tables extended, providing convenient space for utensils and prepared food.
Maintenance and Cleaning
Regular maintenance ensures the longevity and optimal performance of your grill. The heavy-duty steel construction is rust-resistant and heat-resistant. The porcelain-coated cast iron grill grates are designed for easy cleaning and resistance to rust and cracking.
Cleaning Procedures
- Grates: After each use, allow the grates to cool slightly, then brush off any food residue with a grill brush. For deeper cleaning, remove the grates and wash with warm, soapy water.
- Grease Tray: The grill features a removable grease tray for easy disposal of drippings. Regularly empty and clean the grease tray to prevent flare-ups and maintain hygiene.
- Exterior: Wipe down the matte steel control panel and other exterior surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners that could damage the finish.
- Burners: Periodically inspect the stainless steel burners for blockages or damage. Clean burner ports with a wire brush if necessary.
Troubleshooting
This section addresses common issues you might encounter with your gas grill. For problems not listed here, or if solutions do not resolve the issue, please contact customer support.
- Burner Not Lighting:
- Check propane tank level.
- Ensure gas flow is open at the tank and regulator.
- Verify ignition electrode is clean and properly positioned.
- Check for blockages in burner tubes.
- Uneven Heating:
- Clean burner ports to ensure even flame distribution.
- Ensure grates are properly seated.
- Low Flame:
- Check for low propane level.
- Inspect regulator for proper function.
- Ensure gas lines are not kinked or obstructed.
Specifications
Figure 6: Product Dimensions. This image provides a visual representation of the grill's overall dimensions and weight.
| Feature | Detail |
|---|---|
| Brand | Nexgrill |
| Model Name | 720-0864RD |
| Product Dimensions | 22.4"D x 42.5"W x 46.5"H |
| Item Weight | 70 Pounds |
| Color | Black |
| Fuel Type | Gas (Propane) |
| Cooking Surface Area | 401 Square Inches |
| Heating Power | 28,000 BTUs (Total) |
| Main Burner Count | 2 |
| Material | Stainless Steel, Alloy Steel |
| Finish Type | Powder Coated |
| Special Features | Removable Grease Tray, Heavy Duty, Warming Rack, Foldable Side Table |
| Assembly Required | Yes |
| Country of Origin | China |
Warranty Information
This Nexgrill Deluxe 2-Burner Gas Grill is covered by a 1-Year Manufacturer Warranty. Please retain your proof of purchase for any warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact Nexgrill customer support.
Customer Support
For assistance with assembly, operation, maintenance, or troubleshooting, please contact Nexgrill Customer Support. You can find contact information on the Nexgrill official website or through the customer support details provided in your product packaging.
Note: Transportation of this item is subject to hazardous materials regulation.
