URPOWER Essential Oil Diffuser (Model UR1002S) User Manual

1. Product Overview

The URPOWER Essential Oil Diffuser is designed to disperse essential oils into the air, creating a pleasant and relaxing atmosphere. It features ultrasonic diffusion technology, LED color-changing lights, and multiple mist and timer settings.

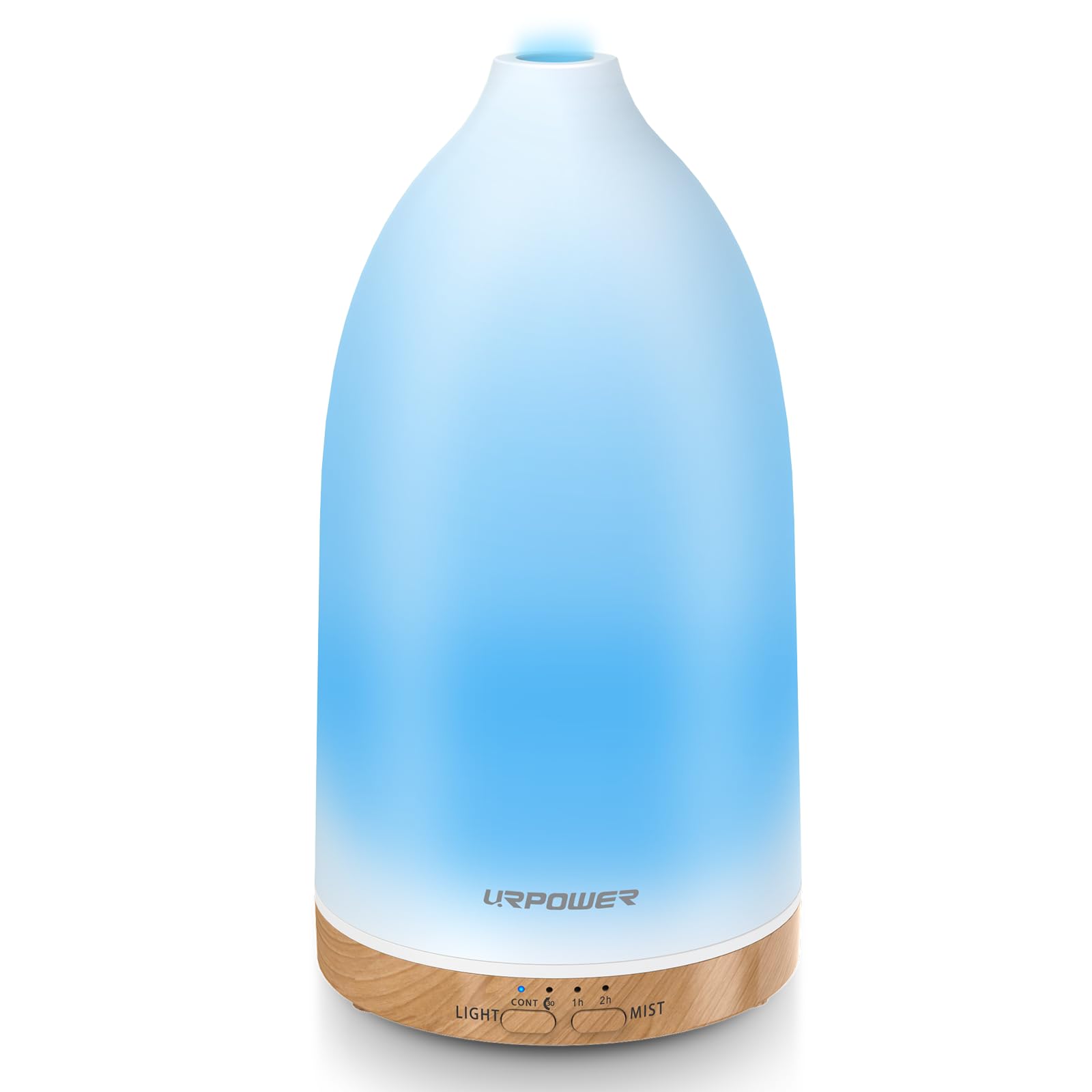

Image: URPOWER Essential Oil Diffuser in Smooth White.

2. Setup Instructions

Follow these steps to set up your diffuser for first use:

1. Unpack: Carefully remove the diffuser and all accessories from the packaging.
2. Connect Power: Locate the power input port on the base of the diffuser and connect the provided power cord.
3. Remove Covers: Gently lift off the top cover, then remove the inner lid.
4. Add Water: Fill the water tank with clean tap water. Ensure the water level does not exceed the 'MAX' line indicated inside the tank. Overfilling can prevent proper misting.
5. Add Essential Oil: Add 2-3 drops of your preferred essential oil directly into the water tank. Adjust the quantity based on desired scent intensity.
6. Replace Covers: Place the inner lid back onto the water tank, ensuring it is properly seated. Then, align and place the top cover back onto the diffuser base.
7. Plug In: Plug the power adapter into a standard electrical outlet.

Image: Visual guide for diffuser setup, illustrating the steps of unpacking, filling with water and oil, connecting power, and operating the buttons.

3. Operating Instructions

Once set up, operate your diffuser using the buttons on the front base:

Mist Control

• Press the Mist button once for continuous mist.
• Press the Mist button a second time for intermittent mist (30 seconds on, 30 seconds off).
• Subsequent presses will cycle through timer options: 0.5 hours, 1 hour, 2 hours, 3 hours, and then turn off the mist.
• The diffuser features an automatic shut-off function when the water level is low.

Light Control

• Press the Light button once to activate the 7-color rotating LED lights.
• Press the Light button repeatedly to fix the light to a specific color.
• Press and hold the Light button to turn off the lights.
• The mist and light functions operate independently, allowing you to use either feature alone.

Image: Display of mist modes (Continuous, Intermittent) and timer options (ON, 1H, 2H) on the diffuser.

Image: Illustration of the 7 color light options and the diffuser's dimensions (6.9 inches height, 3.6 inches width).

4. Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your diffuser. Clean the unit after every 3-4 uses.

1. Unplug and Disassemble: Disconnect the power adapter. Remove the top cover and the inner lid.
2. Empty Water: Pour out any remaining water from the water tank.
3. Clean Tank: Add a small amount of water and a mild detergent to the water tank.
4. Clean Atomizer: Gently brush the ultrasonic atomizer (the small ceramic disc in the center of the tank) to remove any mineral buildup or oil residue.
5. Wipe Surfaces: Wipe the interior of the water tank and the inner lid with a soft, damp cloth.
6. Avoid Air Outlet: Ensure no water enters the air outlet during cleaning.
7. Dry Thoroughly: Dry all components completely before reassembling or storing the diffuser.

Image: Visual guide for diffuser maintenance, detailing steps for cleaning the water tank and atomizer.

5. Troubleshooting

If you encounter issues with your diffuser, refer to the following common problems and solutions:

• No Mist or Weak Mist:
  • Check the water level. Ensure it is above the minimum line but does not exceed the 'MAX' line. Overfilling can hinder mist production.
  • Ensure the top cover and inner lid are correctly and securely placed.
  • Clean the ultrasonic atomizer. Mineral buildup or oil residue can obstruct mist output.
• Light Not Working:
  • Verify the diffuser is properly plugged in and receiving power.
  • Press the 'Light' button to activate the lighting function.
• Unit Leaks:
  • Confirm the top cover is securely in place.
  • Do not overfill the water tank beyond the 'MAX' line.
  • Ensure the diffuser is placed on a flat, stable surface.

6. Specifications

7. Warranty Information

Specific warranty details for the URPOWER Essential Oil Diffuser (Model UR1002S) are not provided in the available product information. Please refer to the product packaging or contact the manufacturer directly for warranty terms and conditions.

8. Support

For further assistance or inquiries regarding your URPOWER Essential Oil Diffuser (Model UR1002S), please refer to the contact information provided on the product packaging or visit the official URPOWER website. No direct support contact details are available in this manual.
