Introduction
This manual provides essential instructions for the safe and efficient operation of your XL Perform Tools 553996 Smart Car Battery Charger. This intelligent charger is designed for 6V and 12V batteries, offering automatic charging, maintenance, and protection features. Please read this manual thoroughly before use and retain it for future reference.

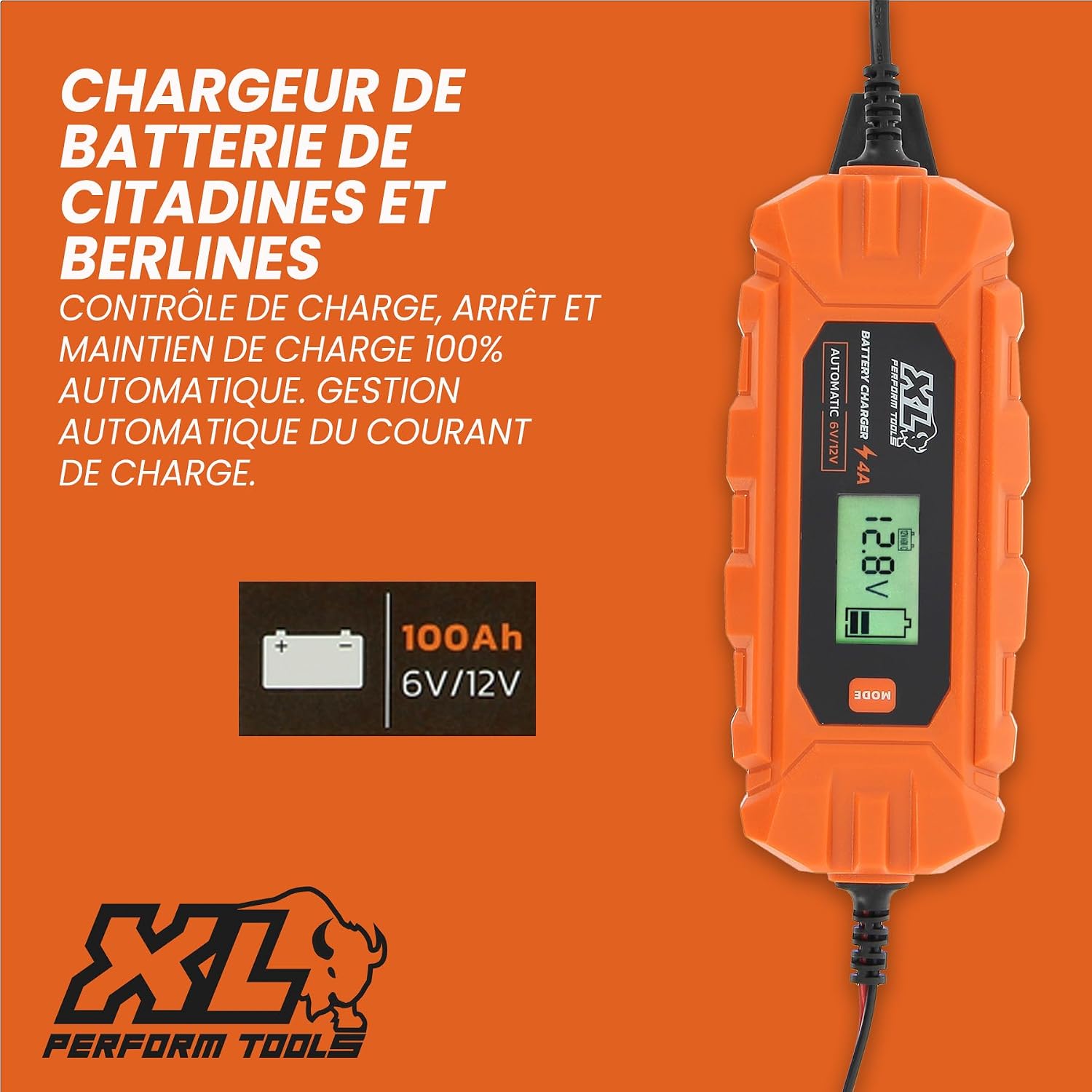

Image: Overview of the XL Perform Tools 553996 Smart Car Battery Charger, highlighting its automatic charge control and maintenance features for city cars and sedans.
Safety Information
Always prioritize safety when working with electrical devices and vehicle batteries. Failure to follow these safety guidelines may result in electric shock, fire, or serious injury.
- Read all instructions before using the charger.
- Use the charger in a well-ventilated area.
- Wear eye protection and protective clothing when working with batteries.
- Keep out of reach of children.
- Do not expose the charger to rain or excessive moisture. The charger has an IP65 rating for dust and water jet protection, but it is not submersible.
- Ensure correct polarity connection. The charger includes reverse polarity protection.
- Avoid short-circuiting the battery clamps. The charger has short-circuit protection.
- Do not charge frozen batteries.
- Disconnect the AC power before making or breaking connections to the battery.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
Package Contents
Verify that all items are present in the package:
- 1 x XL Perform Tools 553996 Smart Car Battery Charger
- 1 x Set of Battery Clamps (Red and Black)
- 1 x Power Cord
Image: The XL Perform Tools 553996 charger shown with its power cord and battery clamps.
Specifications
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger does not turn on. | No AC power; Faulty outlet; Damaged power cord. | Check AC power connection and outlet. Try a different outlet. Inspect power cord for damage. |
| Charger connected but not charging. | Incorrect battery connection (reverse polarity); Battery is severely discharged or faulty; Battery voltage too low for detection; Charger fault. | Verify correct polarity (+ to +, - to -). Ensure clamps are securely attached. Check battery voltage; if extremely low, it might not be detected. Consult a professional for battery health check. |
| Charger displays an error code or warning. | Reverse polarity; Short circuit; Overcharge; Overheating; Incorrect battery type. | Disconnect and re-connect correctly. Allow charger to cool if overheating. Ensure battery type is compatible. If error persists, discontinue use. |
| Battery not fully charged after extended time. | Battery capacity too large for charger; Battery is old or damaged; Poor connection. | Ensure battery capacity is within 4-100 Ah range. Have battery tested by a professional. Check all connections for cleanliness and security. |
If the problem persists after attempting these solutions, contact customer support.
Warranty and Support
The XL Perform Tools 553996 Smart Car Battery Charger is manufactured by IMPEX SAS. For warranty information and technical support, please refer to the contact details provided with your purchase or visit the official XL Perform Tool website.
- Manufacturer: IMPEX SAS
- EU Spare Parts Availability: 10 Years
- Contact: Refer to your product packaging or the official XL Perform Tool website for customer service contact information.
