MADDOX 4-Way Valve Stem Core Tool Instruction Manual

1. Introduction

This manual provides instructions for the safe and effective use of the MADDOX 4-Way Valve Stem Core Tool. This multi-functional tool is designed for the maintenance and repair of tire valve cores in various applications, including cars, bikes, motorcycles, and AC units. It facilitates the removal, installation, tightening, and deflation of valve cores, and includes features for re-tapping valve stem threads.

Please read these instructions thoroughly before operating the tool to ensure proper usage and to prevent damage to the tool or the valve stem.

2. Product Components

The MADDOX 4-Way Valve Stem Core Tool package includes the following items:

• 1 x MADDOX 4-Way Valve Stem Core Tool
• 4 x Replacement Valve Cores

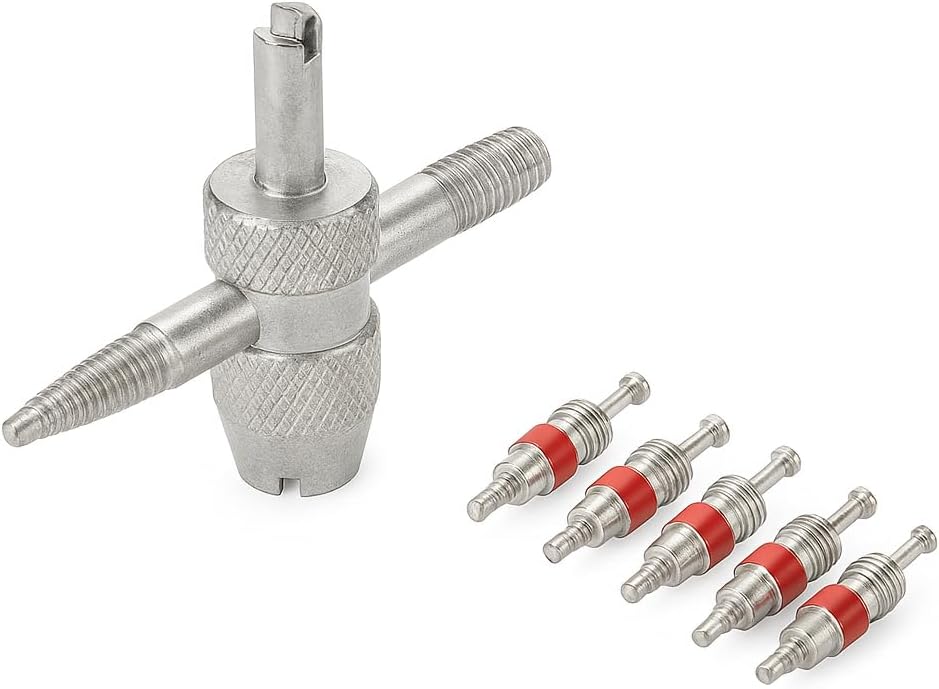

Image 2.1: The MADDOX 4-Way Valve Stem Core Tool shown alongside four replacement valve cores. The tool is silver-colored with knurled grips, featuring multiple ends for different functions. The valve cores are small, metallic, and have red bands.

Image 2.2: A close-up view of the four replacement valve cores. Each core is made of metal with a red sealing ring, designed for standard tire valve stems.

3. Tool Overview

The 4-Way Valve Stem Core Tool features multiple functions integrated into a single compact design. Understanding each part is crucial for correct operation.

Image 3.1: A diagram illustrating the different parts and functions of the 4-Way Valve Stem Core Tool. Labels indicate the Valve Core Remover & Installer, Re-Taps Internal Threads, and Re-Taps External Threads.

• Valve Core Remover & Installer: Located at one end, this slot is used to engage and turn the valve core.
• Re-Taps Internal Threads: A threaded section designed to clean or repair the internal threads of a valve stem.
• Re-Taps External Threads: A tapered, threaded section used to clean or repair the external threads on a valve stem.
• Deflator Pin: (Implicit in the core remover/installer, or a separate pin on some models, but for this tool, the core remover itself can be used to depress the pin for deflation if the core is not fully removed).

4. Operating Instructions

Always ensure the vehicle or equipment is stable and safe before performing any tire maintenance. Wear appropriate personal protective equipment, such as gloves and eye protection.

4.1. Removing a Valve Core

1. Locate the valve stem on the tire.
2. Unscrew and remove the valve stem cap.
3. Insert the valve core remover end of the tool into the valve stem, engaging the two flats on the valve core.
4. Turn the tool counter-clockwise to unscrew the valve core. Air will begin to escape as the core loosens.
5. Continue turning until the valve core is fully removed. Keep track of the removed core.

4.2. Installing a Valve Core

1. Place a new or existing valve core onto the valve core installer end of the tool.
2. Carefully insert the valve core and tool into the valve stem opening.
3. Turn the tool clockwise to screw the valve core into place.
4. Tighten the valve core until it is snug. Avoid over-tightening, which can damage the core or stem.
5. Replace the valve stem cap.

4.3. Tightening a Loose Valve Core

1. Remove the valve stem cap.
2. Insert the valve core remover/installer end of the tool into the valve stem, engaging the valve core.
3. Gently turn the tool clockwise until the valve core is snug. Do not over-tighten.
4. Replace the valve stem cap.

4.4. Deflating a Tire

To rapidly deflate a tire, fully remove the valve core as described in Section 4.1. To slowly deflate, or to check for a leak, you can partially depress the valve core pin without fully removing the core.

1. Remove the valve stem cap.
2. Insert the valve core remover/installer end of the tool into the valve stem.
3. Gently push the tool inward to depress the pin of the valve core. Air will begin to escape.
4. Control the rate of deflation by adjusting the pressure on the tool.
5. Once the desired pressure is reached, release the tool and replace the valve stem cap.

4.5. Re-tapping Valve Stem Threads

This function is used to clean or repair damaged threads on a valve stem. Use caution to avoid further damage.

4.5.1. Re-tapping Internal Threads

1. Ensure the valve core is removed from the stem.
2. Carefully align the internal thread re-tapper (threaded section on the tool) with the internal threads of the valve stem.
3. Gently turn the tool clockwise, applying light pressure, to clean or re-form the threads.
4. Remove the tool and inspect the threads.

4.5.2. Re-tapping External Threads

1. Align the external thread re-tapper (tapered, threaded section on the tool) with the external threads of the valve stem.
2. Gently turn the tool clockwise, applying light pressure, to clean or re-form the threads.
3. Remove the tool and inspect the threads.

5. Maintenance and Care

• After each use, wipe the tool clean with a dry cloth to remove any dirt or debris.
• Store the tool in a dry place to prevent corrosion.
• Inspect the tool periodically for any signs of wear or damage. Discontinue use if the tool is damaged.
• Keep replacement valve cores in a secure, clean container.

6. Troubleshooting

• Difficulty removing valve core: Ensure the tool is properly seated on the valve core. If the core is seized, apply a penetrating lubricant and allow it to soak before attempting removal again.
• Air leak after installing new core: Ensure the valve core is tightened sufficiently (but not over-tightened). Check for debris in the valve stem or on the core's rubber seal. If the leak persists, the valve stem itself may be damaged, or the replacement core may be faulty.
• Threads not re-tapping correctly: Ensure the correct re-tapping end is used for internal or external threads. Apply light, even pressure. If threads are severely damaged, the valve stem may need replacement.

7. Specifications

8. Warranty and Support

Information regarding product warranty and customer support was not provided in the product data. Please refer to the retailer or manufacturer's website for details on warranty coverage and support options.
