Shintenchi 12x15 FT Metal Carport Instruction Manual

1. Product Overview

The Shintenchi 12x15 FT Metal Carport is designed as a durable outdoor shelter. It features a galvanized steel roof and a powder-coated steel frame, providing protection against various weather conditions. This structure is an upgrade from traditional canvas sheds, offering enhanced stability and longevity.

Key features include:

• Galvanized Steel Roof: Provides rust protection and sun protection.
• Powder-Coated Steel Frame: Ensures durability and stability.
• Waterproof Sealing Tape: Applied at roof joints for enhanced rain protection.
• Soft-Edged Rubber Strips: Located at roof edges to reduce cuts and increase material life.
• Enhanced Base: Strengthened structural design for improved stability.

2. Safety Information

Please read and understand all safety warnings before assembly and use.

• Always ensure the surface is flat and stable before assembly. An uneven surface can compromise the carport's stability.
• Use caution when handling heavy components during assembly and disassembly to prevent injury.
• Follow the detailed installation instructions provided with the product. Deviations may affect structural integrity.
• Do not exceed the weight limit of the carport. Avoid hanging heavy objects from the frame or roof.
• In areas prone to heavy snow, regularly clear snow from the roof to prevent collapse.
• Securely anchor the carport to the ground using appropriate anchors for your specific terrain.

3. Product Dimensions

The Shintenchi Metal Carport measures 12 feet in width, 15 feet in length, and has a height of 8.5 feet at its peak.

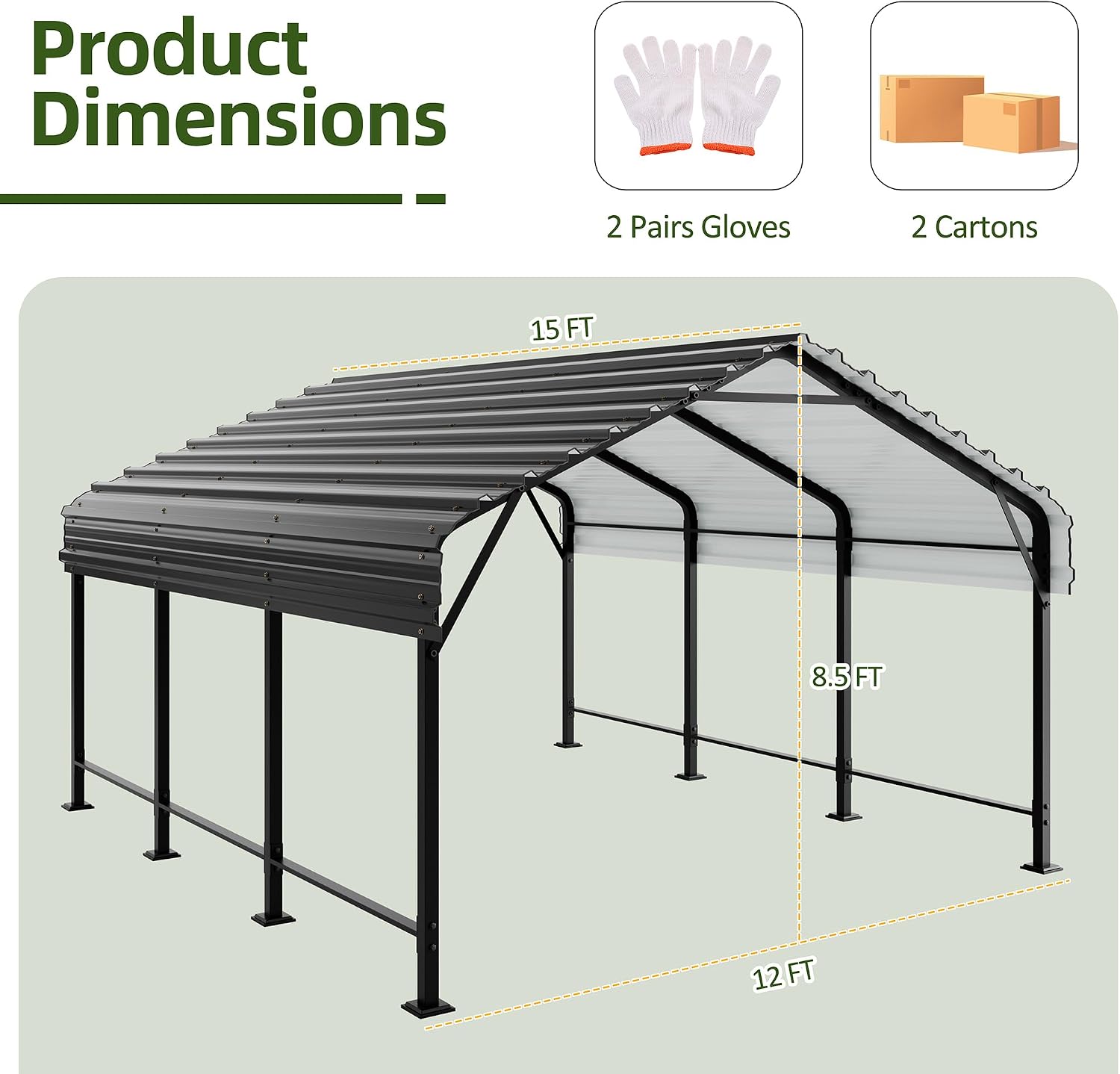

Image: Carport dimensions (15 FT length, 12 FT width, 8.5 FT height). Includes 2 pairs of gloves and 2 cartons for packaging.

4. Components and Materials

The carport is constructed from high-quality metal components designed for durability and weather resistance.

Image: Detailed view of carport components including all-steel material, thickened steel pipes, enhanced ground stakes, and triangular reinforced structure.

Key materials and components include:

• Frame: Powder-coated steel tubes.
• Roof Panels: Galvanized steel sheets.
• Fasteners: Bolts, nuts, and washers for secure connections.
• Ground Stakes: 10 enhanced ground stakes for securing the base.
• Protective Gear: 2 pairs of gloves are included for assembly.

5. Setup and Assembly Instructions

Assembly of this metal carport requires two to three people. Detailed installation instructions are included in the packaging. Please follow them carefully.

Image: Visual guide for carport assembly, showing frame construction and roof panel attachment. Product arrives in 2 cartons.

1. Prepare the Site: Ensure the chosen location is level and clear of obstructions.
2. Unpack Components: Carefully unbox all parts and verify against the parts list in the instruction manual.
3. Assemble Frame Sections: Connect the steel tubes to form the arch sections of the carport.
4. Erect Frame: With assistance, raise and connect the frame sections, ensuring all bolts are securely tightened.
5. Attach Roof Panels: Carefully place and secure the galvanized steel roof panels onto the frame. Ensure waterproof sealing tape is correctly applied at joints.
6. Secure to Ground: Install the enhanced ground stakes to firmly anchor the carport. Consider additional anchoring methods for high-wind areas.

6. Operating Instructions

The Shintenchi Metal Carport is designed to provide robust coverage for vehicles, boats, tractors, and can also serve as a shelter for outdoor activities.

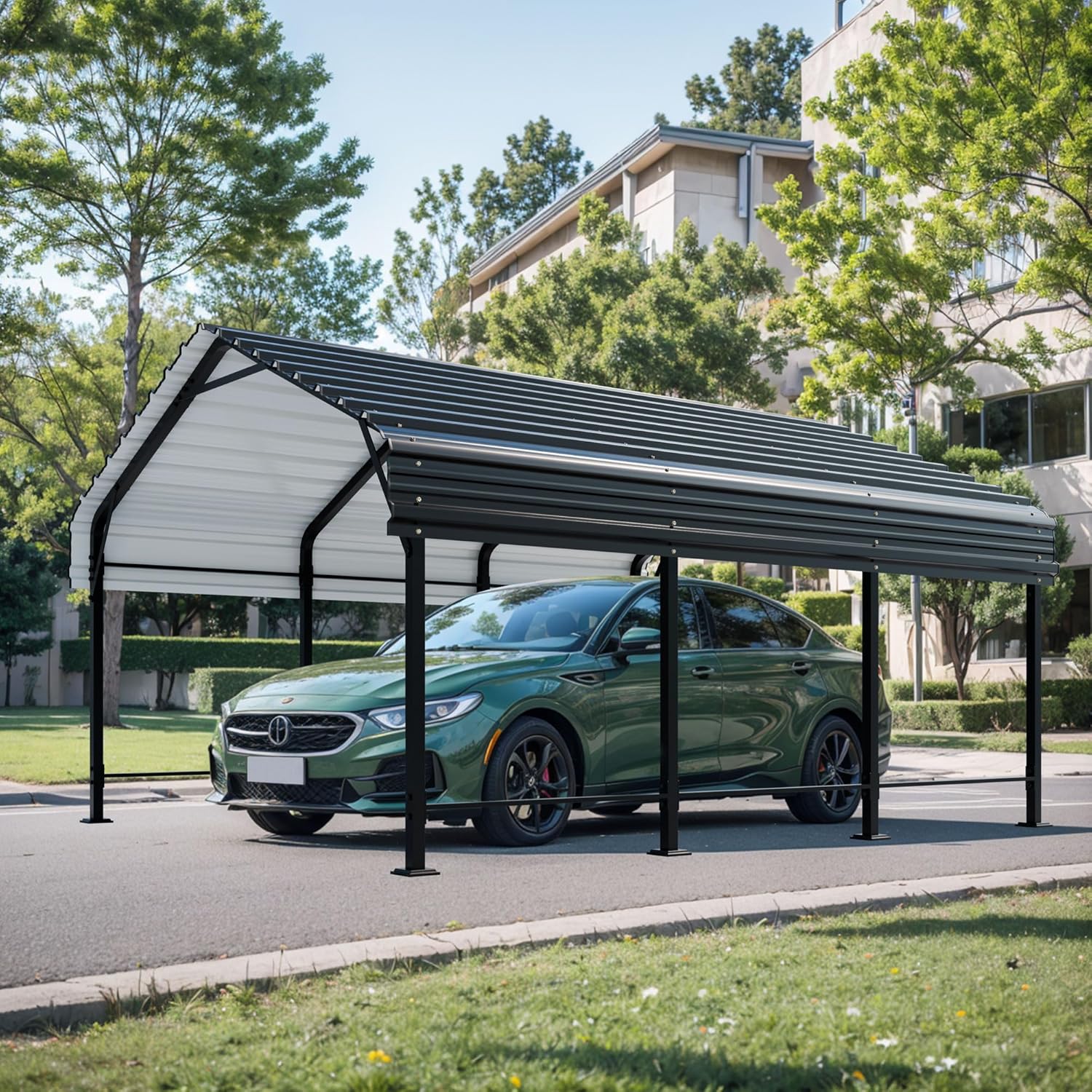

Image: A vehicle parked under the carport, illustrating its primary function as a car shelter.

• Vehicle Protection: Park vehicles, boats, or tractors under the carport to shield them from sun, rain, and light snow.
• Outdoor Shelter: Utilize the carport as a covered area for outdoor gatherings, parties, or temporary storage.
• Weather Resistance: The galvanized steel roof and sturdy frame offer protection against wind, UV rays, rain, and snow.

Image: Carport demonstrating resistance to wind, sun, rain, and snow.

7. Maintenance

Regular maintenance ensures the longevity and continued performance of your carport.

• Regular Cleaning: Clean the roof and frame periodically with mild soap and water to remove dirt, debris, and prevent buildup. Avoid abrasive cleaners.
• Inspect Connections: Periodically check all bolts, nuts, and frame connections to ensure they remain tight. Retighten as necessary.
• Roof Inspection: Inspect the galvanized steel roof for any signs of damage, corrosion, or loose panels. Address any issues promptly.
• Ground Anchoring: Verify that ground stakes are secure and the carport remains firmly anchored, especially after strong winds or storms.
• Snow Removal: In regions with snowfall, remove accumulated snow from the roof to prevent excessive weight and potential damage.

8. Troubleshooting

If you encounter issues with your carport, consider the following common solutions:

• Carport Instability: Check all frame connections and ground anchors. Ensure the carport is on a level surface. If the ground is soft, consider stronger or additional anchoring solutions.
• Water Leaks: Inspect roof panel overlaps and sealing tape. Ensure panels are correctly aligned and all fasteners are tight. Reapply or replace sealing tape if damaged.
• Damaged Panels/Frame: For minor damage, repair kits may be available. For significant damage, contact customer support for replacement parts.

9. Specifications

10. Warranty and Support

For warranty information, replacement parts, or technical support, please contact Shintenchi customer service. Refer to your purchase documentation for specific contact details.
