Introduction
Thank you for choosing the SBONNI P107 Bathroom Extractor Fan. This device is designed to improve air quality in your bathroom, WC, garage, or attic by automatically managing humidity and temperature. It features a 100mm fan, a precise external sensor, a timer function, and three adjustable speeds for optimal ventilation. Please read this manual carefully before installation and operation to ensure safe and efficient use.
Safety Information
- Ensure the power supply is disconnected before installation, maintenance, or cleaning.
- Installation should be performed by a qualified electrician in accordance with local wiring regulations.
- Do not operate the fan with a damaged power cord or plug.
- Keep the fan away from water sources and do not immerse it in liquid.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Ensure proper ventilation is maintained in the room to prevent backflow of gases from open-flued appliances.
Product Overview
The SBONNI P107 is an advanced extractor fan designed for optimal air management. Key features include:
- Automatic Operation: Integrated humidity and temperature sensors detect environmental changes and activate the fan automatically.
- Real-time Display: The control panel shows current temperature and humidity levels.
- Adjustable Timer: Set the fan to run for a specific duration before automatically turning off (up to 9 hours).
- 3-Speed Settings: Choose between Low, Medium, and High airflow for various ventilation needs.
- External Sensor: Provides accurate readings without motor interference and is easily replaceable.
- Easy Configuration: Settings can be adjusted directly from the control panel without disassembling the unit.
- Quiet Operation: Equipped with an improved copper motor and double ball bearings for reduced noise.
Image: The SBONNI P107 extractor fan with its external control panel, displaying real-time humidity and temperature readings.

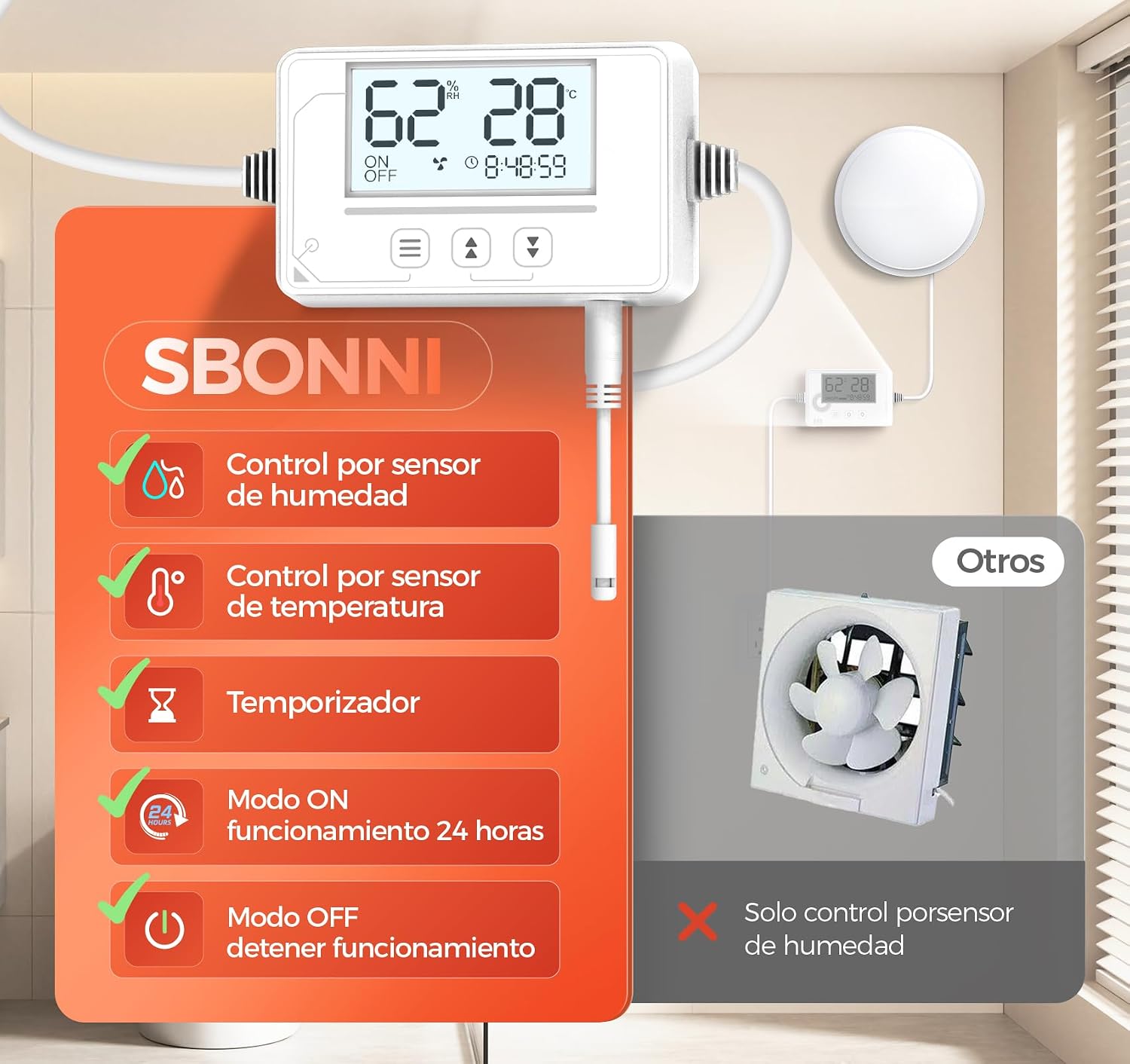

Image: A visual summary of the SBONNI P107's main features, including humidity sensor control, temperature sensor control, timer, 24-hour ON mode, and manual OFF mode.
Setup and Installation
Package Contents:
- Extractor Fan with LCD Control Panel (x1)
- External Sensor (x1)
- Support Plate (15cm x 15cm) (x1)
- Mounting Screws and Bolts (x3 sets)
- Detailed Instruction Manual (x1)
- EVA Pads (x2)
Image: All components included in the SBONNI P107 package, including the fan unit, control panel, external sensor, and mounting hardware.
Installation Steps:
- Prepare the Opening: Ensure a 100mm diameter opening is available in the ceiling, wall, or window for installation.
- Mount the Base: Secure the fan's base into the 100mm opening using the provided screws or appropriate adhesive.
- Connect Wiring: Connect the electrical wiring according to the diagram in the detailed manual. Ensure power is OFF during this step.
- Attach the Cover: Place the fan cover onto the mounted base.
- Connect Sensor: Plug the external sensor into the control panel.
- Connect Power: Plug the fan's power cord into a suitable electrical outlet.
Image: A four-step visual guide demonstrating the installation process: lifting the panel, placing the base in the 100mm opening, attaching the cover, and connecting power.
The SBONNI P107 is suitable for various indoor environments, including bathrooms, WCs, garages, and attics, providing effective ventilation where needed.
Image: Illustrations showing the SBONNI P107 fan installed in various locations such as a bathroom, a room with plants, a hallway, and a laundry room, highlighting its versatility.
Operating Instructions
The SBONNI P107 offers flexible operation modes controlled via its intuitive panel.
Control Panel Functions:
- Display: Shows real-time humidity (RH%) and temperature (°C).
- Buttons: Use the control buttons on the panel to adjust settings.
Operating Modes:
- Automatic Humidity Control: The fan automatically activates when humidity exceeds a set threshold and turns off when levels normalize. The external sensor ensures accurate readings.
- Automatic Temperature Control: The fan can be set to activate based on temperature changes, helping to maintain a comfortable environment.
- Timer Function: Manually set the fan to operate for a desired period (up to 9 hours). The fan will automatically shut off once the timer expires.
- 24-Hour Continuous Operation (ON Mode): When activated, the fan runs continuously, regardless of humidity or temperature levels. This mode is suitable for constant air circulation.
- Manual OFF Mode: The fan can be manually turned off at any time.
Image: A visual representation of the automatic humidity sensor control, showing humidity levels from 0-99% RH in a bathroom setting.
Image: A visual representation of the automatic temperature sensor control, showing temperature levels from 0-99°C in a living room setting.
Image: A visual representation of the timer function, showing a clock icon and digital display for setting the fan's operating duration.
Image: A visual representation of the 24-hour continuous operation mode, indicated by a '24h' icon.
Image: A visual representation of the manual OFF mode, indicated by a power button icon.
Fan Speed Settings:
The fan offers three speed levels to suit different ventilation requirements:
- Low Speed: Extremely quiet, ideal for nighttime operation or minimal ventilation. (Airflow: 95 m³/h)
- Medium Speed: Provides pleasant air circulation for daily use. (Airflow: 120 m³/h)
- High Speed: Powerful ventilation for rapid drying and odor removal. (Airflow: 145 m³/h)
Image: A diagram illustrating the three adjustable airflow levels (low, medium, high) of the SBONNI P107 fan, with corresponding cubic meters per hour (m³/h) values.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your SBONNI P107 fan.
- Cleaning: Disconnect power before cleaning. Wipe the exterior of the fan and control panel with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Sensor Replacement: The external sensor is designed for easy replacement. If the sensor malfunctions, it can be individually replaced without needing to replace the entire unit.
- Filter Cleaning (if applicable): Refer to the detailed manual for instructions on cleaning any internal filters.
Image: A comparison highlighting the benefits of the SBONNI P107's external sensor (accurate, replaceable, IPX4 water-resistant) versus traditional integrated sensors.
Troubleshooting
If you encounter issues with your SBONNI P107 fan, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on | No power supply; Incorrect wiring; Fan in OFF mode. | Check power connection; Verify wiring (consult electrician); Ensure fan is not in manual OFF mode. |
| Fan runs continuously | 24-hour mode activated; Humidity/temperature consistently high. | Deactivate 24-hour mode if not desired; Check environmental conditions; Adjust sensor thresholds if possible. |
| Inaccurate sensor readings | Sensor obstructed or dirty; Sensor malfunction. | Clean the external sensor; Replace the external sensor if faulty. |
| Reduced airflow | Fan blades dirty; Obstruction in ducting. | Clean fan blades (disconnect power first); Check and clear any obstructions in the ventilation duct. |
If the problem persists after attempting these solutions, please contact SBONNI customer support.
Specifications
| Feature | Specification |
|---|---|
| Model Name | P107 |
| Brand | SBONNI |
| Fan Type | Extractor Fan |
| Mounting Type | Ceiling, Wall, Window |
| Duct Diameter | 100mm |
| Dimensions (D x W x H) | 15.5 x 15.5 x 12.5 cm |
| Power Source | Corded Electric |
| Voltage | 230 Volts |
| Power Consumption | 12 Watts |
| Airflow Capacity | Up to 145 m³/h |
| Number of Speeds | 3 |
| Noise Level | 24 Decibels (at lowest speed) |
| Motor Type | Brushless, Copper Motor with Double Ball Bearings |
| Material | Acrylonitrile Butadiene Styrene (ABS), Polycarbonate |
| Special Features | Automatic Humidity/Temperature Sensor Control, 24-hour Mode, Timer, Real-time Display |
| Certifications | CE, RoHS |
Image: A detailed diagram showing the dimensions of the SBONNI P107 fan and control unit, along with a summary of key specifications like model, installation size, noise, airflow, and efficiency class.
Warranty and Support
The SBONNI P107 Bathroom Extractor Fan comes with a 3-year manufacturer's warranty, covering defects in materials and workmanship under normal use. This product is certified with CE and RoHS standards, ensuring compliance with European safety and environmental regulations.
Image: Official certification documents, including CE and RoHS marks, confirming the product's compliance with quality and safety standards.
Customer Support:
For any questions, technical assistance, or warranty claims, please contact SBONNI customer service. Our team is dedicated to providing support and ensuring your satisfaction.
- Service Availability: 24 hours a day, 7 days a week.
- Returns: Express returns within 30 days.
Image: A representation of the SBONNI customer service team, emphasizing their availability and commitment to support.
