FTYHFEFH T3000 T3200

FTYHFEFH Carburetor Instruction Manual

For Craftsman T3000 T3200 Lawn Mower Tractor 22HP

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your new FTYHFEFH carburetor. This carburetor is designed as a replacement part for Craftsman T3000 and T3200 lawn mower tractors equipped with 22HP engines. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure safe and correct usage.

The package includes:

  • Carburetor assembly
  • Gasket Kit
  • Fuel Filter
  • Spark Plugs (x2)

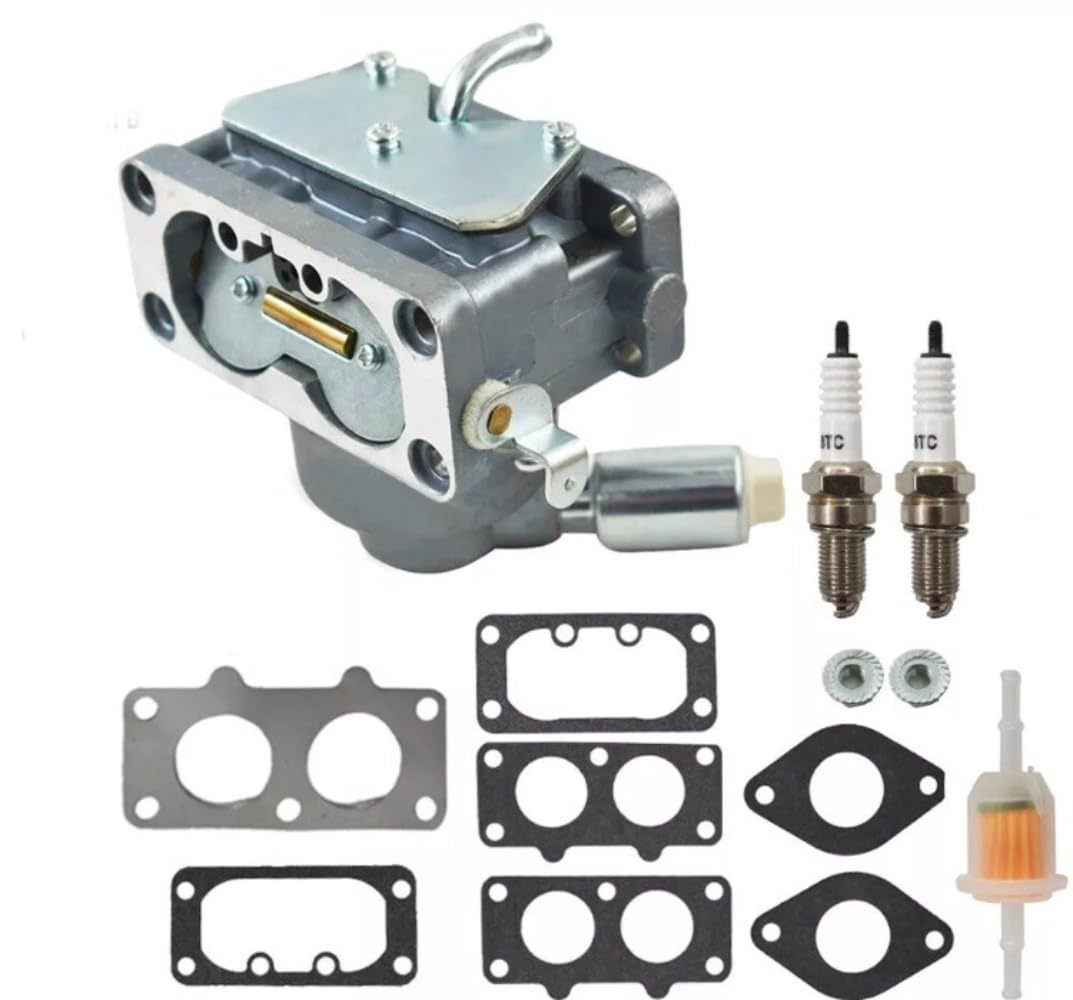

FTYHFEFH Carburetor Assembly with included components

Figure 1: FTYHFEFH Carburetor Assembly and included components.

The image above displays the FTYHFEFH carburetor assembly along with the gasket kit, fuel filter, and two spark plugs that are included in your package. These components are essential for a complete and proper replacement.

2. Safety Information

Always prioritize safety when working with engine components and fuel. Failure to follow safety precautions can result in serious injury or damage to equipment.

  • Disconnect Battery: Before starting any work, always disconnect the spark plug wire and the battery to prevent accidental engine startup.
  • Fuel Handling: Gasoline is highly flammable. Work in a well-ventilated area, away from open flames or sparks. Use an approved container for draining and storing fuel.
  • Eye Protection: Wear safety glasses to protect your eyes from debris or fuel splashes.
  • Gloves: Wear appropriate gloves to protect your hands from fuel, oil, and sharp edges.
  • Hot Surfaces: Allow the engine to cool completely before working on it to avoid burns.
  • Proper Tools: Use the correct tools for each task to prevent damage to components or injury.

3. Setup and Installation

This section outlines the steps for replacing the carburetor on your Craftsman T3000 or T3200 lawn mower tractor.

  1. Prepare the Tractor:
    • Park the tractor on a level surface and engage the parking brake.
    • Ensure the engine is cool.
    • Disconnect the spark plug wire to prevent accidental starting.
    • Disconnect the negative terminal of the battery.
  2. Drain Fuel:
    • Turn off the fuel supply valve (if present).
    • Place an approved fuel container under the carburetor's fuel line.
    • Disconnect the fuel line from the carburetor and allow all fuel to drain.
  3. Remove Air Filter Assembly:
    • Carefully remove the air filter housing and air filter to gain access to the carburetor.
  4. Disconnect Linkages and Hoses:
    • Note the position of all linkages (throttle, choke) and springs connected to the old carburetor. Take photos if necessary for reassembly.
    • Carefully disconnect these linkages and any vacuum hoses.
  5. Remove Old Carburetor:
    • Unbolt the old carburetor from the engine manifold.
    • Remove the old carburetor and discard the old gaskets. Ensure all old gasket material is completely removed from the mounting surfaces.
  6. Install New Carburetor:
    • Place new gaskets in their correct positions on the engine manifold and the new carburetor.
    • Mount the new FTYHFEFH carburetor onto the engine, ensuring proper alignment with the gaskets.
    • Secure the carburetor with the mounting bolts, tightening them evenly.
  7. Reconnect Components:
    • Reconnect all throttle and choke linkages, springs, and vacuum hoses to their original positions.
    • Attach the fuel line to the new carburetor and secure it with a clamp.
    • Install the new fuel filter in the fuel line, if replacing.
    • Replace the air filter and air filter housing.
    • Install the new spark plugs (x2) if replacing, ensuring they are gapped correctly according to your engine's specifications.
  8. Final Checks:
    • Reconnect the negative battery terminal.
    • Reconnect the spark plug wire.
    • Open the fuel supply valve.
    • Inspect all connections for leaks, especially fuel lines.

4. Operating

After successful installation, follow your tractor's manufacturer guidelines for starting and operating the engine. The new carburetor should provide smooth fuel delivery and consistent engine performance.

  • Initial Start-up: After installation, it may take a few extra cranks for the fuel system to prime and the engine to start.
  • Check for Smooth Operation: Once started, allow the engine to warm up. Listen for any unusual noises or rough idling.
  • Adjustments: If the engine does not run smoothly, minor idle speed or mixture adjustments may be necessary. Refer to your tractor's service manual for specific adjustment procedures.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your carburetor and engine.

  • Fuel Filter: Inspect the fuel filter regularly and replace it if it appears dirty or clogged. A clogged fuel filter can restrict fuel flow to the carburetor.
  • Air Filter: Ensure the air filter is clean and free of debris. A dirty air filter can cause the engine to run rich and affect carburetor performance.
  • Fuel Quality: Use fresh, clean gasoline. Stale or contaminated fuel can clog carburetor passages. Consider using a fuel stabilizer if the tractor will be stored for extended periods.
  • External Cleaning: Keep the exterior of the carburetor clean from dirt and debris.

6. Troubleshooting

If you encounter issues after installing the new carburetor, consider the following common problems and solutions:

Problem Possible Cause Solution
Engine will not start No fuel, clogged fuel filter, incorrect spark plug gap, loose electrical connection. Check fuel level, replace fuel filter, verify spark plug gap, ensure all connections are secure.
Engine runs rough or stalls Air leak around carburetor, dirty air filter, improper carburetor adjustment. Check for air leaks, clean/replace air filter, adjust carburetor settings (refer to tractor manual).
Fuel leaks Loose fuel line connection, damaged gasket, cracked fuel line. Tighten fuel line clamps, replace damaged gaskets, replace cracked fuel lines.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician or refer to your Craftsman tractor's official service manual.

7. Specifications

  • Product Type: Carburetor Assembly
  • Brand: FTYHFEFH
  • Compatible Models: Craftsman T3000, Craftsman T3200 Lawn Mower Tractors (22HP engines)
  • Manufacturer Model Number: FTYHFEFH
  • ASIN: B0F9V5RLHS
  • Package Contents: Carburetor assembly, Gasket Kit, Fuel Filter, Spark Plugs (x2)

8. Warranty and Support

Information regarding specific warranty terms or direct customer support for this FTYHFEFH carburetor is not provided within this manual. Please refer to the product listing or contact the seller directly for details on warranty coverage and technical assistance.

9. Official Product Videos

No official product videos from the seller were provided for inclusion in this manual.
