1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your new FTYHFEFH Carburetor, specifically designed as a replacement part for Troy Bilt Model 13WX79KT011 Riding Lawn Mowers. Proper installation and maintenance are crucial for optimal engine performance and longevity.
The carburetor is manufactured with high precision and robust construction to ensure reliable performance and wear resistance under various working conditions.
Package Contents:
- 1 x Carburetor (as pictured)
- 2 x Mounting Gasket
- 1 x Fuel Hose
- 1 x Fuel Filter
- 1 x Shut Off Valve
- 1 x Spark Plug
Image 1: Front view of the FTYHFEFH Carburetor, showing the air intake with internal diameter of 26mm and overall width of 52mm at the base.
2. Setup and Installation
Installation of the carburetor requires basic mechanical knowledge. If you are unsure about any steps, it is recommended to seek professional assistance. Always ensure the engine is cool and the spark plug wire is disconnected before beginning any work.
Installation Steps:
- Safety First: Disconnect the spark plug wire and ensure the engine is completely cool. Drain the fuel tank if necessary.
- Remove Old Carburetor: Carefully disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Remove the mounting bolts and detach the old carburetor.
- Clean Mounting Area: Thoroughly clean the engine's mounting surface to ensure a proper seal with the new gaskets.
- Install New Gaskets: Place the new mounting gaskets provided with the carburetor onto the engine's mounting studs.
- Mount New Carburetor: Position the new FTYHFEFH Carburetor onto the mounting studs, ensuring it aligns correctly with the gaskets. Secure it with the mounting bolts, tightening them evenly.
- Connect Linkages: Reattach the throttle and choke linkages to the new carburetor. Ensure they move freely and operate correctly.
- Install Fuel System Components: Connect the new fuel hose, install the new fuel filter in the fuel line, and attach the shut-off valve. Ensure all connections are secure and leak-free.
- Replace Spark Plug: Remove the old spark plug and install the new spark plug provided. Tighten to manufacturer specifications.
- Refill Fuel: Refill the fuel tank with fresh, appropriate fuel.
- Reconnect Spark Plug: Reconnect the spark plug wire.
Image 2: Side view of the FTYHFEFH Carburetor, showing the fuel inlet and mounting points.
3. Operating Instructions
After successful installation, the carburetor is designed to provide optimal fuel-air mixture for your Troy Bilt riding lawn mower. No specific adjustments are typically required for initial operation, as it is pre-calibrated for the specified model.
Starting the Engine:
- Ensure the fuel shut-off valve is in the 'ON' position.
- Engage the choke if the engine is cold, as per your mower's operating manual.
- Start the engine according to your riding lawn mower's manufacturer instructions (e.g., turn key, pull starter cord).
- Once the engine starts, gradually disengage the choke as the engine warms up.
Monitor engine performance. If the engine runs rough or stalls, refer to the Troubleshooting section.
4. Maintenance
Regular maintenance of your fuel system components, including the carburetor, is essential for consistent engine performance and to prevent future issues.
Recommended Maintenance:
- Fuel Filter: Replace the fuel filter annually or more frequently if operating in dusty conditions or if fuel contamination is suspected. A clogged fuel filter can restrict fuel flow to the carburetor.
- Air Filter: Regularly inspect and clean or replace the air filter as per your mower's manual. A dirty air filter can cause a rich fuel mixture, leading to poor performance.
- Spark Plug: Inspect the spark plug periodically for wear, fouling, or incorrect gap. Replace it with the new spark plug provided or an equivalent if necessary.
- Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel can cause deposits in the carburetor, leading to blockages and poor performance. Consider using a fuel stabilizer if the mower will be stored for extended periods.
- Carburetor Cleaning: If performance issues arise due to fuel contamination, the carburetor may need to be cleaned. This typically involves disassembling the carburetor and cleaning its internal passages with a carburetor cleaner. This task is best performed by experienced individuals.
Image 3: Another side view of the FTYHFEFH Carburetor, highlighting the various adjustment screws and linkages.
5. Troubleshooting
If your riding lawn mower experiences issues after carburetor installation, consult the following troubleshooting guide. Always ensure safety precautions are followed before inspecting or working on the engine.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel reaching carburetor | Check fuel level, ensure fuel shut-off valve is open, inspect fuel line for kinks, replace fuel filter. |
| Engine runs rough or stalls | Incorrect fuel-air mixture, dirty air filter, fouled spark plug | Check air filter, replace spark plug, inspect carburetor for blockages (professional cleaning may be required). |
| Loss of power during operation | Fuel starvation, dirty air filter, carburetor issues | Ensure adequate fuel flow, clean/replace air filter, consider carburetor inspection. |
| Fuel leaks from carburetor | Improperly seated gaskets, loose connections, damaged float/needle valve | Check mounting bolts for tightness, inspect fuel line connections, carburetor may require internal inspection and repair. |
Image 4: Top-down view of the FTYHFEFH Carburetor, showing the choke and throttle mechanisms.
6. Specifications
Key specifications for the FTYHFEFH Carburetor:
- Brand: FTYHFEFH
- Model Compatibility: Troy Bilt Model 13WX79KT011 Riding Lawn Mower
- Item Weight: Approximately 1 pound
- Product Dimensions (Overall): Approximately 1 x 1 x 1 inches (packaging dimensions, actual product may vary slightly)
- Manufacturer Part Number: 1
Detailed Dimensions:
Image 5: Front view of the FTYHFEFH Carburetor, indicating an air intake diameter of 26mm and a base mounting width of 52mm.

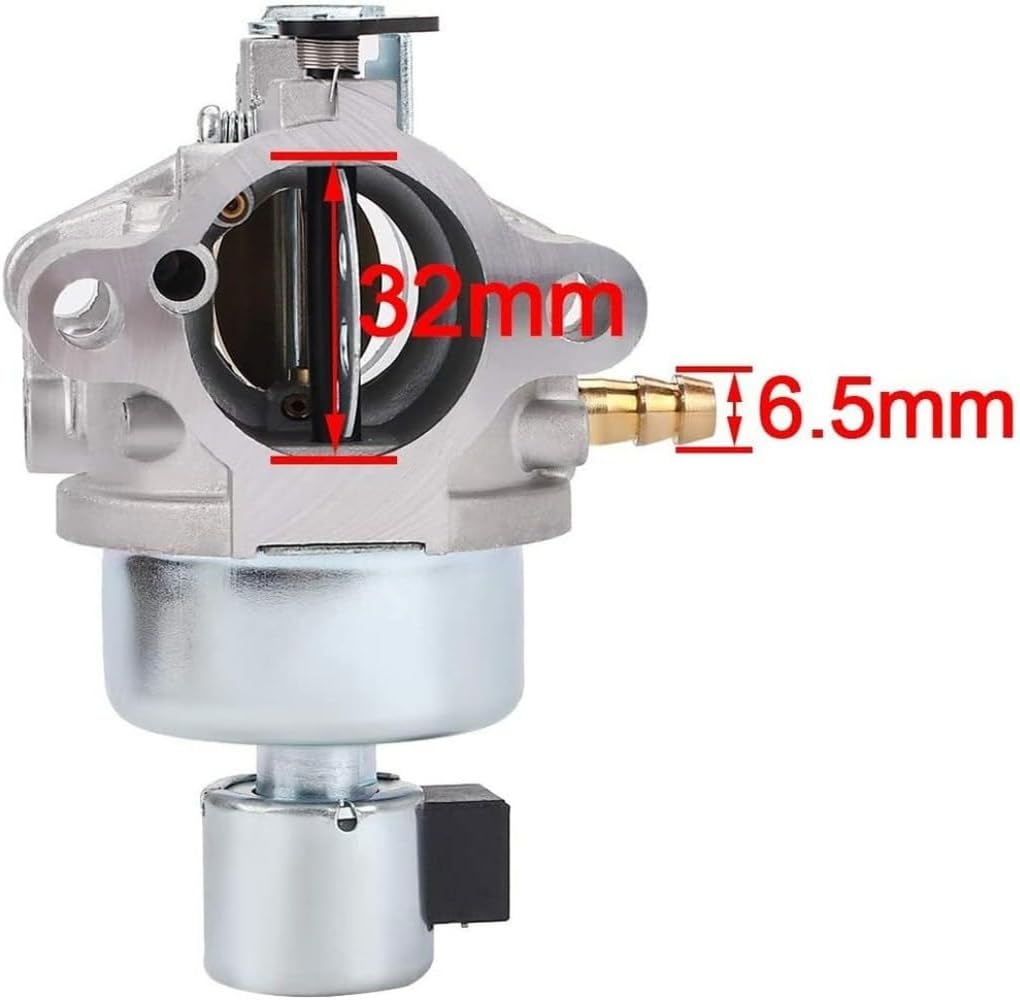

Image 6: Side view of the FTYHFEFH Carburetor, showing a throttle bore height of 32mm and a fuel inlet barb diameter of 6.5mm.
7. Warranty and Support
For information regarding warranty coverage and customer support for your FTYHFEFH Carburetor, please refer to the documentation provided at the time of purchase or contact the seller directly. Specific warranty terms and conditions may vary.
