Introduction
Thank you for choosing the CAPXSNOB Warriors1 SV835L 5-in-1 Multi-Capsule Coffee Machine. This versatile appliance is designed to cater to diverse coffee preferences, offering compatibility with Nespresso Original, Dolce Gusto, Lavazza A Modo Mio, FAP Espresso Point capsules, and ground coffee. Its compact design, powerful 20-bar pump, and customizable settings ensure a premium coffee experience at home or in the office.

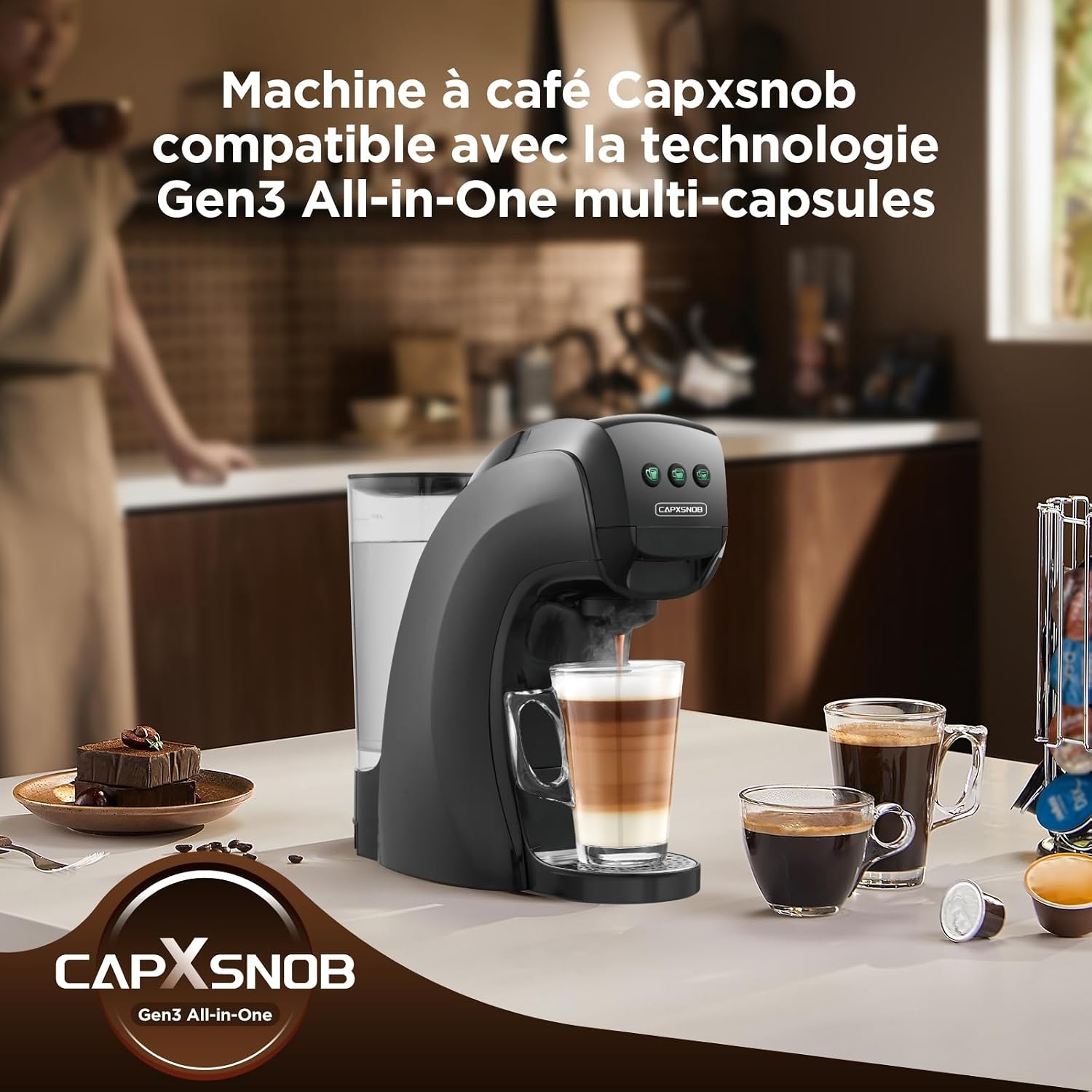

Image: The CAPXSNOB Warriors1 5-in-1 Multi-Capsule Coffee Machine, ready to brew.
Important Safety Instructions
Please read all instructions carefully before using the appliance. Keep this manual for future reference.
- Electrical Safety: Ensure the voltage matches your power supply. Do not immerse the appliance, power cord, or plug in water or other liquids.
- Hot Surfaces: The brewing head and drip tray area can become very hot during and after operation. Avoid contact with hot surfaces.
- Children: This appliance is not intended for use by children. Keep out of reach of children.
- Maintenance: Unplug the machine before cleaning. Do not operate with a damaged cord or plug.
- Water Tank: Only fill the water tank with fresh, clean water. Do not use hot water or other liquids.
- Placement: Place the machine on a stable, flat, heat-resistant surface, away from hot gas or electric burners.
Product Components
Familiarize yourself with the main parts of your coffee machine:
- Main Unit: The core of the coffee machine.
- Water Tank: Removable 0.8L tank for water supply.
- Drip Tray: Collects excess liquid, removable for cleaning.
- Capsule Adapters: Specific adapters for Nespresso Original, Dolce Gusto, Lavazza A Modo Mio, FAP Espresso Point capsules, and a filter for ground coffee.
- Control Panel: Buttons for power, brewing, and customization.
Image: Overview of the CAPXSNOB Warriors1 5-in-1 coffee machine, highlighting its compact design and water tank.
Image: Close-up of the various adapters for different capsule types (Nespresso, Dolce Gusto, Lavazza A Modo Mio, FAP Espresso Point) and ground coffee.
Setup
- Unpacking: Carefully remove the machine and all accessories from the packaging. Remove any protective films or stickers.
- First Use / Rinsing: Before first use, fill the water tank with fresh water. Place a large cup under the coffee outlet. Run a brewing cycle without a capsule or ground coffee to rinse the internal system. Repeat this process 2-3 times.
- Filling Water Tank: Remove the water tank from the back of the machine. Fill it with fresh, clean water up to the MAX level indicator. Reattach the water tank securely.
- Power Connection: Plug the power cord into a suitable electrical outlet (220-240V/50Hz).
Operating Instructions
The Warriors1 coffee machine offers a seamless brewing experience for various coffee types.
General Brewing Steps:
- Ensure the water tank is filled and the machine is plugged in.
- Press the power button. The machine will preheat for approximately 35 seconds. The indicator lights will stop blinking when ready.
- Select the appropriate adapter for your chosen coffee type.
- Insert the capsule or ground coffee into the adapter.
- Place the filled adapter into the machine and close the lever firmly.
- Place your cup on the drip tray. Adjust the drip tray height if necessary for taller cups (up to 15.4 cm).
- Press one of the three brewing buttons (small, medium, large) to start extraction.
- The machine will automatically stop when the selected volume is reached.
Image: Step-by-step guide on how to insert a capsule and brew coffee with the CAPXSNOB Warriors1 machine.
Compatibility and Beverage Variety:
The Warriors1 machine supports a wide range of coffee options:
Image: Diagram showing the compatibility of the CAPXSNOB Warriors1 machine with different capsule types compared to other machines.
Image: Visual guide demonstrating how to prepare various coffee beverages like espresso, lungo, latte, and cappuccino using different capsules and ground coffee.
Customizing Temperature and Volume:
The machine allows you to personalize your coffee to your preference.
Image: Control panel of the CAPXSNOB Warriors1 coffee machine showing customizable volume and temperature settings.
- Adjusting Volume: Press and hold the desired brewing button (small, medium, or large) until the coffee reaches your preferred volume. Release the button to stop. The machine will remember this setting for future brews. Default volumes are approximately 40ml, 100ml, and 150ml.
- Adjusting Temperature: The machine offers three temperature settings: 88°C (for milk-based drinks), 92°C (for espresso), and 96°C (for colder environments). To adjust, press and hold the middle brewing button for 5 seconds until the green light blinks three times. Then, press the small cup button for low temp, medium cup for medium temp, or large cup for high temp. Wait 5 seconds for the setting to activate.
Maintenance
Regular cleaning and maintenance ensure optimal performance and longevity of your coffee machine.
Daily Cleaning:
- Drip Tray: Empty and rinse the drip tray after each use or when full.
- Water Tank: Rinse the water tank daily and refill with fresh water.
- Capsule Adapters: Remove and rinse the used capsule adapter after each brew. This prevents residue buildup and preserves flavor.
- Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners.
Automatic Cleaning Mode:
The machine features an automatic cleaning mode. It is recommended to run this mode every 2-3 months, or as needed, to flush the internal system. Refer to the full manual for specific activation steps.
Descaling:
Descaling is crucial for maintaining your machine's performance and extending its lifespan. It is recommended to descale every 200 cycles or every 2-3 months, especially if using hard water. Use filtered or bottled water to minimize scale buildup.
Image: The descaling reminder feature of the CAPXSNOB Warriors1 coffee machine, indicated by three green buttons blinking. This is not a malfunction.
Descaling Reminder: When the three brewing buttons blink slowly in green, it indicates that descaling is recommended. This is not a malfunction but a reminder for maintenance. Follow the descaling instructions provided in the full product manual.
Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | No power, power cord not plugged in. | Check power connection, ensure outlet is functional. |
| Coffee is not brewing. | Water tank empty, capsule not inserted correctly, machine not preheated. | Fill water tank, ensure capsule/adapter is properly seated, wait for preheating. |
| Water leaks from machine. | Water tank not seated correctly, capsule/adapter not sealed. | Re-seat water tank, ensure capsule/adapter is firmly closed. |
| Coffee is not hot enough. | Temperature setting is low, machine needs descaling. | Adjust temperature setting to higher, perform descaling if necessary. |
| Three green buttons blinking. | Descaling reminder. | Perform descaling procedure as per manual. |
If the problem persists, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | SV835L |
| Product Dimensions (L x W x H) | 28.5 x 13.7 x 27.5 cm |
| Item Weight | 2.5 Kilograms |
| Power | 1100 Watts |
| Voltage | 230 Volts (AC) |
| Output Pressure | 20 Bars |
| Water Tank Capacity | 0.8 Liters (820 ml) |
| Color | Black |
| Material | Metal, Plastic |
| Compatible Coffee Types | Capsule, Pod, Ground |
| Compatible Coffee Pods | Nespresso Original, Dolce Gusto, Lavazza A Modo Mio, FAP Espresso Point |
| Special Features | Automatic cleaning function, One-cup brewing, Adjustable brew intensity, Programmable, Removable tank |
| Included Components | Adapter for A Modo Mio, Adapter for Dolce Gusto, Adapter for Espresso Point, Adapter for Nespresso Original, Adapter for ground coffee |
Warranty and Support
Your CAPXSNOB Warriors1 coffee machine comes with comprehensive support:
- 30-Day Money-Back Guarantee: Enjoy a 30-day money-back guarantee, subject to specific terms and conditions.
- 2-Year Manufacturer's Warranty: The product is covered by a 2-year limited manufacturer's warranty against defects in materials and workmanship.
- 2-Year Replacement Service: By registering your product on our official website, you will also qualify for a 2-year replacement service.
For warranty claims, technical assistance, or any questions, please refer to the contact information provided on the official CAPXSNOB website or your purchase documentation.
