1. Introduction and Overview
The Ninja FlexDrawer Air Fryer AF550EU is a versatile 6-in-1 kitchen appliance designed for efficient and healthy cooking. It features innovative DualZone Technology, allowing you to cook two different foods in two independent zones simultaneously, or convert to a single MegaZone for larger meals. This appliance offers six cooking functions: Air Fry, Max Crisp, Roast, Bake, Reheat, and Dehydrate.
Key benefits include:
- Energy Efficiency: Cook using up to 55% less energy than a conventional oven.
- Faster Cooking: Up to 55% faster than a convection oven.
- Healthier Meals: Air Fry mode uses little to no oil, resulting in up to 75% less fat than traditional frying methods.
- Flexible Capacity: Adaptable 6.6 L capacity for both small and large meals.
2. Setup and First Use
2.1 Unboxing and Placement
- Carefully remove the air fryer and all accessories from the packaging.
- Place the main unit on a clean, dry, level surface, ensuring adequate clearance (at least 15 cm / 6 inches) from walls or other appliances for proper ventilation.
- Ensure the power cord is not pinched or damaged.
2.2 Initial Cleaning
Before first use, clean all removable parts:
- Wash the 6.6 L cooking drawer, removable separator, and two crisper plates in warm, soapy water. Rinse thoroughly and dry completely. These parts are also dishwasher-safe.
- Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
3. Operating Instructions
3.1 Control Panel Overview
The control panel features a digital display and touch controls for power, temperature, time, cooking modes, and DualZone functions (SYNC and MATCH).
3.2 DualZone Technology

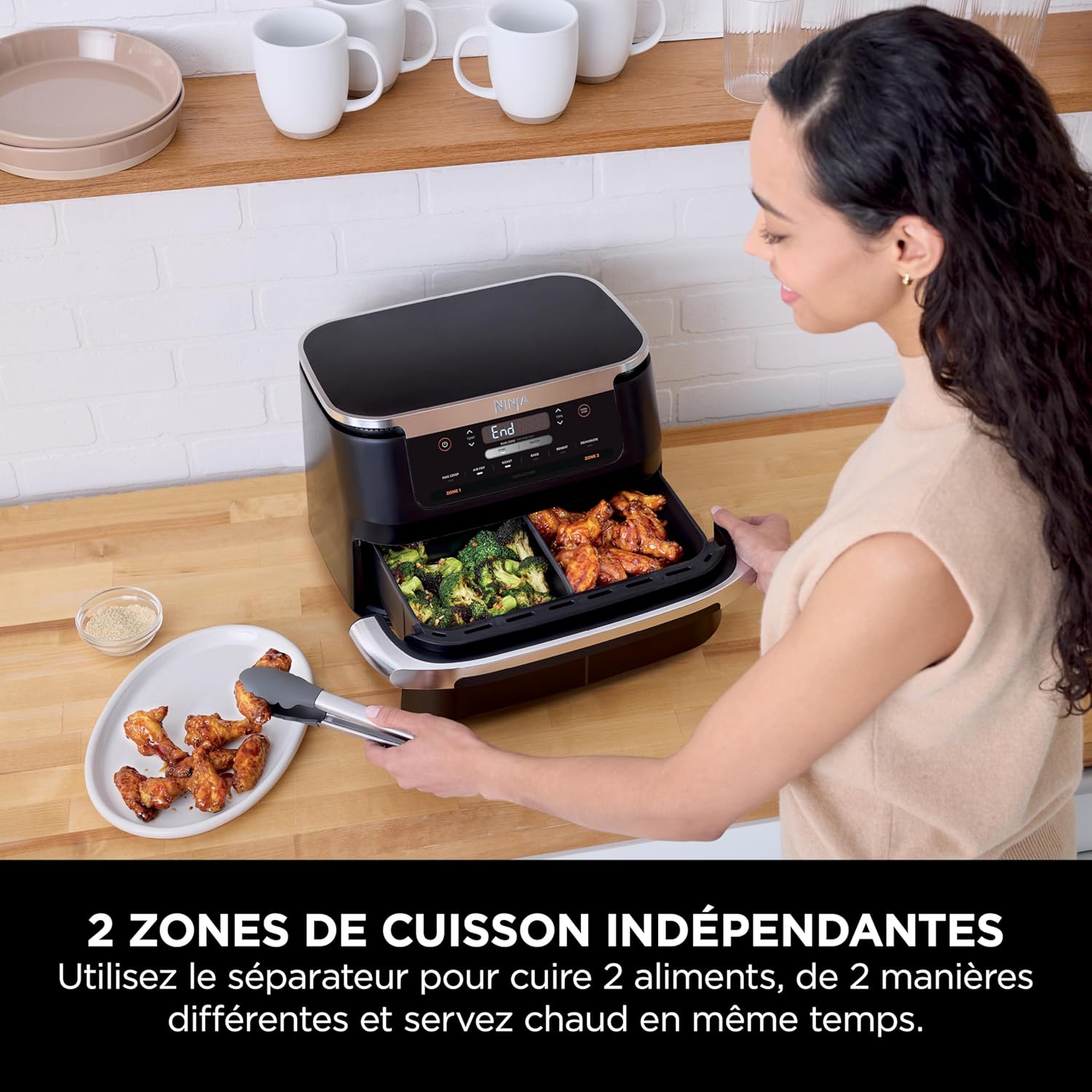

The DualZone feature allows you to cook two different foods with different settings simultaneously. The 6.6 L drawer is divided into two independent 3.3 L zones by the removable separator.
- Insert the separator into the cooking drawer.
- Place food in each zone.
- Select a cooking mode, temperature, and time for Zone 1.
- Select a cooking mode, temperature, and time for Zone 2.
- Use the SYNC function to ensure both zones finish cooking at the same time, or MATCH to apply the same settings to both zones.
- Press Start/Stop to begin cooking.
3.3 MegaZone Functionality
For larger items like roasts or whole chickens, remove the separator to create a single, extra-large 6.6 L cooking zone.
- Ensure the separator is removed from the cooking drawer.
- Place your large food item directly into the drawer.
- Select your desired cooking mode, temperature, and time.
- Press Start/Stop to begin cooking.
3.4 Cooking Modes
The Ninja FlexDrawer Air Fryer offers six distinct cooking functions:
- Air Fry: Uses hot air to cook foods with little to no oil, achieving a crispy finish. Ideal for fries, chicken wings, and vegetables.
- Max Crisp: Designed for frozen foods, this mode rapidly cooks at 240°C to deliver extra crispy results in minutes.
- Roast: Perfect for tender meats, roasted vegetables, and more.
- Bake: Use for cakes, pastries, breads, and other baked goods.
- Reheat: Gently warms leftovers to restore their original texture and flavor.
- Dehydrate: Removes moisture from foods to create dried fruits, vegetable chips, or jerky.
4. Maintenance and Cleaning
4.1 Cleaning the Cooking Drawer and Accessories
The 6.6 L cooking drawer, removable separator, and two crisper plates are all non-stick and dishwasher-safe. For best results and to prolong the life of the non-stick coating, hand washing with warm, soapy water and a non-abrasive sponge is recommended.
4.2 Cleaning the Main Unit
Wipe the exterior of the main unit with a clean, damp cloth after each use. Do not use abrasive cleaners or scouring pads. Never immerse the main unit in water or any other liquid.
4.3 Storage
Ensure the appliance is cool and clean before storing. Store the air fryer in a dry place, preferably in its original packaging or a protective cover.
5. Troubleshooting
If you encounter any issues with your Ninja FlexDrawer Air Fryer, please refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Not plugged in; power outlet issue; unit not properly assembled. | Ensure the power cord is securely plugged into a working outlet. Check if the drawer is fully inserted. |
| Food not cooking evenly. | Overcrowding the drawer; insufficient shaking/flipping. | Do not overcrowd the drawer. Shake or flip food items halfway through cooking for even results. |
| White smoke coming from the unit. | Grease residue from previous cooking; high-fat foods. | Clean the drawer and crisper plates thoroughly after each use. For high-fat foods, consider using parchment paper or draining excess fat. |
| Unit displays an error code. | Internal malfunction. | Unplug the unit, wait 10 minutes, then plug it back in. If the error persists, contact customer support. |
6. Specifications
- Model Number: AF550EU
- Capacity: 6.6 Liters (total), 2 x 3.3 Liters (DualZone)
- Power: 2470 Watts
- Dimensions (L x W x H): 51.8 x 36.8 x 37.6 cm
- Weight: 9.68 Kilograms
- Control Method: Touch
- Special Features: FlexDrawer adaptable, DualZone Technology for simultaneous cooking
7. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your product or visit the official Ninja website. Keep your purchase receipt as proof of purchase for any warranty claims.
