YANWEI Pure Titanium Travel Kettle MDO-Z303B User Manual

1. Product Overview

The YANWEI Pure Titanium Travel Kettle is a portable electric kettle designed for heating water on the go. It features dual voltage compatibility (110-240V), precise temperature control, and safety features like auto shut-off and boil-dry protection. The inner liner is made of pure titanium for taste preservation and durability.

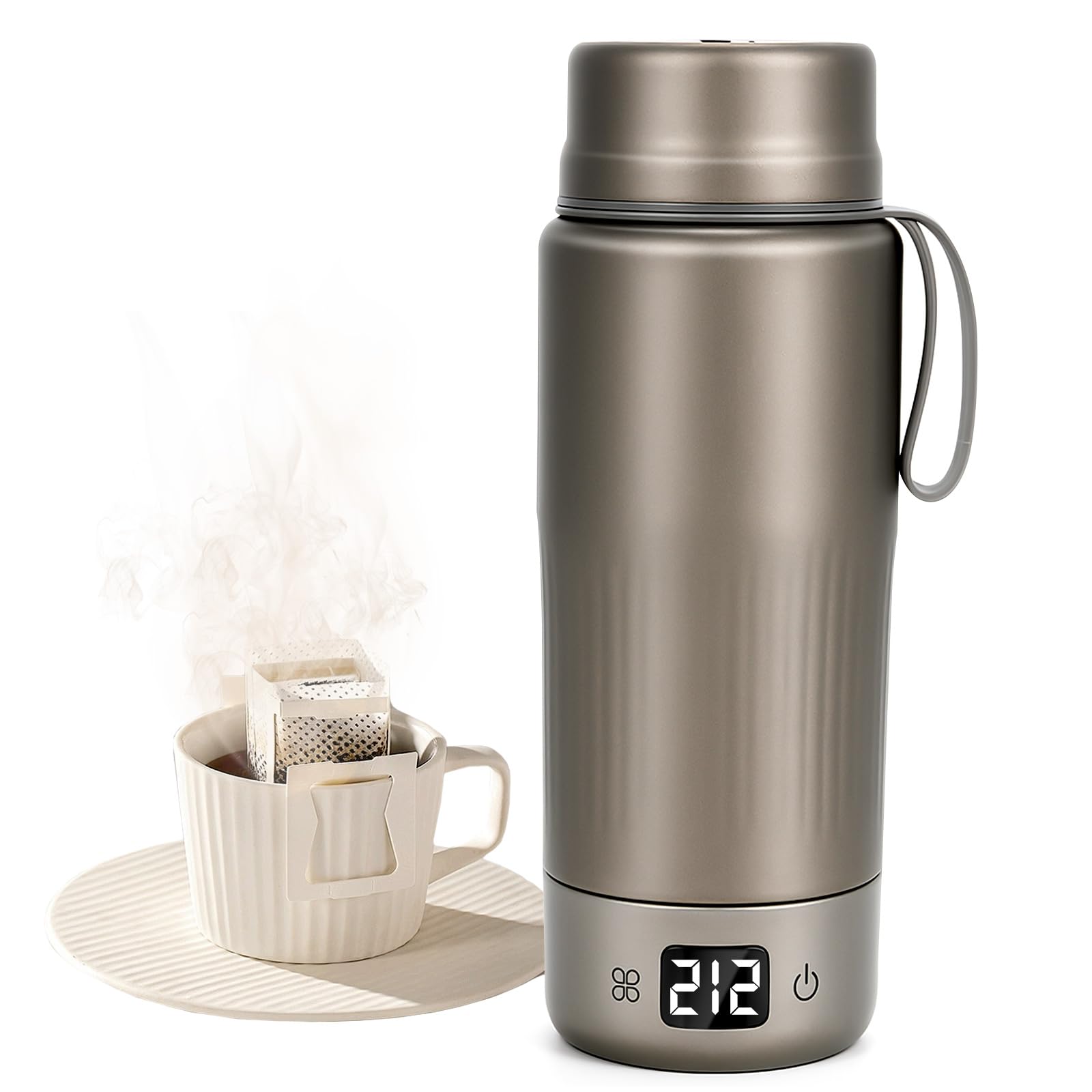

Image: Main view of the YANWEI Pure Titanium Travel Kettle.

2. Safety Precautions

• Do not immerse the kettle in water or other liquids.
• Ensure the power cord is securely connected and not damaged.
• Keep out of reach of children.
• Do not operate the kettle if it is empty (boil-dry protection is included, but it's best practice to avoid).
• Always ensure the lid is properly closed during operation to prevent spills and maintain temperature.
• Use only with the provided power cord.

3. Setup

3.1 Unpacking and Initial Cleaning

1. Carefully remove all packaging materials.
2. Wash the interior of the kettle and the lid with warm water and a mild detergent. Rinse thoroughly.
3. Wipe the exterior with a damp cloth. Do not submerge the base of the kettle in water.

3.2 Power Connection

The kettle features intelligent voltage auto-adaptation (110-240V), making it suitable for global travel. It includes a US power cord. For international travel, a suitable plug adapter (not included) may be required.

• Locate the hidden socket at the base of the kettle.
• Plug the provided US power cord into the socket.
• Connect the other end of the power cord to a compatible electrical outlet.

Image: The kettle is designed for worldwide use with automatic voltage conversion (110V-240V).

Image: Detail of the hidden power socket and non-slip silicone pad at the base of the kettle.

4. Operating Instructions

4.1 Filling the Kettle

• Unscrew the lid of the kettle.
• Fill the kettle with water. Do not exceed the "MAX" fill line indicated inside the kettle.
• Securely screw the lid back onto the kettle.

Image: Pouring water into the kettle, ensuring not to exceed the maximum fill line.

4.2 Powering On and Temperature Selection

1. Press the power button (U symbol) on the base of the kettle to turn it on. The LCD screen will display the current temperature.
2. To switch between Celsius (°C) and Fahrenheit (°F): Within 5 seconds of powering on, hold the adjust button (fan symbol) until you hear a beep. Then, press the power button to toggle between °C and °F.
3. Press the adjust button (fan symbol) repeatedly to cycle through the 12 precise temperature presets (104°F to 212°F in 9°F increments). The LCD screen will show the selected temperature.
4. Once the desired temperature is selected, the kettle will begin heating.

Image: The kettle's display showing various temperature presets suitable for different beverages like tea, coffee, and baby formula.

4.3 Boiling Process and Safety Features

• The kettle heats water to 194°F in approximately 5 minutes and reaches a full boil (212°F) in about 7 minutes.
• The newly upgraded steam vents on the lid safely release pressure during boiling, allowing the lid to remain closed without scalding risks.
• The kettle automatically shuts off upon reaching the preset temperature.
• Boil-dry protection prevents damage if the kettle is accidentally turned on without water.

Image: Illustrates the health benefits of the pure titanium inner liner compared to stainless steel, ensuring no metallic taste.

4.4 Temperature Retention and Portability

• The double-wall vacuum insulation provides exceptional heat retention, maintaining hot water temperatures for up to 6 hours.
• The leak-proof seal remains secure even when inverted, making it ideal for travel.
• Its compact size and lightweight design (0.63 kg / 1.39 lbs) make it easy to carry in bags or luggage.

Image: The portable electric kettle demonstrating its leak-proof design and compact size for easy travel.

Image: The kettle's lightweight design and dimensions (22.6cm/8.9inch height, 15.8oz/447g weight) for easy portability.

5. Maintenance

5.1 Cleaning

• Always unplug the kettle and allow it to cool completely before cleaning.
• Hand Wash Only: The inner titanium liner and lid can be hand washed with warm, soapy water. Rinse thoroughly.
• Wipe the exterior of the kettle with a soft, damp cloth. Do not use abrasive cleaners or scourers.
• Do not immerse the electrical base of the kettle in water.
• For descaling, use a mixture of water and white vinegar or a commercial descaling solution as per product instructions. Rinse multiple times after descaling.

5.2 Storage

Store the kettle in a dry place when not in use. Ensure the hidden socket is covered to protect it from dust and moisture.

Image: Close-up of the kettle's pure titanium inner liner and the hidden power socket for protection.

6. Troubleshooting

• Kettle does not turn on:
  • Ensure the power cord is securely plugged into both the kettle and the wall outlet.
  • Check if the outlet is functioning correctly by plugging in another appliance.
• Temperature display not switching between °C/°F:
  • Ensure you are performing the action within 5 seconds of powering on the kettle.
  • Hold the adjust button (fan symbol) until a beep is heard, then press the power button to switch. Repeat if necessary.
• Water not heating:
  • Verify that a temperature preset has been selected after powering on.
  • Check for any error codes on the LCD display and refer to the full manual for specific code meanings.
• Kettle leaks:
  • Ensure the lid is tightly screwed on.
  • Check the silicone seal around the lid for any damage or misalignment.
  • Do not overfill the kettle beyond the "MAX" line.

7. Specifications

8. Official Product Video

9. Warranty and Support

For warranty information and customer support, please refer to the contact details provided in the packaging or visit the official YANWEI website. Keep your purchase receipt for warranty claims.

The product is designed for durability and performance. If you encounter any issues, please contact customer service for assistance.
