Joie Honour Thunder Reversible Stroller User Manual

1. Introduction

Thank you for choosing the Joie Honour Thunder Reversible Stroller. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your stroller. Please read all instructions carefully before use and keep this manual for future reference. The Joie Honour Thunder is designed for children from 6 months up to 22 kg (approximately 4 years old), offering versatility with a reversible seat, compact fold, and compatibility with various Joie car seats and carrycots.

Image 1.1: Front view of the Joie Honour Thunder Reversible Stroller.

2. Safety Information

Your child's safety is paramount. Always follow these guidelines:

• Weight and Age Limit: This stroller is suitable for children from 6 months up to 22 kg (4 years). When used with a compatible car seat or carrycot (sold separately), it can be used from birth.
• Harness System: Always secure your child with the 5-point harness. Ensure the shoulder straps are adjusted correctly and the buckle is fastened.
• Brakes: Always engage the ShoeSaver one-step brake when the stroller is stationary.
• Supervision: Never leave your child unattended in the stroller.
• Overloading: Do not overload the storage basket or hang bags on the handlebar, as this can cause instability.
• Folding/Unfolding: Keep children clear of moving parts when folding or unfolding the stroller to prevent injury.
• Compatibility: Only use accessories, spare parts, or attachments approved by Joie.
• Safety Standards: This product complies with European safety standards EN 1888-2:2018+A1:2022.

3. Setup and Assembly

Before first use, ensure all components are present and undamaged.

3.1 Unfolding the Stroller

1. Place the folded stroller on a flat surface.
2. Release any locking mechanisms that secure the stroller in its folded position.
3. Lift the handlebar firmly until the frame clicks into place, indicating it is fully open.
4. Ensure all locking mechanisms are engaged before placing a child in the stroller.

3.2 Wheel Attachment

The wheels may come pre-attached or require simple attachment. Push each wheel onto its axle until it clicks securely into place. Pull on the wheel to ensure it is firmly attached.

4. Operating the Stroller

4.1 Reversible Seat

The Honour Thunder features a reversible seat, allowing your child to face you or the world. To reverse the seat:

1. Ensure the child is removed from the seat.
2. Locate the release levers or buttons on either side of the seat unit.
3. Press the levers/buttons and lift the seat unit off the chassis.
4. Rotate the seat unit 180 degrees and reattach it to the chassis until it clicks securely into place.

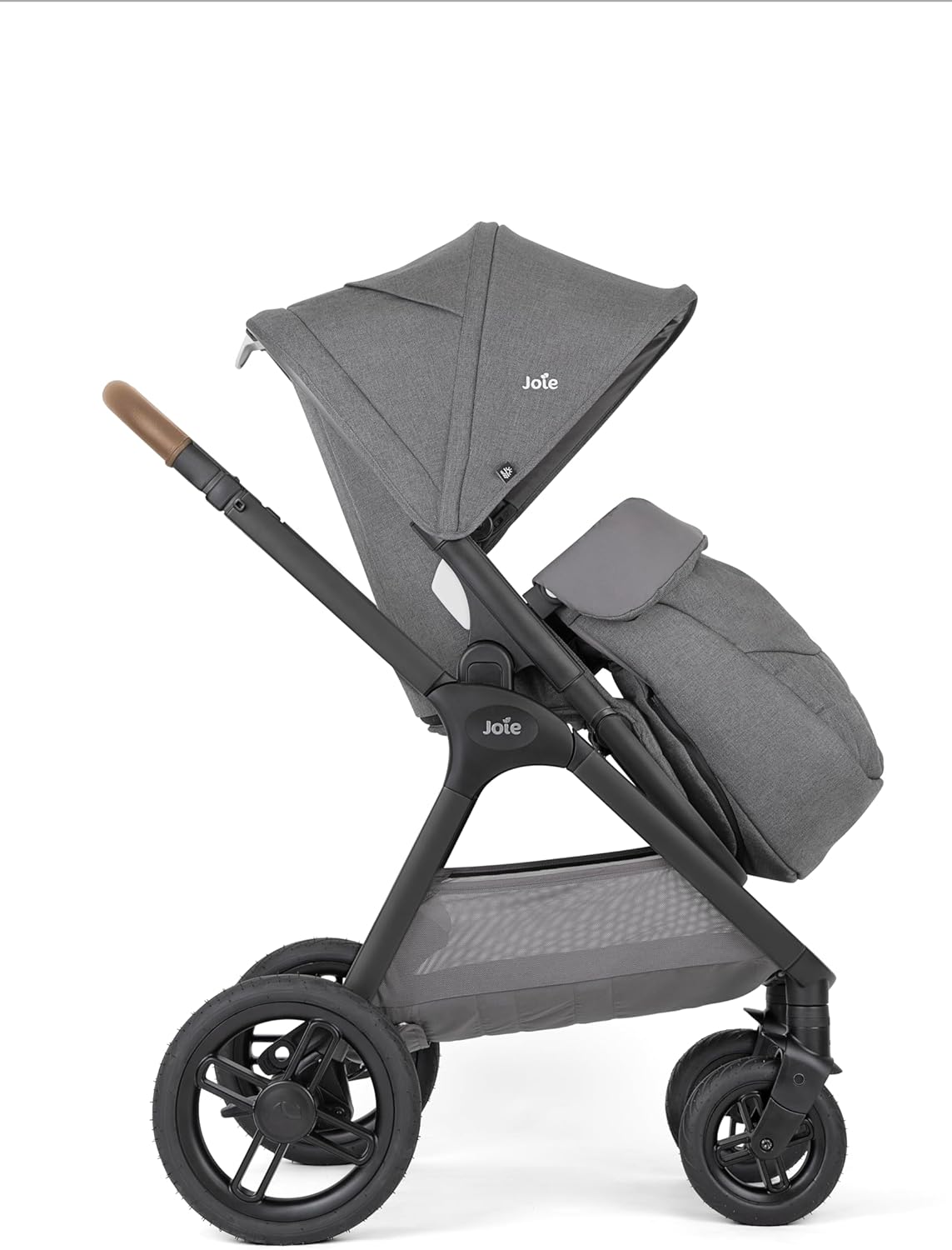

Image 4.1: Stroller with seat in forward-facing position.

4.2 Reclining the Seat

The seat offers 4 recline positions for your child's comfort. To recline, locate the recline lever on the back of the seat and adjust to the desired position. Ensure the seat is securely locked in place before use.

4.3 Adjustable Leg Rest

The leg rest can be adjusted to 2 positions. Press the buttons on either side of the leg rest to adjust its angle for your child's comfort.

4.4 Adjustable Handlebar

The handlebar height can be adjusted to suit the parent's height. Locate the adjustment buttons on the sides of the handlebar and press them to extend or retract the handle.

4.5 Folding the Stroller

The Honour Thunder features a compact one-hand fold. To fold:

1. Ensure the seat is in the forward-facing position and fully upright.
2. Engage the brake.
3. Locate the folding mechanism (usually a button or lever on the handlebar or chassis).
4. Follow the specific folding steps for your model, typically involving pressing a button and pulling a strap or lever to collapse the frame.
5. Once folded, ensure the stroller is securely latched and can stand upright for compact storage.

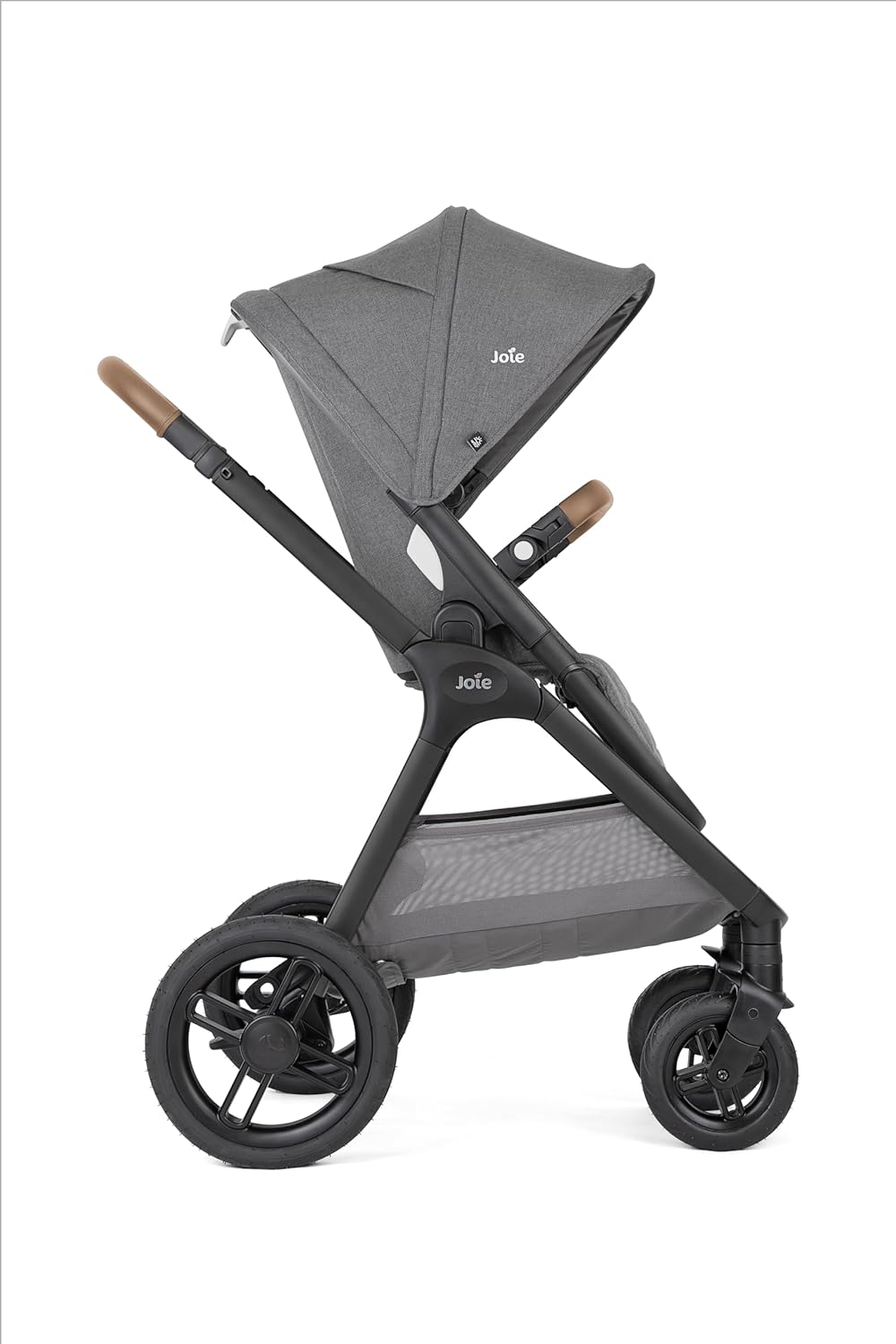

Image 4.2: Side view of the stroller, demonstrating its compact design.

5. Compatibility

The Joie Honour Thunder Stroller is designed to be compatible with various Joie infant car seats and carrycots, transforming it into a modular travel system. Adapters are included for seamless integration.

5.1 Compatible Joie Products (Sold Separately)

• Joie i-Gemm™ 3 Infant Car Seat
• Joie i-Snug™ 2 Infant Car Seat
• Joie i-Level™ Recline Infant Car Seat
• Joie Sprint Infant Car Seat
• Joie i-Jemini Infant Car Seat
• Joie Honour Carrycot
• Joie Calmi Carrycot

To attach a car seat or carrycot, remove the stroller seat and follow the instructions provided with the car seat/carrycot and adapters.

Image 5.1: Stroller with a compatible carrycot attached.

6. Maintenance

Regular maintenance ensures the longevity and safety of your stroller.

6.1 Cleaning

• Fabric Parts: Wipe clean with a damp cloth and mild soap. Do not use harsh detergents or bleach. Allow to air dry completely. Refer to the care label on the fabric for specific washing instructions.
• Frame: Wipe the frame with a damp cloth. Do not use abrasive cleaners.
• Wheels: Clean wheels regularly to remove dirt and debris. Lubricate axles with a silicone-based lubricant if they become stiff.

6.2 Storage

Store the stroller in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your stroller, refer to the following common solutions:

8. Specifications

9. Warranty and Support

For warranty information, product registration, or customer support, please refer to the warranty card included with your purchase or visit the official Joie website. Keep your proof of purchase for any warranty claims.
