Toursor X14-60V-10000W Electric Scooter Adult Instruction Manual

1. Introduction

Welcome to the world of advanced personal mobility with your new Toursor X14-60V-10000W Electric Scooter. This manual provides essential information for the safe and efficient operation, maintenance, and care of your scooter. Designed for adults, this powerful electric scooter features dual 5000W brushless hub motors, a 60V 50Ah lithium battery offering up to 70 miles of range, and 14-inch off-road tires for versatile terrain handling. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.

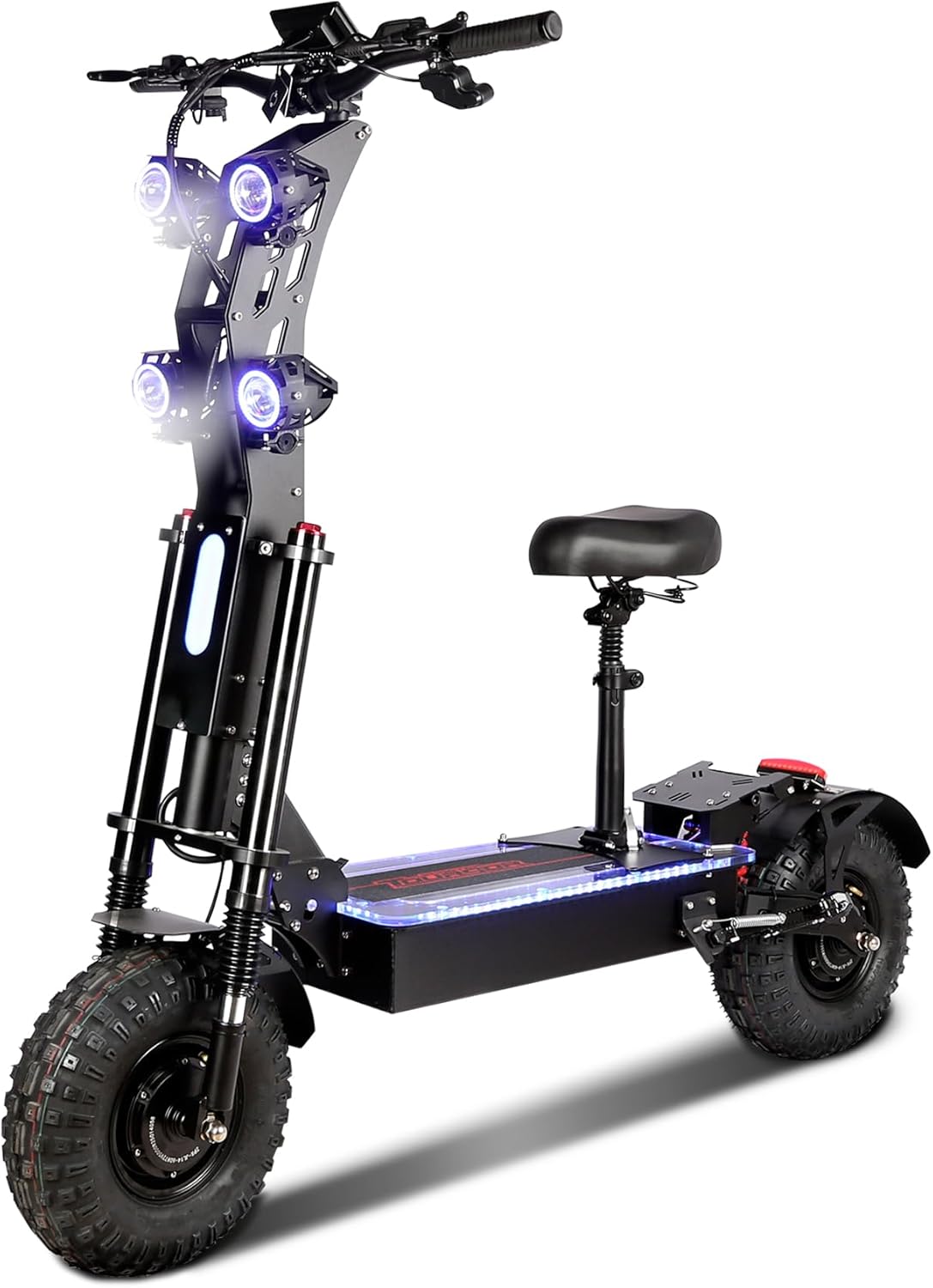

Figure 1.1: The Toursor X14-60V-10000W Electric Scooter, a high-performance adult scooter designed for various terrains.

2. Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Wear Protective Gear: Always wear a helmet, knee pads, elbow pads, and appropriate footwear when riding.
• Understand Local Laws: Familiarize yourself with and obey all local traffic laws and regulations regarding electric scooters.
• Pre-Ride Inspection: Before each ride, check the brakes, tire pressure, and ensure all components are securely fastened.
• Maintain Control: Ride within your skill level and avoid sudden maneuvers. The scooter is equipped with hydraulic disc brakes for quick and reliable stopping power in emergencies.
• Environmental Awareness: Be aware of your surroundings, pedestrians, and other vehicles. Avoid riding in adverse weather conditions or on slippery surfaces.
• Weight Limit: Do not exceed the maximum load capacity of 440 lbs (200 kg).

Figure 2.1: A rider demonstrating proper safety attire, including a helmet and protective pads, while operating the Toursor electric scooter.

3. Setup and Initial Preparation

3.1 Unboxing and Assembly

Your Toursor X14-60V-10000W scooter comes largely pre-assembled. Carefully remove the scooter and all accessories from the packaging. Ensure all packing materials are removed before proceeding.

• Unfold the Scooter: Gently lift the handlebar stem until it locks into place. Ensure the double folding lock mechanism is securely engaged.
• Handlebar Adjustment: Adjust the handlebar height to a comfortable position and tighten any quick-release clamps.
• Seat Installation (Optional): If your model includes a seat, attach it according to the provided instructions, ensuring it is stable and secure.

3.2 Initial Charging

Before your first ride, fully charge the scooter's battery.

• Locate the charging ports on the scooter. This model features dual charging ports for faster charging.
• Connect the provided chargers to the scooter's charging ports and then to a standard power outlet.
• The charging indicator on the charger will typically show red during charging and turn green when fully charged.
• A full charge takes approximately 8-10 hours with dual chargers.

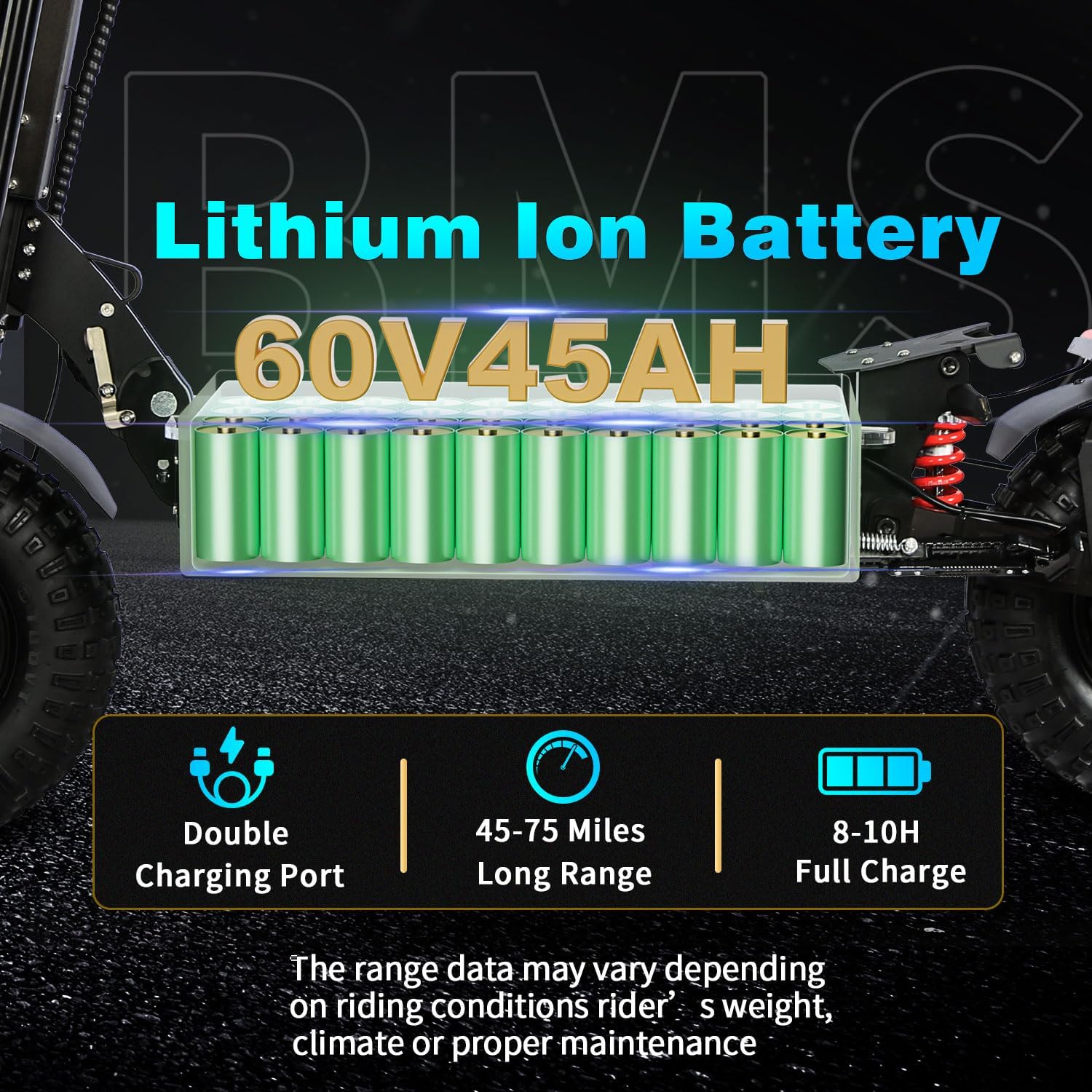

Figure 3.1: Illustration of the scooter's lithium-ion battery pack and dual charging ports, highlighting the charging process.

3.3 Tire Pressure Check

Ensure the 14-inch off-road tires are properly inflated to the recommended pressure, typically found on the tire sidewall. Correct tire pressure is crucial for safety, performance, and battery range.

4. Operating Instructions

4.1 Powering On/Off

To power on the scooter, insert the key into the ignition and turn it to the 'ON' position. The LCD display will illuminate. To power off, turn the key to 'OFF' and remove it.

4.2 LCD Display and Controls

The upgraded LCD display provides real-time information about your ride:

• Battery Level: Indicates remaining battery charge.
• Speed: Current riding speed.
• Mileage: Total distance traveled.
• Voltmeter: Displays battery voltage.
• Light Switch: Controls headlights and other lighting.
• Horn Switch: Activates the horn.
• Speed-Limiting Switch: Engages or disengages speed limits.
• Single/Dual Drive Switching Switch: Toggles between single motor and dual motor operation for varied power output.

Figure 4.1: Detailed view of the scooter's upgraded LCD screen and various handlebar controls, including switches for lights, horn, speed limiting, and drive mode selection.

4.3 Riding Modes

The scooter offers three motion modes to tailor your ride:

• Eco Mode: For maximum range and energy efficiency.
• Standard Mode: A balance of speed and range for everyday commuting.
• Sport Mode: Unleashes full power for maximum speed and acceleration.

Select the desired mode using the instrument gear button (MODE) on the handlebar.

4.4 Braking

The scooter is equipped with XOD hydraulic disc brakes. To brake, gently squeeze the brake levers on the handlebars. Apply both brakes simultaneously for optimal stopping power and control.

4.5 Folding and Storage

For convenient storage and transport, the scooter features a double folding lock mechanism. Follow these steps to fold:

1. Ensure the scooter is powered off.
2. Locate the folding mechanism at the base of the handlebar stem.
3. Disengage the double folding lock and carefully fold the handlebar stem downwards until it latches.
4. The compact design allows for easy storage in car trunks or small spaces.

Figure 4.2: Visual representation of the scooter's foldable design, illustrating its compact dimensions when folded for easy storage and portability.

4.6 Night Driving Features

For enhanced visibility and safety during night rides, the scooter is equipped with:

• Four super bright headlights.
• Remote control LED boards.
• Beautiful atmosphere lights on the board and front.
• Rear brake light.
• Rear turn signal lights.

Figure 4.3: The scooter illuminated with its various lighting features, including headlights, deck lights, and rear brake/turn signals, designed for safe night driving.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Toursor scooter.

• Battery Care: Always charge the battery fully after each use. If storing for an extended period, charge it to about 50-70% and recharge every 1-2 months to prevent deep discharge. Store in a cool, dry place.
• Tire Maintenance: Regularly check tire pressure and inspect for wear, punctures, or damage. Replace tires when tread is significantly worn.
• Brake System: Periodically check the hydraulic disc brakes for proper function. Ensure brake levers are responsive and brake pads are not excessively worn. Consult a professional for brake adjustments or replacements if needed.
• Cleaning: Clean the scooter with a damp cloth. Avoid using high-pressure water jets directly on electrical components. Do not submerge the scooter in water.
• Frame and Fasteners: Inspect the aluminum alloy frame for any signs of damage or cracks. Ensure all screws, bolts, and quick-release mechanisms are tight and secure before each ride.

6. Troubleshooting

This section addresses common issues you might encounter with your scooter.

• Scooter Not Turning On:
  • Check if the key is fully inserted and turned to the 'ON' position.
  • Ensure the battery is charged. Connect the charger and check the indicator light.
  • Verify all electrical connections are secure.
• Reduced Range/Power:
  • Ensure the battery is fully charged.
  • Check tire pressure; underinflated tires can significantly reduce range.
  • Riding conditions (e.g., steep inclines, strong headwinds, rider weight) can affect range.
  • Ensure you are in the appropriate riding mode (Eco mode offers maximum range).
• Brakes Not Responsive:
  • Inspect brake pads for wear.
  • Check brake fluid levels for hydraulic systems.
  • If issues persist, seek professional assistance.
• Unusual Noises:
  • Inspect wheels, motors, and suspension for loose parts or obstructions.
  • Ensure all fasteners are tight.

For any issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Toursor customer support. Our team provides 24/7 technical support and service.

7. Specifications

Detailed technical specifications for the Toursor X14-60V-10000W Electric Scooter:

8. Warranty and Support

Toursor is committed to providing high-quality products and excellent customer service. For any technical assistance, questions, or concerns regarding your scooter, please do not hesitate to contact our support team. We offer 24/7 technical support and service to ensure your satisfaction.

Please refer to your purchase documentation or the official Toursor website for detailed warranty information and contact methods.

9. Media Gallery

9.1 Product Images

Figure 9.1: The Toursor X14-60V-10000W Electric Scooter highlighting its top speed of 65 MPH, 70 miles max range, 10,000W motor power, and 60V 50Ah battery.

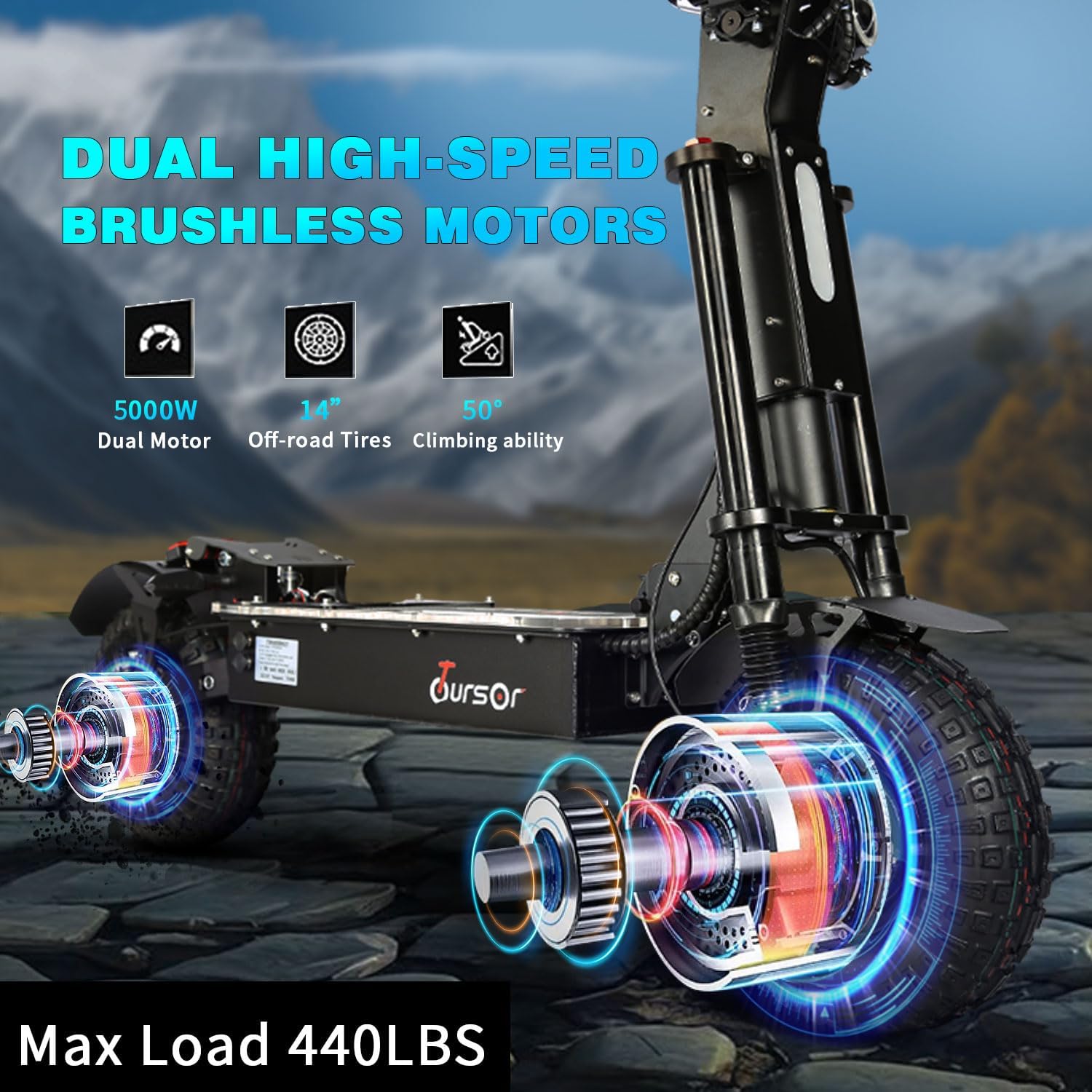

Figure 9.2: Illustration of the scooter's dual high-speed brushless motors (5000W each), 14-inch off-road tires, and 50-degree climbing ability, with a maximum load capacity of 440 lbs.
