AMZCHEF 30-inch Range Hood Insert (Model LB0171A1)

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your AMZCHEF 30-inch Built-in Range Hood Insert, Model LB0171A1. Please read this manual thoroughly before installation and use, and retain it for future reference.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This appliance is intended for household use only. Do not attempt to repair or replace any part of your range hood unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

• Ensure proper installation by a qualified technician in accordance with all local codes and ordinances.
• Disconnect power before servicing or cleaning the unit.
• Clean grease filters frequently. Grease accumulated on filters can ignite.
• Never leave surface units unattended at high settings. Boil-overs cause smoking and greasy spill-overs that may ignite.
• Use appropriate pan size. Always use cookware appropriate for the size of the surface element.

3. Package Contents

Verify that all items listed below are included in your package:

• AMZCHEF Range Hood Insert (Model LB0171A1)
• 2 x Washable Baffle Filters
• 2 x Activated Charcoal Filters (for ductless operation)
• 6-inch Vent Pipe (for ducted installation)
• User Manual
• Mounting Hardware (ST4X30 screws, 12 pcs + 2 extra)
• Round Damper (1 set)

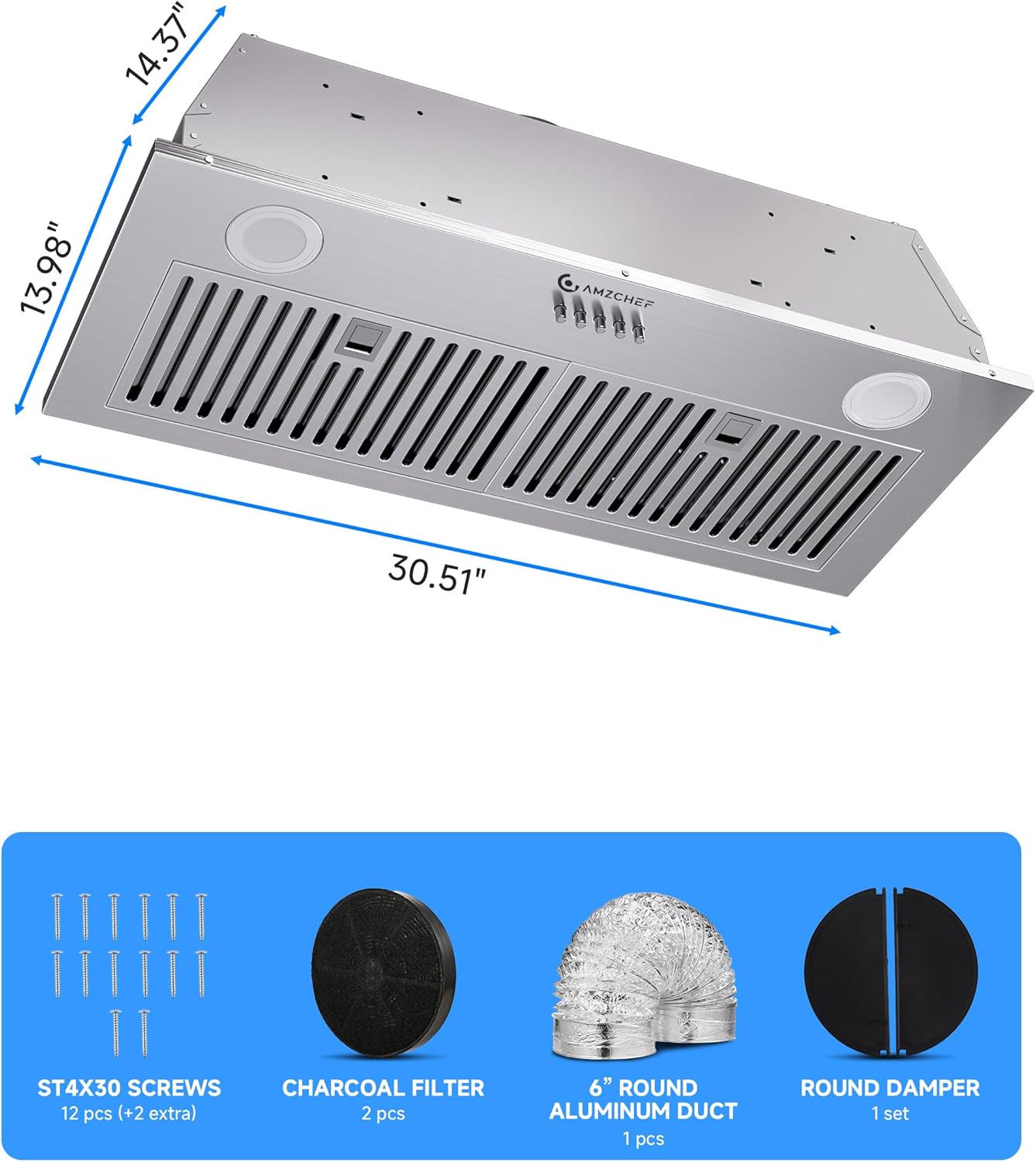

Figure 3.1: Included components for the AMZCHEF Range Hood Insert, showing the main unit, baffle filters, charcoal filters, 6-inch aluminum duct, round damper, and mounting screws.

4. Installation

The AMZCHEF Range Hood Insert is designed for built-in installation within your kitchen cabinetry. It supports both ducted (venting outdoors) and ductless (recirculating indoors) configurations.

4.1 Ducted vs. Ductless Operation

This range hood offers flexibility for your kitchen setup. For ducted operation, connect the included 6-inch vent pipe to exhaust air outside. For ductless (recirculating) operation, install the activated charcoal filters to purify the air before returning it to the kitchen. The charcoal filters are essential for effective odor removal in ductless mode.

Figure 4.1: Illustration of the ducted mode with an exhaust pipe and the ductless mode with an active carbon filter for air recirculation.

4.2 Dimensions and Placement

The unit measures approximately 30.5 inches (width) x 14.4 inches (depth) x 14 inches (height). Ensure your cabinet opening provides adequate space for the insert and proper clearance above your cooking surface. Refer to the detailed installation guide provided in the package for precise measurements and cutting instructions.

Figure 4.2: The AMZCHEF 30-inch Range Hood Insert, designed for seamless integration into kitchen cabinetry.

4.3 Electrical Connection

The range hood operates on 110 Volts, 60 Hz power, and comes with a three-prong plug. Ensure your electrical outlet meets these specifications and is properly grounded.

5. Operating Instructions

The AMZCHEF Range Hood features intuitive push-button controls for easy operation.

Figure 5.1: Push-button controls for power, fan speed (Low, Medium, High), and LED lighting.

5.1 Fan Speed Control

Press the dedicated buttons to select your desired fan speed: Low, Medium, or High. The powerful 900 CFM motor efficiently removes smoke and odors, maintaining a clean kitchen environment.

Figure 5.2: The range hood's powerful 900 CFM suction effectively removes cooking fumes.

5.2 LED Lighting

Activate the bright 4000K LED task lighting with a single touch of the light button. This provides clear illumination over your cooking surface.

Figure 5.3: Dual 4000K LED lights provide bright and energy-saving illumination for your cooking space.

5.3 Quiet Operation

Despite its powerful suction, the range hood operates at a maximum noise level of 62dB, ensuring a quiet cooking experience.

Figure 5.4: The range hood features a noise reduction design, operating as low as 62dB for a quiet kitchen environment.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your range hood.

6.1 Cleaning Baffle Filters

The stainless steel baffle filters are designed for easy cleaning and are dishwasher-safe. For best results, clean them regularly to prevent grease buildup, which can affect performance and pose a fire hazard. To remove, simply unlatch and pull down the filters.

Figure 6.1: The detachable stainless steel baffle filters are dishwasher-safe for effortless cleaning.

6.2 Replacing Charcoal Filters (Ductless Mode)

If operating in ductless mode, the activated charcoal filters should be replaced periodically, typically every 3-6 months depending on usage. Refer to the full user manual for specific replacement instructions.

6.3 Exterior Cleaning

Clean the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads that could scratch the surface.

7. Specifications

8. Troubleshooting

If you experience any issues with your AMZCHEF Range Hood, please refer to the following common troubleshooting steps:

• No Power: Check if the unit is properly plugged into a grounded 110V outlet. Verify the circuit breaker has not tripped.
• Low Suction: Ensure baffle filters are clean and not clogged with grease. If in ductless mode, check if charcoal filters need replacement. Verify the vent pipe (if ducted) is not obstructed.
• Excessive Noise: Check for loose components or obstructions in the fan. Ensure the unit is securely mounted.
• Lights Not Working: Check if the LED light button is pressed. If individual lights are out, they may need replacement by a qualified technician.

For more detailed troubleshooting or issues not covered here, please consult the comprehensive user manual or contact customer service.

9. Warranty and Customer Support

For warranty information or to contact customer service regarding your AMZCHEF Range Hood, please refer to the contact details provided in your product packaging or visit the official AMZCHEF website. Our customer service team is available to assist you with any questions or concerns.
