ZeStarDair DT-3000 3000W Step Up/Down Voltage Converter User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your ZeStarDair DT-3000 3000W Step Up/Down Voltage Converter. This device is designed to convert electrical voltage between 110V and 220V, allowing you to use appliances from different regions. Please read this manual thoroughly before using the converter and retain it for future reference.

Image 1: The ZeStarDair DT-3000 3000W Step Up/Down Voltage Converter, showcasing its robust design and multiple output sockets.

2. Safety Instructions

To prevent injury or damage to the converter and connected appliances, always follow these safety precautions:

• Read all instructions: Familiarize yourself with the operation and safety features before use.
• Proper Ventilation: Ensure the converter is placed in a well-ventilated area. Do not block the ventilation holes.
• Indoor Use Only: This device is designed for indoor use. Do not expose it to rain, moisture, or extreme temperatures.
• Avoid Overload: Do not exceed the maximum rated power of 3000W. Overloading can cause the circuit breaker to trip or damage the unit.
• Grounding: Always connect the converter to a grounded electrical outlet.
• Children and Pets: Keep the converter out of reach of children and pets.
• Disconnect Power: Always unplug the converter from the power source before cleaning or servicing.
• Liquid Contact: Do not immerse the converter in water or any other liquid. Avoid spills.
• Damage Inspection: Regularly inspect the power cord and the converter for any signs of damage. Do not operate if damaged.
• Surge Protection: The built-in 380 Joule surge protector helps protect connected appliances from unstable surges.

3. Package Contents

Verify that all items are present in the package:

• 1x ZeStarDair DT-3000 3000W Step Up/Down Voltage Converter
• 1x Power Cord

4. Product Overview and Features

The ZeStarDair DT-3000 is a heavy-duty voltage converter designed for reliable power transformation. Key features include:

• Two-Way Conversion: Converts 110V to 220V, and 220V to 110V.
• High Power Capacity: Maximum power output of 3000W.
• Multiple Sockets: Features three 220V universal output plugs and three 110V output plugs.
• Overload Protection: Automatically stops operation if overloaded to prevent damage and ensure safety.
• Efficient Heat Dissipation: Double-row large-diameter heat dissipation holes ensure safe and stable operation.
• Surge Protection: Built-in 380 Joule surge protector safeguards connected electronics.
• Soft-Start Circuitry: Prevents inrush currents at startup, protecting your home breaker and appliances.
• Durable Construction: Made from iron and aluminum with high-quality coils for longevity and high energy conversion.

Image 2: The ZeStarDair DT-3000 Voltage Converter displaying its physical dimensions: 27cm (10.63in) length, 19.3cm (7.61in) width, and 17cm (6.69in) height.

Image 3: The ZeStarDair DT-3000 Voltage Converter shown in a home setting, illustrating its compatibility with common household appliances such as microwaves, juicers, rice cookers, and irons.

5. Setup Instructions

1. Unpack the Converter: Carefully remove the converter and power cord from its packaging.
2. Placement: Place the converter on a stable, flat surface in a well-ventilated area. Ensure there is sufficient space around the unit for air circulation. Avoid placing it on carpets or near heat sources.
3. Determine Voltage Requirement: Identify the voltage required by your appliance (e.g., 110V or 220V) and the voltage available from your wall outlet.
4. Connect Appliance:
   • If converting 220V to 110V: Plug your 110V appliance into one of the "OUTPUT 110V" sockets on the converter.
   • If converting 110V to 220V: Plug your 220V appliance into one of the "OUTPUT 220V" sockets on the converter.

   Important: Ensure the total wattage of all connected appliances does not exceed 3000W.
5. Connect to Power Source: Plug the converter's power cord into a suitable wall outlet.

6. Operating Instructions

1. Power On: After connecting your appliance and the converter to the wall outlet, flip the "ON/OFF" switch on the converter to the "ON" position. The "POWER SOURCE" indicator light will illuminate.
2. Appliance Operation: Turn on your connected appliance.
3. Power Off: When finished, turn off your appliance first, then flip the "ON/OFF" switch on the converter to the "OFF" position. Unplug the converter from the wall outlet.

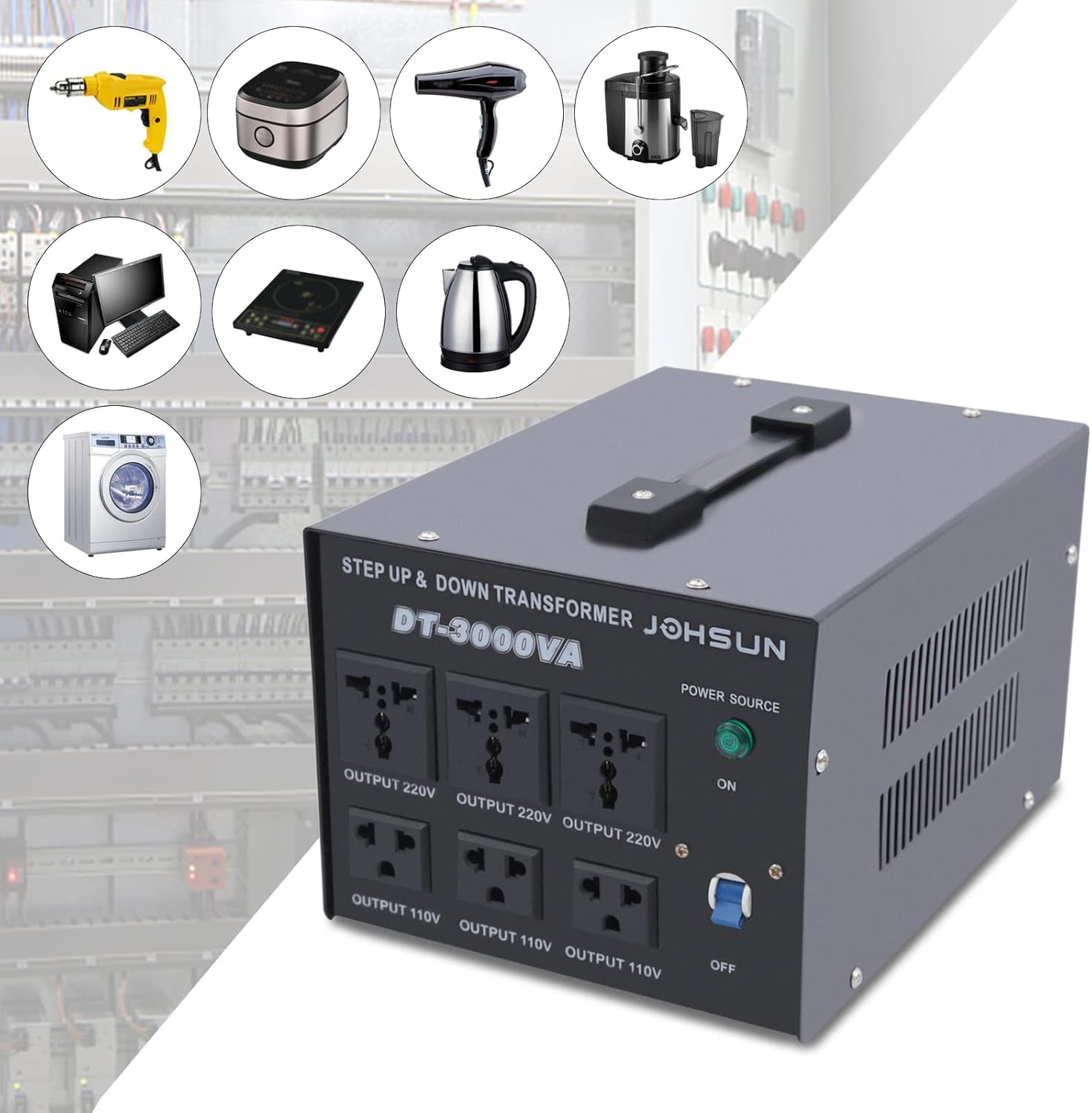

Image 4: The ZeStarDair DT-3000 Voltage Converter demonstrating its versatility by powering a range of devices including drills, rice cookers, hairdryers, juicers, computers, induction cookers, kettles, and washing machines.

Image 5: A visual representation of the ZeStarDair DT-3000 Voltage Converter's broad compatibility, surrounded by icons of various appliances it can power, such as printers, microwaves, computers, washing machines, juicers, hairdryers, drills, laptops, and induction cookers.

7. Maintenance

Proper maintenance ensures the longevity and safe operation of your voltage converter:

• Cleaning: Disconnect the converter from the power source. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
• Ventilation: Periodically check that the ventilation holes are free from dust and debris. Use a soft brush or compressed air to clear them if necessary.
• Storage: If storing the converter for an extended period, ensure it is clean, dry, and stored in a cool, dry place away from direct sunlight and moisture.
• Cord Care: Avoid bending or kinking the power cord excessively. Do not place heavy objects on the cord.

8. Troubleshooting

If you encounter issues with your ZeStarDair DT-3000, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact ZeStarDair customer service. Keep your purchase receipt as proof of purchase for warranty claims.

You can visit the official ZeStarDair store for more information: ZeStarDair Store
