1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your FTYHFEFH Carburetor, designed as a direct replacement for Tecumseh HM80-155465P engines. Please read this manual thoroughly before attempting any installation or service to ensure proper function and safety.
Package Contents:
- One (1) FTYHFEFH Carburetor (as pictured)
2. Product Overview and Features
The FTYHFEFH Carburetor is engineered to meet or exceed original equipment specifications for Tecumseh HM80-155465P engines, ensuring reliable performance and a perfect fit.
- Direct Replacement: Specifically designed for Tecumseh HM80-155465P engines, matching factory specifications for seamless integration.
- Factory Dimensions: Manufactured to exact standards to ensure a perfect fit and proper function.
- Durable Construction: Made from high-quality materials for extended service life and resistance to wear.
- Easy Installation: Designed for user-friendly replacement, typically requiring no special tools.

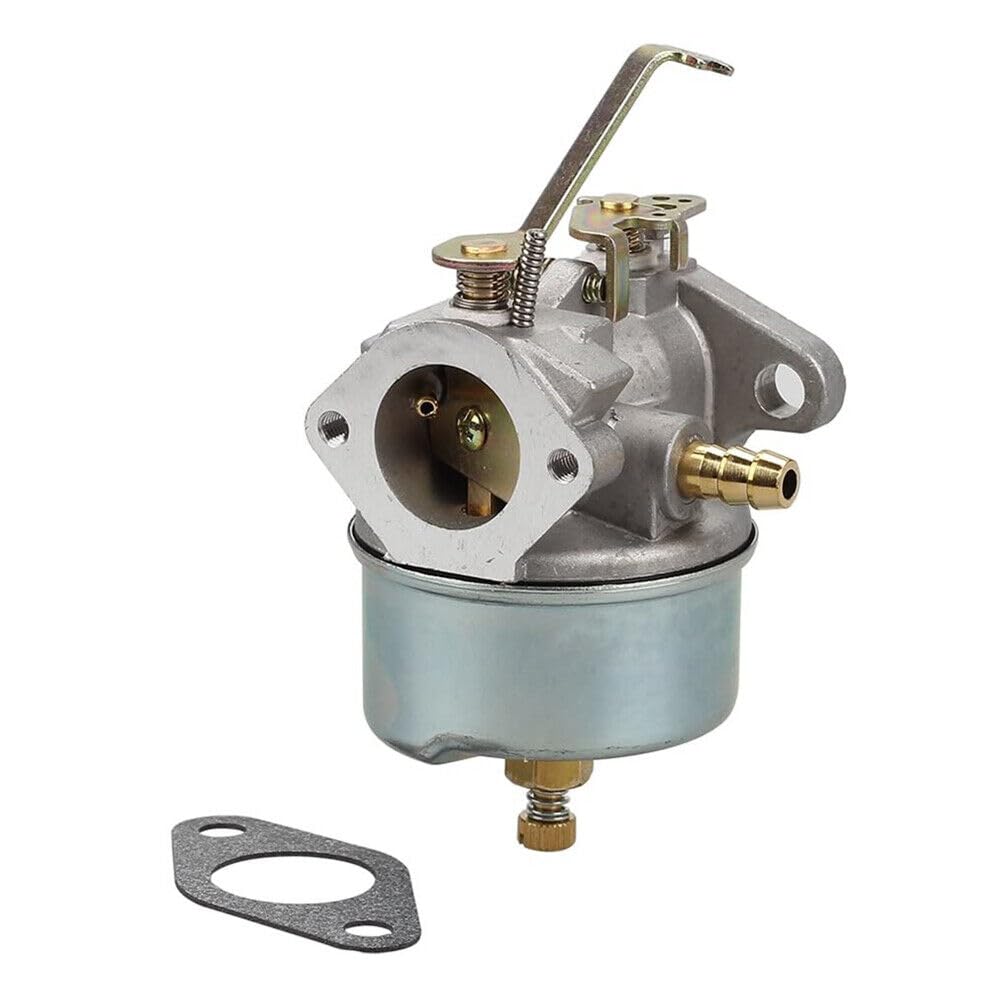

Figure 1: Front view of the FTYHFEFH Carburetor, showing the main body, fuel bowl, and choke mechanism.
3. Safety Information
Always prioritize safety when working with engine components. Failure to follow safety instructions can result in serious injury or damage to equipment.
- Ensure the engine is completely off and cooled down before beginning any work.
- Disconnect the spark plug wire to prevent accidental starting.
- Work in a well-ventilated area, as gasoline fumes are flammable and hazardous.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
- Keep a fire extinguisher nearby when working with fuel.
- Refer to your engine's original service manual for specific safety precautions related to your Tecumseh HM80-155465P engine.
4. Installation and Setup
This carburetor is designed for direct replacement. While installation is generally straightforward, it is recommended that individuals without mechanical experience consult a qualified technician or refer to the specific service manual for the Tecumseh HM80-155465P engine.
General Installation Steps:
- Preparation:
- Ensure the engine is off and cool. Disconnect the spark plug wire.
- Drain the fuel tank or pinch off the fuel line to prevent spills.
- Gather necessary tools (wrenches, screwdrivers, pliers, etc.).
- Remove Old Carburetor:
- Carefully disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor.
- Unbolt the old carburetor from the engine manifold. Note the position of any gaskets.
- Install New Carburetor:
- Ensure mating surfaces are clean. Install new gaskets if provided or recommended by the engine manual.
- Mount the new FTYHFEFH Carburetor onto the engine manifold, ensuring it is seated correctly.
- Reconnect the throttle linkage, choke linkage, and fuel line. Ensure all connections are secure and free of leaks.
- Final Checks:
- Reconnect the spark plug wire.
- Refill the fuel tank. Check for any fuel leaks.
- Start the engine and allow it to warm up. Adjust idle speed and mixture if necessary, following your engine's service manual guidelines.
Figure 2: Side view of the FTYHFEFH Carburetor, highlighting the mounting bolt holes and the fuel inlet barb.
Figure 3: Opposite side view of the FTYHFEFH Carburetor, showing the air intake opening and additional linkage points.
5. Operation
Once installed, the FTYHFEFH Carburetor functions as the fuel-air mixing device for your Tecumseh HM80-155465P engine. Proper operation relies on the engine's overall condition and correct adjustments.
- Starting: Follow your engine manufacturer's starting procedures, which typically involve setting the choke and throttle.
- Running: The carburetor automatically mixes fuel and air for optimal combustion.
- Adjustments: If idle or mixture adjustments are needed, refer to your Tecumseh HM80-155465P engine's service manual for precise instructions. Incorrect adjustments can lead to poor performance or engine damage.
Figure 4: Top-down view of the FTYHFEFH Carburetor, illustrating the choke and throttle plate mechanisms.
6. Maintenance
Regular maintenance of your carburetor and engine components is crucial for longevity and optimal performance.
- Fuel Quality: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues.
- Fuel Filter: Regularly inspect and replace the fuel filter to prevent debris from entering the carburetor.
- Air Filter: Ensure the engine's air filter is clean and properly installed to prevent dirt from entering the carburetor and engine.
- Cleaning: If the carburetor becomes clogged or dirty, it may require cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with appropriate mechanical knowledge.
- Storage: Before long-term storage, drain the fuel system or use a fuel stabilizer to prevent gum and varnish buildup in the carburetor.
7. Troubleshooting
If your engine experiences issues after carburetor installation, consider the following common troubleshooting steps. Always refer to your Tecumseh HM80-155465P engine's service manual for detailed diagnostics.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, clogged fuel line/filter, incorrect choke setting, spark plug issue, carburetor jets clogged. | Check fuel level, inspect fuel line/filter, verify choke position, check spark plug, clean carburetor. |
| Engine runs rough/stalls | Dirty carburetor, incorrect idle/mixture adjustment, air leak, old fuel. | Clean carburetor, adjust idle/mixture (refer to engine manual), check for air leaks around manifold, use fresh fuel. |
| Fuel leaks | Loose fuel line, damaged gasket, float bowl issue. | Tighten fuel line connections, replace gaskets, inspect float and needle valve. |
| Engine lacks power | Clogged air filter, restricted exhaust, carburetor issues. | Clean/replace air filter, check exhaust for blockages, clean/service carburetor. |
Note: If issues persist after basic troubleshooting, professional service is recommended.
8. Specifications
Key specifications for the FTYHFEFH Carburetor:
- Brand: FTYHFEFH
- Model Compatibility: Tecumseh HM80-155465P Engine
- Manufacturer Part Number: 1
- UPC: 779824710562
- ASIN: B0F996FT1Y
- Construction: Durable metal alloy
- Design: Direct replacement, factory dimensions
9. Warranty and Support
Specific warranty information for this FTYHFEFH Carburetor is not provided in the product details. For any warranty claims or technical support, please contact the seller or manufacturer directly through your purchase platform.
When contacting support, please have your purchase details, product model (FTYHFEFH Carburetor for Tecumseh HM80-155465P Engine), and ASIN (B0F996FT1Y) readily available.
